Pan grinder

Delta LB 300

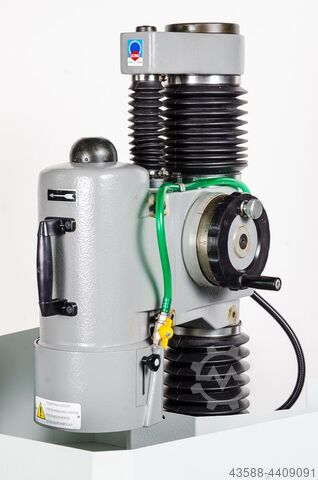

Condition: new, Technical data: Distance between axes d. Grinding wheel - axis of the column: 300 mm Max. distance table - grinding wheel: 280 mm Largest grinding surface: 140 x 300 mm Rapid feed per speed: 2 Fine adjustment by micrometer: 0.01 mm Cup wheel dimensions: 178 x 78 x 78 mm Segment dimensions: 50 x 16 x 90 mm Speed of the grinding wheel: 2840 1/min Spindle motor power: 2.2 kW Electric pump power: 0.06 kW Weight: 400 kg Dimensions: 850 x 850 x 1650 mm Equipment: - Cast column on adjustable ball roller bearings - Wet grinding device Bdsdpfx Ajvnriusf Hok - Safety low-voltage system (24V) - Grinding wheel holder and grinding segments (first set) - Grinding wheel protection and Table enclosure - Operating and maintenance instructions - CE declaration of conformity

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, machine/vehicle number: 23087A, SPECIFICATION Maximum grinding surface 140 x 300mm Distance between column and wheel axis 300mm Bsdpfx Aovntguof Hsdk Max.distance between table and wheel 280mm Rapid feed per turn of handwheel 2mm Micrometric feed by small handle 0.01mm Size of cup wheel 2.2kW Wheel speed 2840rpm Approximate weight 400kg MACHINE EQUIPPED WITH 260mm x 140mm x75mm (thickness) magnetic chuck Coolant system Guarding
