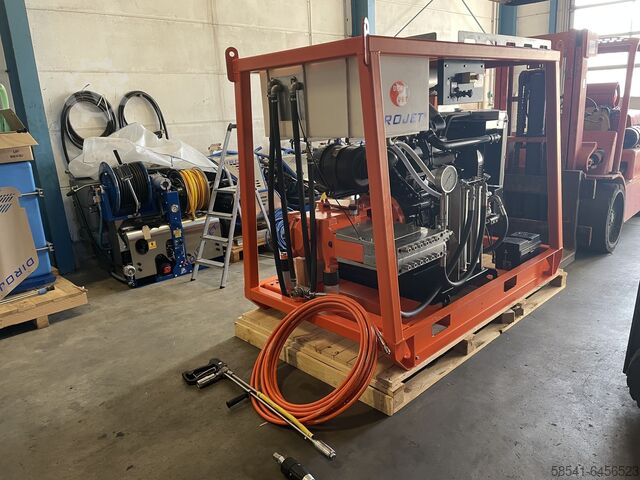

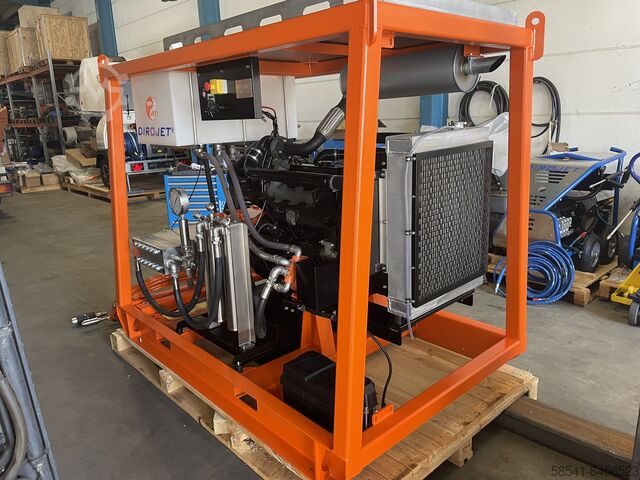

1000-2800 bar 23-63 l/min Diesel

DEN-JET CD200/CDT200 Stage V o. Tier 2

The CD200 series of our high-pressure machines covers a pressure range of 200 to 2800 bar and a flow rate of 23 to 300 l/min. The pump is powered by a water-cooled 4-cylinder AGCO Stage V diesel engine. The entire frame is made of hot-dip galvanized steel, which ensures long service life and corrosion resistance. For aesthetic appeal, the frame is primed and then painted. The dimensions of the machine are 2250 x 950 mm. The frame is equipped with rubber feet at all four corners, as well as forklift pockets and lifting eyes at all four corners. The machine features a galvanized roof plate with a side bracket for protecting and storing, for example, high-pressure hoses. Similar, but not a Dynajet, Falch, Hammelmann, Kamat, Kärcher, Oertzen, Uraca, Woma, etc.

Available SKID models:
Model Pressure Flow rate
CD200-200 200 bar 300 lpm
CD200-250 250 bar 250 lpm
Laedpjhgbhnefx Acfsf
CD200-1000 1000 bar 63 lpm
CD200-1380 1380 bar 42 lpm
CD200-2500 2500 bar 25 lpm
CD200-2800 2800 bar 23 lpm

OPTIONAL: TRAILER VERSION CDT200

General specifications:
-----
Max. pump speed: 560 rpm
Drive engine: 4-cylinder AGCO Stage V diesel (optional without ADD blue)
Drive engine power: 149.1 kW
Drive engine speed: 1950 rpm
Tank: 135 L for skid and 200 L for trailer
Max. fuel consumption: 18-20 l/h
Dimensions and dry weight SKID: 2170mm x 1350mm x 1810 mm (1785 kg)
Dimensions and dry weight TRAILER: 3800mm x 1900mm x 2000 mm (2500 kg)
Includes standard accessories.

The listing was translated automatically. Translation errors are possible.
