Press brake

Dener Abkantpresse XL30320

Comparable with Durma, Baykal, Ermaksan, etc.

Bending length 3020 mm
Pressing force 320 t (also available in many other configurations!)
Approach speed 140 mm/s
Bending speed max. 10 mm/s
Return speed 130 mm/s
Y-axis stroke 400 mm
Open height 650 mm
Throat depth 450 mm
Clear gap between frames 2555 mm
Machine length 3785 mm
Machine width 2290 mm
Width without support arms 1740 mm
Overall height 3100 mm
Table height 920 mm
Motor power 22 kW
Oil tank capacity 300 l
Machine weight 14,450 kg
(Specifications may vary depending on equipment)

Standard equipment:
3 CNC axes (Y1, Y2, X)
Press beam double-guided, stable and precise

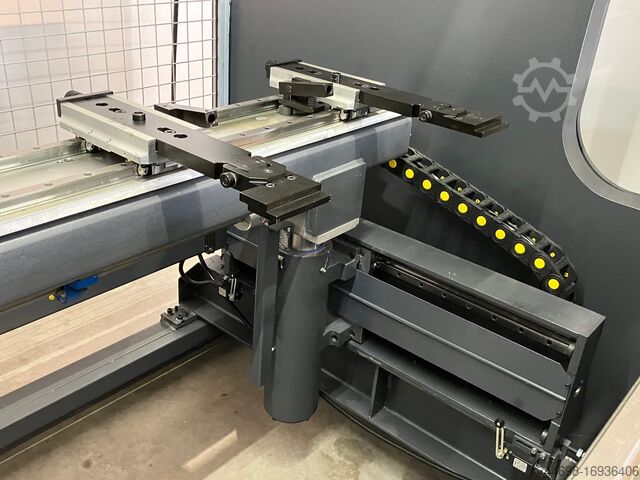

Robust double-guided backgauge
Backgauge fingers double-guided on linear rails
Movable front arms with height adjustment
Bjdpfxjuf Nr As Ad Ajlg
Side and rear safety guards

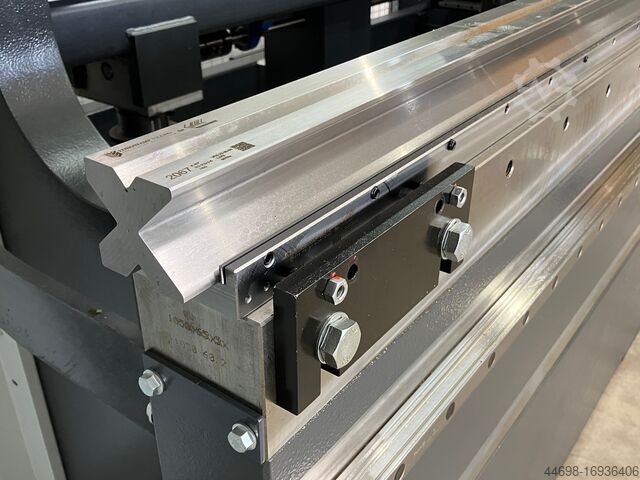

60mm lower die adapter rail
Manual upper tool clamping system (Promecam system)
Foot switch with emergency stop
380 V, 50-60 Hz, 3 phase
LED lighting

Additional equipment:

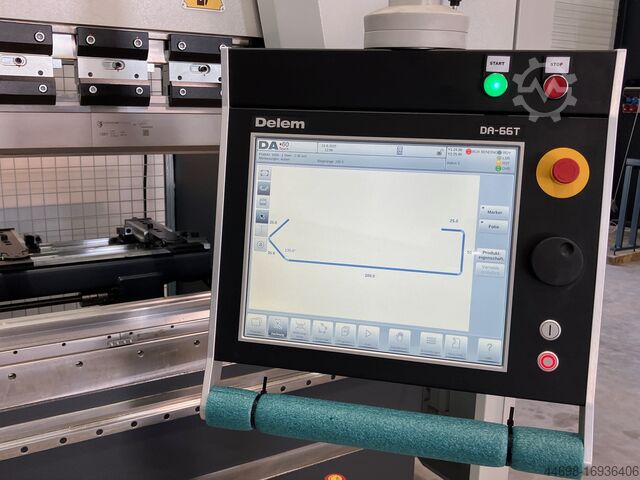

Delem DA 66t CNC control
R-axis (backgauge) CNC controlled
CNC-controlled crowning
Fiessler Akas 2M laser safety device
2 additional backgauge fingers (total 4)
1 set of top and bottom tooling

- Further processing lengths and capacities available upon request with appropriate accessories! -
