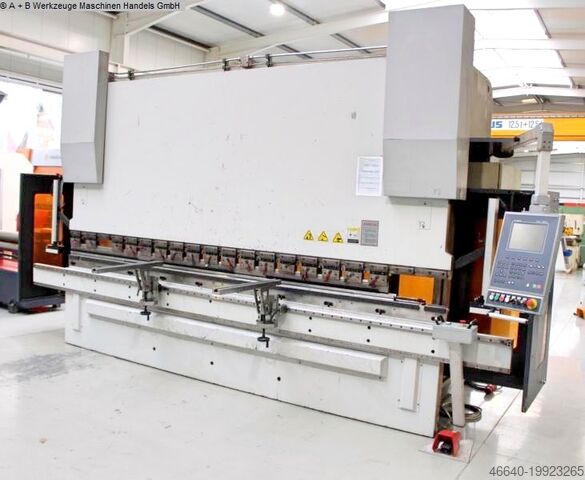

Hydr. pressbrake

DERATECH ULTIMA PLUS 160/4100

pressure 160 t
chamfer lenght 4100 mm
distance between columns 3600 mm
column arm 400 mm
ram stroke speed 200 mm/sec
work speed 10.0 mm/min
return speed 165 mm/sec
work stroke ca. 350 mm
dayligth ca. 660 mm
oil volume 450 ltr.
table height 830 / 950 mm
table width 75.0 / 60.0 mm
voltage 400 Volt
total power requirement 18.5 kW
weight 13440 kg
range L-W-H 5150 x 2050 x 3150 mm
Djdexaambepfx Acwjcn
current new price approx. 90.000 euros
special price on request

-----
ULTIMA PLUS electro-hydraulic press brake with:
* increased installation height .. approx. 660 mm
* increased cylinder stroke .. approx. 350 mm
-----

- in checked condition - machine video -
?v=chgCaXLnpa8

Equipment:
- CNC electro-hydraulic die/press brake

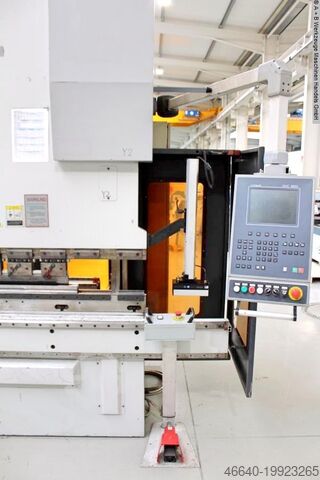

- CYBELEC CNC control "DNC 880 S"
* swiveling control panel, front right
* 2D graphic programming & product display
* tool & program library
- CNC controlled axes: Y1 + Y2 + X + R axis

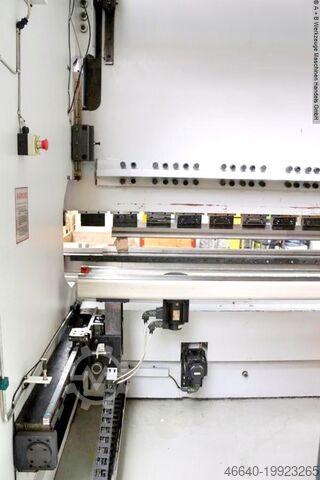

- CNC electro-motorized back stop, with ball screws (X axis)
- CNC electro-motorized Height adjustment of the stop beam (R axis)
- 2x manually adjustable back stop fingers (Z axis)

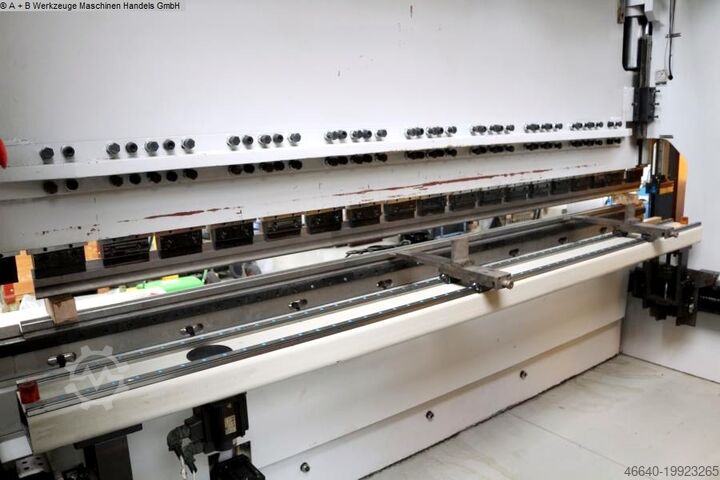

- 2x front, movable support arms with T-slot ("Sliding System")
- 1x set of bending/insert tools
* AMADA / SYSTEM A tool system
- Laser protection device in front of the machine
- Safety device behind the machine (door)
- 1x freely movable foot switch
- original operating instructions
