Slide belt magnetic conveyor, magnetic slide conveyor, Z-conveyor; slide belt system, magnetic belt DGS System GmbH
MBF 326P31,75
Slide belt magnetic conveyor, magnetic slide conveyor, Z-conveyor; slide belt system, magnetic belt
DGS System GmbH
MBF 326P31,75
fixed price plus VAT
€4,400
Condition
Used
Location
Hessisch Lichtenau

Show images
Show map
Machine data
- Machine type:
- Slide belt magnetic conveyor, magnetic slide conveyor, Z-conveyor; slide belt system, magnetic belt
- Manufacturer:
- DGS System GmbH
- Model:
- MBF 326P31,75
- Condition:
- used
Price & Location
fixed price plus VAT
€4,400
- Location:
- 37235 Hessisch Lichtenau

Call
Details about the offer
- Listing ID:
- A817-6307
- Reference number:
- 60893
- Update:
- 13.07.2025
Description

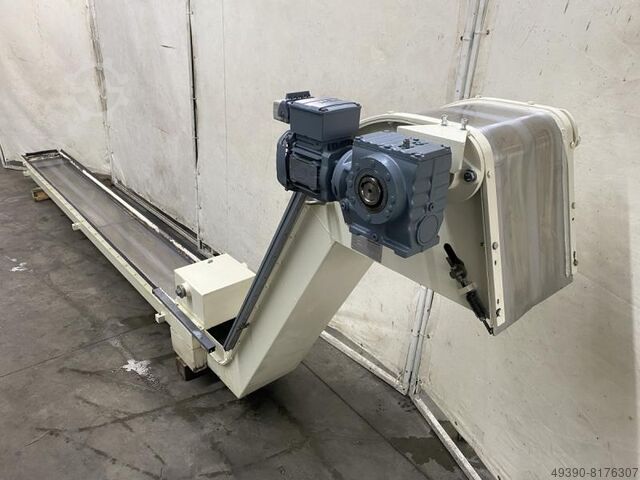

Slide belt magnetic conveyor, magnetic slide conveyor DGS System GmbH
Z-conveyor, sliding belt conveyor, conveyor belt, magnetic belt conveyor

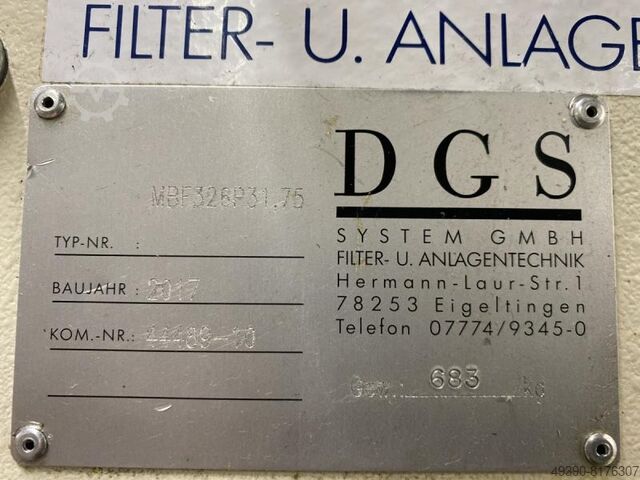

Type no.: MBF 326P31,75 Com. no.: 44489-10 Year of construction 2017
Slide width 300 mm
Distance between permanent magnets 250 mm
Insertion length approx. 3400 mm (up to body box)
Slide-in length approx. 3900 mm (without superstructure box)
Slide-in height 210 mm
Insertion width housing 370 mm
Insertion width threaded mounts for adjustable feet 410 mm
Insertion width at body box 470 mm
Conveying height - discharge height approx. 1040 mm
Conveyor speed approx. 2 meters/min.
Motor power belt drive 0.37 kW
Mains connection 400 Volt, 50 Hz
Itodpfoi Huzxjx Ahujb
- Circulating chain equipped with permanent magnets
Space requirement L x W x H 5200 x 700 x 1500 mm
Weight 410 kg
Very good condition
The listing was translated automatically. Translation errors are possible.
Z-conveyor, sliding belt conveyor, conveyor belt, magnetic belt conveyor
Type no.: MBF 326P31,75 Com. no.: 44489-10 Year of construction 2017
Slide width 300 mm
Distance between permanent magnets 250 mm
Insertion length approx. 3400 mm (up to body box)
Slide-in length approx. 3900 mm (without superstructure box)
Slide-in height 210 mm
Insertion width housing 370 mm
Insertion width threaded mounts for adjustable feet 410 mm
Insertion width at body box 470 mm
Conveying height - discharge height approx. 1040 mm
Conveyor speed approx. 2 meters/min.
Motor power belt drive 0.37 kW
Mains connection 400 Volt, 50 Hz
Itodpfoi Huzxjx Ahujb
- Circulating chain equipped with permanent magnets
Space requirement L x W x H 5200 x 700 x 1500 mm
Weight 410 kg
Very good condition
The listing was translated automatically. Translation errors are possible.
