CNC turning and milling centre

DMG MORI CLX 450 TC

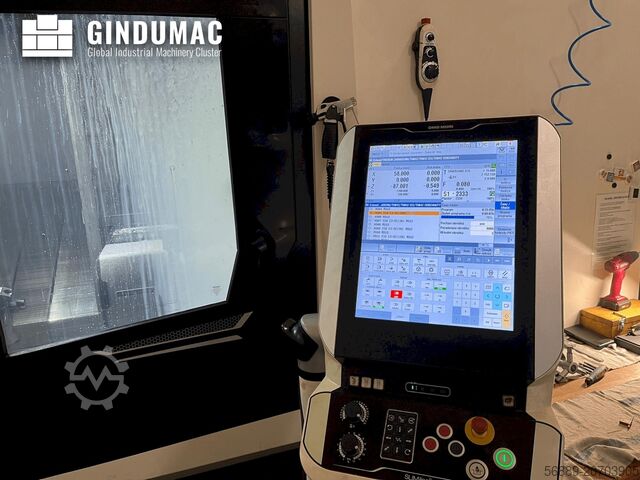

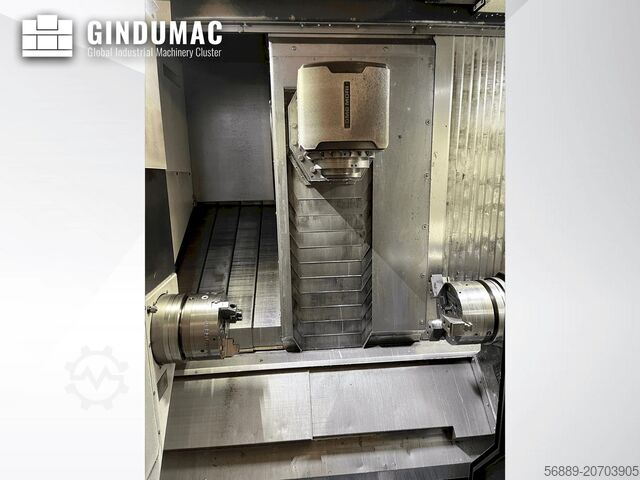

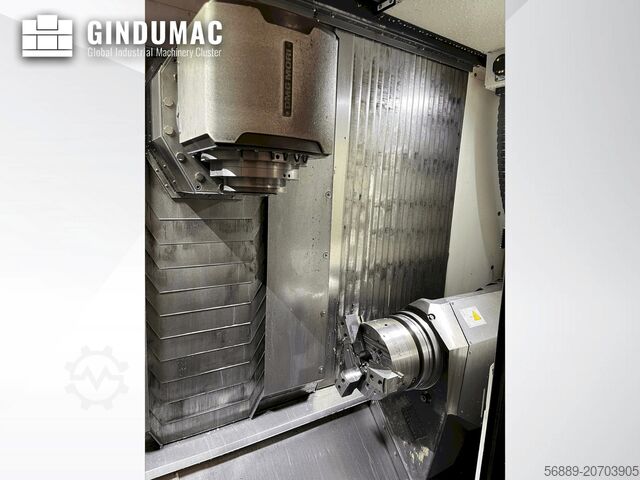

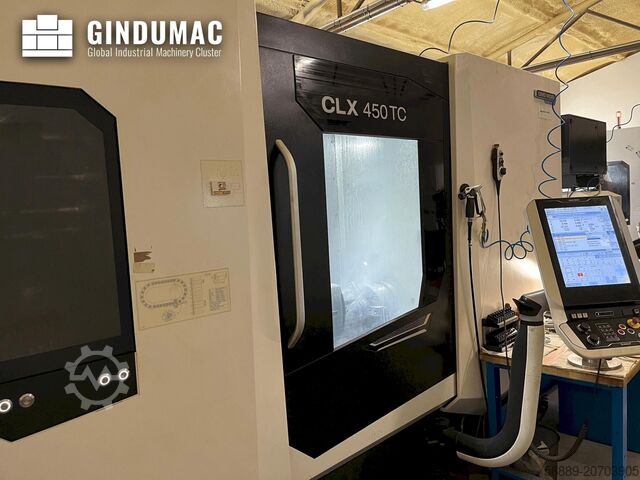

Condition: ready for operation (used), Year of construction: 2022, operating hours: 8,574 h, General Data Machine weight 9200 kg Control Unit Brand SIEMENS Main Drive Spindle speed range 5000 Number of axis 5 Movement X-Axis Movement 750 mm Y-Axis Movement 200 mm Z-Axis Movement 1100 mm Workpiece Workpiece drm 400 mm This 5-axis DMG MORI CLX 450 TC was manufactured in 2022, featuring a max. X-axis stroke of 750 mm, Y-axis stroke of 200 mm, and Z-axis stroke of 1,100 mm. It handles a max. workpiece diameter of 400 mm and length of 1,100 mm, with a bar capacity of 65 mm. Spindle speeds reach up to 5000 rpm. Weighs 9200 kg. If you are looking to get high quality turning capabilities consider the DMG MORI CLX 450 TC machine we have for tact us for more information. Kfjdpex D Izbefx Ac Hja Application Types Turning

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, turning diameter: 500 mm, DMG CTX Beta 1250 TC 2009 Kfedpfx Aov N Hc Ssc Hoa

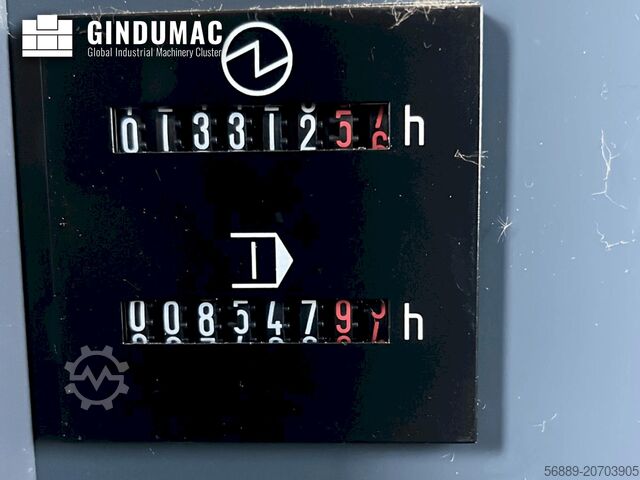

Condition: excellent (used), Year of construction: 2022, operating hours: 13,312 h, functionality: fully functional, machine/vehicle number: 00360002291, turning length: 1,100 mm, spindle speed (min.): 5,000 rpm, - B-axis: ±120° - Y-axis: ±100 mm - 30-fold chain magazine - Tailstock: hydraulically operated with foot control pedal Kfjdpswylh Hefx Ac Hsa

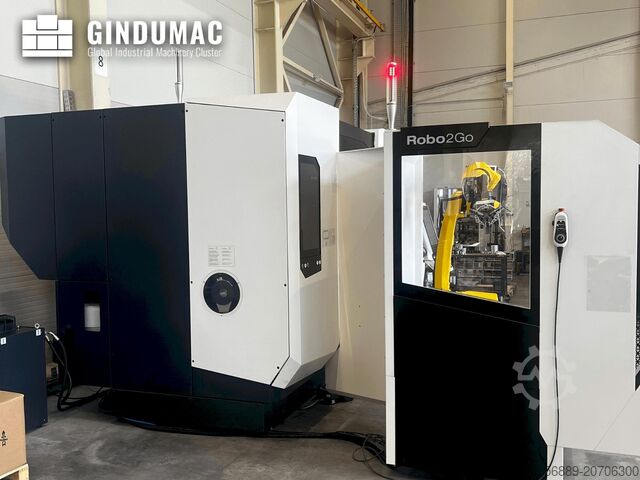

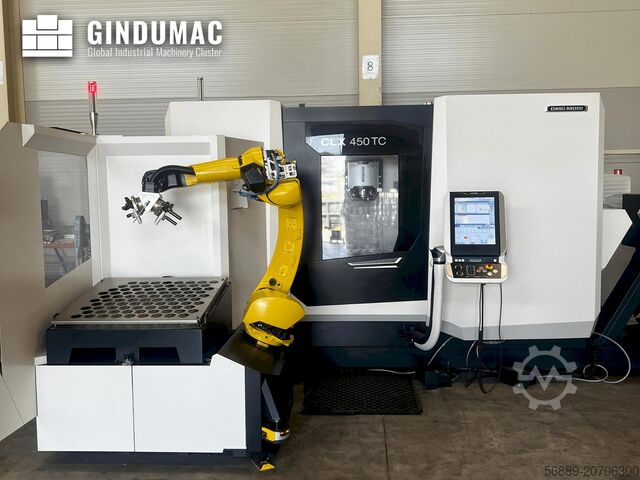

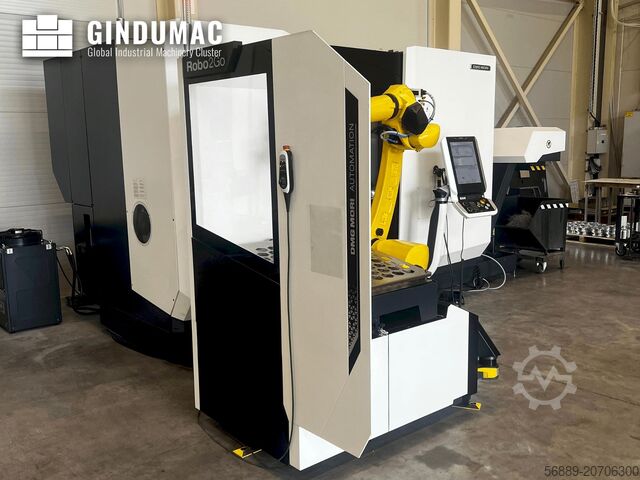

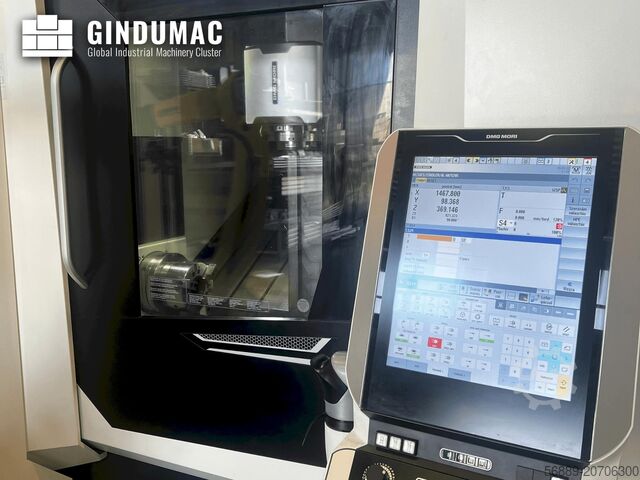

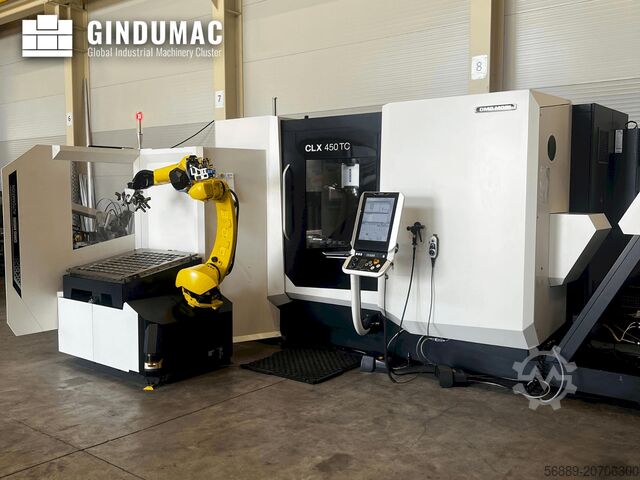

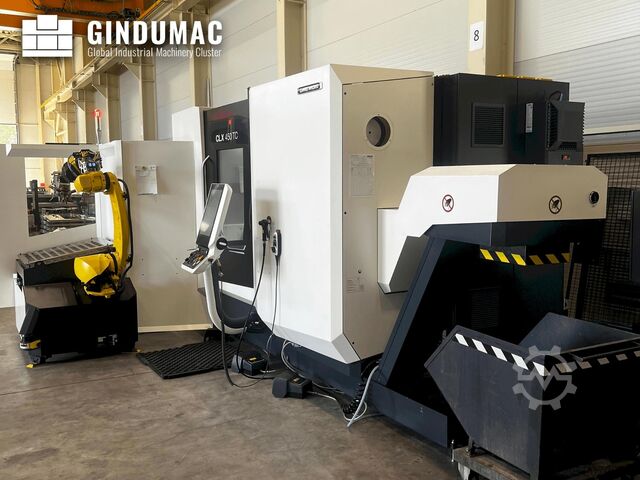

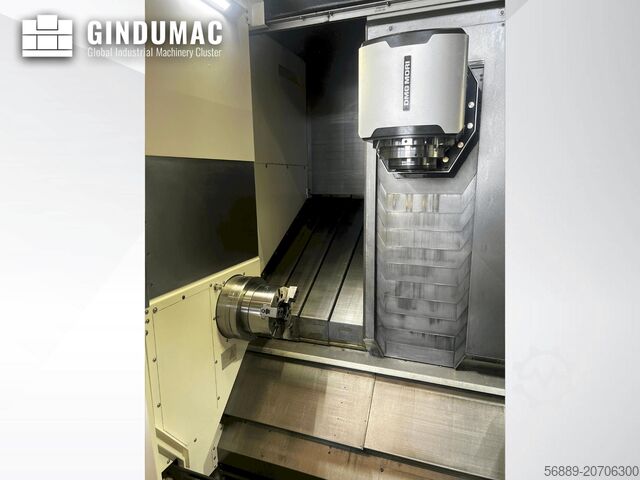

Condition: ready for operation (used), Year of construction: 2024, General Data Measurements width 2710 mm Measurements depth 3900 mm Kedpfx Aex D R U Rjc Hefa Measurements height 2470 mm Machine weight 10000 kg Main Drive Spindle speed range 5000 Spindle motor power 14/17 kW Number of axis 5 Additional Equipment Dynamic two-pressure clamping for the main and counter spindle Tailstock function for the counter spindle with foot switch This 5-axis DMG MORI CLX 450 TC + Robo2GO was manufactured in 2024. It features a universal turning/milling center with a main spindle speed of up to 5000 rpm and a milling spindle speed of up to 12000 rpm. The machine includes a B-axis of ±120°, Y-axis travel of ±100 mm, and a 30-fold chain magazine. It's equipped with Siemens 840D sl control for precision. Consider the opportunity to buy this DMG MORI CLX 450 TC + Robo2GO turn-mill centre. Contact us for more information. Application Types Turning

Condition: good (used), Year of construction: 2018, functionality: fully functional, MITUTOYO Contracer CV-2100M4 contour measuring device Horizontal measuring range X = 100mm Vertical measuring range Z = 50mm Column travel range Z2 = 350mm Inclination +/- 45° Dimensions (W, D, H) 745mm x 450mm x 885mm Total weight approx. 150kg Ksdpfx Acovun Tps Hsfa Incl. PC system, Incl. cross table 218-001 Incl. rotating vice 2028-003

Condition: used, Year of construction: 2015, TAKISAWA TS4000YS year 2015 CNC control FANUC 32i-MODEL B Max. turning diameter 315 [mm] Max. swing over bed 600 [mm] Ksdpfjwq Sf Tox Ac Hefa Max. Turning length 735 [mm] Stroke X axis 267 [mm] Stroke Z axis 840 [mm] Stroke Y axis -50 [mm] / +70 [mm] Stroke A axis 780 [mm] Rapid traverse rate X axis 30000 [mm/min] Rapid traverse rate Z axis 30000 [mm/min] Rapid traverse rate Y axis 10000 [mm/min] Rapid traverse rate A axis 30000 [mm/min] Spindle nose A2-8" Max. bar diameter 82 [mm] Spindle throughbore 94 [mm] Max. spindle speed 4200 [rpm] Spindle power 22 [kW] Counter spindle nose F140 Counter spindle throughbore 53 [mm] Max. counter spindle speed 6000 [rpm] Counter spindle power 11 [kW] Max. tool holder cross-section 25 [mm] Number of tool stations 15 Number of tool stations driven 15 Max. speed driven tools 6000 [rpm] Lubrication tank capacity 370 [l] Total power required 37 [kVA] Supply voltage 400 [V] Chip conveyor with machine 5 live tool holders Weight 6700 [Kg]

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, turning length: 1,250 mm, turning diameter over cross slide: 500 mm, turning diameter: 390 mm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 450 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 1,300 mm, bar passage: 65 mm, total height: 2,700 mm, total length: 7,000 mm, total width: 3,000 mm, overall weight: 12,000 kg, Equipment: documentation/manual, Manufacturer: DMGMORI Type: CTXbeta1250TC Year of manufacture: 2008 (retrofit in 2022) Control: Siemens 840D Solutionline Number of axes: 5 axes Equipment: - automatic tool changer - swivel head as B-axis - belt filter system with internal cooling and chip conveyor - differential pressure clamping main/counter spindle - workpiece collection device - preparation for bar loader (optionally available) Technical data: Max. turning diameter 500 mm X-axis 450 mm Y-axis 100 mm Z-axis 1300 mm B axis 220 ° Spindle bore 65 mm Speed 5000 rpm Spindle power 34 kW Counter spindle speed 6000 rpm Counter spindle passage 52 mm Counter spindle power 20 kW Tool changer 24 B-axis mount HSK 63 B-axis spindle speed 12000 rpm B-axis power 22 kW Installation dimensions approx. L 7000 / W 2300 / H 2300 mm Weight approx. 8,000 kg Chip conveyor: Yes Coolant device: Yes Internal coolant supply: Yes Options: Ksdpfx Aceubyv Re Hofa · Full cabin · NC swivel head as B-axis · Coolant device and chip conveyor · Documentation · Geometrically within the new machine tolerances Condition: - Machine fully functional - Geometry within the manufacturer's tolerance for new machines - All wear parts replaced Retrofit 2022: - Linear guides Z1 and Z2/3 replaced - Linear guide Y-axis replaced - Main and counter spindle overhauled - Milling spindle overhauled - B-axis (bearings and clamping) renewed - sliding plates overhauled - hoses and cables overhauled, drag chains revised - cabin doors repainted, viewing windows renewed - maintenance carried out according to manufacturer's specifications

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Turning length: 3,000 mm Swing diameter over cross slide: 520 mm Kfjdpsxpfd Dofx Ac Hoa X-axis travel: 600 mm Y-axis travel: 150 mm Z-axis travel: 3,150 mm Swing diameter: 520 mm Turning length: 3,000 mm Control: SIN 840 D Siemens Z-axis: 3,150 mm Z-axis feed rate: 1 – 40,000 mm/min Rapid traverse Z-axis: 40.00 m/min X-axis: 600 mm X-axis feed rate: 1 – 30,000 mm/min Rapid traverse X-axis: 30.00 m/min Main spindle S1 Spindle speed range: 1 – 3,300 rpm Drive power at 100% load: 29.00 kW Spindle nose DIN 55026 – size A11 Spindle diameter at front bearing: 160 mm Spindle bore: 115 mm C-axis: 360 x 0.001° Milling spindle S2 Tool holder: Capto C6 Infinitely variable speed range: 1 – 6,000 rpm Y-axis: -100 / +150 mm B-axis: -110 / +110° Tool magazine with 100 stations Total power requirement: 145 kW Machine weight approx.: 24 t

Condition: good (used), Year of construction: 2022, CNC Lathe Manufacturer: DMG MORI Machine Model: CLX 350 V1 Control: SLIMline 0i-F Plus Fanuc Touch Year of Manufacture: 2022 Controlled X/Z axes TECHNICAL DATA Turning Length: 540 mm Spindle: Motorized spindle 11/16 kW Tool holder: VDI30 with 12 AC motors - Speed: 5,000 rpm - Spindle Nose: A2-6" main spindle - Drive Power (100/40% duty cycle) 11/16.5 kW Turret: 12-station - Driven: 12 stations - Tool holder: VDI 30 EQUIPMENT FEATURES + Technology cycle for applying alternating speed for vibration-critical setups + Direct X-axis position measuring system + Programmable positioning and Pressure force. + Ergonomic DMG MORl SLIMline® control panel + Hollow clamping device, max. bar capacity D65 mm + Tailstock, hydraulically movable via M-function + External electronic handwheel + Chip disposal package: + Chip conveyor with right-side discharge instead of the chip tank + 4-color signal lamp + Differential pressure clamping for the main spindle + Foot control pedal for tailstock + Automatic NC tailstock: Maximum machining flexibility - full force control in the range of 0.7 - 3.5 kN Kfjdpfsw Hxi Dox Ac Hoa + High-pressure pump 12 bar + Coolant spray gun 5 bar + Manual tool measuring device in the work area, made by MARPOSS + Mechanical oil mist separator type AFS 600 Subject to changes and errors in technical data and information.

Condition: good (used), Year of construction: 2011, CNC Milling and Turning Center Machine Type: DMG CTX beta 1250 TC Control: Siemens 840 D solutionsline + ShopTurn Year of Manufacture: 2011 Available from: February 2026 Kfodpfx Aoxvaqroc Hoa TECHNICAL SPECIFICATIONS: Maximum turning length: 1,250 mm Turning diameter: 390 mm Bar capacity: 75 mm Main Spindle Speed range: 0 - 5,000 rpm Drive power: 34 / 25 kW C-axis: 0.001° 3-jaw chuck: Röhm KFD-HS 250-91 mm Counter spindle: ISM 52 Speed range: 6,000 rpm Drive power: 27 / 20 kW C-axis: 0.001° 3-jaw chuck: Röhm KFD-HS 200-66 mm CNC spindle swiveling for milling and turning operations B-axis: +/- 110° Speed range: 15 - 12,000 rpm Drive power: 22 kW Torque: 100 Nm Tool holder: HSK 63 Tool stations: 24 Y-axis: 100 +/- mm Machine weight: 8,000 kg Footprint (LxWxH): 5.67 x 2.72 x 2.1 m Features: Chip conveyor High-pressure pumps: 8/20/80 Paper band filter Coolant tank: 980 l Oil mist extraction Tool breakage control: Renishaw
