CNC lathe

TAKISAWA TS4000YS

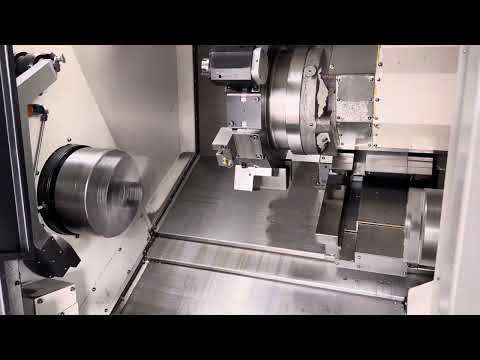

Year of construction: 2021, condition: ready for operation (used), General Data Measurements width 2140 mm Measurements depth 3000 mm Measurements height 2300 mm Machine weight 6200 kg Control Unit Brand FANUC Model Series 32i-Model B Main Drive Spindle speed range 4200 Main motor power 22 kw Movement X-Axis Rapid Traverse 30 m/min Y-Axis Rapid Traverse 30 m/min Z-Axis Rapid Traverse 30 m/min X-Axis Movement 267 mm Y-Axis Movement -50 to 70 mm Z-Axis Movement 840 mm Fpedpfxjx D Iu Io Agzsr Media Chip conveyor Yes Additional Equipment LNS Barfeeder interface Part catcher Renishaw tool measurement (main and subspindle also) Kitagawa BB-250 3 jaws hydraulic chuck – main spindle Kitagawa SS1881K hydraulic hollow cylinder – main spindle Kitagawa B-206 3 jaws hydraulic chuck – sub spindle Kitagawa SS12640K hydraulic hollow cylinder – sub spindle 15 pos turret High power coolant pump (520W) Work lamp This 3-axis Takisawa TS-4000YS was manufactured in 2021. It features a robust 6200 kg frame with a 30° inclined bed for stability and precision. Key specs include a 22 kW main spindle, 618 Nm torque, and rapid traverses up to 30 m/min. It's equipped with a dual spindle, Y-axis, and a 15-position turret for versatile machining. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-4000YS machine we have for sale. Contact us for more information. Application Types Turning

Condition: good (used), Year of construction: 2018, functionality: fully functional, MITUTOYO Contracer CV-2100M4 contour measuring device Horizontal measuring range X = 100mm Fpsdjvun Tpjpfx Agzsr Vertical measuring range Z = 50mm Column travel range Z2 = 350mm Inclination +/- 45° Dimensions (W, D, H) 745mm x 450mm x 885mm Total weight approx. 150kg Incl. PC system, Incl. cross table 218-001 Incl. rotating vice 2028-003

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, turning diameter over cross slide: 600 mm, turning length: 750 mm, turning diameter: 370 mm, spindle bore: 82 mm, spindle speed (max.): 4,200 rpm, travel distance X-axis: 267 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 840 mm, spindle motor power: 22,000 W, rotational speed (max.): 6,000 rpm, total height: 2,300 mm, total length: 3,000 mm, total width: 2,140 mm, turning diameter over bed slide: 370 mm, overall weight: 6,200 kg, bar diameter (max.): 82 mm, Equipment: documentation/manual, TAKISAWA TS-4000YS FANUC 32i-B JAPAN Fsdpfov T R Elox Agzepr Made in Japan High rigidity (6200 kg weight, 30° inclined machine bed, slide rails) - Built-in main and sub-spindle - High rigidity and built-in main and sub-spindle enable precise and vibration-free machining - 22 kW main spindle with 618 Nm max. torque - High performance and solid machine bed enable high-volume chip removal - Y-axis Technical data: Capacity Max. swing diameter Ø 600 mm Max. turning diameter and length Ø 370 x 750 mm Trought hole: Ø 82 mm Spindle Axle height from the ground 1,140 mm Spindle bearing/bore diameter Ø 140 / Ø 90 mm Spindle head A2-8 Spindle speed 4,200 rpm C-axis resolution 0.001 ° Sub spindle Axle height from the ground 1,140 mm Spindle bearing/bore diameter Ø 90 / Ø 53 mm Spindle head F-140 Spindle speed 6,000 rpm C-axis resolution 0.001 ° Strokes and rapid traverses Strokes X-axis = 267 mm Z-axis = 840 mm Y-axis = - 50 ~ +70 mm A-axis = 780 mm Rapid traverse X-axis = 30 m/min Z-axis = 30 m/min Y-axis = 10 m/min A-axis = 30 m/min Power Spindle motor (30 min. / 100 % ED) AC 22 / 15 kW Max. torque: 618 Nm (S3 25%) Driven tools Number of tool positions on the turret 15 pcs Max. tools speed 6,000 rpm Drive power (30 min. / 100 % ED) 7.5/3.7 kW Maximum torque 48 Nm Tooling Driven tool positions 15 pcs Tool cross-section 25 x 25 mm For hole machining Ø 40 mm Dimensions Height 2,300 mm Depth (without chip conveyor) 2,140 mm Width (without chip conveyor) 3,000 mm Net weight 6,200 kg Including options: FANUC Data SERVER LNS Barfeeder interface Part catcher chip conveyor Renishaw tool mesaurement (main and subspindle also) Kitagawa BB-250 3 jaws hydraulic chuck – main spindle Kitagawa SS1881K hyraulic holow cylinder – main spindle Kitagawa B-206 3 jaws hydraulic chuck – sub spindle Kitagawa SS12640K hyraulic holow cylinder – sub spindle 15 pos turret High power coolant pump (520W) Work lamp 3-3 pcs live tool (radial-axial) Live center some static tool holder NOT INCLUDING: 2 pcs SMW chuck (possible buy) transporting

Condition: excellent (used), Year of construction: 2015, Technical Data: Capacity Max. Swing Diameter: Ø 600 mm Max. Turning Diameter and Length: Ø 370 x 750 mm Spindle Bore: Ø 82 mm Spindle Center Height from Floor: 1,140 mm Spindle Bearing/Bore Diameter: Ø 140 / Ø 90 mm Spindle Nose: A2-8 Spindle Speed: 4,200 rpm C-Axis Resolution: 0.001° Sub-Spindle Center Height from Floor: 1,140 mm Spindle Bearing/Bore Diameter: Ø 90 / Ø 53 mm Spindle Nose: F-140 Spindle Speed: 6,000 rpm C-Axis Resolution: 0.001° Travel and Rapid Traverse Travels Fpjdpswp Uhhjfx Agzjr X-Axis: 267 mm, Z-Axis: 840 mm Y-Axis: -50 to +70 mm, A-Axis: 780 mm Rapid Traverse X-Axis: 30 m/min, Z-Axis: 30 m/min Y-Axis: 10 m/min, A-Axis: 30 m/min Power Spindle Motor (30 min. / 100% duty cycle): AC 22 / 15 kW Max. Torque: 618 Nm (S3 25%) Driven Tools Number of Turret Stations: 15 Max. Tool Speed: 6,000 rpm Drive Power (30 min. / 100% duty cycle): 7.5 / 3.7 kW Max. Torque: 48 Nm Tooling Live Tool Stations: 15 Tool Cross Section: 25 x 25 mm For Boring Operations: Ø 40 mm LNS Short Bar Loader Servo III Dimensions Height: 2,300 mm Depth (without chip conveyor): 2,140 mm Width (without chip conveyor): 3,000 mm Net Weight: 6,200 kg

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, turning diameter: 500 mm, DMG CTX Beta 1250 TC 2009 Fjdpfx Aov N Hc Sogzspr

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, turning length: 1,250 mm, turning diameter over cross slide: 500 mm, turning diameter: 390 mm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 450 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 1,300 mm, bar passage: 65 mm, total height: 2,700 mm, total length: 7,000 mm, total width: 3,000 mm, overall weight: 12,000 kg, Equipment: documentation/manual, Manufacturer: DMGMORI Type: CTXbeta1250TC Year of manufacture: 2008 (retrofit in 2022) Control: Siemens 840D Solutionline Number of axes: 5 axes Equipment: - automatic tool changer - swivel head as B-axis - belt filter system with internal cooling and chip conveyor - differential pressure clamping main/counter spindle - workpiece collection device - preparation for bar loader (optionally available) Technical data: Fpedpfx Asubyv Rsgzor Max. turning diameter 500 mm X-axis 450 mm Y-axis 100 mm Z-axis 1300 mm B axis 220 ° Spindle bore 65 mm Speed 5000 rpm Spindle power 34 kW Counter spindle speed 6000 rpm Counter spindle passage 52 mm Counter spindle power 20 kW Tool changer 24 B-axis mount HSK 63 B-axis spindle speed 12000 rpm B-axis power 22 kW Installation dimensions approx. L 7000 / W 2300 / H 2300 mm Weight approx. 8,000 kg Chip conveyor: Yes Coolant device: Yes Internal coolant supply: Yes Options: · Full cabin · NC swivel head as B-axis · Coolant device and chip conveyor · Documentation · Geometrically within the new machine tolerances Condition: - Machine fully functional - Geometry within the manufacturer's tolerance for new machines - All wear parts replaced Retrofit 2022: - Linear guides Z1 and Z2/3 replaced - Linear guide Y-axis replaced - Main and counter spindle overhauled - Milling spindle overhauled - B-axis (bearings and clamping) renewed - sliding plates overhauled - hoses and cables overhauled, drag chains revised - cabin doors repainted, viewing windows renewed - maintenance carried out according to manufacturer's specifications

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Turning length: 3,000 mm Fsdpfexpfd Djx Agzopr Swing diameter over cross slide: 520 mm X-axis travel: 600 mm Y-axis travel: 150 mm Z-axis travel: 3,150 mm Swing diameter: 520 mm Turning length: 3,000 mm Control: SIN 840 D Siemens Z-axis: 3,150 mm Z-axis feed rate: 1 – 40,000 mm/min Rapid traverse Z-axis: 40.00 m/min X-axis: 600 mm X-axis feed rate: 1 – 30,000 mm/min Rapid traverse X-axis: 30.00 m/min Main spindle S1 Spindle speed range: 1 – 3,300 rpm Drive power at 100% load: 29.00 kW Spindle nose DIN 55026 – size A11 Spindle diameter at front bearing: 160 mm Spindle bore: 115 mm C-axis: 360 x 0.001° Milling spindle S2 Tool holder: Capto C6 Infinitely variable speed range: 1 – 6,000 rpm Y-axis: -100 / +150 mm B-axis: -110 / +110° Tool magazine with 100 stations Total power requirement: 145 kW Machine weight approx.: 24 t

Condition: like new (used), Year of construction: 2011, functionality: fully functional, turning length: 1,090 mm, spindle speed (min.): 4,500 rpm, travel distance X-axis: 455 mm, travel distance Z-axis: 1,090 mm, spindle nose: A 2-6, CNC Turning Milling Centre with 2nd spindle and lower turret Control Fanuc 31i Model A Turning diameter 170 / 245 mm Turning length 1090 mm Spindle bore diameter 71 / 51 mm Spindle nose A 2-6 Spindle nose sub spindle A 2-5 Turning speed 4.500 R/min Fpodpfoxxlpljx Agzer Turning speed sub spindle 6.000 R/min Milling head speed 12.000 R/min Movement X-axis 455 mm Movement Y-axis +70/-70 mm Movement Z-axis 1090 mm B-Axis travel 230° C-Axis indexing 0,001° Tool Taper Capto C6 Tools in tool magazine 40 Bar feeder: LNS Alpha SL65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: good (used), Year of construction: 2011, CNC Milling and Turning Center Machine Type: DMG CTX beta 1250 TC Control: Siemens 840 D solutionsline + ShopTurn Year of Manufacture: 2011 Available from: February 2026 TECHNICAL SPECIFICATIONS: Maximum turning length: 1,250 mm Turning diameter: 390 mm Bar capacity: 75 mm Main Spindle Speed range: 0 - 5,000 rpm Drive power: 34 / 25 kW C-axis: 0.001° 3-jaw chuck: Röhm KFD-HS 250-91 mm Counter spindle: ISM 52 Speed range: 6,000 rpm Drive power: 27 / 20 kW C-axis: 0.001° 3-jaw chuck: Röhm KFD-HS 200-66 mm CNC spindle swiveling for milling and turning operations B-axis: +/- 110° Speed range: 15 - 12,000 rpm Drive power: 22 kW Torque: 100 Nm Fpodpfxjxvaqre Agzjr Tool holder: HSK 63 Tool stations: 24 Y-axis: 100 +/- mm Machine weight: 8,000 kg Footprint (LxWxH): 5.67 x 2.72 x 2.1 m Features: Chip conveyor High-pressure pumps: 8/20/80 Paper band filter Coolant tank: 980 l Oil mist extraction Tool breakage control: Renishaw

Condition: new, Year of construction: 2024, Hydraulic press brake PBO-3216-CNC Delem DA-58T Specifications - Nominal pressure: 1600 kN - Max working length 3200 mm - Throat depth: 320 mm - Max stroke: 180 mm - Daylight: 455 mm - Distance between side frames: 2600 mm - Max backgauge distance: 600 mm - Nominal motor power: 11.0 kW - Length: 3300 mm - Width: 1650 mm - Height: 2500 mm - Weight: 8700.0 kg Tools - Front supports: 2 pcs - Backgauge distance regulation (X-axis): servo motor - Ram control (Y-axis): servo motor - Finger height adjustment (R axis): manual - Type of punch holder: AMADA quick-action clamping Delem DA-58T controller - Advanced operator support based on algorithms Fpsdegih Iuopfx Agzor - Advanced, graphic simulation of bending sequences - Operator prompts included - Algorithms to shorten the production process - Automatic calculation of crowning Optional extra - Manual crowning So that you are always sure that the workpiece will have the same angle along its entire length. Optional extra - Automatic crowning Enables the controller to take control over crowning, thus, ensuring that the setting value is always perfectly matched to the needs. OCS - Oil Cooling System Oil Cooling System guarantees the stability of the machine's operating parameters even after long, continuous operation. Assistance by a specialist We make sure to stay in constant touch with our Clients. This is why we add a time package of tech support hours for Otinus Professional Assistance to each machine purchased. See and test the machine Join us for a one-of-a-kind demonstration where a qualified Otinus technician will show you the full functionality of the machine. In addition, you will be able to try out how the device will perform against your needs as you can provide technical drawings and sample material. Included in the machine price 2-day training including installation of the machine - 1st day (up to 8 hours) - installation of the machine and learning to use the controller. - 2nd day (up to 8 hours) - independent work on the machine under the supervision of our technician with the possibility of programming specific parts manufactured by the Client. Telephone consultation with a specialist - 7.30 a.m. to 9 p.m. (Mon-Sat) - package of 8 hours to be used within 12 months - Free lending of transport rolls and two lifting jacks for easier positioning of the machine at Clients' facilities. The rollers and jack will be delivered after prior notification (no less than 7 days before delivery of the machine). Terms of cooperation - 24 month warranty - The machine is brand new - Warranty and post-warranty service provided by the seller - The Client is responsible for the machine during unloading and transporting on-site
