7-axis multitasking lathe

DMG MORI CTX beta 800 TC

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 4500 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] - Travel : 780 [mm] - Spindle / counter-spindle distance : 980 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 570/1297 [mm] - Y stroke : +/- 100 [mm] - B Axis stroke : 190 (+/-95) [°] - Tool type : Capto C4 - Spindle speeds : 12000 [rpm] - Spindle power : 7,5 [kW] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 48 (2x24) LOWER TURRET - Number of positions : 24 - X/Z stroke : 130,5/658 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 7,1 [kW] POWER SUPPLY - Supply voltage : 380 [V] WEIGHT & DIMENSIONS - Machine floor space : 2700x3460 [mm] - Machine height : 2857 [mm] Fpsdpouhamcofx Aa Nop - Machine weight : 14500 [kg] MACHINE HOURS - Number of working hours : 11000 [h] EQUIPMENT - CNC : Fanuc 31iA-5 - Coolant tank * with high-pressure pump : 25 [bars] * Coolant through spindle - Chips conveyor : Droite - Spindle cooling unit - Predisposition for barfeeder - Electric transformer - Chuck 3 jaws : SCHUNK 215 / SCHUNK 165

Condition: excellent (used), Year of construction: 2010, turning length: 230 mm, turning diameter: 230 mm, spindle speed (max.): 5,000 rpm, spindle bore: 68 mm, spindle nose: A2-6, Doosan TT1800SY Fodpfx Ajwzxcaja Nepp

Condition: good (used), Year of construction: 2018, functionality: fully functional, MITUTOYO Contracer CV-2100M4 contour measuring device Horizontal measuring range X = 100mm Fsdpfx Asvun Tpea Nspp Vertical measuring range Z = 50mm Column travel range Z2 = 350mm Inclination +/- 45° Dimensions (W, D, H) 745mm x 450mm x 885mm Total weight approx. 150kg Incl. PC system, Incl. cross table 218-001 Incl. rotating vice 2028-003

Condition: used, Year of construction: 2013, controller manufacturer: Siemens, controller model: 840 Dsl, _____ Description: Year of manuf. : 2013 Control : Siemens 840 Dsl Turning diam. : 340 mm Turning length : 1185 mm In General: Year of manufacture:2013 Control system:Siemens 840 Dsl Turning length:1,185 Swing diameter:540 mm Bar capacity:75 Main spindle: Technology:Direct drive spindle Fodpfxsxl Nfqs Aa Nspp Speed:5,000 rpm Max. power:32 kW Max. torque:360 Nm Chuck:SMW KNCS -N 260-78 C-axis:0.001° Flush:Chuck flush Sub spindle: Technology:Direct drive spindle Speed:5,000 rpm Max. power:32 kW Max. torque:360 Nm Chuck:SMW KNCS -N 260-78 C-axis:0.001° Flush:Chuck flush + flush through spindle Tool carrier I (X/Y/Z/B): Technology:Milling spindle on traveling column Milling spindle speed:12,000 rpm Max. power:22 kW Tool holder:Capto C6 X-axis:450 mm Y-axis:200 mm Z-axis:1,200 mm B-axis:+/- 110° Position sensors:Direct scales (glass scales) Tool carrier II (X/Y/Z): Technology:Tool turret on cross slide Tool drive:Direct drive Speed:10,000 rpm Power:14 kW Torque:34 Nm X-axis:195 mm Y-axis:80 mm Z-axis:1,200 mm Tool holder:VDI 40 Number of tool stations:12 Automation: Technology:Portal loader with stacking magazine Workpiece diameter:50 - 200 mm Max. workpiece height:230 mm Max. workpiece weight:15 kg Number of stacking attachments:20 Max. load capacity per stacking attachment:40 kg Equipment: Chip disposal:Chip conveyor Coolant supply:Internal coolant system, 80 bar Tool magazine:Chain magazine, 120 stations Workpiece measurement:Renishaw touch probe Tool breakage monitoring:Swivel wire Automation:Portal loader with stacking magazine Emulsion mist separator:Mechanical Setup operation:Electronic handwheel Workspace door:Automatic Chuck:2x SMW KNCS 260 Tool holders:Various Capto C6 holders

Condition: used, Year of construction: 2015, TAKISAWA TS4000YS year 2015 CNC control FANUC 32i-MODEL B Max. turning diameter 315 [mm] Max. swing over bed 600 [mm] Max. Turning length 735 [mm] Stroke X axis 267 [mm] Stroke Z axis 840 [mm] Stroke Y axis -50 [mm] / +70 [mm] Stroke A axis 780 [mm] Rapid traverse rate X axis 30000 [mm/min] Rapid traverse rate Z axis 30000 [mm/min] Rapid traverse rate Y axis 10000 [mm/min] Rapid traverse rate A axis 30000 [mm/min] Spindle nose A2-8" Max. bar diameter 82 [mm] Spindle throughbore 94 [mm] Max. spindle speed 4200 [rpm] Spindle power 22 [kW] Counter spindle nose F140 Counter spindle throughbore 53 [mm] Max. counter spindle speed 6000 [rpm] Counter spindle power 11 [kW] Max. tool holder cross-section 25 [mm] Number of tool stations 15 Number of tool stations driven 15 Max. speed driven tools 6000 [rpm] Lubrication tank capacity 370 [l] Total power required 37 [kVA] Supply voltage 400 [V] Fpodjwq Sf Tjpfx Aa Nsp Chip conveyor with machine 5 live tool holders Weight 6700 [Kg]

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, turning diameter: 500 mm, DMG CTX Beta 1250 TC 2009 Fedpev N Hc Sofx Aa Nepp

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, turning length: 1,250 mm, turning diameter over cross slide: 500 mm, turning diameter: 390 mm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 450 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 1,300 mm, bar passage: 65 mm, total height: 2,700 mm, total length: 7,000 mm, total width: 3,000 mm, overall weight: 12,000 kg, Equipment: documentation/manual, Manufacturer: DMGMORI Type: CTXbeta1250TC Year of manufacture: 2008 (retrofit in 2022) Control: Siemens 840D Solutionline Number of axes: 5 axes Equipment: - automatic tool changer - swivel head as B-axis - belt filter system with internal cooling and chip conveyor - differential pressure clamping main/counter spindle Fpjdpfx Aajubyv Rj Nep - workpiece collection device - preparation for bar loader (optionally available) Technical data: Max. turning diameter 500 mm X-axis 450 mm Y-axis 100 mm Z-axis 1300 mm B axis 220 ° Spindle bore 65 mm Speed 5000 rpm Spindle power 34 kW Counter spindle speed 6000 rpm Counter spindle passage 52 mm Counter spindle power 20 kW Tool changer 24 B-axis mount HSK 63 B-axis spindle speed 12000 rpm B-axis power 22 kW Installation dimensions approx. L 7000 / W 2300 / H 2300 mm Weight approx. 8,000 kg Chip conveyor: Yes Coolant device: Yes Internal coolant supply: Yes Options: · Full cabin · NC swivel head as B-axis · Coolant device and chip conveyor · Documentation · Geometrically within the new machine tolerances Condition: - Machine fully functional - Geometry within the manufacturer's tolerance for new machines - All wear parts replaced Retrofit 2022: - Linear guides Z1 and Z2/3 replaced - Linear guide Y-axis replaced - Main and counter spindle overhauled - Milling spindle overhauled - B-axis (bearings and clamping) renewed - sliding plates overhauled - hoses and cables overhauled, drag chains revised - cabin doors repainted, viewing windows renewed - maintenance carried out according to manufacturer's specifications

Condition: ready for operation (used), Year of construction: 2020, operating hours: 6,056 h, Control Unit Brand SIEMENS Model 840D General Data Fpodownkdcopfx Aa Nsp Measurements width 3150 Measurements depth 5564 mm Measurements height 2135 mm Machine weight 10000 kg Main Drive Spindle speed range 3600 Movement X-Axis Rapid Traverse 30 m/min Y-Axis Rapid Traverse 22.5 m/min Z-Axis Rapid Traverse 33 m/min Workpiece Workpiece drm over bed 800 mm Workpiece drm 600 mm Tools Slots in storage 12 This 3-axis horizontal turning machine manufactured in 2020 features a Siemens 840D control and a spindle speed up to 3,600 rpm. It offers a max turning diameter of 600 mm and a length of 2000 mm. Equipped with a chip conveyor, Siemens CELOS control system, and a fume extraction system, it's ideal for complex machining tasks. Consider the opportunity to buy this DMG MORI CTX 2000 horizontal turning machine. Contact us for more information about this machine. Application Types Turning

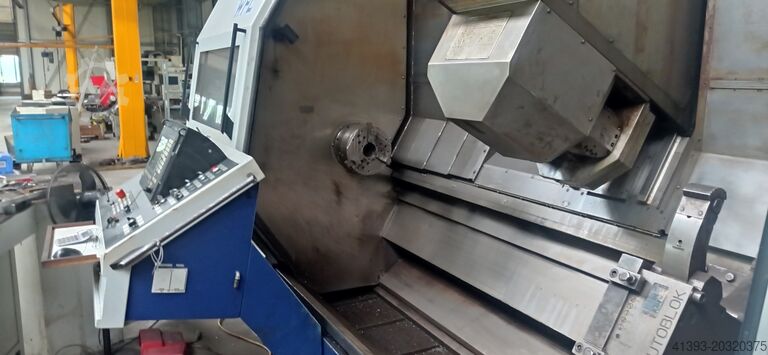

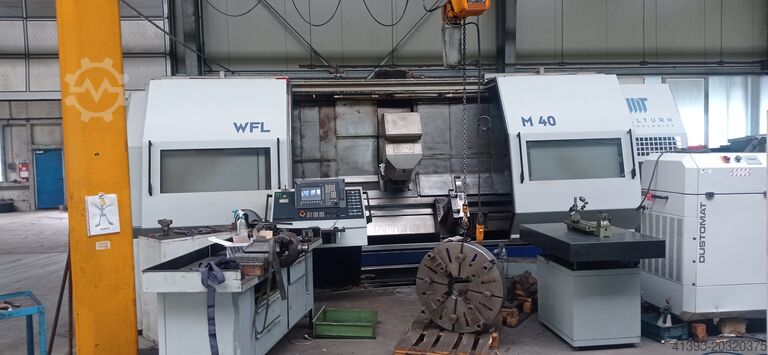

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Turning length: 3,000 mm Swing diameter over cross slide: 520 mm X-axis travel: 600 mm Fodpjxpfd Dsfx Aa Njpp Y-axis travel: 150 mm Z-axis travel: 3,150 mm Swing diameter: 520 mm Turning length: 3,000 mm Control: SIN 840 D Siemens Z-axis: 3,150 mm Z-axis feed rate: 1 – 40,000 mm/min Rapid traverse Z-axis: 40.00 m/min X-axis: 600 mm X-axis feed rate: 1 – 30,000 mm/min Rapid traverse X-axis: 30.00 m/min Main spindle S1 Spindle speed range: 1 – 3,300 rpm Drive power at 100% load: 29.00 kW Spindle nose DIN 55026 – size A11 Spindle diameter at front bearing: 160 mm Spindle bore: 115 mm C-axis: 360 x 0.001° Milling spindle S2 Tool holder: Capto C6 Infinitely variable speed range: 1 – 6,000 rpm Y-axis: -100 / +150 mm B-axis: -110 / +110° Tool magazine with 100 stations Total power requirement: 145 kW Machine weight approx.: 24 t

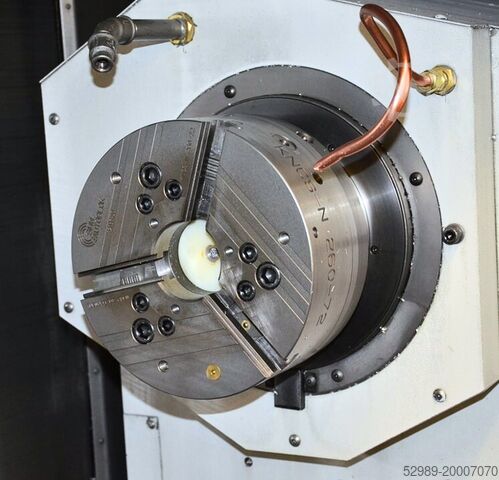

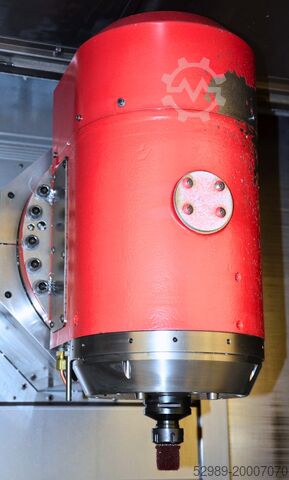

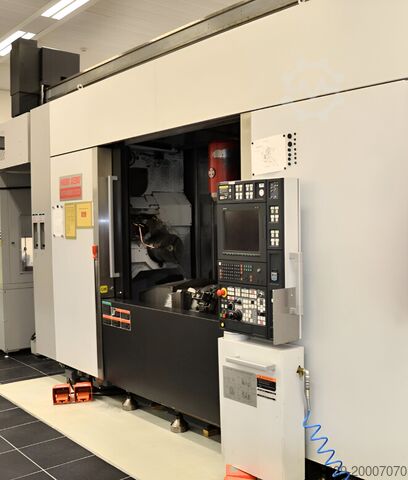

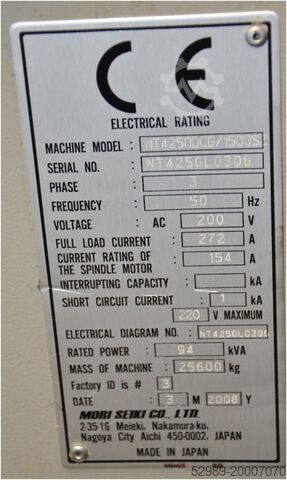

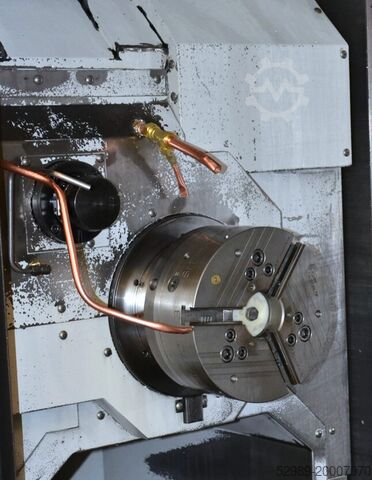

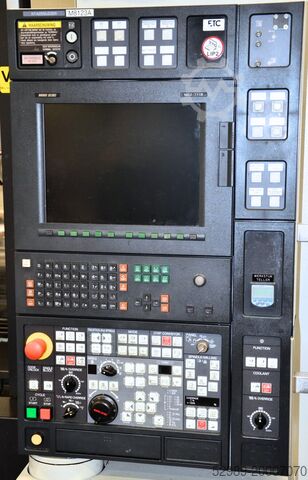

Condition: ready for operation (used), Year of construction: 2008, turning length: 1,542 mm, turning diameter over cross slide: 660 mm, spindle motor power: 22,000 W, spindle speed (min.): 4,000 rpm, spindle speed (max.): 12,000 rpm, travel distance X-axis: 750 mm, travel distance Z-axis: 1,550 mm, workpiece weight (max.): 8 kg, total height: 2,900 mm, total length: 6,800 mm, total width: 3,200 mm, overall weight: 25,600 kg, CNC controller: FS-31IA5 (MAPPS 4) Capacity Turning length mm: 1.542 Max. turning diameter mm: ø: ø660 Swing over bed mm: ø: ø730 Distance between spindle centers mm: 1.862 Turning diameter f. lower turret mm: ø350 Bar work capacity mm: 91 Turn-mill spindle Full indexing specifications: Yes X-axis travel mm: 750 Z-axis travel mm: 1.550+100 (for ATC) B-axis degree: ±180º (0.001°) C-axis degree: ±210 Speed spindle rpm: 12.000 Drive power kW: 18,5/11 Tool magazine Magazine places: 100 Tool holder: CAPTO C6 Tool diameter max. mm: 140 Tool weight max kg: 8 Lower turret X-axis travel mm: 195 Z-axis travel mm: 1.525 Number of tool slots St .: 12 Main spindle Speed spindle rpm: 4.000 Drive power spindle kW: 22/18,5 (30min/cont) Counter spindle Speed spindle rpm: 4.000 Drive power spindle kW: 22/18,5 (30min/cont) Coolant system High-pressure bar: 28 Equipment Electronic Handwheel Chip conveyor Rinsing gun Signal lamp Workarea light Internal coolant supply Measuring probe Gantry loader LG-10; 10 Pallets, 75kg per pallet, pieces of Ø200 x 150 (W x H) Basic machine dimensions / weight Length mm: 6.800 Width mm: 3.200 Height mm: 2.900 Fpedpsxcwf Tjfx Aa Njp Weight kg: 25.600
