Universal machining center

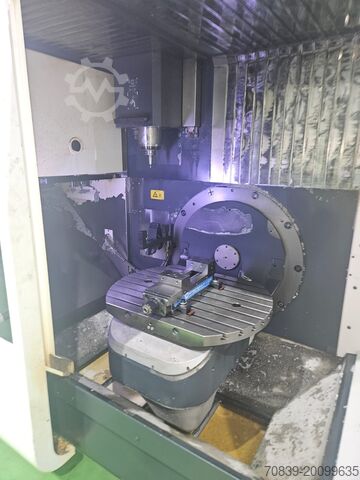

DMG MORI DMU 70

Condition: good (used), Year of construction: 2007, Cover Maho DMG DMU 70eVolution 5Axis simultaneous Machining center CNC Manufacturer: DMG Deckel Maho Type [ type]: DMU 70eVolution Control unit: Heidenhain iTNC 530 Incl. handwheel/handwheel Year of construction: 12/2006 - erneuert/renewed Spindle - IKZ integrated cooling system for water 40bar and air (both possible-both possible) Travel X/Y/Z 750/600/520 mm B-axis 0 to 180° degrees C-axis n x +-360° degrees Table load up to 350 kg Spindle speed range 20 to 18,000 1/min. Tool holder SK 40 DIN 69871 Weight [weight]: 10,000kg Complete documentation is available. Inspection under power can be arranged at short notice. If you have any further questions, please do not hesitate to contact us. Condition: good - ready for demonstration Delivery: ex warehouse - as inspected Payment: strictly net - after receipt of invoice Subject to prior sale, errors excepted. Csdovcnd Rjpfx Abwehc

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, CNC universal machining center 5-axis simultaneous machine with vertical axis Type: DMU 70 eVo linear Year of manufacture: 2008 Control: 3 D path control including 15" TFT screen Siemens 840 D solutionline with ShopMill Open user interface Switch-on time: 80,775 h Program runtime: 47,973 h TECHNICAL DATA Travel range. X-axis (longitudinal) 750 mm Y-axis (transverse) 600 mm Z-axis (vertical) 520 mm Distance table-spindle nose 675 – 155 mm Drive power (40/100% ED) 35/25 kW Torque (40/100% ED) 130/87 kW Speed range 20 - 18000 rpm Tool holder SK 40 NC swivel rotary table Clamping surface ø 700 x 500 mm Centering hole ø 30 H6 7 T-slots 63/14 H 7 mm Swivel range B-axis 0/+ 102° Swivel range C-axis 300° Table load 350 kg Tool changer (chain magazine) Number of tool positions 120 Tool diameter max. 80/130 mm Tool length max. 300 mm Chip-to-chip time 5.5 sec Feed range Rapid traverse X-axis 80 m/min Rapid traverse Y-Z-axis 50 m/min Feed force X-axis 6 kN Feed force Y-Z-axis 7 kN Rapid traverse rotary axis B/C-axis 40/50 1/min Operating voltage 400 V/50 Hz Total output 61 kVA Fuse 92/100 A Machine dimensions L x W x H 3.0 x 3.2 x 2.9 m Installation dimensions 7.5 x 4.5 m Weight 7,500 kg EQUIPMENT/ACCESSORIES  NC swivel rotary table with B and C axis and absolute measuring system incl. Drive cooling of the B and C axes  Chain magazine with 120 tool positions with double gripper  Infrared measuring probe Heidenhain TS 649  Laser tool measurement for measuring tool length and diameter Calibration mandrel with tool holder  Internal coolant supply, 40/80 bar switchable; Delivery rate 23 l/min/11 l/min, container size 980 l Paper belt filter  IKZ = internal coolant supply 40/80 bar  Rotating viewing window  Sealing air for linear measuring system  Coolant unit for spindle and drives  Active control cabinet cooling  Oil emulsion mist separator with electrostatic filter  Flushing gun for chip flushing  Blowing air through the center of the spindle, selectable via M function  Chip conveyor, designed for 120 magazine positions  Operating mode 4; Process monitoring in production  Absolute position measuring systems in all axes (X, Y, Z, B + C)  Preparation for automatic handling system (loading through side window)  Installation elements  Documentation Option: 1 piece workpiece storage and handling system currently used on a DMG DMU 70 eVo linear Manufacturer: LANG Technik GmbH ECO FEED: Series 68610 ECO-TOWER 60 (new generation): Series: 68135 Codjvta Dqjpfx Abwjhc Year of manufacture: 2013
