DMG MORI NHX 5000

DMG MORI NHX 5000

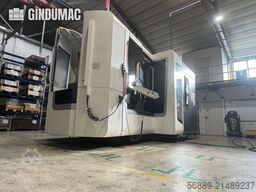

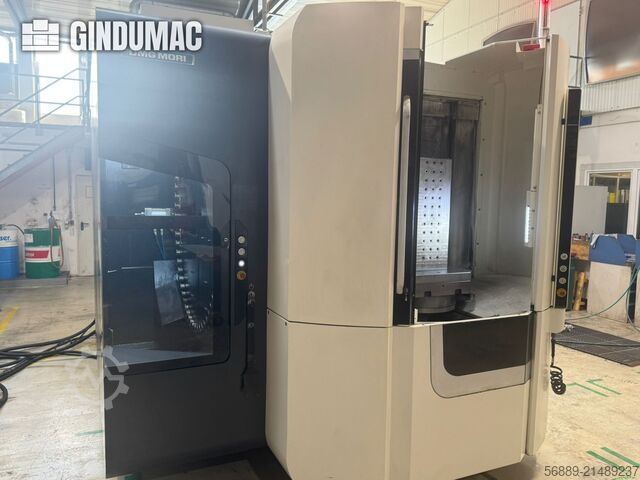

This 4-axis DMG MORI NHX 5000 was manufactured in 2017. It features a maximum spindle speed of 15,000 rpm and a travel of 730 mm in both the X and Y axes, with a Z-axis travel of 880 mm. The machine includes a robust pallet size of 500 x 500 mm and a tool capacity of 40 tools. If you are looking to get high-quality machining capabilities, consider the DMG MORI NHX 5000 horizontal machining centre we have for sale. Contact us for further details.

• Spindle torque: 111 Nm (continuous 85 Nm)
• Tool capacity: 40 tools (optional magazine 60 tools)
• Rapid traverse (X/Y/Z): 60 m/min
• Acceleration (X/Y/Z): 1G
• Pallet size: 500 x 500 mm
Gbsdpfjyt Hwzox Afnsi
• Number of pallets: 2
• Automatic rotary pallet changer: 2 stations
• NC table B axis: direct drive, indexing 0.001°, max speed 100 rpm
• Maximum pallet load: standard 500 kg (optional 700 kg)
• Direct position measuring system; Linear scale standard
• Control system: CELOS Siemens 840D sl with 21.5" ERGOline multi-touch display
• Electronic handwheel: Siemens
• Coolant through spindle preparation up to 70 bar
• Renishaw probe OMP60
• Tool breakage detection system
• Machine status signal lamp
• Water-glycol spindle cooling unit
• Application Tuning Cycle (ATC)
• Machine bed: 3-point support
• Power connection: L1 L2 L3 N PE
• Connected load: 46 kVA
• Maximum input current: 67 A
• Fuse protection: 125 A
• Short circuit current: 1.25 kA
• Maximum supply voltage: 4.0 kV
• Supply voltage: 400 V ±10 %
• Frequency: 50 Hz
• Control voltage: AC 230 V / DC 24 V
• Operating time: 27,715 h
• Spindle hours: 15,208 h

Additional equipment

• Knoll KF110/700
• Knoll Flow Monitor
• High-pressure coolant system
• 2x clamping towers (250 x 250 x 650 mm) TRIAG incl. accessories
• 95x tool holders HSK63 (various clamping devices)

Technical Specification
Taper Size BT 40
