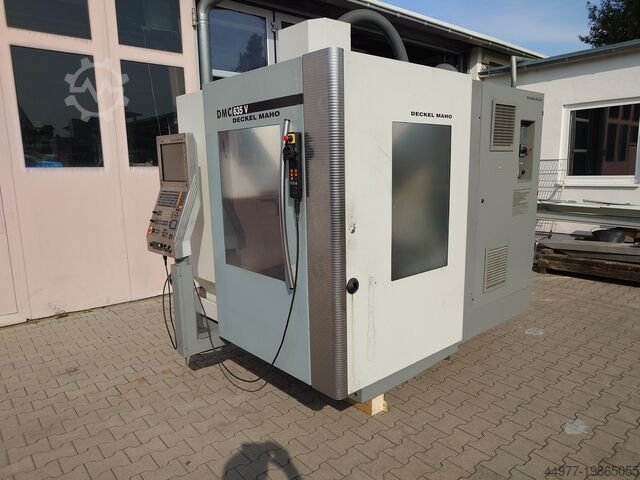

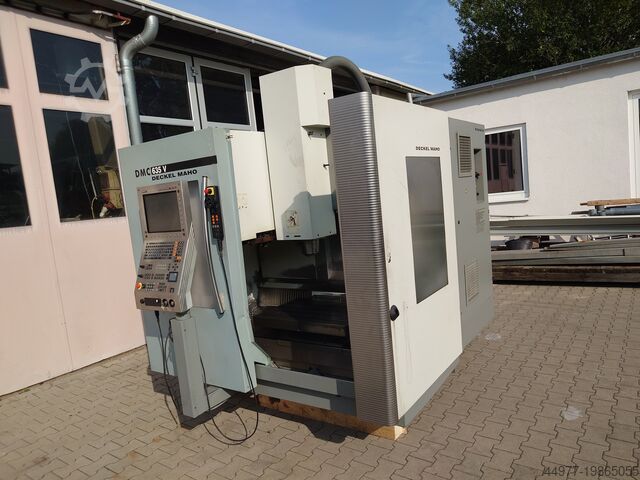

CNC Machining center

DMG 635V

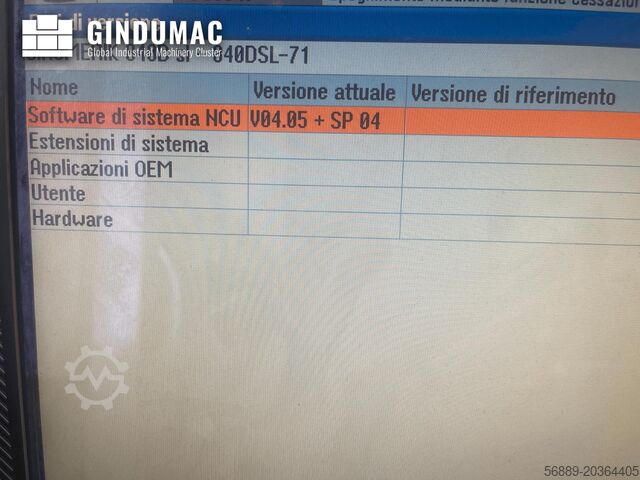

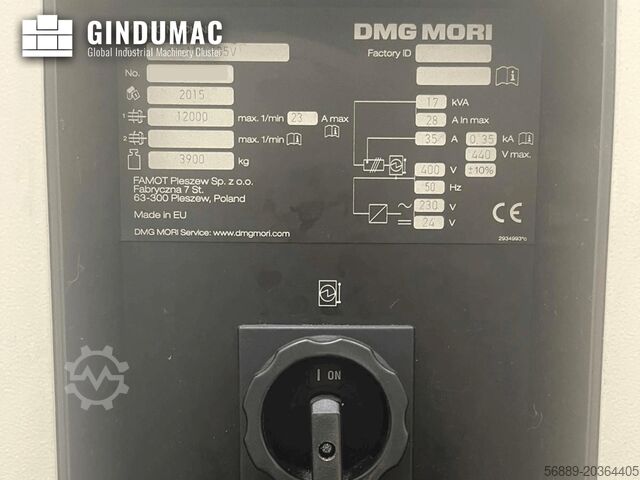

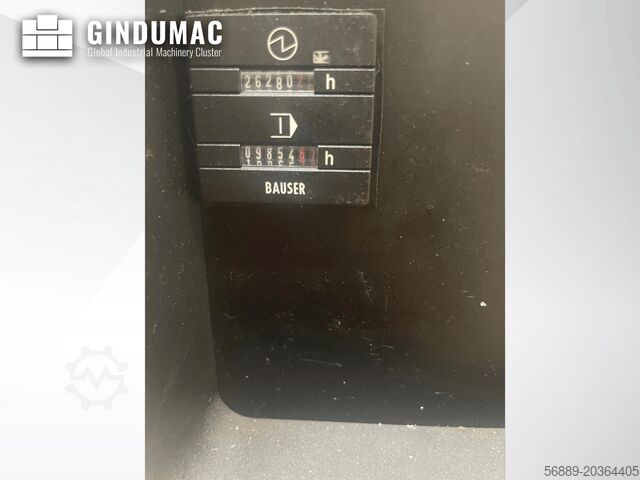

Condition: ready for operation (used), Year of construction: 2015, operating hours: 1,748 h, travel distance X-axis: 635 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, controller manufacturer: SIEMENS, controller model: SINUMERIK control (828D), table load: 600 kg, overall weight: 3,900 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 17,000 W, number of slots in tool magazine: 20, number of axes: 3, This 3-axis DMG MORI ecoMill 635 V was manufactured in 2015. It features an X-axis travel of 635 mm, Y-axis travel of 510 mm, and Z-axis travel of 460 mm. The machine has a robust table size of 900 x 560 mm and a maximum table load of 600 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI ecoMill 635 V vertical machining centre we have for sale. Contact us for further details. • CNC control: electronic handwheel • Operating hours: Power on approx. 13,550 h; Spindle cutting approx. 1,748 h • Table: 900 × 560 mm • Spindle: 12,000 rpm; SK40 / ISO40; Power approx. 13–17 kW • Tool magazine: 20 positions; Automatic double‑arm tool changer • Feed rates: Rapid traverse 30 m/min • Coolant: Flood coolant system Pjdoy T R I Espfx Afgjpt • Drives: Digital AC servo drives • Electrical: 400 V / 50 Hz / 3‑phase; Rated power 17 kVA • Dimensions (approx.): 3000 × 2200 × 2600 mm • Other: Machine connected and under power; very low spindle cutting hours for the year; good technical condition Additional equipment • Chip conveyor Technical Specification Taper Size SK 40

Condition: good (used), Year of construction: 2015, travel distance X-axis: 635 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, controller manufacturer: Siemens, x-axis travel 635 mm y-axis travel 510 mm z-axis travel 460 mm Control system SLIMline Siemens Main spindle speed range 20 - 12,000 rpm Main spindle drive power 13 / 9 kW Torque 83 / 57 Nm Tool holder SK 40 Clamping surface of table 790 x 560 mm Number of T-slots 4 + 1 T-slot width 4 x 14H12 / 1 x 14H7 mm T-slot spacing 100 mm Max. table load 600 kg Table height above floor 720 mm Number of tool stations 20 pos. Max. tool diameter 80 mm Max. tool diameter with free adjacent slot 130 mm Ppedpfx Aey Rzbwsfget Max. tool length 300 mm Max. tool weight 6 kg Total tool weight approx. max. 60 kg Feed rate max. 20,000 mm/min Rapid traverse 30 m/min Total power requirement 17 kVA Machine weight approx. 4.0 t Space requirement approx. 4.5 x 4.0 x 2.8 m ICS 12 bar Chip conveyor Preparation for 4th axis (rotary table)

Condition: used, Vertical Machining Center Machine type: DMG DMC 635 V Control: Sinumerik 840 D Year of manufacture: 2008 TECHNICAL DATA: Travel: X-axis: 635 mm Y-axis: 510 mm Z-axis: 460 mm Rapid traverse (X/Y/Z): 30 m/min Spindle speed range: 20 – 10,000 rpm Spindle motor: 9 / 13 kW Tool holder: SK 40 Tool changer Tool pockets: 20 Podsyu S T Depfx Afgopt Table size: 790 x 560 mm Machine weight: 4,000 kg Features: No chip conveyor – chip tray Electronic handwheel Glass scales

Condition: ready for operation (used), Year of construction: 2007, operating hours: 22,729 h, travel distance X-axis: 635 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, total height: 2,650 mm, table load: 600 kg, overall weight: 5,500 kg, spindle speed (max.): 10,000 rpm, number of axes: 3, This 3-axis DMG DECKEL MAHO DMC 635V was manufactured in 2007. It's a vertical machining centre equipped with a measuring probe and a 3D button, ideal for precise machining tasks. If you are looking to get high-quality milling capabilities, consider the DMG DECKEL MAHO DMC 635V machine we have for sale. Contact us for more information about this machine. • Tool magazine: 20 stations • Table size: approx. 790 × 560 mm Additional equipment Ppodpfx Ajx D Epcofgot • 3D probe • Coolant: external coolant supply only (no through-spindle/internal coolant) • Chip conveyor: not included Dimensions Machine Depth 2050 mm

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 635 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, total height: 2,670 mm, total width: 3,288 mm, spindle speed (max.): 14,000 rpm, spindle motor power: 15,000 W, product length (max.): 2,275 mm, number of axes: 3, This 3s DMG DMC 635 V vertical machining centre was manufactured in 2008. It features a maximum spindle speed of 14,000 rpm and a powerful spindle with 18.5 kW. The machine has a working area with a table dimension of 560 × 790 mm and can handle workpieces weighing up to 600 kg. If you are looking to get high-quality machining capabilities, consider the DMG DMC 635 V machine we have for sale. Contact us for further details. • Distance table surface / spindle nose: 720 mm • Working area • Number of pallets: 1 • Table dimensions: 560 × 790 mm • Maximum workpiece weight: 600 kg • Spindle • Maximum torque: 100 / 74 Nm • Tool magazine • Tool holder: SK40 • Tool magazine positions: 20 • With adjacent tool positions free: 130 mm • With adjacent tool positions occupied: 80 mm • Maximum tool length: 300 mm • Tool change time: 1.6 s • Chip-to-chip tool change time: 6 s • Equipment / features • Electronic handwheel • Air flow through the spindle activated via M function • Working time • Power on: 34,484 h • Spindle running: 25,110 h • Rated power: 35 kVA Technical Specification Taper Size SK 40 Psdpfx Aoykaawofgopt

Condition: ready for operation (used), Year of construction: 2007, operating hours: 19,478 h, travel distance X-axis: 635 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, controller manufacturer: SIEMENS, controller model: 840D powerline, table load: 600 kg, spindle speed (max.): 10,000 rpm, number of axes: 3, This 3-axis DMG DECKEL MAHO DMC 635V was manufactured in 2007. It features a Siemens 840D control unit, a spindle speed of 10,000 rpm, and a tool changer with 20 positions. The table measures 790 x 560 mm with a maximum load of 600 kg. Rapid traverse rate is 30 m/min. Consider the opportunity to buy this DMG DECKEL MAHO DMC 635V vertical machining centre. Contact us for more information about this machine. Ppodpfx Aoyca Npsfgot • Operating hours: 19,478 h • Table size: 790 x 560 mm • Rapid traverse: 30 m/min • Tool changer: 20 positions • Condition: Both machines are in good working condition Technical Specification Taper Size SK 40

Condition: ready for operation (used), Year of construction: 2008, operating hours: 17,641 h, travel distance X-axis: 635 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, controller manufacturer: SIEMENS, controller model: 840D powerline, table load: 600 kg, spindle speed (max.): 10,000 rpm, number of axes: 3, This 3-axis DMG DECKEL MAHO DMC 635V was manufactured in 2008. It features a Siemens 840D control unit, a spindle speed of 10,000 rpm, and a tool changer with 20 positions. The machine offers a table size of 790 x 560 mm and a maximum table load of 600 kg. If you are looking to get high-quality milling capabilities, consider the DMG DECKEL MAHO DMC 635V machine we have for sale. Contact us for more information. Podsyca I Sspfx Afgopt • Operating hours: 17,641 h • Table size: 790 x 560 mm • Rapid traverse: 30 m/min • Tool changer: 20 positions • Condition: Both machines are in good working condition Technical Specification Taper Size SK 40

Condition: good (used), Year of construction: 2011, travel distance X-axis: 635 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, Manufacturer: DMG Type: DMC 635 V PW Year of manufacture: 2011 Ppsdpjv S Af Ujfx Afgst Control: Heidenhain iTNC 530 Machine weight: approx. 6000 kg Tool holder: SK 40 X travel: 635 mm Y travel: 510 mm Z travel: 460 mm Speed range: 14,000 rpm Max. table load: 400 kg Operating hours: 61,000 Spindle hours: 43,000 Space required: approx. 4.5 x 5.5 x 2.7 m Table size: 56 x 790 mm Number of tools in magazine: 60 pcs Internal coolant supply: 40 bar 3D measuring probe: TS 640

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 635 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, spindle speed (max.): 10,000 rpm, spindle nose: ISO 40, number of slots in tool magazine: 30, Equipment: CE marking, chip conveyor, documentation/manual, VERTICAL MACHINING CENTER DMG MODEL DMC 635V TRAVELS: 635x510x460 mm TOOL CHANGER RANOM 30 POSITIONS SPINDLE 10,000 RPM HIGH PRESSURE THROUGH SPINDLE CHIP CONVEYOR REMOTE HANDWHEEL HEIDENHAIN HR410 Ppsdpfx Afjxq E Dasgst

Condition: excellent (used), Working travels 635 x 510 x 460 mm Table size 790 x 560 mm Spindle taper SK40 Spindle speeds -14'000 rpm Tool changer 30 Pos. Control HEIDENHAIN iTNC-530 Ppjdpfx Afsrx Spmjget 3D measuring taper Chip conveyor Misc. accessories MARCELS MASCHINEN CH
