Machining Center - Universal

DMG DMU60 P

Year of construction: 2003, condition: ready for operation (used), Travel X/Y/Z: 600mm/700mm/800mm, resolution: 0.001mm, input resolution: 0.001mm, positioning tolerance: 0.01mm, feed rate: 15m/min, rapid traverse: 40m/min, speed: 18000rpm, power: 31kW, control: Heidenhain MillPlus. Documentation available. On-site inspection is possible. Nedpfxsx U Dwie Afcowc

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 11160000593, travel distance X-axis: 600 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, spindle speed (max.): 18,000 rpm, table diameter: 630 mm, TECHNICAL DETAILS Travel X-axis: 600 mm Travel Y-axis: 700 mm Travel Z-axis: 600 mm Number of simultaneous axes: 5 Table diameter: 630 mm Number of T-slots: 9 Distance between T-slots: 63 mm T-slot width: 14H7 mm Centering bore diameter: 50H6 mm Max. spindle speed: 18,000 rpm Feed rate longitudinal: from 20 mm/min to 15,000 mm/min Feed rate transverse: from 20 mm/min to 15,000 mm/min Feed rate vertical: from 20 mm/min to 15,000 mm/min Rapid traverse: 40 m/min Max. workpiece height: 1,000 mm Max. workpiece diameter: 920 mm Max. workpiece weight on table: 500 kg Table indexing (B-axis): 360° Swivel angle (A-axis): +45/-30° Holding torque A-axis: 3,866 Nm Clamping torque C-axis: 6,008 Nm Max. torque: 2,650 Nm Number of tools: 180 Tool diameter: 80 mm Diameter with adjacent tool pockets empty: 160 mm Nwsdpfx Ajyhnxvsfcoc Max. tool length: 350 mm Max. tool weight: 10 kg Tool holder: SK 40 DIN 69871 MACHINE DETAILS Measuring system resolution: µm Compressed air connection: 5 - 8 bar Power supply: 50 Hz 3x 400 Volt Total power requirement: 44 kVA Noise level: 80 dB(A) Dimensions & Weight Dimensions (L x W x H): 7,500 x 4,500 x 2,628 mm Machine weight approx.: 7,500 kg EQUIPMENT Set of tool holders SK 40 approx. 150 pcs High-pressure coolant system 40 bar Coolant through the spindle (CTS) Renishaw tool probe Lighting Rotating viewing window Electrical cabinet air conditioning unit

Condition: used, Year of construction: 1998, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 550 mm, rotational speed (max.): 12,000 rpm, overall weight: 7,500 kg, For sale: CNC 5-Axis Machining Centre, manufacturer DMG, model DMU 60 P The machine is fully operational and ready for immediate use. In 2021, a new spindle was installed, and all required maintenance has been carried out. History: 2019: New ball screw (KGT) 2021: New spindle 2022: Single-shift operation 2023: Occasional job orders 2024: Taken out of operation but remained connected to power 12/2025: Dismantled, cleaned, and stored Technical Specifications: X travel: 600 mm y travel: 650 mm z travel: 550 mm Control unit: Heidenhain TNC 426 Spindle speed: max. 12,000 rpm Nwodpfxowbhq Hj Afcsc Spindle drive power: 15 kW Max. torque: 130 Nm Tool holder: SK 40 Table diameter: 630 mm Max. table load: 500 kg Number of tool pockets: 60 positions Max. tool length: 350 mm Rapid traverse (X/Y/Z): 24 m/min Feed rate: 20 - 10,000 mm/min Total connected load: 44 kVA Space requirements: approx. 7.0 x 6.0 x 2.7 m Machine weight: approx. 7.5 t Please note: Vices or clamping fixtures are not included in this offer. Upon request, we can organise transport and loading, at an additional cost. Europe-wide service available. All prices are subject to VAT. Inspection is possible by appointment. Please contact us—our team is happy to assist you. Trade-in or exchange possible! Machinery Purchase / Sales PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your manufacturing needs? Or are you looking to sell yours? For more information or contact options, please visit our website.

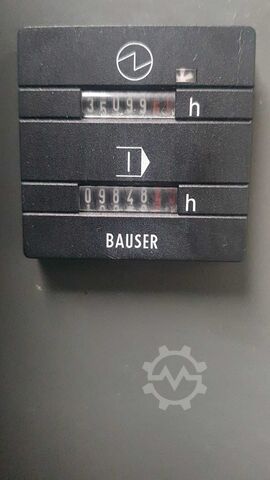

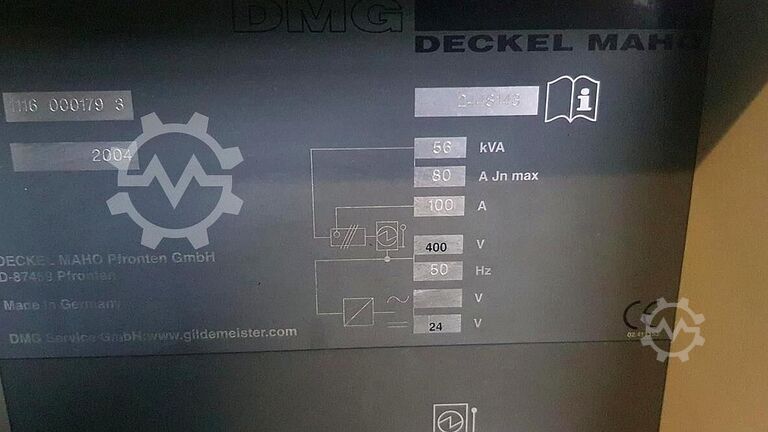

Condition: ready for operation (used), Year of construction: 2004, operating hours: 9,848 h, functionality: fully functional, machine/vehicle number: 1116 000179 3, travel distance X-axis: 600 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS Torque available at the spindle: see diagram in PDF Motor power at 100% duty cycle: see diagram in PDF Motor power at 40% duty cycle: see diagram in PDF Steplessly programmable spindle speed: 20–12,000 rpm Spindle speed in setup mode: 20–800 rpm Magazine stations: 30 slots Measuring System Resolution X, Y, Z axes: 0.001 mm Input increment X, Y, Z axes: 0.001 mm Positioning tolerance X, Y, Z axes: 0.010 mm Feed Drive Motors: AC brake motors for axes X, Y, Z Steplessly programmable feed rate X, Y, Z axes: 20–15,000 mm/min Nwjdowxybfopfx Afcoc Rapid traverse X, Y, Z axes: 60 m/min Setup mode X, Y, Z axes: 20–2,000 mm/min NC Swivel Rotary Table Clamping surface: Ø630 mm T-slot spacing: 63 mm Number of T-slots / Size: 9 / 14 H7 Centering bore: Ø50H6 mm Holding torque at 100% duty cycle A-axis: 3,866 Nm Holding torque at 100% duty cycle C-axis: 6,008 Nm Max. rotation of table plate A-axis: 7.3 rpm Max. rotation of table plate C-axis: 7.0 rpm Swivel range A-axis: ±45 / 30° Rotary range C-axis: n × 360° Tool holder: SK40 Operating Hours Power-on hours: 35,099 h Spindle hours: 9,848 h
