Container tanker washing station

Dontal JetPetroClean

JetPetroClean container washing station

Dkjdpshgimdefx Aghou
Producer: OU Dontal, Estonia

The installation is used to clean the inside of petroleum products tanks, especially railway cisterns. The cleaning process takes place in a closed system using hot water or hot water with detergents. Washing consisted in introducing a washing head through the upper hatch of the tank, and then washing the inside of the tank under a specified pressure. Dirty water was drained to the container tank by means of the lower inlets of the cistern, by means of diaphragm pumps. There, after the separation of impurities, the water returned to the circulation and was reused for further washing. It took about 1 hour to wash one tanker. The next step was to dry the inside of the tank and remove solid waste from the inside of the tank using exhaust fans. After the washing process was completed, the installation was blown through and dried using compressors.

1. Main container unit:

20-feet container - year of production 2014
two main Lowara pumps - year 2014
hydraulic system with pressure gauges
washing water tank (water tank 5770 L, waste tank 2540 L)
Control cabinet
compressed air tank
2. Auxiliary unit:

20-feet container - year of production 2012

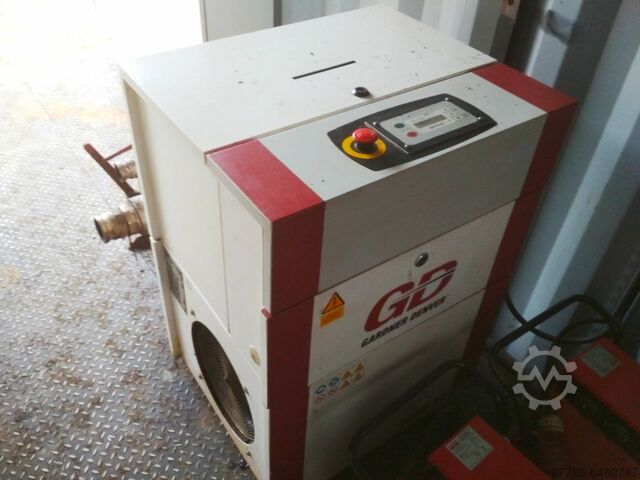

two compressors GD ESM 11-7.5A - year of production 2013
gas generator - year of production 2015
control cabinet
Meganex 15 kW electric heaters - year of production 2014
four Soler & Palau CBRT / 2-502 5.5 kW fans - year 2014
two diaphragm pumps
compressed air tank

3. Waste container in a container construction

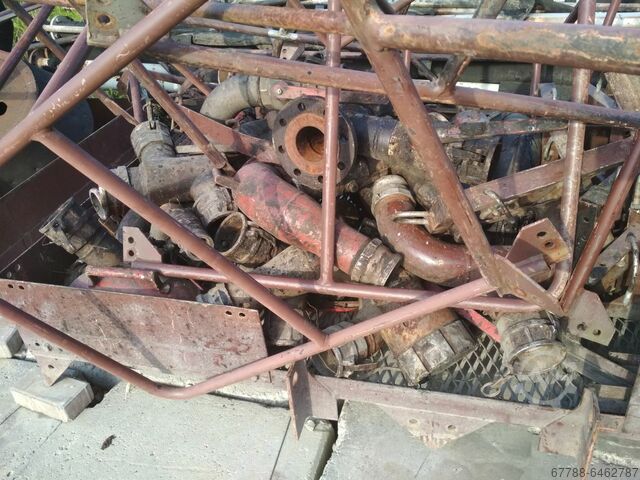

4. Rigid steel pipes and plastic hoses

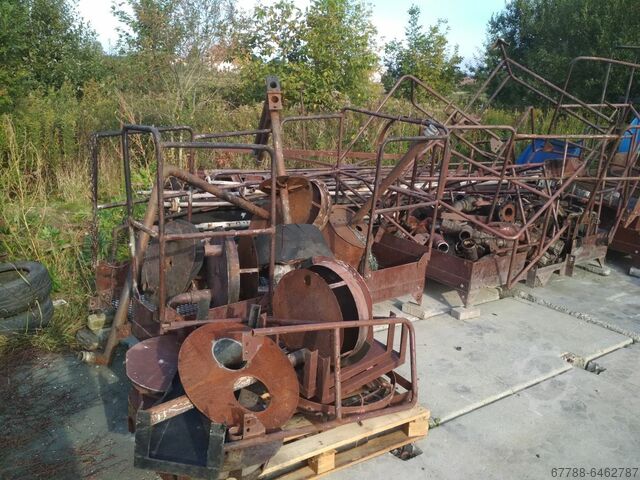

5. Structures, platforms, stairs and railings for handling tanks

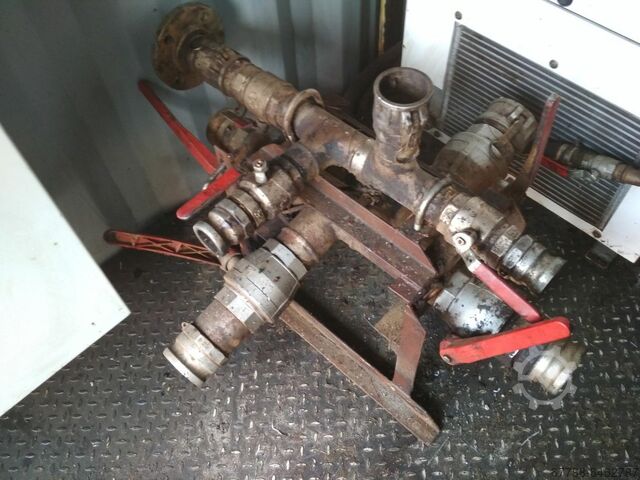

6. Washing heads, knees, valves and other elements of the hydraulic system.
.
Technical condition: used installation, for technical inspection before restarting.
