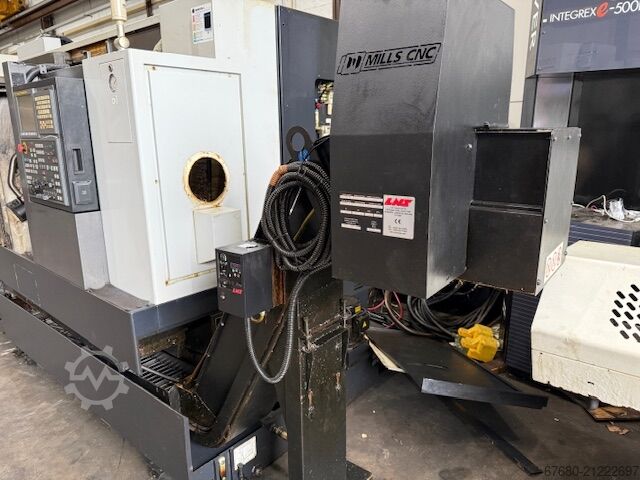

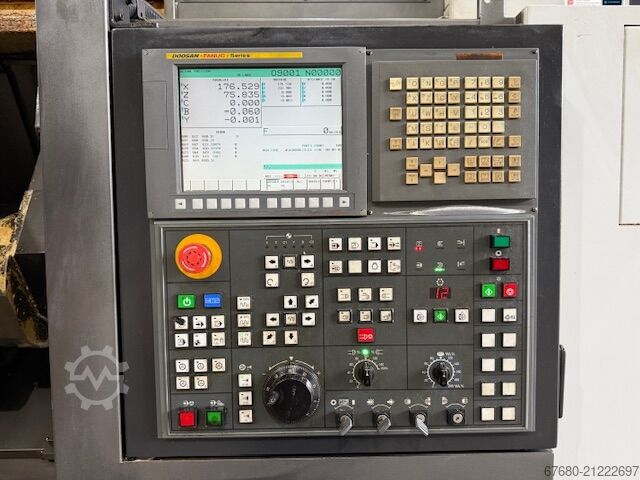

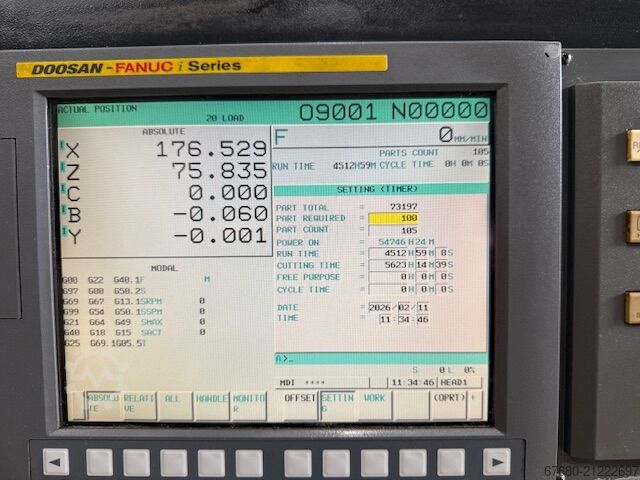

CNC lathe

Doosan 2100 SY

Condition: excellent (used), Year of construction: 1991, swing diameter 400 mm Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : WMW - GLAUCHAU Hydraulic Internal Grinding Machine with Face Grinding Device model SI 6/1 AS-N x 315 year 1991 Internal grinding diameter 40 - 400 mm Internal Grinding depth, max. 315 mm Max. grindable External dia. 400 mm Weight of workpiece without steady, max. 630 kg Workpiece Swing Ø, with / without safety hood, max. 500 / 600 mm Height of centre above table 360 mm 16 step workpiece spindle speeds 40 – 400 rpm Workpiece spindle bore, approx. 53 mm Workpiece headstock swivelling max. 30 ° Adjustment of workpiece headstock position crosswise, max. 400 mm Automatic cross traverse of grinding head 70 mm Adjustment of grinding head position on slide crosswise, approx. 100 mm Feed of grinding head, intemittendly 0.001 – 0.025 mm/stroke Feed of grinding head, continually 0,1 – 1 mm/min Table stroke, max. 630 mm Table speeds infinitely variable 0,1 – 8 m/min (10 m/min) Distance workpiece headstock and grinding slide, max. 1,250 mm Adjustment of Grinding spindel stock on table 520 mm Spindle drive, approx. 7.5 kW Total electrical load, approx. 17 kW - 380 V - 50 Hz Weight, approx. 6,000 kg Accessories / Special Features: Nlodpfx Asxyllveguef • Universal internal grinding spindle head with automatic cycles to grind cylindrical and conical bores with one or multiple diameters, external diameters and grinding of narrow end-faces. • Face grinding device, hydraulic swivel-in, with automatic cycles to grind end-faces, multiple end-faces and two tiered end-faces simultaneously • Electronic cycle control with control tableau to set up all the grinding and dressing cycles including ampere-meters for internal grinding spindle and face grinding spindle • Belt-type grinding spindle drive with mounted grinding spindle and 5 pieces separate interchangeable grinding spindles along with various pulleys with various diameters. • Dressing device for both grinding spindles • HEIDENHAIN Digital Read-Out for the cross adjustment of the Workpiece headstock • A large amount of operating tooling and accessories as : 4-jaw Faceplate Ø approx. 520 mm, 3-jaw chuck Ø approx. 380 mm, 3-jaw-chuck Ø approx. 130 mm, pulleys, spindle sleeves, grinding flanges, foot switch, • Separate hydraulic unit, built on switch cabinet, coolant device with magnetic separator. Condition : very good, universal machine for all sorts of grinding tasks ! Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading

Condition: good (used), Manufacturer: WMW Zeulenroda Type: PYE 160 SS Year of manufacture: 1980 C-frame construction Die height 850 mm Thickness bolster plate 100 mm Throat C side 360 mm Specifications Metric US Standard Capacity 160,000 Table length 1,250 mm Table width 600 mm Nsdpfx Agewp Nv Hjuslf Ram stroke 500 mm Starting speed 100 mm/min Working speed 10 mm/min Return speed 125 mm/min Power 22.5 kW Dimensions (Estimate) Length: 2,150 mm Width: 1,250 mm Height: 3,600 mm Weight: 7,500 kg Please note: The information on this page has been provided to the best of our knowledge and, where possible, from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not represent a warranty or contract terms. We recommend you check all important details.

Condition: excellent (used), Year of construction: 1983, Faceplate diameter: 1250 mm Max. swing diameter: 1400 mm Max. swing height: 1160 mm Max. ram stroke, vertical / horizontal: 755 / 840 mm Table load capacity: unlimited Faceplate speed range: 5.6 - 300 rpm Vertical slide angular adjustment: 45° Feed rate range: 0.044-8 mm/rev Rapid traverse rate: 2 m/min Nljdpfsy Ex Epsx Agusf Drive power: 55 kW Footprint L x W x H: 2660 x 2710 x 3360 mm Total weight: 16,500 kg Accessories / Special features: • 2-axis digital display, manufacturer: ACU-Rite • Faceplate, Ø 1250 mm, with 4 chuck jaws • 5-position turret • Taper turning • Profile turning Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany

Condition: used, turning diameter 1.600 mm max. swing diameter 1.700 mm control Siemens - 840D Nlsdjvp Shgopfx Aguef faceplate turning speed range 1 - 320 U/min rapid traverse 3.000 mm / min feed range 1 - 3.000 mm/min size of pallet 1.168 mm numbers of pallets 2 main drive 55 kW Vertical turret lathe with cnc | SCHIESS MOWEG - BERTHIEZ TFM 125 has been overhauled by SCHIESS MOWEG (RETROFIT) in 2007. The machine video from the production plant will be shared on request. The machine is in very good condition and was in operation at an aviation company until recently. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TFM125 | TFM-125

Condition: good (used), Csepel radial drill Type: RF50/1600 Nlsdpeyubmtefx Agujf Arm lenght: 1600 mm Max drilling capacity: 50 mm Max spindle speed: 2000 1/min Height of the machine: 2830 mm Machine lenght: 2190 mm Machine depth: 950 mm Weight: 3050 kg Under power in our warehouse.

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 11903, grinding length: 5,200 mm, grinding wheel diameter: 660 mm, grinding diameter: 1,600 mm, grinding wheel width: 50 mm, spindle speed (max.): 30 rpm, spindle speed (min.): 5 rpm, Churchill Roll Grinder Swing 1600 mm Centres 5200 mm Cambering Nlsdpjxvrptofx Aguef Wheel Size 26” x 2” Roll speeds 5-30 rpm Bed and table were re-ground and not much use since so both are perfect.

Condition: excellent (used), Year of construction: 2014, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,800 mm, spindle diameter: 130 mm, overall weight: 32,450 kg, year of last overhaul: 2014, The machine is in very good technical condition, equipped with a Heidenhain iTNC 530 CNC control system. Specifications: Spindle diameter: 130 mm X-axis travel: 3000 mm Y-axis travel: 1800 mm Taper in spindle: ISO 50 Spindle extension: 1120 mm Horizontal spindle head extension: 450 mm Total installed motor power: 50 KVA Nljdpfx Asx Hfk Isgujf Dimensions (L x W x H): 10100 x 4380 x 5250 mm Weight: 32,450 kg

Condition: used, Year of construction: 1973, functionality: unexamined, Vertical Turret Lathe - Double Column | Brand: TITAN | Type: SC 2500 Year of manufacture: 1973; modernization in 2011 to Siemens SINUMERIK 840D sl control system The machine is a ‘TITAN’ model, i.e. from a Romanian manufacturer. However, the design is licensed from SCHIESS in Düsseldorf and is therefore comparable to the well-known SCHIESS machines from that period. The machine was professionally disassembled by technicians from the machine manufacturer SCHIESS, properly preserved and placed in storage by the owner. TECHNICAL SPECIFICATIONS / EQUIPMENT: - Faceplate diameter: 2.500 mm - Swing diameter: 2.600 mm - Max. workpiece weight: 12 tons - Turning height: 1.600 mm - Number of turning supports / RAMs: 2 * Ram dimensions: 250 x 210 mm each - Main drive: 55 kW EQUIPMENT: - CNC control: Siemens SINUMERIK 840D sl - Tool turret (right) - Chip conveyor Dimensions / Weight: - Installation area: 5.600 x 4.800 mm - Hall space inc. operating and service areas: approx. 7.000 x 7.000 mm - Machine height: 6.200 mm - Machine weight: approx. 45 tons Nlsdjzlb H Topfx Agusf There is no guarantee for correctness and completeness of the technical details and accessories. - Subject to prior sale -

Condition: good (used), WMW BR 40/2 x 1250 radial drilling machine Drilling capacity in steel (diameter): 60 mm Arm reach: 1250 mm Max. workpiece height: 820 mm Spindle speed: 20-1200 rpm Spindle taper: MK 5 Spindle stroke: 400 mm Feed rate: 0.063-0.63 m/min Vertical arm adjustment: 950 mm Electrical connection: 380 / 50 V / Hz Nlodpfx Asx U Ectogujf Clamping surface of base plate: 1400x800 mm Total power requirement: 5 kW Machine weight approx.: 3 t Floor space required approx.: 2.2 x 1.0 x 2.8 m

Condition: used, Year of construction: 1980, turning height: 3,050 mm, workpiece weight (max.): 40,000 kg, turning diameter: 5,200 mm, Technical specifications Faceplate diameter: 4750 mm Swing diameter: 5200 mm Max. height under cross rail: 3250 mm Max. height under tool post: 3050 mm Nedpjzlynvsfx Agujlf Chuck speed: up to 32 rpm Max. table load capacity: 40,000 kg Ram travel (vertical): 1400 mm Machine weight: approx. 110 tons
