DOOSAN HM 1250

DOOSAN HM 1250

Condition: refurbished (used), Year of construction: 1985, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 700 mm, spindle speed (max.): 1,500 rpm, spindle speed (min.): 5 rpm, feed length X-axis: 1,200 mm, feed length Y-axis: 2,000 mm, feed length Z-axis: 700 mm, feed rate X-axis: 1,000 m/min, feed rate Y-axis: 1,000 m/min, feed rate Z-axis: 1,000 m/min, total width: 4,000 mm, San Rocco Horizontal Boring Machine Fully overhauled San Rocco horizontal boring machine, originating from a high-end aerospace manufacturing facility. The machine is equipped with a Siemens SINUMERIK 840D CNC control system with SIMODRIVE 611 drive technology. The machine is fitted with modern digital drive systems and is designed for high-precision multi-axis machining in continuous operation. Lodpfx Agex Rhlcsrjrt It was fully overhauled in 2024, including brand-new telescopic covers on all axes, as well as numerous additional essential refurbishments to the hydraulic system, CNC components, hoses, seals, and related assemblies. Travels X-axis (longitudinal): 1,200 mm Y-axis (cross): 2,000 mm Z-axis (vertical / spindle axis): 700 mm Spindle Data Boring spindle diameter: 100 mm Tool interface: ISO 50 Milling spindle diameter: 185 mm Spindle axial travel: 700 mm Feeds and Rapid Traverses Automatic feeds (spindle and vertical axis): 2 × 1,000 mm/min Rapid traverse (spindle and vertical axis): 5,500 mm/min Distances Minimum spindle height above table: 0 mm Maximum spindle height above table: 1,500 mm Maximum distance from spindle nose to table center: 1,850 mm Spindle Speeds Torque range: 5 to 14 rpm Continuous power range: 15 to 1,450 rpm Number of gearbox ranges: 4 Speed ranges: 6–51 / 49–160 / 140–460 / 440–1,450 rpm Table Data Rotary table size: 1,100 × 1,300 mm Longitudinal travel: 1,200 mm Cross travel: 2,000 mm Table Feeds Automatic feeds X and Y: 1,000 mm/min Rapid traverse X and Y: 5,500 mm/min Table Rotation Continuous rotation: 30 to 100 degrees per minute Rapid rotation: 5,000 degrees per minute Drive System Siemens SIMODRIVE 611 E/R module 36/47 kW LT modules 108 A and 2 × 25 A Lifting and Transport Data Group 1 Steel bar Ø 70 mm, length 1,600 mm Steel bar Ø 70 mm, length 2,400 mm Four spacer rings for lifting slings Four steel slings Ø 22 mm Weight approx. 12,500 kg Group 2 Two steel slings, minimum Ø 18 mm Weight approx. 3,500 kg Group 3 Manual lifting Weight approx. 1,300 kg Condition The machine is in very good technical condition and can be inspected and tested under power by appointment.

Condition: ready for operation (used), Year of construction: 2014, travel distance X-axis: 1,400 mm, travel distance Y-axis: 1,050 mm, travel distance Z-axis: 1,200 mm, controller manufacturer: FANUC, controller model: 31i CNC, total height: 3,760 mm, total width: 4,325 mm, overall weight: 26,000 kg, spindle speed (max.): 6,000 rpm, spindle motor power: 35,000 W, number of slots in tool magazine: 60, tool weight: 30,000 g, product length (max.): 8,150 mm, number of axes: 4, This 4-axis DOOSAN HM 8000 horizontal machining center was manufactured in 2014. Equipped with Fanuc 31i CNC control, it features a maximum workpiece diameter of 1450 mm and weight capacity of 2000 Kg. It includes a high-pressure through-spindle coolant system, chip conveyor, and both workpiece and tool probes. If you are looking to get high-quality milling capabilities consider the DOOSAN HM 8000 machine we have for sale. Contact us for more information about this machine. • Max. workpiece diameter: 1450 mm • Max. workpiece weight: 2000 kg • Travel (X/Y/Z): 1400 x 1050 x 1200 mm • Pallet size: 800 x 800 mm • Spindle motor power: 22/35 kW • Max. torque: 1732 N·m • B-axis: indexable by degree • Max. tool diameter: 130/320 mm • Max. tool length: 630 mm Additional equipment • Belt-type oil skimmer • Triple light tower • Pallet centering device • Shower coolant • Through-spindle coolant 70 bar, 7.5 kW, with cyclone filtration • Automatic shutdown • Tool load monitoring • Chip conveyor • Workpiece probe OMP60 • Tool probe TS27R Dimensions Machine Depth 8150 mm Ledpezar Aisfx Agrert Technical Specification Taper Size BT 50

Condition: excellent (used), Year of construction: 2020, operating hours: 23,000 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 650 mm, rapid traverse X-axis: 120 m/min, rapid traverse Y-axis: 120 m/min, rapid traverse Z-axis: 120 m/min, torque: 80 Nm, controller manufacturer: Siemens, controller model: Sinumerik 840 D SL Solution Line mit NCU 730, workpiece diameter (max.): 1,830 mm, workpiece weight (max.): 800 kg, total height: 3,500 mm, total length: 5,900 mm, total width: 3,990 mm, overall weight: 24,500 kg, spindle speed (min.): 1 rpm, spindle speed (max.): 17,500 rpm, operating hours of spindle: 8,000 h, Equipment: chip conveyor, Horizontal double swivel-beam machining center with 2 spindles - Linear and torque motors in the feed axes - Gantry drive for the Y-axis - Independent Z-axes and X-axes - Double swivel beam with two integrated rotary axes for loading and unloading parallel to main processing time - Siemens Sinumerik 840 D SL Solution Line control with NCU 730 - Oil distributor for NC rotary table - 1 set of clamping bridge supports - Torsion compensation - 5th axis directly driven twice - Boring head indexing Lrjdpfx Aow Hgk Ajgret - Base module for clamping hydraulics - Pneumatic pressure intensifier - Scraper belt conveyor - Automatic loading door - Emulsion mist extraction unit - Automatic rinsing cycle for loading area - Tool flatness monitoring - Position monitoring, base module and extension - Grating/walk-on grid - 24 quick-release couplings SW-ID No. 413288 - Tool breakage monitoring, inductive etc.

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,000 mm, The horizontal machining centers in the XpertK series are characterized by their outstanding modularity. Choose from a variety of table variants and matching milling heads, complemented by a wide selection of spindles. The XpertK machines are ideal for special requirements where standard machines are not sufficient and offer customized flexibility and individuality Xpert K 3512 - Horizontal machining center - Series: Xpert K Lrodpfxsr H Hhnj Agrot - Travel X/Y/Z: 3500 x 1200 x 1000 mm - Optional Y-axis: 1600 mm - Milling head: M-Series fork milling head - Spindle: 12,000 min-1 / 53 KW / 253 Nm - Tool holder: HSK-A100 - Control: Heidenhain TNC 640 - Clamping surface: 4,000 x 2,200 mm - Payload: 15,000 kg - Rapid traverse: 30 m/min - Acceleration: 3 m/s² Modularly expandable, further options: - Sliding table X-axis - Cross table X and W-axis - Rotary table X and C-axis (Ø 2,000 mm) - Table travel X-axis up to 6,000 mm - Table travel W-axis 1,200 mm - Movable work unit Y- (vertical), Z- (slide) and W-axis (1250 mm) - Milling and turning machining possible - 18 spindle variations - Clamping area can be extended up to 6,000 x 2,500 mm

Condition: ready for operation (used), Year of construction: 2014, travel distance X-axis: 1,626 mm, travel distance Y-axis: 1,270 mm, travel distance Z-axis: 813 mm, table width: 1,270 mm, table length: 1,400 mm, table load: 4,535 kg, overall weight: 20,800 kg, spindle speed (max.): 7,500 rpm, CNC Haas with 15-inch LCD screen Table size: 1400x1270 mm Maximum table load: 4,535 kg Spindle ISO 50, power 22.4 kW Maximum spindle speed: 7,500 rpm Lrodpeypv T Rjfx Agrjt Travels: 1626x1270x813 mm 50-position tool changer Chip conveyor Weight: 20,800 kg

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 8,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,000 mm, feed rate X-axis: 20 m/min, feed rate Y-axis: 20 m/min, feed rate Z-axis: 10 m/min, feed length W-axis: 800 mm, spindle diameter: 150 mm, table load: 20,000 kg, workpiece weight (max.): 20,000 kg, Travel X-axis – Longitudinal column: 8,000 mm Y-axis – Vertical: 2,500 mm Z-axis – Ram extension: 1,000 mm W-axis – Spindle extension: 800 mm Headstock Spindle diameter: 150 mm Revolutions: 2,500 rpm Power: 40 kW Ram section: 460x520 mm Rapid traverse Lrodpfx Agezqlgzjrjt X and Y axes: 20 m/min Z-axis: 10 m/min MG 20 rotary table Table dimensions: 1,600x2,000 mm Longitudinal movement, travel: 1,500 mm Maximum centered load capacity: 20 tons Accessories Automatic indexing headstock 1ºx1º (Power 37 kW) Heidenhain measuring scales on all axes Operator platform Chip conveyor Floor plates (2 units)

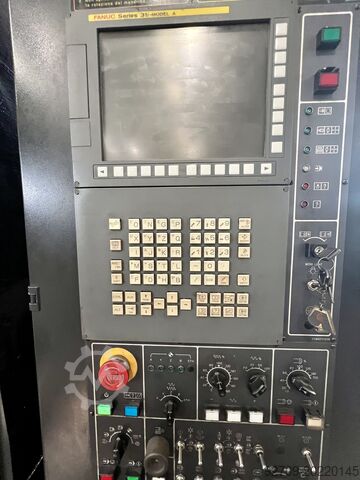

Condition: ready for operation (used), Year of construction: 2007, operating hours: 29,682 h, travel distance X-axis: 1,250 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: FANUC, controller model: 31i MA, total height: 3,330 mm, total width: 4,270 mm, table load: 1,600 kg, overall weight: 21,000 kg, spindle speed (max.): 6,000 rpm, spindle motor power: 30,000 W, number of slots in tool magazine: 90, tool weight: 25,000 g, product length (max.): 7,060 mm, number of axes: 3, This 4-axis DOOSAN HM 8000 was manufactured in 2007. It features an impressive X/Y/Z axis travel of 1250 x 1000 x 1000 mm and a maximum load capacity of 1600 kg. The machine includes a tool magazine capacity of 90 positions and operates with a spindle speed of 20 - 6,000 RPM. If you are looking to get high-quality machining capabilities, consider the DOOSAN HM 8000 horizontal machining centre we have for sale. Contact us for further details. • Secondary HMI panel: Pro-face (magazine rotation) • Rapid feedrate (X/Y/Z): 24 / 24 / 24 m/min • Pallet/table size: 800 × 800 mm • Number of pallets: 2 • Pallet indexing: 1° • Max. workpiece size: 1310 × H1200 mm • Tool magazine capacity: 90 positions (86 recorded on HMI tool search screen) • Max. tool diameter: 135 mm (with adjacent tool), 250 mm (without adjacent tool) • Max. tool length: 550 mm • Coolant through spindle: High-pressure • Operating hours (from CNC): Power on 70,190 h 16 m; Operating 29,682 h 18 m; Cutting 17,937 h 26 m • Recent maintenance/overhauls: Pallet changer, spindle line, tool changer, and auger motors recently overhauled Additional equipment Lredpfx Aezyaa Iogrst • Chip conveyor • Coolant circuit filtration system with belt-type oil skimmer • BUTTI chip collection bin Technical Specification Taper Size ISO 50

Condition: used, Year of construction: 2014, X-AXIS TRAVEL: 6000 MM Y-AXIS TRAVEL: 2000 MM Z-AXIS TRAVEL: 1250 MM ISO 50 DIN 69871-A MAX SPINDLE SPEED: 4000 RPM HEIDENHAIN iTNC 530 CNC ELECTRONIC HANDWHEEL 40-POT TOOL CHANGER AUTOMATIC INDEXING HEAD 1° x 3° 2500 X 2500 MM ROTARY TABLE, 20 TON LOAD CAPACITY Lodpezwlzrofx Agrsrt NR 2 2000 X 2000 MM FIXED PLATES CHIP CONVEYOR EXTERNAL AND INTERNAL COOLANT (20 BAR) YOM 2014

Condition: excellent (used), Year of construction: 2006, operating hours: 11,533 h, travel distance X-axis: 8,000 mm, travel distance Y-axis: 4,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 2,500 rpm, feed length W-axis: 800 mm, spindle diameter: 160 mm, table load: 80,000 kg, table length: 8,000 mm, table width: 4,000 mm, overall weight: 65,000 kg, grinding spindle motor power: 41 W, Equipment: rotational speed infinitely variable, JUARISTI MX-7 RAM CNC – CNC BORING AND MILLING MACHINE, FLOOR-MOUNTED DESIGN Manufacturer: Juaristi Model: MX-7 RAM Year of Manufacture: 2006 CNC Control: Heidenhain iTNC 530 Travel Ranges - X-axis: 8,000 mm - Y-axis: 4,000 mm - Z-axis (RAM / Slide): 1,000 mm - W-axis (Spindle Stroke): 800 mm Mounting Plates / Base Plates - Mounting Surface: 8,000 × 4,000 mm - Maximum Table Load: 80,000 kg Main Spindle - Spindle Diameter: 160 mm - Tool Holder: SK 50 (ISO 50) - Main Motor Power: 41 kW - Maximum Torque: 2,024 Nm - Spindle Speed Range: - 5–1,182 rpm (low speed range) - 1,182–2,500 rpm (high speed range) CNC & Drives - CNC Control Heidenhain iTNC 530 - Siemens Feed Motors - Absolute Heidenhain Measuring System Tool and Head Equipment - Automatic Tool Changer (ATC) with 30 positions - Automatic clamping system for RAM accessories - Manual swivel head Cooling System - Internal cooling through the spindle - External cooling system Mechanical Equipment - Hydraulic-electronic RAM compensation system - Independently vertically adjustable operator platform - Chip conveyor Lredjz Aplrepfx Agrot - Complete enclosure / complete protective guard Documentation - Complete original machine documentation available

Condition: used, Year of construction: 2005, functionality: fully functional, Control HEIDENHAIN iTNC530 Table dimensions 1250 x 1600 mm Max. table load 15 tons X-axis travel 2500 mm Y-axis travel 2000 mm Ledpfey Snwusx Agrjrt Z-axis travel 1500 mm W-axis 800 mm Table rotaion 360/1 degree Spindle speed range 4 - 3500 rpm Spindle taper SK50 Drive power 45 kW Tool magazine 90 stations Machine weight 35000 kgs Floor space required 7000 x 14000 mm Accessories, features - Table rotaion 360/1 degree - W axis - Coolant unit with papirfilter - Chip conveyor - Fully covered working area - Portable MPG - Operation manual + wiring diagram, + mechanical drawings The machine is still under power in Hungary.
