Turning and Milling Center

DOOSAN PUMA 2600 ST

CONTROLS
.. CNC controls FANUC 31I A

WORKING RANGE TURNING
.. turning diameter (max): 760 mm
.. bar diameter (max): 46 mm
.. worpiece length max.: 1540 mm

MAIN SPINDLE
.. spindle revolutions (max): 4000 /min
.. drive power: 22 kW
.. c-axis: yes

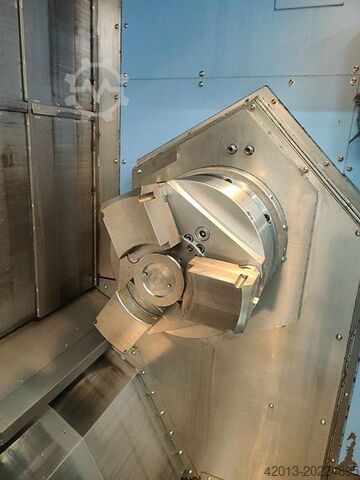

COUNTER SPINDLE
.. spindle revolutions (max): 4000 /min
.. drive power: 26 kW
.. c-axis: yes

X/Z SLIDE
.. Z-axis travel: 1585 mm
.. X-axis travel: 630 mm
.. Y-axis travel: 230 mm
.. number of tool positions (total): 12
.. number of live positions: 12
.. - rotation speeds (max): 4000 /min

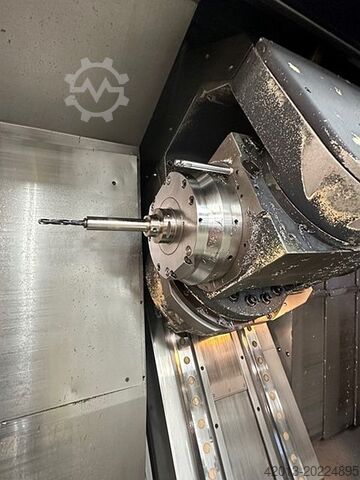

X/Z SLIDE
.. rotating range B-axis up to: 0.001 °
.. traverse velocity Z (max): 1515 mm/min
.. traverse velocity X (max): 220 mm/min
.. - rotation speeds (max): 12000 /min
.. - drive power: 22 kW

TOOL MAGAZINE
.. number of positions: 40
.. tool diameter max.: 90 mm
.. - with free neighbour positions: 130 mm
.. tool length max.: 400 mm

ELECTRICAL SPECIFICATIONS
.. mains voltage: 400 V
.. mains frequency: 50 Hz

DIMENSIONS / WEIGHTS
.. space requirements -left/right-: 5125 mm
.. space requirements -front/back-: 2625 mm
.. total height: 3052 mm
.. total weight approx.: 1550 kg

ATTACHMENTS (TURNING)
.. chip conveyor: yes

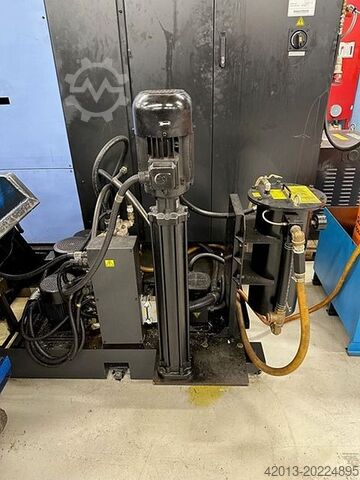

.. coolant unit: yes
.. coolant through turret: yes
.. through spindle coolant attachment: yes
.. hydraulic system: yes
.. European CE standards: yes
Chjdpfx Aexlh N Ujbwsc


Switch-on hours :41000h
Running time:19000h
Milling:3400H
