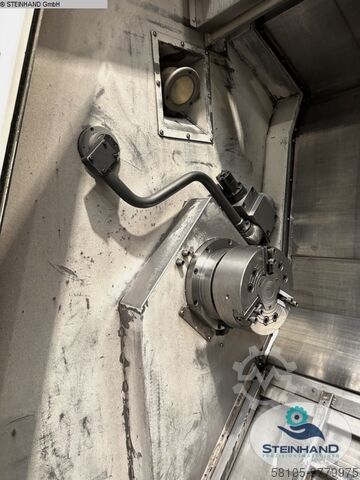

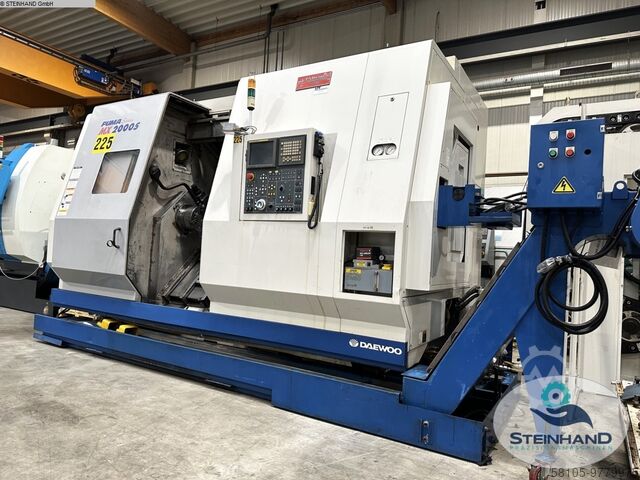

CNC Turning- and Milling Center

DOOSAN PUMA MX 2000 S

Condition: excellent (used), Year of construction: 2019, machine/vehicle number: 32006, input voltage: 480 V, The Sprinter for Gears with Short Face Widths up to 100 mm The 100S Gear Shaping Machine is ideally suited for small face widths, for shaping spur and helical gears, internal and external, and for crowned and tapered gears. With only 6 m2 the 100S is one of the most compact machines of its class. Equipped with: Siemens Sinumerik 840D SL Control Hydraulic System 180 Degree Load System HSK-63 Spindle Auto Stroke Adjustment Chip Conveyor Chip Basket Flexlink Automation Festo Pneumatics Rittal Panel Conditioners Chiller 480/3/60, 35 KvA Motor & Controls Specifications: Workpiece With External Gear: -Largest Module (Steel W/Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Diameter: 100 mm Workpiece With Internal Gear: -Largest Module (Steel With Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Swing Diameter: 150 mm -Maximum Internal Diameter: 100 mm Tool: -Locating Cone In The Cutter Spindle: HSK-D63 -Diameter Shaping Spindle: 85 mm -Maximum Stroke Length: 30 mm Machine Travel Distances: -Radial (X-Axis): 180 mm -Column Tilting (B-Axis): -1 - +11 Degrees Machine Workpiece Table: -External Diameter: 220 mm -Clamping Diameter: 160 mm -Bore: 63 mm Speeds: -Feed Rate X-Axis: 12,000 mm/min -Workpiece Table (C-Axis): 0-400 min-1 -Cutter (C2-Axis): 0-300 min-1 -Spindle Stroke (A-Axis): 500-3,000 min-1 Electrical Equipment: -Operating Voltage: 480V -Supply Voltage: 115V Fpsdpfortrvyex Aa Njp -Control Voltage: 24V -Frequency: 60 Hz -Connected Load of Machine: 35 kVA -Cable Cross-Sectional Area: 35 mm2 -Protection: 80 A Machine Overall Dimensions (L x W x H): 3,380 x 3,950 x 3,015 mm Weight of Machine: 7,800 kg

Condition: used, Year of construction: 2005, weight of the machine ca. 7.800 kg dimensions of the machine ca. 3.380 x 3950 x 3015 m Fedpfx Aoudc S Hoa Nopp

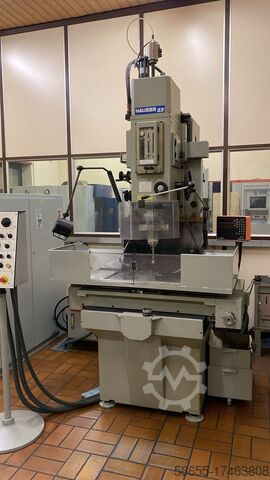

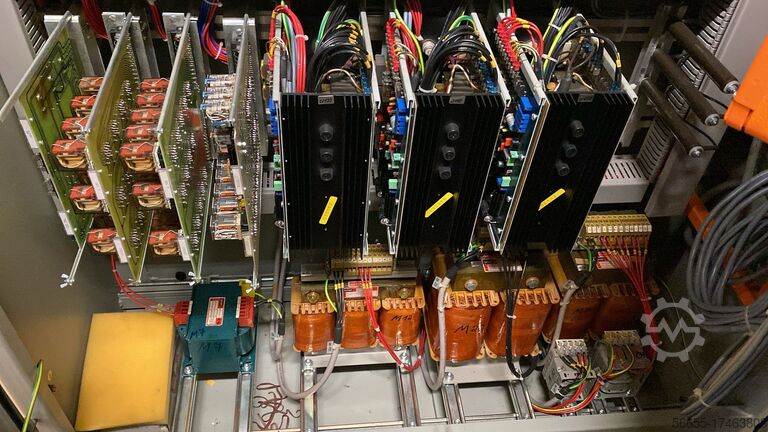

Condition: good (used), Year of construction: 1990, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 120 mm, For sale is a single-column coordinate grinding machine of the Hauser brand and type S3-DR. The machine is in good condition and fully functional Technical data Year of construction: 1990 Distance between column + spindle: 340mm Clearance between table + spindle: 500mm Diameter of the main spindle: 100mm Tool holder: 22S: E23 Tool holder: 45S/45ST: E19 Tool holder: 80S: F6 Tool holder: T10/T16: Ø3mm Adjustment range: X= 400mm, Y= 250mm Adjustment range: W= 450mm, Z= 120mm, U=6/20mm Table surface: 600x380mm Table load: max. 300kg Fpodpfx Aaeuy Tuae Nep Conical grinding: max. 16° Basic deviation X,Y at 20° C: 0.002mm Installed power: 7.5kW Compressed air requirement, suction capacity/h: 15m³ Required mains pressure: 6bar Spindle speeds in min -1 Grinding turbine: T10-100'000 Grinding turbine: T16-160'000 Nutenschleifapparat: 2‘900-34‘500 W-axis AC: approx. 900 Z-axis, hydraulic 15-7,500, DC drive 0.5-150 On request, transportation and loading can be arranged at extra cost. can be organized throughout Europe. Prices plus VAT Viewing possible by appointment. Please contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

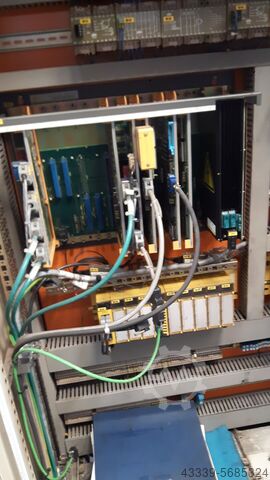

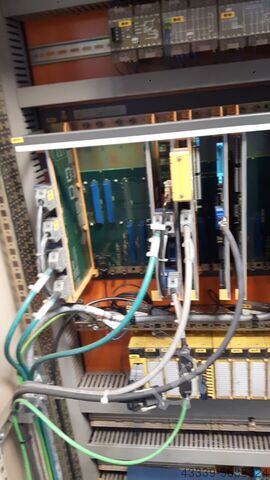

Year of construction: 1996, condition: ready for operation (used), CNC control FANUC FANUC 15TF Fodpfxegqucpo Aa Nepp Complete control with axis controllers X and Z for CNC lathe.

Condition: used, Year of construction: 1987, turning height: 5,000 mm, workpiece weight (max.): 80,000 kg, turning diameter: 5,000 mm, Technical data SIEMENS SINUMERIK 840 Dsl control system Main dimensions and travels Face plate diameter 4,000 mm Rotation diameter (max.) 5,000 mm Workpiece height (max.) 5,000 mm Total height of the machine 9,250 mm Maximum workpiece weight 80,000 kg Table base Y Fedpeu R Etpefx Aa Njpp Horizontal table displacement 2,500 mm Cross beam Vertical adjustment of the cross beam in 50 steps 3,200 mm Crossbeam support (right) Horizontal adjustment of support - 2740 + 2740 mm Vertical displacement of the chisel slide 1,800 mm Cross-section of the chisel slide 250x210 mm Tool positions 0 without vertical support (left) Lateral support (right) Vertical adjustment of support -25 + 2170 mm Horizontal displacement of the chisel slide 1,000 mm Cross section of the chisel slide 250x210 mm Turning diameter max./min. 4,500/2,500 mm Tool changer Main drive: Power of the main motor 100 kW Speed range of the faceplate 0.63 - 63 rpm Maximum torque on the faceplate 160 kNm Drilling and milling drive side support: Power of the drive motor 22.5 kW Maximum torque 900 Nm Connected loads of the machine Connection Voltage of the machine 380 Volt / 50Hz Control voltage 220V AC / 24V DC Total connected load 150 kVA Required back-up fuse 400 A Equipment and accessories: Operator platform Chip conveyor Cooling lubricant system Tool changer Tool measuring probe RENISHAW
