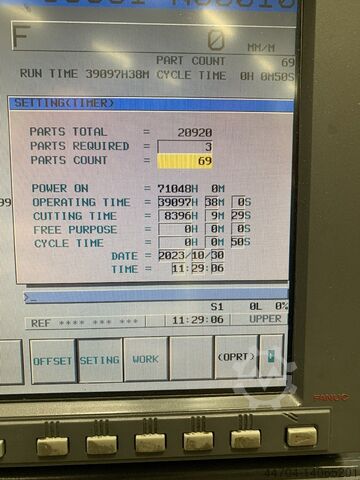

CNC turn-mill center

DOOSAN Puma MX 2000 T

Condition: good (used), Year of construction: 2018, functionality: fully functional, MITUTOYO Contracer CV-2100M4 contour measuring device Horizontal measuring range X = 100mm Vertical measuring range Z = 50mm Column travel range Z2 = 350mm Inclination +/- 45° Dimensions (W, D, H) 745mm x 450mm x 885mm Total weight approx. 150kg Fsdpfx Agevun Tpomsft Incl. PC system, Incl. cross table 218-001 Incl. rotating vice 2028-003

Condition: excellent (used), Year of construction: 1999, grinding length: 1,000 mm, Internal / External spindel Collet device Schaublin with inserts Steady rest 5 - 80 mm Steady rest 3 - 120 mm Coolant system Filtration system Fedpfxsxy I Tvo Agmjft Speeds head 1500 / 1700 / 2200  Centre height: 175mm Grinding Ø: 350mm Grinding length: 1000mm Grinding stone dimensions:400 x 50 x 127mm Grinding stone speeds: 1500 / 1700 / 2200Rpm Table inclasement: 9° Tailstock: 4Mk Cooling system: Yes Filtration: Yes Length: 2860mm Width: 1680mm Height: 1670mm Weight: 2500kg

Condition: like new (used), Year of construction: 1991, functionality: fully functional, overall weight: 35,000 kg, pressing force: 250 t, type of input current: three-phase, power: 30 kW (40.79 HP), punching force: 250 t, input voltage: 200 V, Equipment: safety light barrier, AIDA NC2-250(1) 250t eccentric press in excellent condition /ctA2/ Fsdpfeu Dxb Tsx Agmoft Manufacturer: AIDA Type: NC2-250(1) Push force: 160t Year of manufacture: approx. 1991 Stroke length: 170mm Distance above table: (adjustable) 280-400mm Table size: 2700x760mm Bear size: 2100x700mm Electrical power: 3x200V(!!), 30kW - Japanese standard Net weight: 35000kg Size: 2760x2800x3980mm Automatic greasing system. Automatic cutting oil dosing - RAZIOL EST-02 Optionally with disc winder and straightener.

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Turning length: 3,000 mm Swing diameter over cross slide: 520 mm X-axis travel: 600 mm Y-axis travel: 150 mm Z-axis travel: 3,150 mm Swing diameter: 520 mm Turning length: 3,000 mm Control: SIN 840 D Siemens Z-axis: 3,150 mm Z-axis feed rate: 1 – 40,000 mm/min Rapid traverse Z-axis: 40.00 m/min X-axis: 600 mm X-axis feed rate: 1 – 30,000 mm/min Rapid traverse X-axis: 30.00 m/min Main spindle S1 Spindle speed range: 1 – 3,300 rpm Drive power at 100% load: 29.00 kW Spindle nose DIN 55026 – size A11 Spindle diameter at front bearing: 160 mm Spindle bore: 115 mm C-axis: 360 x 0.001° Milling spindle S2 Ffjdpfexpfd Djx Agmot Tool holder: Capto C6 Infinitely variable speed range: 1 – 6,000 rpm Y-axis: -100 / +150 mm B-axis: -110 / +110° Tool magazine with 100 stations Total power requirement: 145 kW Machine weight approx.: 24 t

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, turning length: 1,250 mm, turning diameter over cross slide: 500 mm, turning diameter: 390 mm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 450 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 1,300 mm, bar passage: 65 mm, total height: 2,700 mm, total length: 7,000 mm, total width: 3,000 mm, overall weight: 12,000 kg, Equipment: documentation/manual, Manufacturer: DMGMORI Type: CTXbeta1250TC Year of manufacture: 2008 (retrofit in 2022) Control: Siemens 840D Solutionline Number of axes: 5 axes Equipment: - automatic tool changer - swivel head as B-axis - belt filter system with internal cooling and chip conveyor - differential pressure clamping main/counter spindle - workpiece collection device - preparation for bar loader (optionally available) Technical data: Max. turning diameter 500 mm X-axis 450 mm Y-axis 100 mm Z-axis 1300 mm B axis 220 ° Spindle bore 65 mm Speed 5000 rpm Spindle power 34 kW Counter spindle speed 6000 rpm Counter spindle passage 52 mm Counter spindle power 20 kW Tool changer 24 B-axis mount HSK 63 B-axis spindle speed 12000 rpm B-axis power 22 kW Installation dimensions approx. L 7000 / W 2300 / H 2300 mm Weight approx. 8,000 kg Chip conveyor: Yes Coolant device: Yes Internal coolant supply: Yes Options: · Full cabin · NC swivel head as B-axis · Coolant device and chip conveyor · Documentation · Geometrically within the new machine tolerances Fjdpfx Agoubyv Rjmsft Condition: - Machine fully functional - Geometry within the manufacturer's tolerance for new machines - All wear parts replaced Retrofit 2022: - Linear guides Z1 and Z2/3 replaced - Linear guide Y-axis replaced - Main and counter spindle overhauled - Milling spindle overhauled - B-axis (bearings and clamping) renewed - sliding plates overhauled - hoses and cables overhauled, drag chains revised - cabin doors repainted, viewing windows renewed - maintenance carried out according to manufacturer's specifications

Condition: good (used), Year of construction: 2001, Parts shown by hand not come. Ffjdpsuxrv Hofx Agmjt Technical data shown on pictures.

Condition: new, Year of construction: 2021, functionality: fully functional, Stock machine "NEW" – available at short notice! (Subject to prior sale) Control: Fanuc 0i-MF Plus, 10.4" with Manual Guide i & 2 MB NC memory LOOK-AHEAD function, 400 blocks Machine Table: Table size: 950 x 550 mm Load capacity: 800 kg T-slot width: 18 mm Number of T-slots: 3 Distance between T-slots: 150 mm Travel axes: Travel X/Y/Z: 860/550/550 mm Spindle nose to table surface: 150 – 700 mm Linear guides & speeds: Ball linear guides in X/Y axes Roller linear guide in Z axis Rapid traverse X/Y/Z: 40/40/30 m/min Feedrate during milling: 0 – 10,000 mm/min Smallest increment: 0.001 mm Tool magazine (CAM-Type) / changer: Number of magazine pockets: 30 System: random access Max. tool diameter: Ø 75 mm Ffedpfxsifn N Ns Agmet Max. tool diameter with adjacent pockets free: Ø150 mm (40 tools: Ø130 mm) Max. tool length: 300 mm Max. tool weight: 7 kg Spindle: Spindle taper: SK-40 Drive power (30min/cont.): 18.5/11 kW 15,000 rpm direct-drive spindle Spindle oil cooler Coolant, chip, and compressed air management: Coolant system incl. 300 liter tank and pumps External coolant around spindle Chip augers right and left in machine bed Compressed air nozzle at spindle (M32/M33) Compressed air through spindle (M38/M39) Compressed air and coolant gun Other features: Swiveling operator panel Electronic handwheel (wired) Central lubrication oil/air Full enclosure Work light Heat exchanger at control cabinet Auto power-off function Hand tool set Signal lamp Transformer 400 VAC, 50 Hz CE declaration of conformity according to European directives Electrical and pneumatic requirements: Electrical connection: 36 kVA Required pneumatic input pressure: 6 bar Dimensions: Machine size: W2,260 x D2,900 x H2,775 mm Required installation area: W3,160 x D3,000 x H3,000 mm (incl. chip conveyor ejection to the left) Machine weight: approx. 5,400 kg (net) Available special equipment: Spindle: - Direct-driven spindle SK-40, 15,000 rpm - Drive power (30min/cont.): 18.5 / 15 kW, (FANUC motor) Tool magazine / changer: - Drum-type tool magazine with 30 pockets, DIN69871, SK-40 Rotary or additional axes: - Preparation for 4th axis (FANUC controls), incl. wiring and Harting connector, without axis drive Coolant, chip, and compressed air management: - Bed flushing - Through-spindle coolant pump, 20 bar pressure, for direct-driven spindles - Includes cartridge filter - Belt-type chip conveyor including chip cart (chip discharge at front, to the left side of the machine) Measuring and monitoring systems: - RENISHAW OMP-60 probe with infrared transmission system for workpiece measurement, incl. probe holder, repeatability: 1μm - RENISHAW NC4+ tool laser measurement system and tool breakage monitoring in the machine, incl. bracket - Auto-door (side door) - Pneumatic interface for workpiece clamping - Clamping devices as shown With RoboJob Mill Assist 25kg (Year of construction 2025 – NEW) - Full enclosure - Double gripper Available immediately

Condition: used, Year of construction: 2014, CNC turning and milling center (9 axes) with Y-axis, B-axis, sub-spindle, and tool turret CNC control FANUC 31iTA with Manual Guide i Swing diameter over bed: 750 mm Swing diameter over cross slide: 600 mm Collision-free turning diameter: 210 mm Max. turning diameter main spindle: 540 mm Max. turning length: 1,520 mm Main spindle left and right (sub-spindle) Chuck diameter: 210 mm Spindle bore: 76 mm Bar capacity: 66 mm Speed range up to: 5,000 rpm Max. torque: 318 Nm Turning/milling spindle (swivel head, B-axis) Speed range up to: 12,000 rpm Torque: 81 Nm Drive power: 18.5 kW Positioning: 0.001° Swivel range: 240° (+120°) Tool magazine ATC Number of magazine stations: 40 Tool holder: CAPTO C6 Lower turret Tool stations: 12 Drill holder diameter: 40 mm Tool shank cross-section: 25x25 mm Tool holder type: BMT 55P Motor drive power: 5.5 kW Ffjdpfx Agex Hy R Njmot Tool speed: 5,000 rpm - Chip conveyor - Parts removal with conveyor belt - Tool measurement arm - Internal coolant supply through sub-spindle - Chuck cleaning - Air/water through turret - Knoll compact filter unit - Automatic workpiece measurement

Condition: good (used), Year of construction: 1998, Manufacturer: Henninger Type: ZS-201 Year of manufacture: 1998 Self centerring device Double column slide ways Dressing Unit Tailstock by rack & pinion Eccentric adjustment 0 - 20 mm Large Cone-Stone tooling package Specifications Metric US Standard Minimum workpiece Ø 20 Ø Min. Maximum workpiece Ø 450 Ø Max. Max. product length 1200 mm Speed 18300 Rpm Max. grinding angle 45 - 120 ° Max. workpiece weight 190 Dimensions (estimate) Length 1250 mm Fodjvt Tuijpfx Agmeft Width 1250 mm Height 1900 mm Weight 365 kg Please note: The information on this page has been compiled to the best of our knowledge and belief by us and, where possible, by the manufacturer. The information is provided in good faith but accuracy cannot be guaranteed. Accordingly, it will not constitute a representation and terms of contract. We recommend that you review all important details.

Year of construction: 1979, condition: used, pressure 160 t Fjdpfx Aelp Uz Rjgmoft distance between columns 850 mm stroke 400 mm ram surface 800x700 mm 300 mm pressure of ejector 20 t table surface area 800x700 mm total power requirement kW weight of the machine ca. 12 t dimensions of the machine ca. 1800x1800x4200 m
