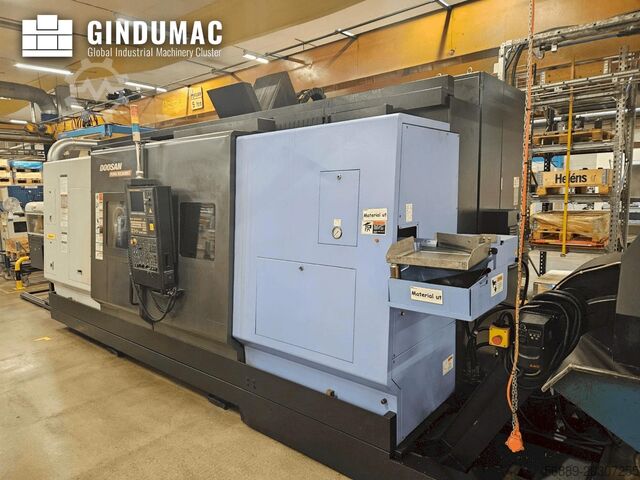

CNC turning and milling center

Doosan Puma MX 2600

Condition: ready for operation (used), Year of construction: 2013, operating hours: 15,000 h, Main Drive Spindle speed range 12000 Tool taper Capto C6 Number of axis 5 Movement Y-Axis Movement 230 mm A-Axis Movement 1550 mm Workpiece Workpiece drm over bed 1000 mm Fsdpfxoxn Dl Do Aa Nopp This 5-axis DOOSAN Puma MX2600ST turn-mill centre was manufactured in 2013. It features a maximum turning diameter of Ø 760 mm, part length up to 1540 mm, and bar capacity of Ø 76 mm. Equipped with a Fanuc 31i-A control, dual spindles with speeds up to 4000 rpm, and a milling spindle at 12,000 rpm. Includes a tool magazine with 80 positions and a swarf conveyor. Consider the opportunity to buy this DOOSAN Puma MX2600ST turn-mill centre. Contact us for more information. Application Types Turning

Condition: excellent (used), Year of construction: 2010, turning length: 230 mm, turning diameter: 230 mm, spindle speed (max.): 5,000 rpm, spindle bore: 68 mm, spindle nose: A2-6, Doosan TT1800SY Fjdpfewzxcajx Aa Nspp

Year of construction: 1979, condition: used, pressure 160 t distance between columns 850 mm stroke 400 mm ram surface 800x700 mm 300 mm pressure of ejector 20 t table surface area 800x700 mm total power requirement kW Fjdpjlp Uz Rjfx Aa Nspp weight of the machine ca. 12 t dimensions of the machine ca. 1800x1800x4200 m

Condition: good (used), Year of construction: 1998, HIGH Speed version faster in approach/work/return Hydraulic table ekjector Hydraulic feed table Home position rotation left   0 - 90 Gr Home position rotation right 0 - 90 Gr  Extended die height 2400 mm BIG Table 1600 x 1300 mm Siemens SIMATIC opperation panel Fodpfxju U Nb Aj Aa Nspp Distance between column:1360mm Hight under roof: 1700mm Table Length: 1600mm Ram stroke: 1500mm Approche speed: 200mm/min. Working speed: 50mm/min. Return speed: 180mm/min. Rotation upper table: 0 - 180° Table adjustment: 1700mm Length: 4900mm Width: 2800mm Height: 5600mm Weight: 18800kg HIGH Speed version faster in approach/work/return Hydraulic table ekjector Hydraulic feed table Home position rotation left   0 - 90 Gr Home position rotation right 0 - 90 Gr  Extended die height 2400 mm BIG Table 1600 x 1300 mm Siemens SIMATIC opperation panel

Year of construction: 1978, condition: used, pressure 25 t stroke 100 mm table surface area 440x320 mm ram surface 360x220 mm hole in the table 160x100 mm table height 900 mm tool hole in ram Ø 40 mm dayligth 280 mm Fpsdpfx Aajlp U A Is Nep weight of the machine ca. 1,5 t dimensions of the machine ca. BxTxH 1500x1500x2100 mm

Year of construction: 1990, condition: as good as new (ex-display), Eckolt hydraulic press in mind condition executed with plate holder see pdf for technical specs Fodpfxsd Siaco Aa Njpp

Condition: new, Year of construction: 2025, pressing force: 2,000 t, table width: 1,500 mm, table length: 2,500 mm, operating pressure: 250 bar, Equipment: safety light barrier, PLACE OF PRODUCTION TURKEY WARRANTY PERIOD 24 MONTHS - Steel construction body and parts with vibration method stress / welding tension removed - 8-surface slide / bearing for high precision and long-lasting use - PLC control and touch panel - Argon application for fixing elements and steel drawn pipes - EN ISO 15614-1/2017 welding application certificate accredited by TÜRK-AK and approved by WPQR and WPS. (Welding applications are supervised by "welding coordination engineers" certified according to EN ISO 14731) - Parallelism and perpendicularity tolerances are applied according to ISO AND DIN Norms. (≤ 120 microns/meter) - PARKER / REXROTH hydraulic unit - SIEMENS / SCHNEIDER electrical consumables - Automatic central lubrication system - Two-hand control - Cooling system FOR 2000 TON H TYPE HYDRAULIC PRESS TECHNICAL SPECIFICATIONS TYPE STEEL CONSTRUCTION, 8 SLIDE H PRESS BODY TYPE BODY MATERIAL St52 – ERDEMİR SLIDE BEARING BRONZE Zr14 CAPACITY (RAM) 2000 TON MOVABLE TABLE DIMENSIONS 1500 x 2500 mm FIXED TABLE TABLE DIMENSIONS 1500 x 2500 mm PARALLELITY TOLERANCE 120 micron/mt. HORIZONTALITY TOLERANCE 60 micron/mt. STROKE (RAM) 1000 mm MIN. INTERMEDIATE SPACE 200 mm MAX. INTERMEDIATE SPACE 1200 mm WELDING STRESS RELIEF Stress relief by vibration WELDING APPLICATION EN ISO 15614-1/2017 welding application certificate accredited by TÜRK-AK and approved by WPQR and WPS. (Welding applications are supervised by "welding coordination engineers" certified according to EN ISO 14731) MAX. WORKING PRESSURE 250 Bar TOTAL MOTOR POWER 180 kW– IE3 MAIN PUMP 140 cm³ – REXROTH or PARKER MOVING TABLE FAST Descent Speed 150 mm/sec. MOVING TABLE PLASTERING Speed 12 mm/sec. MOVING TABLE RETURN SPEED 170 mm/sec. MAIN CYLINDER INNER DIAMETER Ø 720 mm – Ck45 - 2 pcs. AUXILIARY ACCELERATOR CYLINDERS 2 pcs. Fsdpovy A Dysfx Aa Nepp APPROXIMATE HEIGHT OF PRESS 6300 mm APPROXIMATE WIDTH OF PRESS 3850 mm APPROXIMATE DEPTH OF PRESS 2500 mm LOWER TABLE HEIGHT FROM GROUND 1500 mm PRE-FILL VALVE NG 200 HYDRAULIC UNIT REXROTH or PARKER COOLING SYSTEM SUCTION – CIESSE – PARKER OFF-LINE FILTRATION REXROTH or PARKER MOTOR CLASS USED FOR THE UNIT IE3 LEVEL INDICATOR REXROTH or PARKER AIR FILTER REXROTH or PARKER – 10 MICRON PERMEABILITY RETURN FILTER REXROTH or PARKER – 25 MICRON PERMEABLE OIL AND HEAT INDICATOR REXROTH or PARKER VALVES USED REXROTH or PARKER FILTER CONTAMINATION WARNING ELECTRONIC CONTROL LUBRICATING STYLE AUTOMATIC – (CAN BE ADJUSTED FROM THE SCREEN) RAM STROKE ADJUSTMENT CAN BE ADJUSTED FROM THE SCREEN RAM TONNAGE (PRESSURE) ADJUSTMENT CAN BE ADJUSTED FROM THE SCREEN SYSTEM ERROR INFORMATION CAN BE VISIBLE ON THE SCREEN PRESS STATUS INFORMATION CAN BE VISIBLE ON THE SCREEN MOLD MEMORY CAN BE ADJUSTED FROM THE SCREEN HYDRAULIC UNIT OIL TEMPERATURE INFORMATION CAN BE VISIBLE ON THE SCREEN LINEAR DISTANCE SCHEDULE NOVATECHNIK or TURCK PLC APPLICATION DELTA TOUCH PANEL SCREEN DELTA 7 ‘’ SWITCH MATERIALS SIEMENS – SCHNEIDER APPROXIMATE WEIGHT 95 TONS

Condition: used, Year of construction: 1984, Pressure total: 600 ton Ram stroke: 762 mm Slide adjustment: 406 mm Shut height (stroke down, adjustment up): 1322 mm Free frontal opening L-R: 3700 mm Table surface area : 3350 x 2134 mm Slide area: 3350 x 2134 mm Die cushion capacity in table: 180 ton Die cushion stroke: 305 mm Ejector in ram: 60 ton Ejector stroke in ram: 230 mm Number of strokes: 16 s.p.m. Required power: 90 kW Weight of machine approx.: 185 ton Fpodpfx Aeuqdizja Njp Standard configuration Cushion in table pneumatic Extended machine accessories die loading charts for tool changeABB Handling robots for loading and unloading presses

Condition: new, pressure 80 t stroke 400 mm table surface area 920 x 540 mm Motor output 2,2 kW liter capacity 9,0 l dayligth 800 mm tank capacity 31 l daylight between the columns 920 x 300 mm weight of the machine ca. 0,725 t dimensions of the machine ca. 1,45 x 0,85 x 2,45 m Fjdpfx Aajvu E T Ho Nopp Hand and Motor operated. Side-sliding cylinder.

Condition: used, Year of construction: 1996, pressure 63 t distance between columns 965 mm stroke 4 - 60 mm no. of strokes 30 - 800 Hub/min dayligth (stroke and adjustment up) 380 mm column travel -side 355 mm table surface area 960 x 640 mm Fodpfx Aaovut Rgo Nspp hole in the table 850 x 140 mm table height over floor 1150 mm ram surface 960 x 460 mm power requirement 32,5 kW weight of the machine ca. 13,00 t required space 3,3 x 1,7 x 2,9 m ram adjustment 80 mm permitted for automatic mode according to the CE Regulations with infinitely variable drive, pneumatic clutch, semi-automatic stroke adjustment, motoric ram adjustment, mechanical pincer feed type GF 160 can be offered without or with putting into operation in given condition
