DOOSAN PUMA TT 1800 SY

DOOSAN PUMA TT 1800 SY

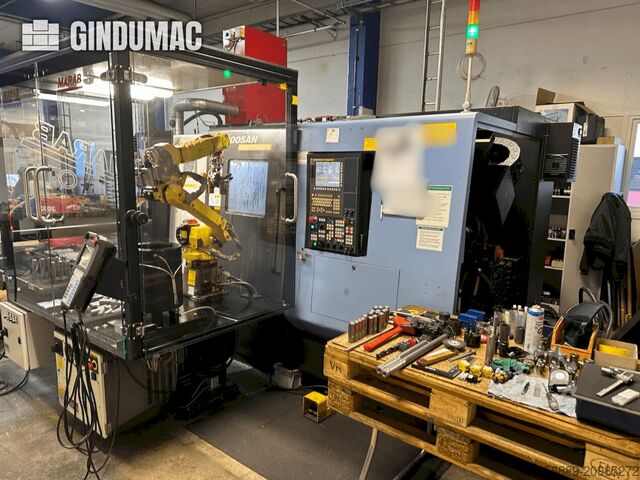

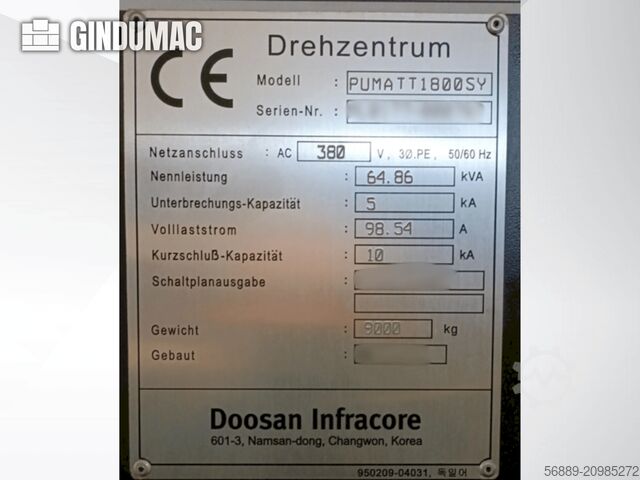

Condition: good (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: ML0177-000528, turning diameter: 230 mm, spindle bore: 76 mm, spindle speed (max.): 5,000 rpm, total height: 2,700 mm, total length: 11,000 mm, total width: 2,400 mm, overall weight: 10,000 kg, spindle nose: A2#6, bar diameter (max.): 65 mm, controller manufacturer: FANUC, controller model: SERIES 31 i-Model A, spindle torque (max.): 208 Nm, number of tool stations in tool turret 1: 12, number of tool stations in tool turret 2: 12, DOOSAN PUMA TT 1800 SY CNC Lathe - Operating voltage: 200/220 V - Frequency: 50/60 Hz - Connection load: 75.21 kVA - Rated current: 13 KA - Total connected load: 68.4 kVA - Maximum distance between spindle noses: 980 mm - Saddle swing: 230 mm - Recommended turning diameter: 210 mm - Maximum turning diameter on upper turret: 230 mm - Maximum turning diameter on lower turret: 230 mm - Maximum machining length (left and right spindle): 230 mm - Bar working diameter: 65 mm - Front spindle diameter: 110 mm - Boring bar diameter: 32 mm - Travel X1: 165 mm, X2: 190 mm - Travel Z1: 700 mm, Z2: 720 mm Ihedpfex Tzuiex Ahuet - Y-axis travel: 100 (+-50) mm - C1 and C2-axis travel: 36° (0.001°) - Rapid traverse X1 and X2 axes: 20 m/min - Rapid traverse Z1 and Z2 axes: 40 m/min - Rapid traverse Y axis: 7.5 m/min - Rapid traverse B axis: 40 m/min - Rapid traverse C1 and C2 axes: 600 rpm - Bed guideway span Z1 axis: 414 mm, Z2 axis: 339 mm - Guideway span X1 and X2 axes: 240 mm - Includes main and counter spindles, each equipped with a HAINBUCH chuck, as well as the tool holders shown in the photos - Includes FMB Turbo 5-55 bar feeder and LNS chip conveyor, year of manufacture: 2013 Attention: The item must be collected at a binding date to be agreed, between 18 and 26 February 2026. FCA D-78087 Mönchweiler – loaded onto truck

Condition: excellent (used), Year of construction: 2010, turning length: 230 mm, turning diameter: 230 mm, spindle speed (max.): 5,000 rpm, spindle bore: 68 mm, spindle nose: A2-6, Doosan TT1800SY Ihedpfx Ahowzxcaeust

Condition: excellent (used), Year of construction: 2010, turning length: 230 mm, turning diameter: 230 mm, spindle speed (max.): 5,000 rpm, spindle bore: 68 mm, spindle nose: A2-6, DOOSAN PUMA TT1800 SY Isdpfx Ahsxx Nc Noueht

Condition: like new (used), Year of construction: 2022, operating hours: 942 h, functionality: fully functional, turning length: 600 mm, turning diameter: 230 mm, spindle motor power: 22 W, spindle speed (min.): 50 rpm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 700 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 40 m/min, rotational speed (max.): 5,000 rpm, rotational speed (min.): 50 rpm, bar passage: 65 mm, total height: 2,100 mm, total length: 5,000 mm, total width: 2,200 mm, overall weight: 8,800 kg, Equipment: documentation/manual, rotational speed infinitely variable, USED ​​8-axis CNC lathe "DN Solutions mod. PUMA TT1800SY" with motorized upper turret equipped with Y axis, motorized lower turret, opposing spindles and DN Solutions-Fanuc i-Plus iHMI CNC. Iodpfx Aowuqp Eohujht

Condition: used, Upper driven head with Y axis, lower driven head, twin spindles. Max. swing over bed: 300 mm. Max. swing over support: 230 mm. Max. swing over bed with upper head: 230 mm. Max. swing over bed with lower head: 230 mm. Max. turning length: 600 mm. Max. distance between the face of the right and left spindle: 980 mm. Milling range outside the turning axis via Y axis: 100 mm (+/-50 mm). Max. turned bar diameter (left spindle): 65 mm. Max. turned bar diameter (right spindle): 65 mm. Max. permissible workpiece weight without counter spindle (including chuck weight = 23 kg): 12 kg. Total weight: 7800 kg. Accessories: Feeder SS 2500, length 200-1525 mm. Isdpfex Np U Aex Ahujht

Condition: used, Year of construction: 2007, turning diameter 300 mm turning length 600 mm control FANUC, 18i-TB turning diameter over bed slide 230 mm travel x1 165 mm travel z1 700 mm travel x2 190 mm travel z2 720 mm travel -y axis +/- 50 mm main spindle bore 76 mm main spindle speed 5.000 U/min main spindle drive 22 kW max. torque on the spindle 208 Nm sub spindle bore 76 mm sub spindle speed 5.000 U/min sub spindle drive 22 kW max. torque on the spindle 208 Nm Ijdoxn Amtjpfx Ahusht tool turret 2 x 12 Stat. number of driven tool stations 2 x 12 speed of driven tools 5.000 U/min max. torque 47 Nm work piece power 5,5 kW C-axis resolution 0,001 ° rapid traverse x + z axis 20 / 40 m/min rapid traverse y-axis 7,5 m/min total power requirement 68,4 kVA weight of the machine ca. 7,8 t Accessories: collet fixture on main spindle, hydr. 3-jaw chuck make KITAGAWA, BB 208, 210 mmø, on sub spindle, various tool holders for turret, bar loader make HYDRAFEED, model MULTIFEED MX-1B for bar dia. 3 - 80 mm and bar length up to 1650 mm, chip conveyor, coolant with belt filter device
