CNC Lathe

DOOSAN PUMA TT1800 SY

Condition: good (used), Year of construction: 2008, functionality: fully functional, The machine is in good technical condition and operates without issues, offering 0.02 mm accuracy. Control system: Fanuc 24 new linear guides, new covers. Max. turning diameter: 230 mm Max. turning length: 600 mm Max. bar diameter (spindle bore): 65 mm Swing over bed: 300 mm Number of spindles: 2 (main and sub-spindle). Max. spindle speed (main and sub-spindle): 5,000 rpm Spindle motor power (S2 30%): 22 kW Chuck size: 210 mm (8") (typical) Number of turrets: 2 (upper and lower) Itedexxmp Tepfx Ad Dop Number of tools per turret: 12 (24 positions total) Number of powered tools: 12 per turret Max. speed of powered tools: 6,000 rpm Axis travels: X1/X2 axis: 165 mm / 190 mm (upper/lower turret) Z1/Z2 axis: 700 mm / 720 mm (upper/lower turret) Y axis (vertical): 100 mm (±50 mm) – Movement of the upper turret perpendicular to the X-axis. C axis: 360° (in 0.001° increments) – Spindle positioning. Distance between spindle faces: Up to 980 mm Machine weight: approx. 7,800 – 8,800 kg Includes a 1,500 mm bar feeder.

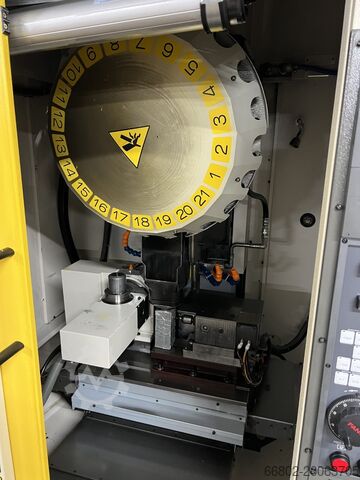

Condition: good (used), Year of construction: 2009, CNC Machining Center Fanuc Robodrill α-T21iFa TECHNICAL SPECIFICATIONS Manufacturer: Fanuc Model: Robodrill α-T21iFa Year of manufacture: 2009 Control: Fanuc Series 31i-MODEL A5 Spindle speed: up to 24,000 rpm Travel X-axis: 500 mm Travel Y-axis: 400 mm Travel Z-axis: 330 mm Rapid traverse X, Y, Z: 54 m/min Tool magazine: 21 positions Max. tool weight: 2 kg Total tool weight: 23 kg Max. tool diameter at 150–12,000 rpm: 80 mm Max. tool diameter at 12,000–15,000 rpm: 60 mm Max. tool diameter at 15,000–20,000 rpm: 45 mm Max. tool diameter at 20,000–24,000 rpm: 40 mm Itedpfx Ajxflr Hsd Dsp Permissible table load: 300 kg SCOPE OF DELIVERY Includes (not limited to): CNC machining center Fanuc Robodrill α-T21iFa Rotary unit for 4th and 5th axis Coolant pump and chip tray Exact scope of delivery according to photo series The Fanuc Robodrill α-T21iFa, built in 2009, is a versatile CNC machining center equipped with an additional 4th and 5th axis through the integrated rotary unit. This extension enables demanding multi-axis machining applications and significantly increases production flexibility. With a spindle speed of up to 24,000 rpm and travels of 500 x 400 x 330 mm, this machine provides ideal conditions for precise milling operations with high productivity. The 21-position tool magazine reduces setup times and allows for rapid tool changes. Thanks to its robust construction, a table load capacity of up to 300 kg, and the powerful Fanuc 31i control unit, this machine is perfectly suited for both series production and complex single parts. The integrated coolant system ensures process reliability and long tool life. No guarantee is given for the accuracy, completeness, or currency of the information provided.

Condition: excellent (used), Year of construction: 2010, turning length: 230 mm, turning diameter: 230 mm, spindle speed (max.): 5,000 rpm, spindle bore: 68 mm, spindle nose: A2-6, Doosan TT1800SY Itsdjwzxcaepfx Ad Djp

Condition: excellent (used), Year of construction: 2011, Turning and Milling Center Doosan Puma TT 1800 SY, Year 2012 Control: CNC Fanuc 18i-TB Number of simultaneous axes: 8 (C1, X1, Z1, Y / X2, Z2 / B & C2) Number of simultaneous axes according to export control: 4 (C1, X1, Z1, Y) Linear axes: 3 (X1, Z1, Y) Rotary axes: 1 (C1) Parallel axes: 4 (X2, Z2, B, C2) Technical Data: - X1 axis: 165 mm, X2 axis: 190 mm - Z1 axis: 700 mm, Z2 axis: 720 mm - Y axis: 100 (± 50) mm, B axis: 770 mm - Bar capacity: 65 mm - 2x Turrets – 12 + 12 tool stations Max. Turning Diameter: 230 mm Itedpfx Asxtxpbjd Dop Max. Working Length: 230 mm Spindle speed: 5,000 rpm Equipment: Standard, transformer, chip conveyor with coolant tank, 1 set of tool holders including driven tools, driven holders 2x axial and 2x radial holders, documentation Bar feeder LNS

Condition: ready for operation (used), Year of construction: 2018, operating hours: 98 h, Control Unit Brand FANUC Model Series-31i Main Drive Spindle speed range 10000 Media Chip conveyor Yes Additional Equipment Ijdpsw Irmdofx Ad Djtp Oil Mist Extractor This 5-axis FANUC ROBODRILL α-D21LiB5 was manufactured in 2018. Ideal for precision machining, this vertical machining centre ensures reliable performance. Consider the opportunity to buy this FANUC ROBODRILL α-D21LiB5 vertical machining centre. Contact us for more information. Application Types Milling

Year of construction: 2014, condition: ready for operation (used), Control Unit Brand FANUC Model 31i-MODEL B Main Drive Spindle speed range 5000 Spindle motor power 18.5 / 22 kW Tool taper A2-6 Number of axis 9 Movement X-Axis Movement 165 mm Y-Axis Movement 100 mm Z-Axis Movement 770 mm Additional Equipment LNS bar interface the robot is not included Control Unit Brand FANUC Model 31i-MODEL B Main Drive Itodpfx Adsxn U D Re Djp Spindle speed range 5000 Spindle motor power 18.5 / 22 kW Tool taper A2-6 Number of axis 9 Movement X-Axis Movement 165 mm Y-Axis Movement 100 mm Z-Axis Movement 770 mm Additional Equipment LNS bar interface the robot is not included This 9-axis DOOSAN PUMA TT 1800 SY was manufactured in 2014, offering advanced capabilities for horizontal turning. Ideal for complex machining tasks, this machine ensures precision and efficiency. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA TT 1800 SY machine we have for sale. Contact us for more information. Application Types Turning

Condition: used, Year of construction: 2007, turning diameter 300 mm Ijdpexn Amtofx Ad Dstp turning length 600 mm control FANUC, 18i-TB turning diameter over bed slide 230 mm travel x1 165 mm travel z1 700 mm travel x2 190 mm travel z2 720 mm travel -y axis +/- 50 mm main spindle bore 76 mm main spindle speed 5.000 U/min main spindle drive 22 kW max. torque on the spindle 208 Nm sub spindle bore 76 mm sub spindle speed 5.000 U/min sub spindle drive 22 kW max. torque on the spindle 208 Nm tool turret 2 x 12 Stat. number of driven tool stations 2 x 12 speed of driven tools 5.000 U/min max. torque 47 Nm work piece power 5,5 kW C-axis resolution 0,001 ° rapid traverse x + z axis 20 / 40 m/min rapid traverse y-axis 7,5 m/min total power requirement 68,4 kVA weight of the machine ca. 7,8 t Accessories: collet fixture on main spindle, hydr. 3-jaw chuck make KITAGAWA, BB 208, 210 mmø, on sub spindle, various tool holders for turret, bar loader make HYDRAFEED, model MULTIFEED MX-1B for bar dia. 3 - 80 mm and bar length up to 1650 mm, chip conveyor, coolant with belt filter device

Year of construction: 1996, condition: excellent (used), Used very clean, well maintained Trumpf V series hydraulic down stroke cnc pressbrake for sale Iedpei Igi Sofx Ad Detp Trumpf v85 2metre x 85ton – 4axis cnc pressbrake in good condition – video at the bottom of the listing Make: Trumpf Model: Trumabend v85 Year: 1996 Max. pressing force: 850 kn / 85ton Max. stroke: 215mm Brake time: 79ms Total axis: 2axis back gauge / total axis 4 – y1 y2 x r and i axis Complete with: • Daylight: 390mm daylight • 2 axis back gauge • i axis – bottom base moves to use twin multi v without operator moving or changing the tooling • Fully serviced / Good condition

Condition: excellent (used), Year of construction: 2012, Offered here is a Doosan Puma TT1800SY-GL CNC lathe including portal loader. The machine is in good condition and can be inspected under power in our warehouse. The scope of delivery includes various static tool holders and 4 driven tool holders. The machine will be loaded free onto truck by overhead crane. Make: Doosan Model: Puma TT 1800SY-GL Control: Fanuc 31i Year of manufacture: 2012 Technical Data: Turning diameter (lower and upper turret): 230 mm Isdpfoxmkfhjx Ad Dotp Turning diameter over bed: 230 mm Turning diameter over slide: 230 mm Recommended turning diameter: 210 mm Chuck size (both spindles): 210 mm/ 8 inch Spindle bore: 65 mm Travel: X1-Z1 (upper turret): 165x700 mm X2-Z2 (lower turret): 190x720 mm Y (upper turret): 100 mm A (sub spindle): 770 mm C-axis: 360° (0.001° increment) Feed rates: X1-X2-Z1-Z2: max. 20 m/min Y: 7.5 m/min A: max. 40 m/min Spindle speeds (both spindles): 6000 rpm Spindle power S1: 22/19.6 kW Spindle power S2: 22/18.5 kW Torque (both spindles): 208 Nm Number of tool stations: 24+24 (lower and upper turret) Rotational speed of driven tools: max. 6,000 rpm Torque driven tools: 5.5/2.2 kW (7.4/3.0 kW) Power consumption: 64.86 kVA Dimensions: 3905x2250x2600 mm (machine only) + portal loader

Condition: good (used), Year of construction: 2008, Description Turning diameter: 300 mm Turning length: 600 mm Control: FANUC, 18i-TB + dialogue Turning diameter over bed slide: 230 mm Travel X1: 165 mm Travel Z1: 700 mm Travel X2: 190 mm Travel Z2: 720 mm Travel -Y axis: +/- 50 mm Main spindle bore: 76 mm Main spindle speed: 5,000 rpm Main spindle drive: 22 kW Max. spindle torque: 208 Nm Sub-spindle bore: 76 mm Sub-spindle speed: 5,000 rpm Sub-spindle drive: 22 kW Max. spindle torque (sub-spindle): 208 Nm Tool turret: 2 x 12 stations Number of driven tool stations: 2 x 12 Driven tool speed: 5,000 rpm Max. torque (driven tools): 47 Nm Workpiece power: 5.5 kW Ijdpfjw Av Szjx Ad Detp C-axis resolution: 0.001° Rapid traverse X + Z axis: 20 / 40 m/min Rapid traverse Y axis: 7.5 m/min Total power requirement: 68.4 kVA Machine weight approx.: 7.8 t Machine dimensions (L x W x H): 3.91 x 2.07 x 2.08 m

Year of construction: 2001, condition: used, Technical details: x-travel: 400 mm y-travel: 300 mm z-travel: 500 mm table clamping surface:: 400 x 300 mm table load: 50 kg semi-automatic operated: LASERSOFT 3D laser capacity: 100 W total power requirement: 27 kVA weight of the machine ca.: 2,5 t dimensions of the machine ca.: 3 x 3,5 x 2,8 m CNC engraving/texturing/labeling/contouring-laser maschine, Itedoikbtnopfx Ad Dop approx. 9.000h "machine on", approx. 5.500h "laser on" *

Condition: like new (used), Year of construction: 2022, operating hours: 942 h, functionality: fully functional, turning length: 600 mm, turning diameter: 230 mm, spindle motor power: 22 W, spindle speed (min.): 50 rpm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 700 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 40 m/min, rotational speed (max.): 5,000 rpm, rotational speed (min.): 50 rpm, bar passage: 65 mm, total height: 2,100 mm, total length: 5,000 mm, total width: 2,200 mm, overall weight: 8,800 kg, Equipment: documentation/manual, rotational speed infinitely variable, USED ​​8-axis CNC lathe "DN Solutions mod. PUMA TT1800SY" with motorized upper turret equipped with Y axis, motorized lower turret, opposing spindles and DN Solutions-Fanuc i-Plus iHMI CNC. Itodewuqp Ejpfx Ad Dsp

Condition: like new (used), CUTTING DIAMETER: 230 MM TURNING LENGTH: 600 MM TAPER OF SPINDLE: ASA 6 STEP PANEL: 65 MM SPEED: 5000 RPM AXIS C: 0.001 DEGREE TAPER OF COUNTERSPINDLE: ASA 6 SPEED: 5000 RPM Isdpfx Adsiux Agj Dotp AXIS C: 0,001 DEGREE NR. TURRETS: 2 NR. STATIONS OF TOOL HOLDERS FOR TURRET: 12 NR. MOTORIZED TURRET: 12 CNC: FANUC 18

Condition: good (used), Year of construction: 2007, travel distance X-axis: 750 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 725 mm, CNC control Sinumerik 840D NC-rotary table B-axis automatic tool changer for 320 tools pallet changing device, 2 pallets 500 mm x 500mm coolant through spindle device IKZ (80 bar) chip conveyor coolant device Technische Daten / technical details: X-Weg längs / X-travel longitudinal 750 mm Itedpfx Adjq Ui Hqe Dep Y-Weg senkrecht / Y-travel vertical 750 mm Z-Weg quer / Z-travel cross 725 mm B-Achse / B-axis 360 ° Spindelaufnahme / spindle taper HSK 63A Drehzahlbereich Spindel / spindle speed 50-10000 Upm /rpm Werkzeugplätze / tool places in changer 320 Vorschub / infeed 60000 mm/min Eilgang / rapid feed 60 m/min Antriebsleistung Spindel 40/100% ED / drive capacity spindle 40/100%ED 37/24 kW Gewicht der Maschine ca. / weight ca. 15000 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.
