CNC turn-mill center

Doosan Puma TT 1800SY-GL

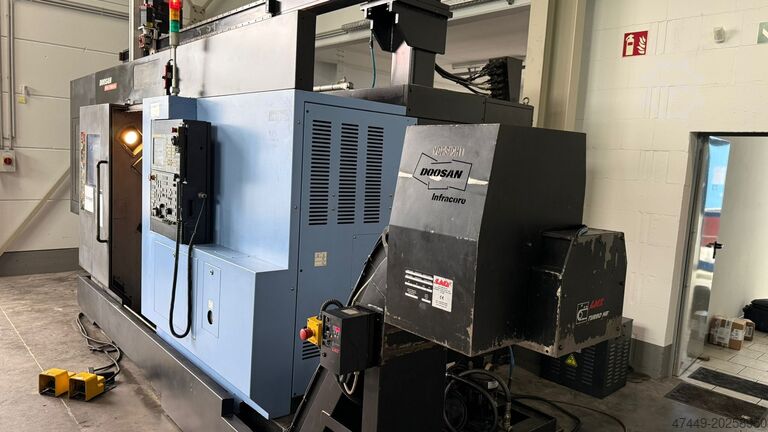

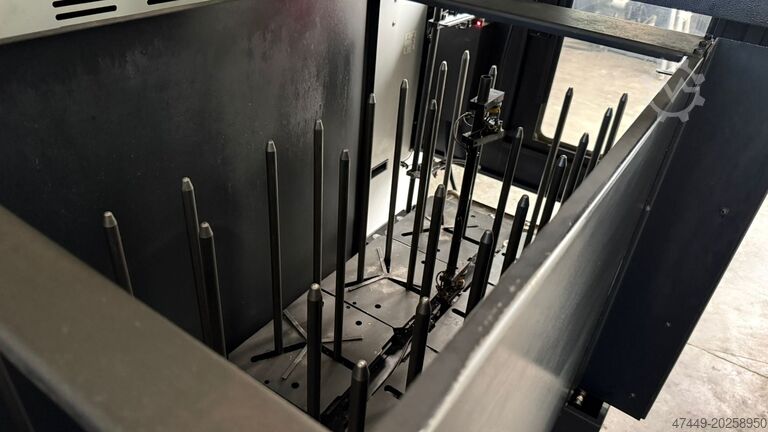

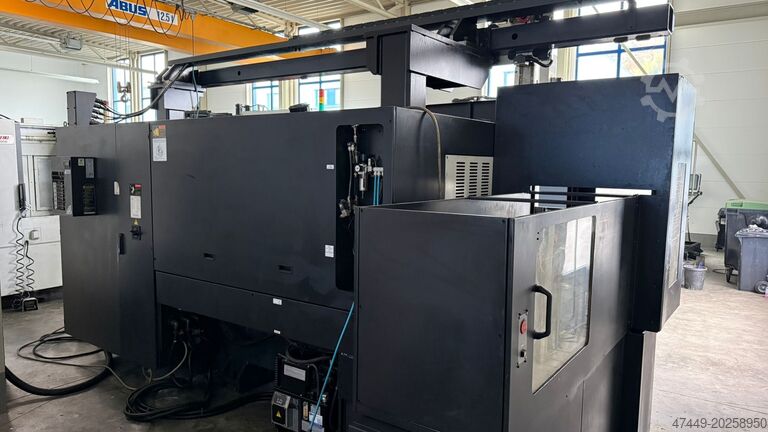

Offered here is a Doosan Puma TT1800SY-GL CNC lathe including portal loader. The machine is in good condition and can be inspected under power in our warehouse.

The scope of delivery includes various static tool holders and 4 driven tool holders. The machine will be loaded free onto truck by overhead crane.

Make: Doosan
Model: Puma TT 1800SY-GL
Control: Fanuc 31i
Year of manufacture: 2012

Technical Data:

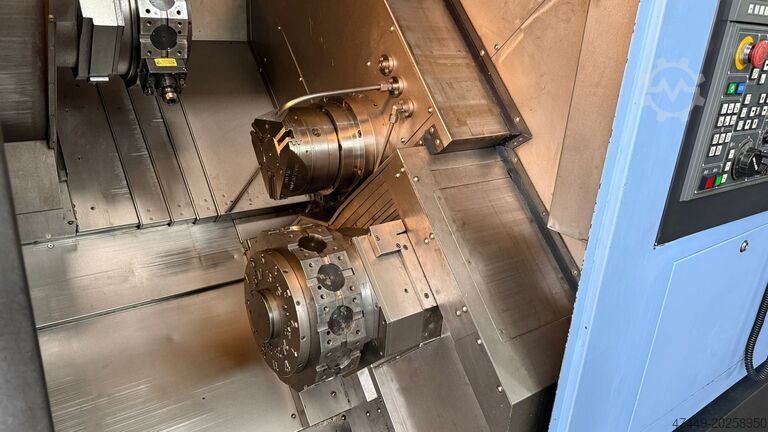

Turning diameter (lower and upper turret): 230 mm
Turning diameter over bed: 230 mm
Turning diameter over slide: 230 mm
Recommended turning diameter: 210 mm

Chuck size (both spindles): 210 mm/ 8 inch
Spindle bore: 65 mm

Travel:
X1-Z1 (upper turret): 165x700 mm
X2-Z2 (lower turret): 190x720 mm
Y (upper turret): 100 mm
A (sub spindle): 770 mm
C-axis: 360° (0.001° increment)

Feed rates:
X1-X2-Z1-Z2: max. 20 m/min
Y: 7.5 m/min
A: max. 40 m/min

Spindle speeds (both spindles): 6000 rpm
Spindle power S1: 22/19.6 kW
Spindle power S2: 22/18.5 kW
Torque (both spindles): 208 Nm

Number of tool stations: 24+24 (lower and upper turret)
Rotational speed of driven tools: max. 6,000 rpm
Torque driven tools: 5.5/2.2 kW (7.4/3.0 kW)

Fedpfx Afexmkfhjpjgh
Power consumption: 64.86 kVA

Dimensions: 3905x2250x2600 mm (machine only) + portal loader
