Portal - Machining Center
DROOP + REIN TFS 22 40 DT D40 P

Name: DROOP + REIN TFS 22 40 DT D40 P
Brand: DROOP + REIN
Availability: InStock

Year of construction

2007

Condition

Used

Location

Germany

Portal - Machining Center DROOP + REIN TFS 22 40 DT D40 P

Show map

Machine data

Machine type:: Portal - Machining Center

Manufacturer:: DROOP + REIN

Model:: TFS 22 40 DT D40 P

Year of construction:: 2007

Condition:: used

Price & Location

Location:: Deutschland

Call

Details about the offer

Listing ID:: A185-07971

Reference number:: 1039-9305

Update:: 30.09.2025

Description

x-axis 10.100 (2x 5.000) mm
y-axis 3.000 mm
z-axis 1.500 mm
Control Sinumerik 840 D Siemens
distance between columns max. 3.000 mm
passage max. 1.950 mm
distance spindle center to table max. 1.800 mm
distance spindle nose and table 1.350 / 1.500 mm
type P 8005020/00-4
turning speed range - main spindle max. 18.000 min/-1
power capacity - main spindel 20 kW
max. Torque 48 Nm
tool taper HSK-A63 DIN 69063
Spindle Extension 450 mm
swivellable B: +110° / -10 °
rotatable C: +/- 200 °
type P 8002320/00-4
turning speed range - main spindle 20 - 5.000 min/-1
power capacity - main spindel 40 kW
max. Torque 1.100 Nm
tool taper HSK-A100 DIN 69063
Spindle Extension 300 mm
swivellable B: +110° / -10 °
rotatable C: +/- 200 °

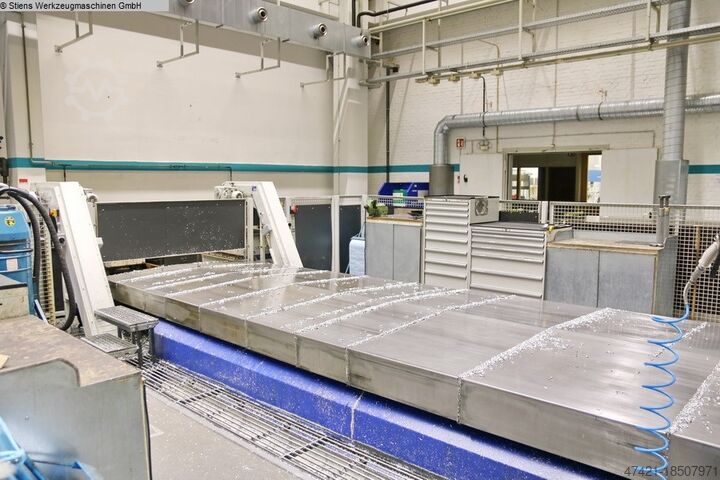

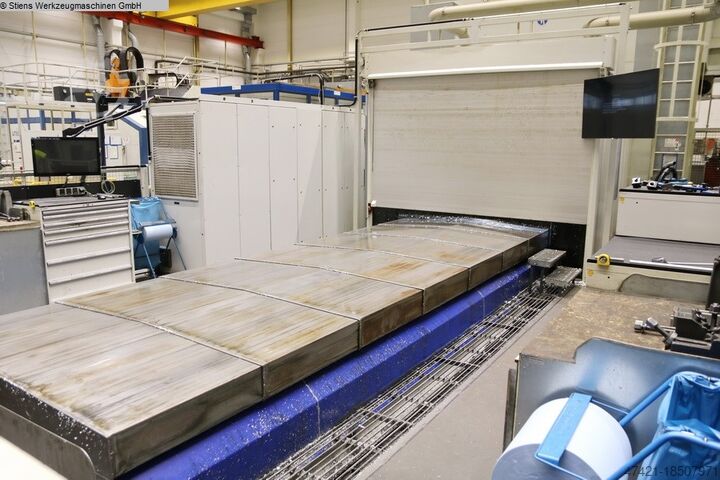

table surface area 4.000 x 2.200 (2x) mm
max. table load 12 / 20 t
height over floor 700 mm
number of T-slots 11 + 19
T-slot - width 28H7 mm
T-slot - distance 200 mm

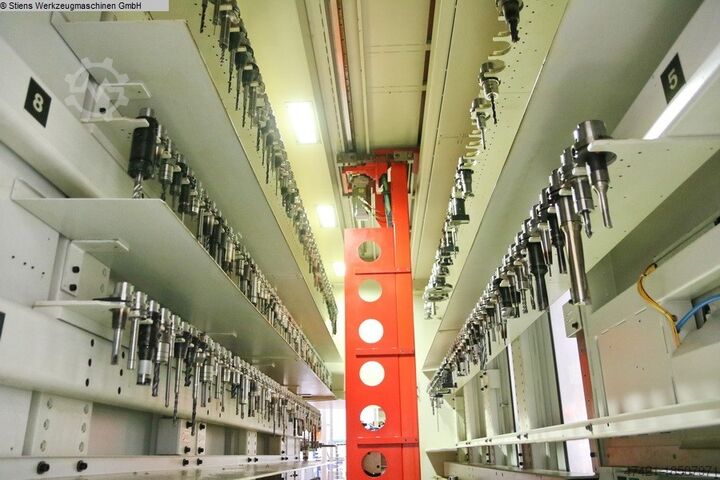

number of toolpositions 327 pos.
number of toolpositions HSK A63: 156 pos.
number of toolpositions HSK A100: 171 pos.
max. tool diameter HSK A63: 52 mm
max. tool length HSK A63: 250 / 500 mm
max. tool weight HSK A63: 5,0 kg
max. tool diameter HSK A100: 315 mm
max. tool length HSK A100: 500 / 800 mm
max. tool weight HSK A100: 40,0 kg
feed speeds X: max. 30.000 mm/min
feed speeds Y/Z: max. 40.000 mm/min
feed speeds B: 3.600 °/min
feed speeds C: 2.160 °/min
Gsdpfx Aovy Ihdoa Ijtt
Accelaration X: max. 1,5 m/s²
Accelaration Y/Z: max. 3,2 m/s²
x-axis 10.100 (2x 5.000) mm
y-axis 3.000 mm
z-axis 1.500 mm
b-axis +110° / -10 °
c-axis +/- 200 °
total power requirement 150 kVA
dimensions of the machine ca. 25,0 x 12,0 x 7,0 m
5-Axis Gantry-Big-Machining-Center
DROOP + REIN - TFS 22 40 DT D40 P

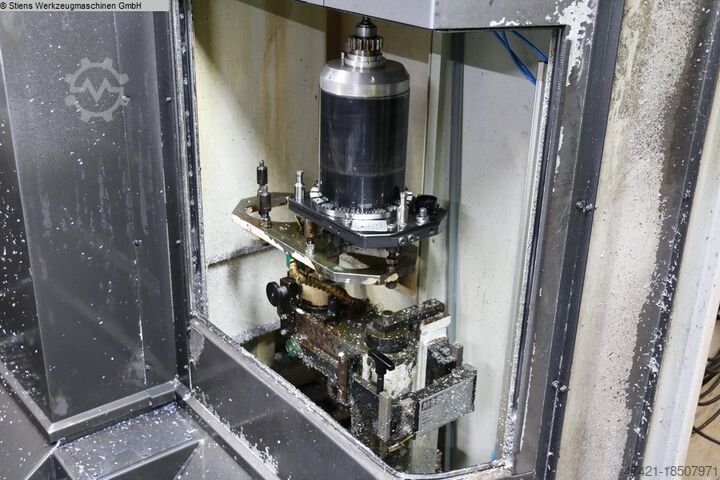

- two Milling-Heads
- ca. 4.000 Power On Hours

- X-Achse 10.000mm (coupled) / 2x 5.000mm (single-table)
- 3 axes simultaneously (X, Y, Z)
- 2 positioning axes (B, C)

- tools upon request
