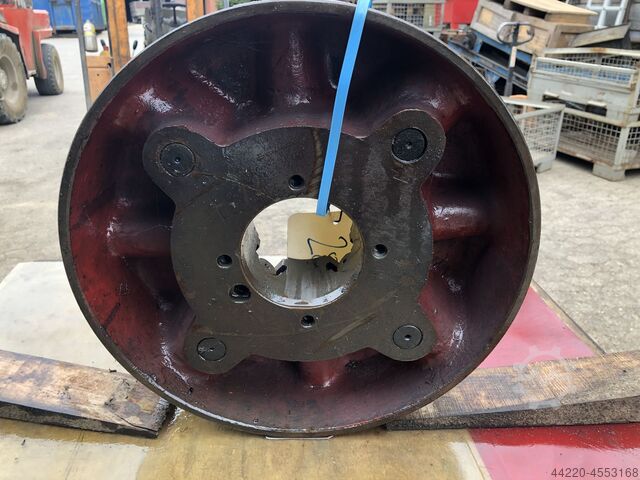

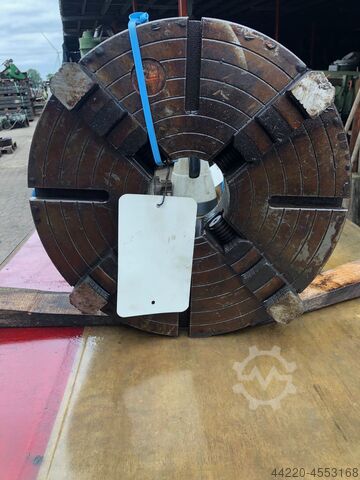

Face plate 28041

Durchmesser 405 mm Lockkreis 84 mm

Year of construction: 2001, condition: excellent (used), Faceplate diameter 600 mm Dsdsd Tyvfspfx Ah Ijcd height 130 mm LK Mounting :Diameter 128.5 mm Groove width 16 mm Safety thread 200x 4 mm

Condition: used, Tool measuring instrument Djdpsddtuyjfx Ah Iocd Make Mitutoyo Type quick set R

Condition: used, Year of construction: 2002, bore capacity in steel (diameter) 50 mm arm length / mm Dsdev H Ermopfx Ah Ijcd workpiece height max. / mm Drilling capacity in steel (diameter): 50 mm throat depth: 1600 mm Spindle stroke: 315 mm Tool holder: MK 5 Total power requirement: 4.0 kW Machine weight approx.: 3.5 tonnes Space requirement approx.: 2.5x1.1x2.8 m

Condition: good (used), Depth gauge, dial gauge, depth gauge, depth caliper, caliper, vernier caliper Dodpfjb E N Ubox Ah Iecd -Measuring range: 0-100 mm -Fine-tuning -long measuring jaws -Transport box -Dimensions: 365/180/H40 mm -Weight: 1.15 kg

Condition: used, Internal micrometer screws, micrometer screw, inner diameter, internal fine measuring instrument, cylinder gauge, -Handover: in its current condition as inspected Dcjdpfx Aol Ha R Hjh Isd -Condition: incomplete, see pictures -Measuring range: -150 mm -Dimensions: 280/450/H60 mm -Weight 2 kg

Condition: used, Internal micrometers, micrometer screw, internal diameter, internal precision measuring device, cylinder gauge, Dodpfol Ha R Rjx Ah Iecd -Measuring range: 35-60mm -Dimensions: 115/450/H60 mm -Weight 1.6kg

Condition: excellent (used), Year of construction: 2001, AN VERY RARE OPORTUNETEY TO BUY AN EXCELLENT MACHINE WITH HUGE AMOUT OF TOOLINGS, DRAWERS, CLAMPING EQUIPMENT... CNC BORING MILL WOTAN RAPID 1 RETRIFITTED 2001 WITH HUGE AMOUNT OF OVER 450 TOOLING VERY LOW HOURS WORKING TIME DATA: CONTROL ON: 8001 H MACHINE POWER ON: 13692H PROGRAM RUN: 4650 H SPINDLE S1 TIME: 4690 H AXIS TIME: 4568H HYDRAULIC ON TIME: 12702 H WE OFFER AN STUNNING EXCELLENT CONDITION WOTAN CNC RAPID 1 WITH HUGE AMOUNT OF TOOLINGS, FOR A SPECIAL STAINLESS WORK. MACHINE HAVE HEIDENHAIN 530 CONTROLS TECHNICAL DETAILS: Dcedpfx Aovkkf Hsh Iod SPINDLE SPEED : 6,3-1600 U/Min SPINDLE MOVE : Y AXIS : 1250 mm DRILLING SPINDLE MOVE: Z AXIS: 600 mm W : 1000 mm X : 2000 mm B: 360.000 DEGREE SPINDLE DIAMETER: 105mm TOOL HOLDER: ISO 50 WITHOUT TOOL CHANGER CLAMPING: HIDRAULIC MAX TABLE LOAD: 6000 KG TABLE: 1120 X 1400 NUT -BILD 7 ; 22H7 INDEXING 4 X 90 DEGREE TOTAL WEIGHT: 16000 KG DIMENSION OF MACHINE: LENGHT 4800 X BREIT 4665 X HEIGHT 4200

Condition: used, Height gauge, parallel gauge, height gauge Dsdpfx Ahek Nfpge Iocd -Manufacturer: Mitutoyo, height gauge type 192-104 -Max. Working height: 600 mm -Dial indicator: measuring accuracy 0.01 mm -Analog display: double counter -Dimensions: 275/120/H795 mm -Weight: 8.7 kg

Condition: used, Vernier caliper, caliper, vernier caliper -Manufacturer: Holex, digital caliper Dcedper A H Sqjfx Ah Ijd .: 41 5528 800 -Measuring range: 0-300 mm -Measurement accuracy: 0.01 mm -Quantity: 1x calipers available -Dimension case: 1060/280/H50 mm -Weight: 3,3 kg.

Condition: used, Year of construction: 1987, turning height: 5,000 mm, workpiece weight (max.): 80,000 kg, turning diameter: 5,000 mm, Technical data SIEMENS SINUMERIK 840 Dsl control system Main dimensions and travels Face plate diameter 4,000 mm Rotation diameter (max.) 5,000 mm Workpiece height (max.) 5,000 mm Total height of the machine 9,250 mm Maximum workpiece weight 80,000 kg Table base Y Horizontal table displacement 2,500 mm Cross beam Vertical adjustment of the cross beam in 50 steps 3,200 mm Crossbeam support (right) Horizontal adjustment of support - 2740 + 2740 mm Vertical displacement of the chisel slide 1,800 mm Cross-section of the chisel slide 250x210 mm Tool positions 0 without vertical support (left) Lateral support (right) Vertical adjustment of support -25 + 2170 mm Horizontal displacement of the chisel slide 1,000 mm Cross section of the chisel slide 250x210 mm Turning diameter max./min. 4,500/2,500 mm Tool changer Main drive: Power of the main motor 100 kW Speed range of the faceplate 0.63 - 63 rpm Dcodpfxou R Etpe Ah Iod Maximum torque on the faceplate 160 kNm Drilling and milling drive side support: Power of the drive motor 22.5 kW Maximum torque 900 Nm Connected loads of the machine Connection Voltage of the machine 380 Volt / 50Hz Control voltage 220V AC / 24V DC Total connected load 150 kVA Required back-up fuse 400 A Equipment and accessories: Operator platform Chip conveyor Cooling lubricant system Tool changer Tool measuring probe RENISHAW
