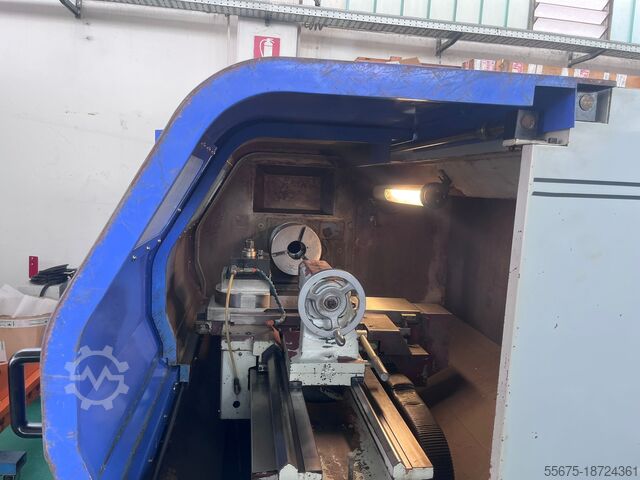

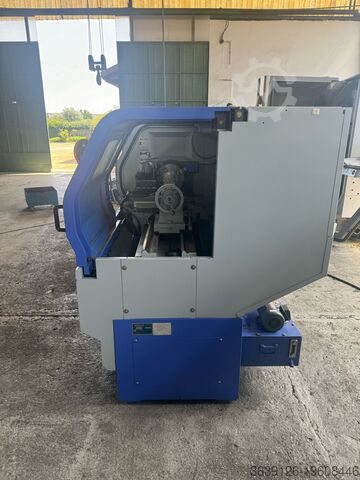

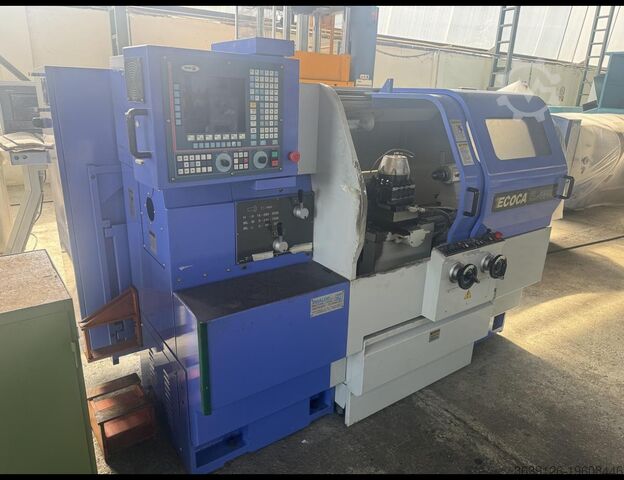

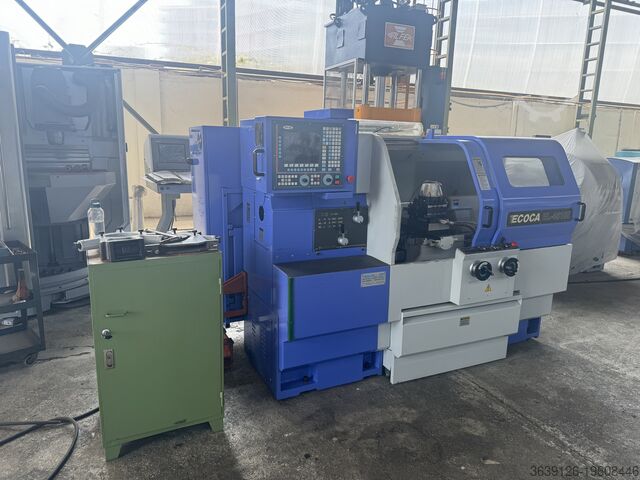

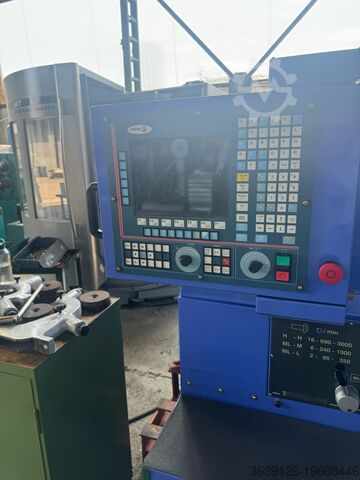

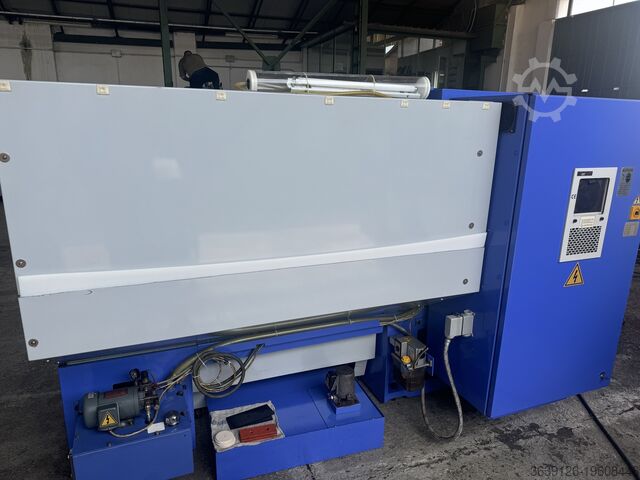

FAGOR self-learning cnc lathe

ECOCA EL 4610E

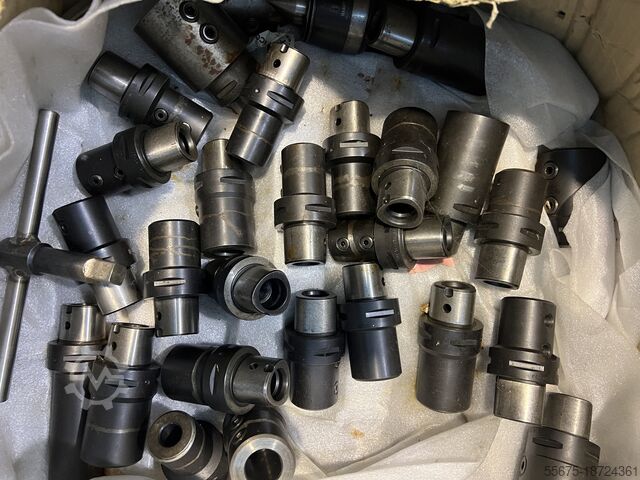

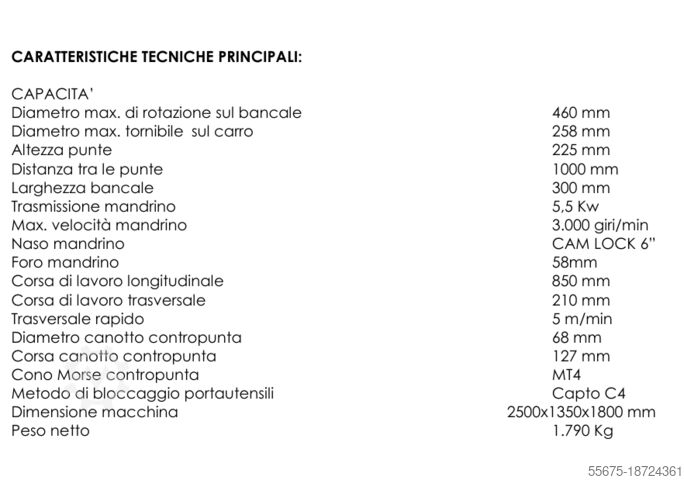

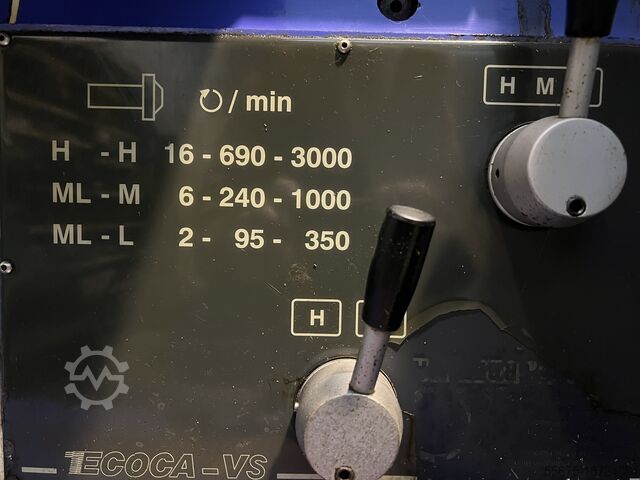

Condition: ready for operation (used), Max. swing over bed: 460 mm. Max. turning diameter over carriage: 258 mm. Center height: 225 mm. Distance between centers: 1000 mm. Bed width: 300 mm. Spindle drive: 5.5 kW. Max. spindle speed: 3,000 rpm. Spindle nose: CAM LOCK 6”. Spindle bore: 58 mm. Longitudinal travel: 850 mm. Cross travel: 210 mm. Rapid traverse (cross): 5 m/min. Tailstock quill diameter: 68 mm. Tailstock quill stroke: 127 mm. Tailstock taper: Morse MT4. Toolholder clamping system: Capto C4. Machine dimensions: 2500x1350x1800 mm. Net weight: 1,780 kg. MACHINE CONFIGURATION: FAGOR 8055T teach-in CNC control. Duodsw Ap N Tjpfx Agmol

Condition: used, Year of construction: 1998, turning diameter 570 mm turning length 2000 mm control Dsdpfx Aeugawfogmoul total power requirement 15 kW weight of the machine ca. 3,5 t dimensions of the machine ca. m

Condition: good (used), Year of construction: 2011, functionality: fully functional, CNC Turning Center with Bar Loader Manufacturer: Miyano Type: ABX-64SYY Year of Manufacture: 2011/06 Control: Fanuc 31i-B Technical Specifications: Workpiece Length SP1/SP2: 118mm / 125mm Bar Diameter: 64mm Turning Diameter: 165mm Number of Turrets: 2 Speed: 6,000 rpm Duodpfjwdh U Rex Agmel Machine Weight: 11,000kg

Year of construction: 2001, condition: used, Cazeneuve Maxica 590 With collet Control: SOMAB NUM SP + S 5 Djdpfx Ageh Aylvsmjul

Condition: used, CNC 3+2 axis vertical machining center DECKEL MAHO type DMU 35 M CNC control SIEMENS 810D with ShopMill Dusdpjvt D D Usfx Agmjl Manufacturer no. 11065353554 Year of manufacture 2001 Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm Table movements: C-axis: 360° Swivel range: +105° / -15° Universal swivel - rotary table: 400 x 290 mm, center hole 30H6 Table load: max. 100 kg Distance spindle nose - table: min. 145 mm to max. 485 mm Feed rate: 5,000 mm/min Rapid traverse (X / Y / Z): 5 m/min Input resolution: 0.01 mm Total power requirement: 15 kVA Speed range - main spindle: 20 - 6,300 min/-1 Drive power - main spindle: 6.3 / 10 kW (100% / 40% ED) Torque: max. 55 / 80 Nm Tool holder: SK 40 DIN 69871 Pull bolt: DIN 69872 or ISO 7388/2 Type B Interface: Serial RS232C, LAN (RJ45) Power connection: 400 volts, 50 Hz, 15 kVA Compressed air connection: 6 bar - CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103 - 3-axis controlled (X, Y and Z axis) - Manual swivel rotary table, C axis = table rotation 360°, B-axis = swivel range +105°/ -15° - direct path measuring system for all 5 axes - electronic handwheel - spindle drive via servo motor with toothed belt and 2 gear stages - fully protected cabin with sliding door - swiveling control panel - coolant nozzles on the vertical head - chip tray with coolant container and cooling lubricant pump - work area lighting - documentation available space requirement L x W x H 2000 x 2000 x 2100 mm weight 1750 kg good condition

Condition: used, Year of construction: 2001, turning diameter 500 mm turning length 1000 mm control MONFORTS CONTROL control SYSTEM MTC-K turning diameter over bed slide 290 mm spindle bore 70 mm spindle turning speed range 3 - 2800 U/min spindle power 15 kW max. torque on the spindle 1530 Nm Dujdpfx Ajvh I Hvsgmsl spindle head DIN 55027 Gr. 8 feed power X/Z axis 11300 N rapid travel - longitudinal/face 10 / 5 m/min bed width 360 mm travel of cross-slide 265 mm upper slide travel 140 mm turning tool - shaft cross cut 32 x 25 mm tailstock quill diameter 80 mm tailstock quill stroke 160 mm tailstock taper MT 5 weight of the machine ca. 3,1 t dimensions of machine L x W x H 2,88 x 1,68 x 2,18 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant

Condition: used, Year of construction: 2008, turning diameter 560 mm turning length 2000 mm control FANUC Series oi-TC CNC spindle turning speed range 2200 U/min spindle bore 82 mm tailstock quill taper MT 5 quill stroke 150 mm total power requirement 7,5 kW weight of the machine ca. 3800 kg dimensions of the machine ca. 3800 x 1750 x 1600 mm Duedoviyh Uepfx Agmel

Condition: ready for operation (used), Rotation diameter over bed/slide: 560mm/300mm, max. workpiece weight between centers: 2500kg, max. workpiece weight in chuck: 800kg, center width: 1000mm, machining length: 980mm, feed: 8m/min, bed width: 433mm, tool positions: 8, tool holder: VDI40. Machine dimensions X/Y/Z: approx. 3000mm/2300mm/1800mm, weight: approx. 3700kg, control: Siemens 810D Manual Turn. Documentation available. On-site inspection is possible. Dusdpfxewynvts Agmsl

Condition: used, Year of construction: 1977, turning diameter x mm Dodpfx Agerpa Nyjmeul turning length x mm swing diameter over bed slide x mm turning diameter over bed x mm 550mm weight of the machine ca. 1,5 t

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, turning length: 450 mm, turning diameter: 246 mm, spindle speed (min.): 10 rpm, spindle speed (max.): 6,000 rpm, spindle bore: 68 mm, travel distance X-axis: 140 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 450 mm, Siemens 840 D control with Shop-Turn Travel paths X- 140 mm, Z- 450 mm, Y+- 40 mm Max turning diameter 246 mm Centre height 365 mm New main spindle with 6000 rpm Counter spindle with 6000 rpm Sauter star turret with 12 driven stations Dsdpjvta Amofx Agmeul Part catcher, chip conveyor Reinforced coolant and lubricant pump C-axis, Y-axis Partial hollow clamping device Package bar machining Interface for bar loader magazine Finished parts container Tool measurement in the work area
