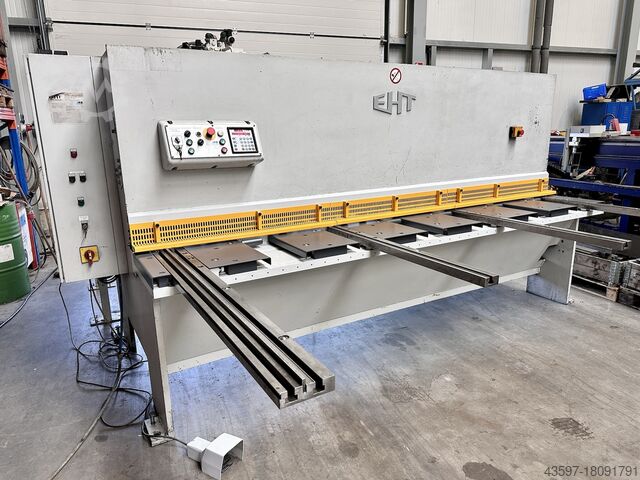

Plate shear

EHT TSS 6-30

Condition: used, Year of construction: 1997, pressure 225 t chamfer lenght 3050 mm distance between columns 2550 mm column arm 300 mm ajustment speed 110 mm/sec work speed 9.0 mm/sec return speed 130 mm/sec work stroke 240 mm dayligth 320 - 560 mm table height 1000 mm table width 200 mm oil volume 350 ltr. operating pressure max. 296 bar air pressure 4.5 - 6.0 bar voltage 400 Volt total power requirement 18.5 kW weight 14900 kg range L-W-H 5180 x 2400 x 3100 mm - in checked condition - machine video - ?v=ebbbzSYMxKw Furnishing: - electro-hydraulic CNC die bending/press brake - CYBELEC CNC control "ModEva 12S", swiveling at the front right * High-resolution graphic color screen 14 inches * Representation as a line, area or volume drawing of the product * Clear, concise menus in the operator's language * Large tools and products library Gjdoxaa Dtopfx Abpsbw - CNC-controlled back gauge adjustment (X-axis) * Stop range X axis of bending line .. 5.0 - 1.000 mm * Adjustment speed .. max. 250 mm/sec. - CNC-controlled vertical adjustment of the stop fingers (R axis) * Adjustment range of table surface .. 115 - 265 mm * Adjustment speed .. max. 100 mm/sec. * Adjustment via SERVO motors - CNC-controlled adjustment of the stop fingers left-right (Z1+Z2 axis) * Adjustment range Z1 .. 405 - 2565 mm * Adjustment range Z2 .. 485 - 2645 mm * Adjustment speed .. max. 1000 mm/sec. - WILA CNC-controlled electric table crowning - pneumatic EHT upper tool clamping - manual lower tool clamping - 1x freely movable 2 hand/foot control - 2x front, movable support arms - rear protective device (sliding protective grille) - side protection device (pivoting protective grille) - 1x set of EHT deer foot upper tool - split (3.000 mm) - 1x set of EHT lower tools - split (3.000 mm) - original operating instructions (machine + control)

Condition: good (used), functionality: fully functional, Year of construction: 1999, with control conversion to CYBELEC Visitouch 19 Pressure 125 t Bending length 4050 mm Frame width 3550 mm Throat depth 300 mm Installation height 560 mm Stroke 240 mm Back gauge - adjustable 5-1000 mm Gbjdpfewqfaqox Abpew Control CYBELEC Visitouch 19 Dimensions L-W-H 5200x2200x3000 mm Total power requirement 18.5 kW Machine weight approx. 14,500 kg Equipment: - front bending aid - back gauge with 8 stop fingers - AKAS laser safety device in front of the machine - V-die block - segmented - upper tool - die shifting - two-hand operation - manual crowning - pneumatic upper and lower tool clamping

Condition: new, functionality: fully functional, Year of construction: 2004, Pressing force: 225 t Bending length: 3050 mm Distance between uprights: 2550 mm Control type: DNC 1200PS Eco/Col Ram stroke: 700 mm Throat depth: 405 mm Distance table/ram: min. 320 / max. 1020 mm Total power requirement: 29.5 kW Machine weight approx.: 15,500 kg Accessories/Equipment: Rear gauge Backgauge traverse adjustment: - X-axis gauging range (from bending line): 5–1000 mm - X-axis adjustment speed: max. 500 mm/sec Height adjustment: - R-axis adjustment range (from table surface): 85–235 mm - R-axis adjustment speed: max. 150 mm/sec Backgauge finger adjustment: - Z1-axis adjustment range (from left table front): 520–2365 mm - Z1-axis adjustment speed: max. 1000 mm/sec - Z2-axis adjustment range (from left table front): 690–2535 mm - Z2-axis adjustment speed: max. 1000 mm/sec - X1-axis adjustment range (from center line): ± 125 mm - X1-axis adjustment speed: max. 250 mm/sec Die shifting – adjustment via rear gauge (MVX): Gbedexb Tftjpfx Abpjw - Adjustment range: max. 100 mm - Adjustment speed as per X-axis: 500 mm/sec Front support/press brake aides: - Swivel angle BV1/BV2-axis: 55° - Swivel speed BV1/BV2-axis: max. 45°/sec - Lifting force per swivel arm BV1/BV2-axis: max. 1,500 N
