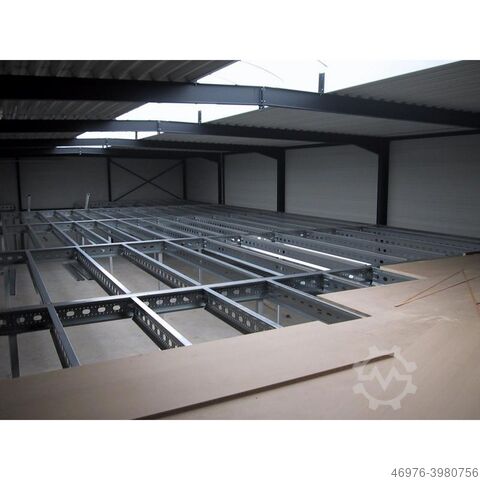

Storage platform

Eingeschossig / 4.000 x 15.000 mm Tragkraft: 500 Kg / m²

Storage platform 4,000 x 15,000 mm, load capacity 500 kg/m²

The scope of supply includes:

4 uprights, single-sided 100 x 100 x 3 mm
4 uprights, double-sided 100 x 100 x 3 mm

6 main beams C+300 x 3 x 4,190 mm
15 cross beams S+300 x 2 x 4,800 mm
30 mounting angles
4 diagonal braces
27 chipboard panels P6, 3000 x 850 x 38 mm, underside white, topside natural
Underside white, topside natural

including fixing material
including load capacity signs

Dimensions, technical data

Steel structure: 4,000 x 15,000 mm
Floor area: approx. 60 m²
Height, top edge of flooring: freely selectable up to 3,500 mm
(other heights on request)
Clear height, underside: top surface minus 338 mm
Load capacity: 500 kg/m²

Uprights: 100 x 100 x 3 mm
Main beams: C-profiles C+300 x 3 mm
Cross beams: Sigma profiles S+300 x 2 mm
Flooring: 38 mm chipboard, one side white

Uprights in the following standard colors:
RAL 7035, light gray
RAL 7016, anthracite gray
RAL 3000, fire red
RAL 5003, sapphire blue

Other colors on request!

Accessories, such as stairs, railings, etc., are not included in the scope of supply.

These can be supplied at an extra cost. (Prices on request)

Our services at a glance:
(Prices on request)
Psdjd Htryopfx Anpjpu

Assembly, installation
Our general assembly conditions apply

Shelf inspection
Shelf inspection according to DIN EN 15635, performed according to the requirements of BGR 234, visual inspection for all shelving systems

Delivery with our own fleet
(without unloading)

The listing was translated automatically. Translation errors are possible.
