Storage platform

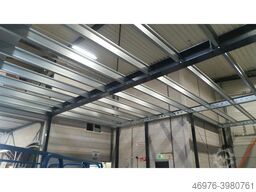

Eingeschossig / 8.000 x 5.000 mm Tragkraft: 500 Kg / m²

Storage platform 8,000 x 5,000 mm, load capacity 500 kg / m²

Dimensions / technical data

Dimensions of steel structure: 8,000 x 5,000 mm
Dimensions of floor area: 8,000 x 5,000 mm
Floor area: approx. 40 m²
Height to top of floor covering: up to 3,500 mm (freely selectable)
Clear height from underside: top minus 338 mm
Net load capacity: 500 kg / m² evenly distributed load

Included in the scope of delivery:

6 steel tube supports 100 x 100 x 3 mm
4 main beams C+300 x 3 x 3,990 mm (perforated)
9 cross beams S+300 x 2 x 4,800 mm (closed)
18 mounting angles
3 diagonal braces
18 chipboard panels P6, 3000 x 850 x 38 mm, underside white, top natural
including fastening material
including load signs

Supports available in the following standard colors:

RAL 7035, light gray
RAL 7016, anthracite gray
RAL 3000, fire red
RAL 5003, sapphire blue
(Other colors available upon request!)

Main and cross beams galvanized

We also manufacture the storage platforms to any other desired size.
Prices on request!

Bljdpfsd Htr Hex Ahpji
Accessories, such as stairs, railings, etc., are not included in the scope of delivery.

These can be supplied for an additional charge. (Prices on request)

Our services at a glance:
(Prices on request)

Assembly, installation
our general assembly conditions apply

Shelf inspection
Shelf inspection according to DIN EN 15635, performed in accordance with the requirements of BGR 234 visual inspection for all shelving systems

Delivery with our own fleet
(without unloading)
