Hydraulic press, Four column press 100 t

Eitel

Condition: excellent (used), Year of construction: 2000, pressure 105 t chamfer lenght 3100 mm distance between columns 2600 mm table width 100 mm table height 750 mm Fpedpovq R Uuefx Aa Nop Control DELEM DA 65 dayligth 200 mm working feed 0 - 10 mm/sec return speed 0-100 mm/sec rapid traverse - up max. 100 mm/sec voltage 380 V / 50 Hz total power requirement 11 kW weight of the machine ca. 7,5 t dimensions of the machine ca. 4 x 2,2 x 2,8 m Equipment: • CNC-control DELEM DA65 graphic video • controlled backgauge 2 axis • upper and lower tool • 2 hand control / foot switch

Condition: good (used), functionality: fully functional, Between centers: 1500 mm Turning diameter above bed: 500 mm Turning diameter above support: 300 mm Turning diameter in pocket: 700 mm Spindle bore: 72 mm Spindle speeds: 18 pieces, 11-2000 RPM 3 jaw chuck, 4 jaw chuck, Fixed and moving steady Fedou Tt S Njpfx Aa Nspp Cooling 1-axis Digital readout on workpiece diameter

Condition: as good as new (ex-display), Year of construction: 2020, Hydraulic 160 T double cylinder insertion press Double column press- two cylinder press with 160 T capacity at 250 bar. a) idle speed downward 9,8 mm/sec. b) upward speed up to 15,0 mm/sec. c) table size 1500x600x100 mm, height adjustable d) ram plate, 1500x600x100 mm e) year of construction 12/2020 f) motor power 11 KW g) pump capacity 22 L/minute h) travel limitation by cam switch i) Open height 700 mm j) ram travel 500 mm k) Remote control via two-hand operation l) Pressure setting via rotary control from approx. 30 to 160 T Fedpfx Aogz H Dhja Njpp m) Approx. height 2800 mm n) T-slots according to customer requirements o) Weight approx. 4,200 kg p) Oil tank with approx. 200 L volume q) Painting in RAL 5005 ( royal blue ) or according to customer's request. r) For safety reasons the ram plate is painted orange RAL 2009 or signal yellow RAL 1023 s) Assembly, commissioning, instruction can be provided at a separate charge. The travel can be adjusted by cam switches. The ram/table size of the machine shown is 1600x600x100 mm.

Condition: excellent (used), Year of construction: 1996, stroke length: 160 mm, pressing force: 120 t, Hydraulic press brake Fab. DURMA Typ. HAP 30120 Year 1996 Technical details Fjdpfou Iarbex Aa Nopp Make: DURMA Type: HAP 30120 Year of construction: 1996 Capacity: 120 tons Effective length: 3050 mm Stroke: 160 mm Engine power: 11 kW Dimensions: L 4,150 x W 1,950 x H 2,600 mm Weight: 7.5 tons Equipment - Controlled backgauge - Immersion depth adjustable via control - Controlled axes: X, Y - 2 support arms - Technical documentation - Tools: o Multi-V die V12, V20 (slightly damaged), V13, V16, V45, V15, V10, V65 Length 3,050 mm o Slightly cranked upper tool, H 150 mm, L 2,970 mm, segmented All information without guarantee. A demonstration is possible at any time in our showroom.

Condition: new, Year of construction: 2018, machine/vehicle number: DF0199 - Rev.00, pressure:160 t passage width:1200 mm stroke:600 mm Weight of machine approx.:7 t dimensions:ca. 2400 x 1400 x 3400 mm return capacity:16 t Fodpfxsdxvfhe Aa Nepp Max Working height:800 mm Return Speed:25 mm/sec pestle plate:1670 x 800 mm table plate:1670 x 800 mm table height over floor:800 mm Oil cooling (electric):1,5 kW (max) Engine Output:18 kW speed of forward flow:10 mm/sec pressure speed:10 mm/sec Travel:600 mm Oil Tank Capacity:300 l

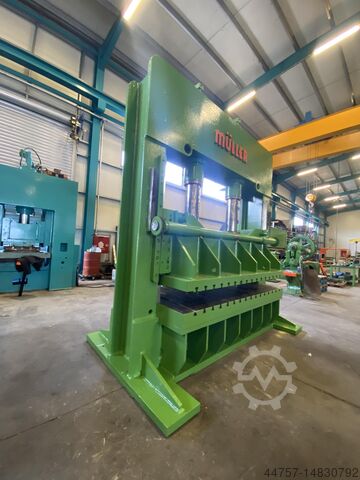

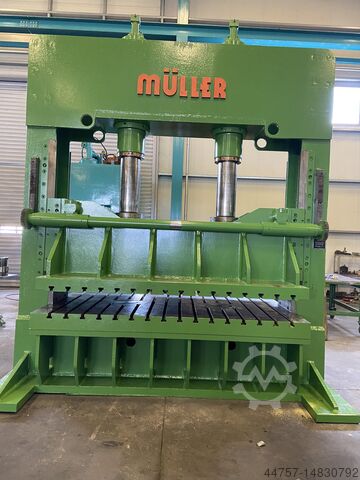

Condition: used, MULLER 250t Fedpfx Aaorfxhkj Nepp PRESSURE: 250t STROKE: 550mm TABLE DIMENSIONS: 2500x1400mm

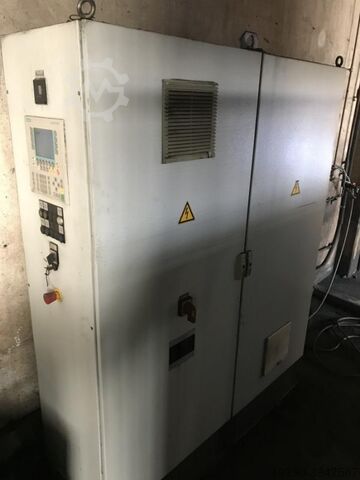

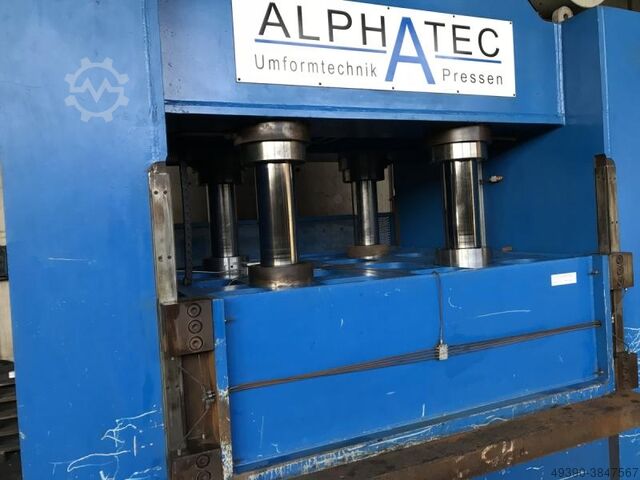

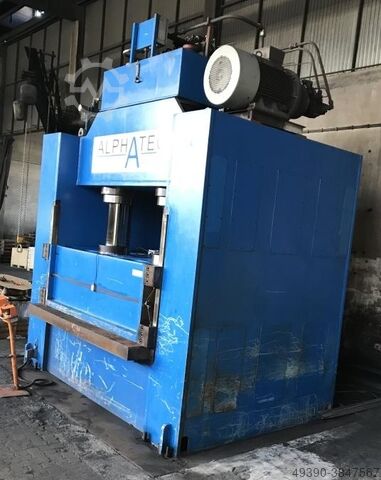

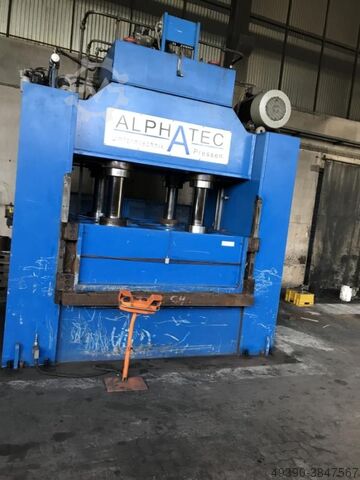

Condition: used, Machine not operational – control system not running Special price Double-column hydraulic press ALPHA TEC -- ALPHATEC Type RPS 5000 Serial No. 300487 Year of manufacture: 2006 Pressing force: 500 tons Column gap front and rear: 2520 mm Table surface: 2500 x 2500 mm Ram surface: 2500 x 2500 mm Ram stroke: 600 mm Installation height max.: 600 mm Table height above floor: approx. 900 mm Tank capacity: approx. 1000 liters Ram retraction force: approx. 22 tons Adjustable approach speed: 100-800 mm/s Pressurization to 5000 kN: approx. 0.7 sec. Return speed: approx. 300 mm/s Main motor power: 75 kW Control pump motor power: 2.2 kW Power supply: 400 Volt, 50 Hz - 8-position flat guide for the ram - Hydraulic ram locking at TDC - Freestanding control cabinet (200 x 50 cm) - Siemens PLC control S7-314 - Operation via Siemens OP 170-B (5.7”) - Two-hand control desk, freestanding Fpjdpfxjdzqpto Aa Nsp - Floor-level installation - Table plate 2510 x 2530 x 135 mm (approx. 6700 kg) - Central lubrication - Operating manual with circuit diagrams Required space (L x W x H): 372 x 260 x 460 cm Required space for horizontal transport (L x W x H): 460 x 372 x 260 cm Weight: approx. 50 tons The machine was used for straightening heated steel flanges. From insolvency – in good condition.

Year of construction: 2012, condition: used, Hounsell down stroke Hydraulic forming press H frame Year 2012 200ton Daylight 750mm Nominal Table size W x L 2100mm x 1200mm Max Weight top tool 800kg Max system Pressure 340 bar Ram diameters 110mm Number of Rams 6 Seal Dimensions 110 x 130 x 16 Machine construction fabricated frame Machine weight 95000 kg approx Approach speed 150mm/s Fpodpfx Aaof A R Uhj Njp Pressing speed 8mm/s Return speed 80-90mm/s Can quote for new hydraulic presses c and h frame

Condition: good (used), functionality: fully functional, Year of construction: 2000, sheet thickness steel (max.): 16 mm, back gauge: 1,000 mm, cutting length (max.): 3,150 mm, foot switch motorized arrester behind Fpsdpfsv Syyvsx Aa Nsp cutting angle adjustment Technische Daten / technical details: Schnittleistung / max. cutting capacity 16 mm max. Schnittlänge / max. cutting length 3150 mm Anschlag / limit stop 1000 mm Gewicht der Maschine / weight 16300 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: good (used), functionality: fully functional, total height: 3,500 mm, total width: 2,800 mm, total length: 1,200 mm, pressing force: 300 t, ID105830 Hydraulic press Brand: Van De Graaf Type: HVK-300 Fpodewhc H Ajpfx Aa Nop Capacity: 300 tons
