Flat Grinding Machine, Horizontal Surface Grinding MachineELB-Schliff
SW 3 HA Juwel
Flat Grinding Machine, Horizontal Surface Grinding Machine
ELB-Schliff
SW 3 HA Juwel
Fixed price plus VAT
€3,000
Condition
Used
Location
Hessisch Lichtenau

Show images
Show map
Machine data
Price & Location
Fixed price plus VAT
€3,000
- Location:
- 37235 Hessisch Lichtenau
Call
Details about the offer
- Listing ID:
- A162-23191
- Reference number:
- 61580
- Update:
- 14.09.2025
Description

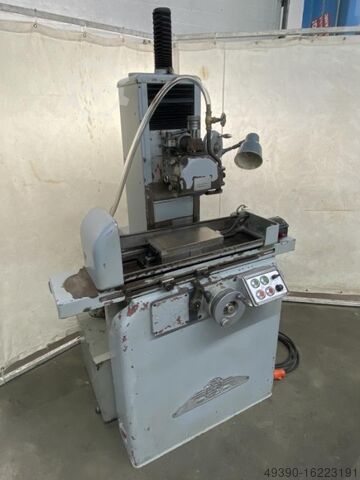

Surface grinding machine ELB type SW 3 HA Juwel
Machine no. No. 51810465 Year of construction 1965
Sanding area 300 x 150 mm
Clamping surface 300 x 150 mm
Electromagnet 300 x 150 mm
Distance spindle center - magnet approx. 350 mm

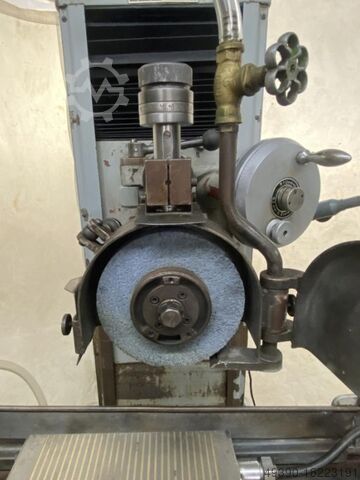

Grinding wheel diameter 175 mm
Grinding wheel width max. 25 mm
Grinding wheel speed 2800 rpm
Grinding spindle drive 0.75 kW
Mains connection 380 Volt, 50 Hz.

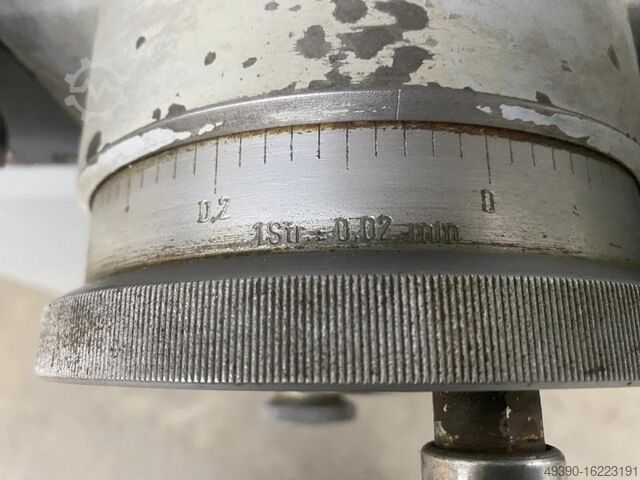

- Manual and automatic table cross adjustment (0.02 mm per graduation mark)
- Manual cross adjustment via handwheel, travel per handwheel rotation, Y-axis 2 mm
- Manual depth adjustment via handwheel, travel per handwheel rotation, Z-axis 0.2 mm
- Longitudinal table movement via electric motor with 2 speeds
- Grinding wheel extractor
Crodpfxsttc T Ds Abwoh
- Electromagnet type SD 15/30 Height = 78 mm
- Lubrication pump for the table guide in the machine base
- Wet grinding unit with pump opposite
- Electric box Electromagnet for wall mounting
- Operating instructions
- Machine light
Space requirement L x W x H 1250 x 1100 x 1950 mm
Weight approx. 920 kg
good condition
The listing was translated automatically. Translation errors are possible.
Machine no. No. 51810465 Year of construction 1965
Sanding area 300 x 150 mm
Clamping surface 300 x 150 mm
Electromagnet 300 x 150 mm
Distance spindle center - magnet approx. 350 mm
Grinding wheel diameter 175 mm
Grinding wheel width max. 25 mm
Grinding wheel speed 2800 rpm
Grinding spindle drive 0.75 kW
Mains connection 380 Volt, 50 Hz.
- Manual and automatic table cross adjustment (0.02 mm per graduation mark)
- Manual cross adjustment via handwheel, travel per handwheel rotation, Y-axis 2 mm
- Manual depth adjustment via handwheel, travel per handwheel rotation, Z-axis 0.2 mm
- Longitudinal table movement via electric motor with 2 speeds
- Grinding wheel extractor
Crodpfxsttc T Ds Abwoh
- Electromagnet type SD 15/30 Height = 78 mm
- Lubrication pump for the table guide in the machine base
- Wet grinding unit with pump opposite
- Electric box Electromagnet for wall mounting
- Operating instructions
- Machine light
Space requirement L x W x H 1250 x 1100 x 1950 mm
Weight approx. 920 kg
good condition
The listing was translated automatically. Translation errors are possible.
