Column drilling machineELMAG
GBM 3/30 SNA - Set
Machine data
Price & Location
- Location:
- Otto-Lilienthal-Straße 36, 71034 Böblingen, Deutschland
Details about the offer
- Listing ID:
- A165-18816
- Update:
- 26.03.2025
Description
Fast geared pillar drill 1,200 / 900 W
The robust GBM 3/30 SNA pillar model is equipped with a powerful special gearbox, has a drilling capacity of 30 mm in steel and, with a quill spacing of 820 mm, offers plenty of space for holding tall workpieces. Helical gears made of steel and pressed material ensure high load capacity and smooth running. The GBM 3/30 SNA is therefore a perfect solution for medium-sized requirements in steel construction and metalworking stores, also for small batch processing.
Standard equipment
- Quick-action drill chuck B 16, 1 - 16 mm
- Taper arbor MK 3 / B 16
- Reducing sleeve MK 3 / MK 2
- Reducing sleeve MK 3 / MK 1
- Drive-out wedge
- Operating instructions / CE
Set equipment
- GBM 3/30 SNA geared pillar drill
- Machine vice 120 or 150 mm
- Two clamping screws 14 mm
- 9-piece drill cartridge, 14.5 mm - 30 mm, MK 2 / MK 3
- Cutting oil spray
ADVANTAGES
Drilling capacity Ø 30 mm
Fedpfxot Edzae Aa Njgi
Automatic sleeve feed
(0.1; 0.15; 0.22; 0.33 mm/rev)
Cubature 500x350x870 mm
Spindle projection 320 mm
Powerful drive motor 400 V, 2-stage 1,200 / 900 W
Smooth-running quality gearbox with heavy-duty helical gearing
8 speeds 75 - 3,010 rpm
Drill spindle with precision bearing
Clockwise and counter-clockwise rotation
Drill spindle protection cover
Drilling depth scale and stop
Tool ejector
Large, precise drill table with T-slots and coolant channel
Heavy-duty, ground steel column with gear rack
Rotatable and height-adjustable drill head
Heavy-duty, ground steel column with toothed rack
Emergency stop button / zero voltage release
TECHNICAL DATA
Drilling capacity in steel 30 mm
Thread cutting capacity M22
Spindle holder (turning spindle) MK 3
Speed range 75 - 3010 rpm
Speed steps 8
Quill stroke 150 mm
Quill feed stages 4
Column diameter 105 mm
T-slots, width 14 mm
Drill head stroke 270 mm
Drill table stroke 500 mm
Spindle projection 320 mm
Drill table rotatable ± 180 °
Drill head rotatable ± 180 °
Quill spacing table 50 - 820 mm
Drilling table surface 500x350 mm
Motor power (2-stage) 900 / 1200 W
Mains connection 400/50 V/Hz
Cubature 500x350x870 mm
Base plate area (lxw) 400x670 mm
Weight 210 kg
The listing was translated automatically. Translation errors are possible.
Documents
Seller
Send inquiry
Telephone & Fax

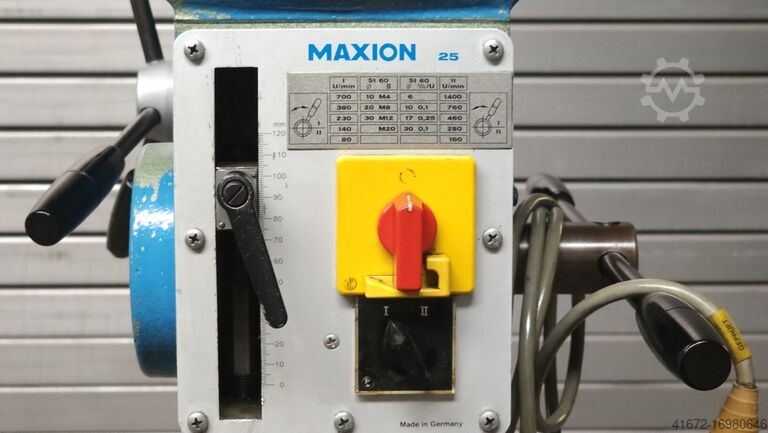

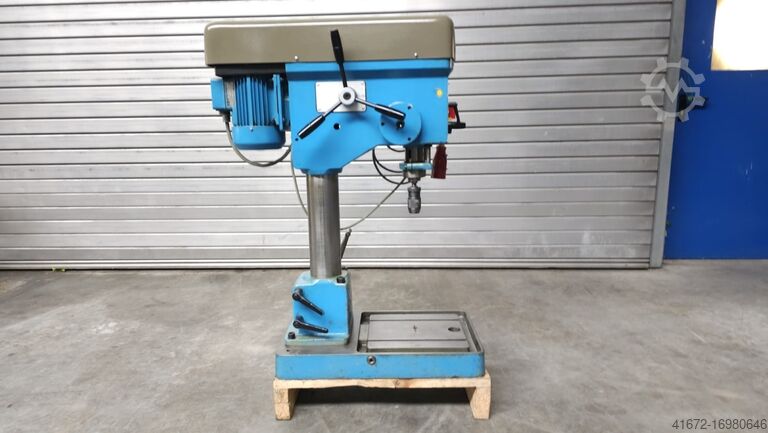

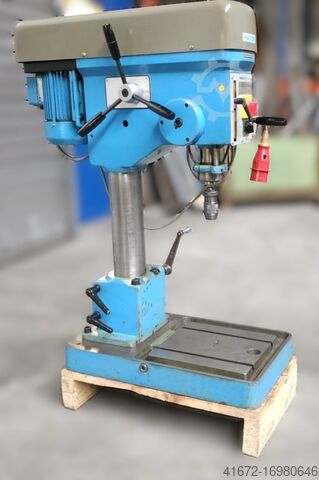

Malsch MAXIONBT 25 ST
