Vertical single-spindle turning center
EMAG VL 400 (Siemens)

Name: EMAG VL 400 (Siemens)
Brand: EMAG
Availability: InStock

Year of construction

2021

Condition

Used

Location

Germany

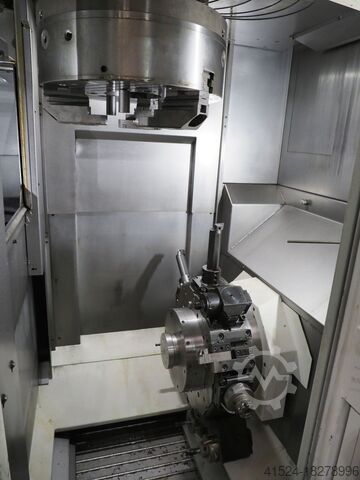

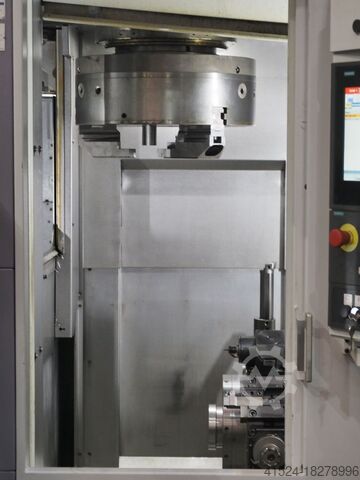

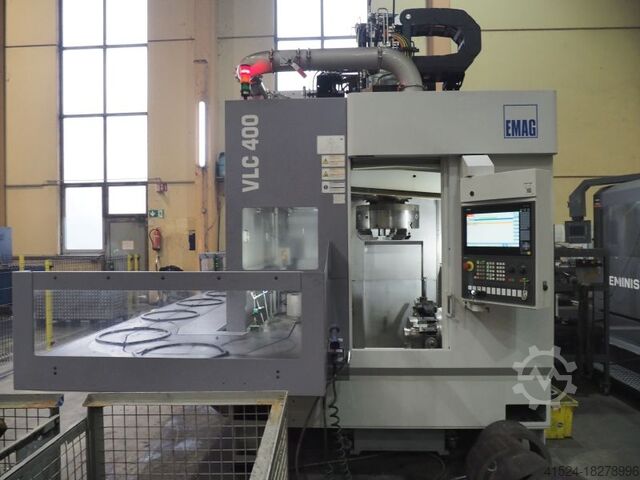

Vertical single-spindle turning center EMAG VL 400 (Siemens)

Show map

Machine data

Machine type:: Vertical single-spindle turning center

Manufacturer:: EMAG

Model:: VL 400 (Siemens)

Year of construction:: 2021

Condition:: excellent (used)

Price & Location

Location:: Bayern, Deutschland

Call

Details about the offer

Listing ID:: A182-78996

Reference number:: R2033

Update:: 03.11.2025

Description

Vertical single-spindle turning center, vertical lathe
Manufacturer: EMAG
Model: VL 400 (Siemens)
Year of manufacture: 2021
Operating hours: approx. 1,848

Turret base unit and Y-axis slide unit

HP turret drive unit for driven tools (C442)
with internal coolant supply to the tool
Max. speed: 6,000 rpm
Nominal speed: 3,200 rpm
Tool holder unit for driven tools: 12 x BMT75

Rotary workpiece transport system, O-version
Drag frame system for 10 workpieces
Workpiece height (incl. workpiece pallet): max. 300 mm
Workpiece weight: max. 60 kg

Set (10 pieces) drag frames for O-band
for workpiece diameter: 150 - 400 mm

Djdpfx Aevq Iwyea Newd
Blow-off of workpiece and clamping device (pick-up)

Coolant supply: 15 bar
Coolant pump delivery rate approx. 80 l/min at 15 bar.
Cooling unit (6.5 kW, water - air)
A cooling unit (with 2-circuit technology) regulates the machine’s thermal balance.
Spindle drive, control cabinet, and turret are kept at ambient temperature (10°C - 40°C).

Coolant double filter, manually switchable
Filtering fineness 100 μm, with electronic and mechanical contamination indicator

Chip conveyor
Hinged belt design: rear discharge
Chip discharge height 1,100 mm (with integrated coolant tank, capacity approx. 500 l)

Emulsion mist extraction: extraction capacity approx. 800 m³/h
Rinsing gun

Workpiece measurement with probe
Blow-off for probe
Tool life monitoring (sister tool management)

Tool breakage monitoring TOOLINSPECT MCU-EUROPA
(SIEMENS 840Dsl, FANUC 31i/32i)

3-color signal light

Axial drilling-milling head – BMT75 CC
5x angle drilling-milling heads 90° - BMT75 CC (i=1:1)
Set of tools for OP10 + OP20

Hydraulic power chuck cylinder Gr.150 - with 1 media feed-through
Max. clamping force 10,850 daN at 70 bar

Coolant through spindle
Programmable clamping pressure adjustment

3-jaw power chuck KNCS-N 500-155 quick change
max. = 2,200 rpm (reference speed as per DIN 6386)
Set of hard base jaws
Set of soft top jaws

Attachments for KNCS-N 500-155
Rinse nozzle in chuck bore

Additional tool holders with tools:
1x 8.BMT25VL8IKX50 finishing external
1x 8.BMT25VL8IKX50 roughing external
1x 60.7516VL8IKDI15 engraving tool
1x 60.7516VL8IKDI15 tapping adapter
1x 40.75V5KRVL8IKD facing head 50mm
3x 80.75V5VL8IKD boring bar holders
2x 27.V520HYDL26 drill diameter 20mm
1x 42.V522L08Ik drill diameter 22mm
1x 27.V514WNL31 drill diameter 14mm

Software package
Operating manual / Maintenance manual

The listing was translated automatically. Translation errors are possible.

Seller

Registered since: 2003

133 listings online

Call

Send inquiry

Telephone & Fax

+49 7022 ... show

Fax:

These listings may also fit your interest.

Listing

Metzingen

7,973 km

Gear Grinding Machine
LIEBHERRLCS 282

Call

Listing

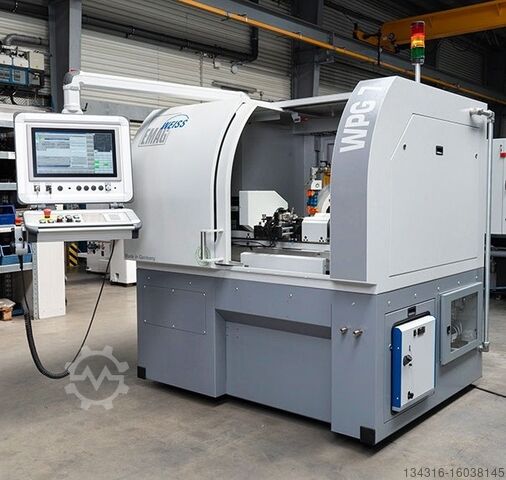

Universal cylindrical grinding machine EMAG Weiss WPG 7

Neckartailfingen

7,967 km

Universal cylindrical grinding machine
EMAG WeissWPG 7

Call

Condition: as good as new (ex-display), Year of construction: 2025, Offered is a External cylindrical grinding machine EMAG Weiss WPG 7 - external cylindrical grinding at the highest level and on the smallest footprint. Footprint of the WPG 7 is only 1,800 x 2,400 mm. The machine is perfect for machining small shafts or pinions. The WPG 7 can be loaded manually as well as by automated solutions (such as chain conveyors and linear gantry). CONTROL Fanuc 0i TECHNICAL DATA Dedpfx Astlrkbsa Newd Workpiece length: max. 250 mm grinding Ø: max. 80 mm Center height: 100 mm Center length: 380 mm Workpiece weight: max. 30kg Grinding wheel Ø: max. 500x 80 mm Price, delivery time and equipment of the machine according to agreement.

See details

Listing

Lathe - cycle-controlled WEILER E 50x1000

Fuldatal

7,804 km

Lathe - cycle-controlled
WEILERE 50x1000

Call

Condition: good (used), spindle bore: 66 mm, turning diameter over bed slide: 570 mm, swing diameter over cross slide: 340 mm, quill stroke: 160 mm, quill diameter: 70 mm, center height: 280 mm, spindle speed (min.): 1 rpm, spindle speed (max.): 2,500 rpm, total length: 2,850 mm, total width: 1,820 mm, total height: 1,750 mm, overall weight: 2,750 kg, torque: 1,600 Nm, We offer here a lathe from the brand "WEILER", model E50x1000. Dedpfsw Trbfsx Aa Nswd Please refer to the attached PDF for details. The extensive accessories are also listed there. Kind regards, Wiegand Company

See details

Listing

Table boring machine TOS INTOS Zebrak FNG30 CNC

Jasło

8,574 km

Table boring machine
TOS INTOS ZebrakFNG30 CNC

Call

Listing

Idstein

7,804 km

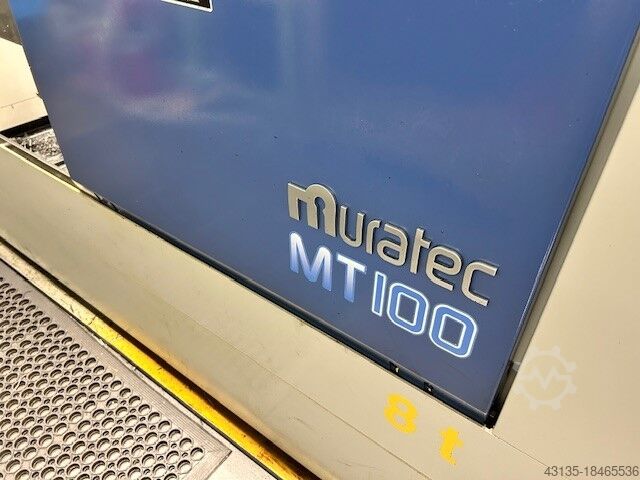

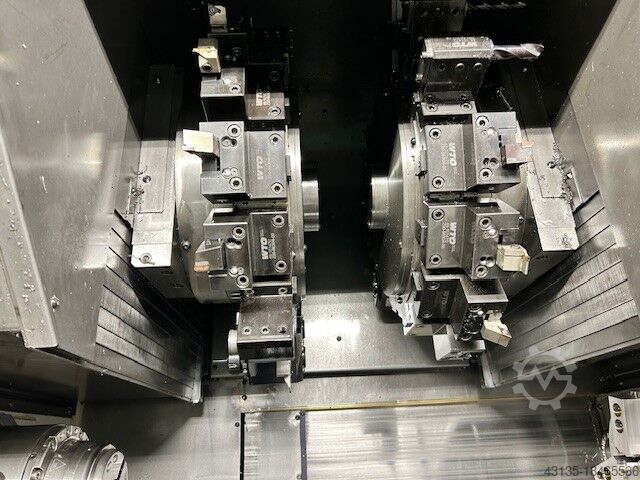

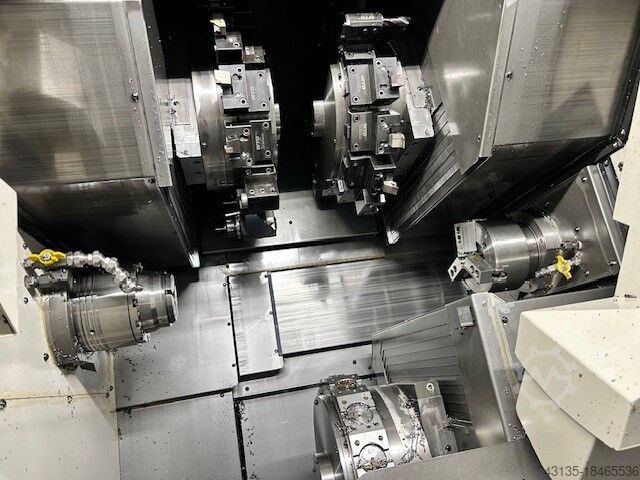

CNC lathe
MuratecMT 100 T3 Y3

Call

Condition: like new (used), Year of construction: 2021, functionality: fully functional, Double spindle CNC lathe with 2 spindles, 3 turrets and 3 Y axes each turret with 15 stations, BMT 44 driven tool holder 2x C-axis 3x Y axis Fanuc 32i -TB control Bar passage 65 mm Left spindle 15/11 KW, Hainbuch Spanntop mini Axle pull size 65 Right spindle 11/7.5 KW, Kitagawa three-jaw chuck Finished part gripper Conveyor belt Bar loader interface Coolant system, separate tank 200 l Cooling unit High pressure on turrets 1-3 via M function 15 bar/40 l/min 2x Brinkmann pump Renishaw tool measurement for all turrets Tool monitoring for spindle and AGW Dedpfxjvxu Eae Aa Nowd Spindle flushing through the counter spindle IKZ, Deublin Rotary distributor Hinged belt conveyor Transformer available immediately

See details

Listing

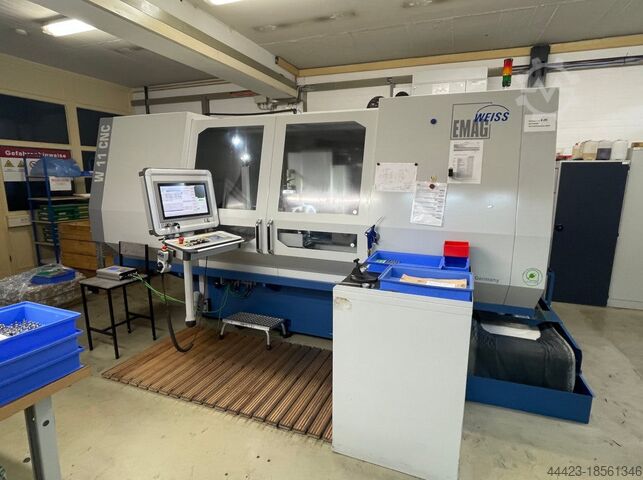

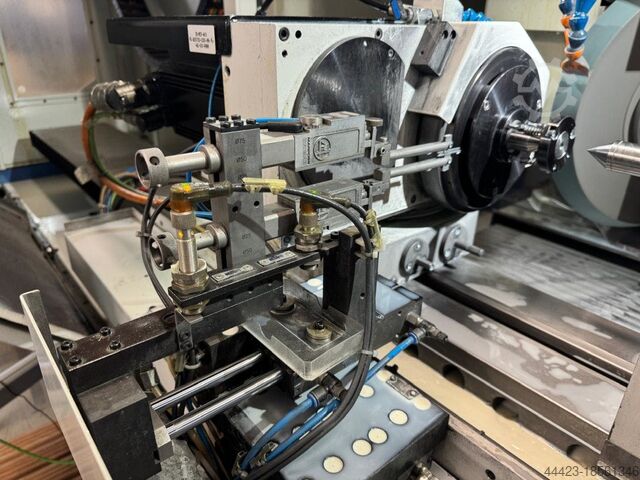

Cylindrical grinding machine EMAG WEISS W 11-CNC

Olching

8,116 km

Cylindrical grinding machine
EMAG WEISSW 11-CNC

Call

Condition: used, _____ Description: Year of manuf. : 2020 Control : Sonstige WEISS CNC Centre width : 6 mm In Generel: ear of construction:2020 Control system:WEISS CNC Centre width:6 mm Centre height:200 mm Grinding wheel dimensions:400x60 mm + 0x60 mm Workpiece headstock: Speed:1 rpm Workpiece weight max.:25 kg Sanding diameter max.:390 mm Mounting:MK4 Grinding headstock: Peripheral speed:2 m/s Grinding disc dimensions right:0 x 60 mm Grinding disc dimensions left:400 x 60 mm Dodpfov Armcex Aa Njwd X-axis:380 mm Z-axis:1,1 mm B-axis:torque motor, infinitely variable Tailstock: Pinole diameter: mm Pionole stroke:45 mm Mounting:MK 4 Cylinder fine adjustment:+/- 0.04 mm Equipment: Positioning sensors:Direct scales Grinding spindles:2x grinding spindle (left/right) GAP / Crash Controll:Structure-borne sound (Sensotronik) Balancing:MPM balancing device Workpiece measurement:Marposs PF ME Automation:Robot interface prepared Set-up mode:Electronic handwheel Emulsion mist separator:Mechanical Dresser:For external grinding wheel left/right Accessories:Various grinding discs + flanges

See details

Listing

Olching

8,116 km

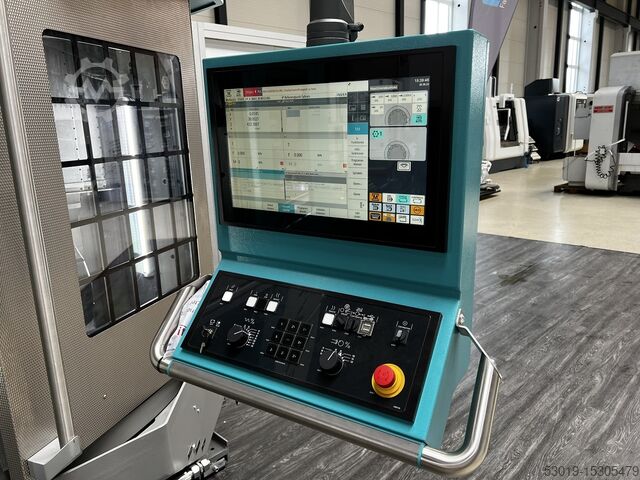

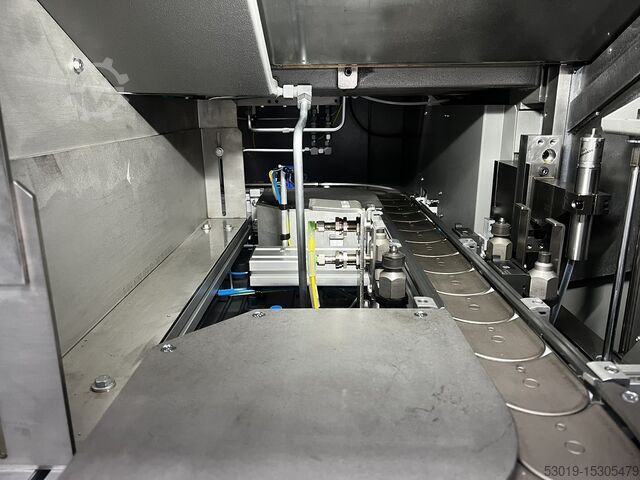

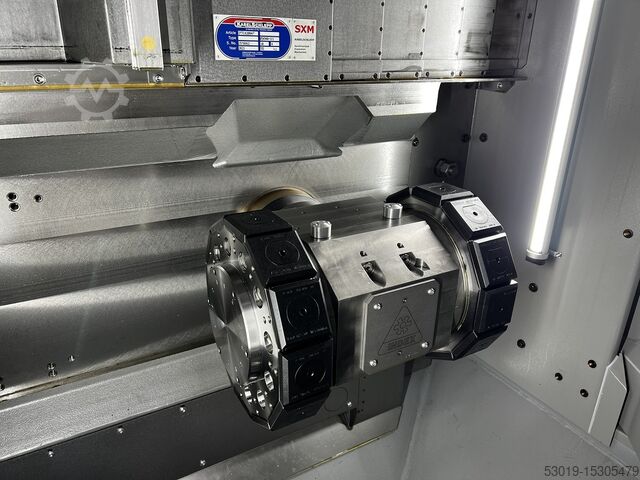

Vertical lathe
INDEXV160 Vertikal

Call

Condition: new, Year of construction: 2023, General Control : Siemens 840 DSL Main spindle Material passage : 65 mm max. speed : 5.000 rpm Spindle passage : 85 mm Spindle head : AD140 Drive power : 27 kW Torque : 145 Nm tool turret Tool holders : ISO-10889 Number of stations : 2 x 12 Number of driven tools : 2 x 12 Max. Speed : 6.000 rpm Travel Y : ±60 mm B-axis : 360 degrees Workpiece infeed and outfeed Type : Schnaithmann Designed for : 12 pallets Pallet size : 160mm x 200mm Total load of the system max. : 500 kg Equipment Chip management : Chip conveyor Coolant management : Eco-Fluid coolant system : switchable 8/80 bar Dodpsrxc Eiofx Aa Newd Coolant tank : 750 l with paper belt filter

See details

Listing

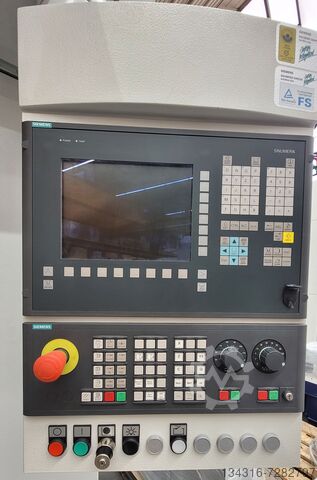

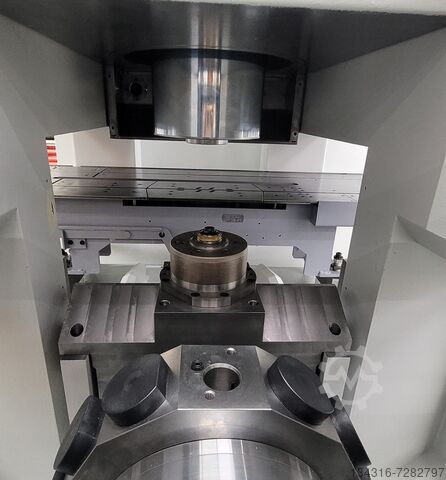

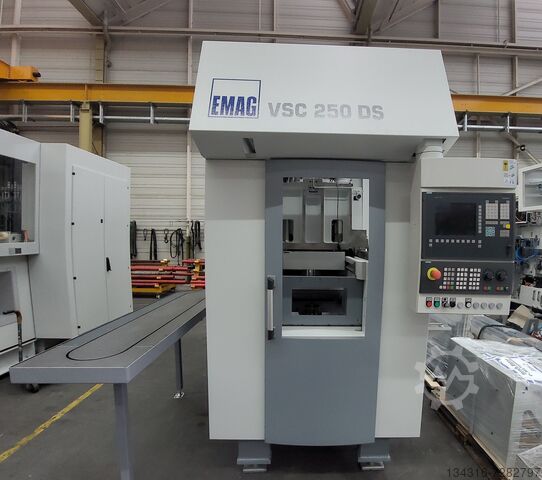

Vertical turning and grinding center EMAG VSC 250 DS
