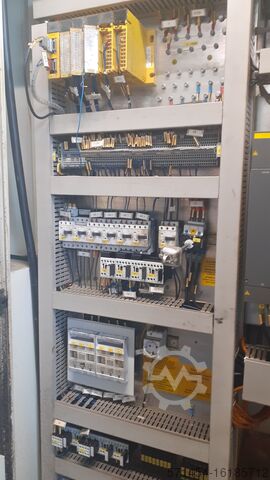

Vertical lathe

Emag VL5

Condition: used, Year of construction: 2001, turning diameter 220 mm Control Fanuc 18i x-travel 390 mm z-travel 435 mm Fjdowth Szepfx Af Eoga tool taper VDI 40 number of tool places 12 Pos. spindle tunring speed 4.500 U/min The machine is untested and is being sold for spare parts. Accessories, tools, and clamping devices shown are only included if explicitly stated in the additional information. Technical data and specifications are subject to change without notice. Prior sale is reserved.

Condition: used, Year of construction: 2003, turning diameter 220 mm Control GE Fanuc 18i-TB x-travel 400 mm z-travel 450 mm tool taper VDI 40 number of tool places 12 Pos. spindle tunring speed 6.000 U/min Number of working hours 10741 h work stroke 150 mm X-Achse range L-W-H 3100 x 2000 x 3200 mm weight 6500 kg Fgsdpfx Asyf N D Ijf Eea rapid power traverse in X-and Z direction 60/30 m/min EMAG VL5 vertical lathe, built in 2003, very good condition, ready for use, but currently not in operation. Accessories: Extraction system 9 tool holders, 4 of which are driven tools 1 pallet Various workpiece carriers

Condition: used, Year of construction: 2015, turning diameter max. 315 mm swing diameter 315 mm turning height 175 mm Control SIEMENS 840 D SL x-travel 660 mm z-travel 300 mm turning speeds 7500 U/min tool change unit 12 fach VDI 40 total power requirement 36 kW weight of the machine ca. 7,5 t dimensions of the machine ca. 4,4 x 2,2 x 2,7 m Renishaw LP2H Chip conveyor No chuck available Fedpfevxwrcox Af Eega No tool holders available No live tooling

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, TECHNICAL DATA MACHINE SPECIFICATION WORKING RANGE • Max chuck diameter. 260 mm • Max swing diameter. 260 mm • Max machining diameter. 220 mm • Max part length. 110 mm • Travel X axis. 570 mm • Working stroke Z axis. 250 mm • Travel Z axis. 200 mm CLOSED STANDARD AUTOMATION • Number of carrier frames for workpiece diameter 80 to 220 mm. 14 pieces • Number of carrier frames for workpiece diameter 30 to 160 mm. 18 pieces • Number of carrier frames for workpiece diameter 30 to 85 mm. 30 pieces • Max total load. 120 kg PICK UP SWITCH POINTS • Pressed. 1 mm • Over pressed. emergency stop. 5 mm • Pickup spring travel max. 30 mm CHAIN SYSTEM • Chain length. 182 inches • Chain pitch. 1 inch (25.4 mm) • Chain tension at 20 carrier frames. 400 N • Chain wheel. Z equals 30 • Gear ratio. i equals 100 • Motor revolution per belt revolution. 540 LOADING TIME • Loading time. 2 to 4 seconds MAIN SPINDLE • Spindle flange according to DIN 55026. Size 6 • Spindle bearing front diameter. 110 mm • Max spindle speed. 4500 rpm (5500 optional) MAIN DRIVE. AC ASYNCHRONOUS MOTOR. TYPE 1MB241H • Power at 100 percent duty cycle. 18 kW • Power at 40 percent duty cycle. 27 kW Fodpfxjx Elf Aj Af Eoga • Torque at 100 percent duty cycle. 202 Nm • Torque at 40 percent duty cycle. 303 Nm • Corner speed. 850 rpm FEED DRIVE • Rapid feed speed X axis. 60 m per minute • Rapid feed speed Z axis. 30 m per minute • Feed force X and Z. 5.5 kN • Ball screw diameter X and Z. 40 mm • Acceleration. 5 m per second squared TOOL CARRIER • Cylindrical tool shank mount according to DIN 69880. twelve positions • Shank diameter. 40 mm • Max tool length including holder. 190 mm • Max swing diameter. 740 mm TOOL CARRIER WITH DRIVEN TOOLS • Cylindrical tool shank mount according to DIN 69880. twelve positions • Shank diameter. 40 mm • Max speed. 6000 rpm • Corner speed. 3000 rpm • Max torque at 10 percent duty cycle. 45 Nm • Max torque at 40 percent duty cycle. 30 Nm • Max torque at 100 percent duty cycle. 15 Nm ELECTRICAL EQUIPMENT • Operating voltage. 400 to 480 V • Control voltage DC. 24 V • Control voltage AC. 230 V • Frequency. 50 or 60 Hz • Connected load. 42 kW • Supply fuse rating. 63 A • Electrical design standard. VDE 0113 DIMENSIONS AND WEIGHT • Length. 2680 mm • Length including chip conveyor. 3820 mm • Width. 2040 mm • Height. 2400 mm • Machine weight. approx 6500 kg NOISE EMISSION • According to DIN 45635. • Measured sound pressure level. 78 dB(A) during continuous cutting on a cylindrical test part.

Condition: good (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 101458, Machine Data Sheet General Information Manufacturer: EMAG Machine Type: CNC Vertical Lathe Model: VL5 S Fgodpfx Afextpi Ss Eoa Serial No.: 101458 Year of Manufacture: 2008 Technical Data Max. Chuck Diameter: 260 mm Max. Swing Diameter: 260 mm X-Axis Travel: 570 mm X-Axis Working Stroke: 250 mm Z-Axis Travel: 200 mm Conveyor Maximum Permissible Total Weight: 120 kg Conveyor Maximum Diameter: 220 mm Front Spindle Bearing Diameter: 110 mm Main Drive AC Asynchronous Motor Max. Speed: 4,500 (5,000) rpm Drive Power at 100/40% Duty Cycle: 18/27 kW Torque at 100/40% Duty Cycle: 202/303 Nm Number of Tools: 12 pcs. Tool Holder DIN: 69880, Diameter 40 mm, Max. Tool Length 190 mm Chip Conveyor (Hinged Belt Conveyor): Discharge Height 1,250 mm Coolant Tank: 315 liters, 8 bar Control: Siemens 840 D Connected Load: 42 kW Voltage: 400V 50Hz Weight: approx. 6,500 kg Required Floor Space: 10 m²

Condition: used, Year of construction: 2007, functionality: fully functional, machine/vehicle number: 100864, Technical Specifications: Work Area - Maximum clamping plate diameter: 260 mm - Maximum turning diameter: 260 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 110 mm - X-axis travel: 570 mm / Rapid traverse X: 60 m/min - Z-axis travel: 200 mm / Rapid traverse Z: 30 m/min - Y-axis travel: 40 mm / Rapid traverse Y: 30 m/min - Standard closed automation (number of loading nests per workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle according to DIN 55026: Size 6 - Maximum speed: 4,500 rpm - Power at 100/40% duty cycle: 18 / 27 kW - Torque at 100/40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Tool holder shank according to DIN 69880: 12 - VDI40 - Number of turret positions: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6,000 rpm - Maximum torque: 37 Nm (10% duty cycle), 26 Nm (25% duty cycle), 14 Nm (100% duty cycle) Fjdjxxttfspfx Af Ejga Electrical Equipment - Operating voltage: 400 - 480 V - Connected load: 42 kW Dimensions - Overall dimensions: Length = 2,680 mm (3,820 mm with chip conveyor), Width = 2,040 mm, Height = 2,400 mm - Weight: 6,500 kg Main Features and Capabilities: - Vertical Design: Ensures optimal chip evacuation and easy loading/unloading operations. - Control System: GE Fanuc Series 18i TB. - High Precision: Positioning accuracy in X and Z axes: ±0.001 mm (Heidenhain linear scales). - Main Spindle: High power and wide speed range. - Automated Loading/Unloading: Parts are automatically fed and removed via integrated automation. - Driven (live) tools: Enables drilling and milling operations in addition to turning. - Chip conveyor included. - Documentation: Electronic manual not available; printed book manual available. Machine Status: Operational, in working condition.

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: P-30010521, Technical specifications: Work Area - Maximum diameter of clamping plate: 260 mm - Maximum turning diameter: 260 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 110 mm - X-axis travel: 570 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 200 mm / Rapid traverse in Z: 30 m/min - Y-axis travel: 40 mm / Rapid traverse in Y: 30 m/min - Standard closed automation (number of loading magazines by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle according to DIN 55026: Size 6 - Maximum spindle speed: 4500 rpm - Power at 100% / 40% duty cycle: 18 / 27 kW - Torque at 100% / 40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Tool holder for cylindrical shank DIN 69880: 12 - VDI40 - Number of turret stations: 12 - Max. tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 37 Nm, 25% duty cycle: 26 Nm, 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V - Connected load: 42 kW Dimensions - Total machine dimensions: Length = 2680 mm (3820 mm with chip conveyor), Width = 2040 mm, Height = 2400 mm - Weight: 6500 kg Main Features and Capabilities - Vertical design: Enables optimal chip removal and easy loading/unloading - Control system: GE Fanuc Series 18i TB - High precision: Positioning accuracy on X/Z axes is ±0.001 mm thanks to Heidenhain linear scales - Main spindle: High power and wide speed range Fsdsxxt D Ropfx Af Esga - Automated loading/unloading: Parts are loaded and unloaded via integrated automation - Driven tools: Enables drilling and milling operations - Chip conveyor - Documentation: Electronic version not available, printed manual incomplete Machine status: NOT WORKING - Spindle drive - X-axis linear scale - Safety access door (Euchner) - Emulsion solenoid valves x2

Condition: used, Year of construction: 2007, functionality: limited functionality, machine/vehicle number: P-30008793, Technical characteristics: Work Area - Maximum diameter of clamping plate: 260 mm - Maximum turning diameter: 260 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 110 mm - X-axis travel: 570 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 200 mm / Rapid traverse in Z: 30 m/min - Standard closed automation (number of loading nests by workpiece Ø: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle mount: DIN 55026, size 6 - Maximum speed: 4,500 rpm - Power at 100% / 40% duty cycle: 18 / 27 kW - Torque at 100% / 40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Toolholder shank per DIN 69880: 12 stations – VDI40 - Number of positions: 12 - Maximum tool length incl. holder: 190 mm - Maximum speed: 6,000 rpm - Maximum torque at 10% duty cycle: 37 Nm, at 25%: 26 Nm, at 100%: 14 Nm Electrical Equipment - Operating voltage: 400 – 480 V - Connected load: 42 kW Dimensions - Overall dimensions: L=2,680 mm (3,820 mm with chip conveyor), W=2,040 mm, H=2,400 mm - Weight: 6,500 kg Main Features and Capabilities: - Vertical design: Optimal chip evacuation and easy loading/unloading - Control: GE Fanuc Series 18i TB - High precision: Positioning accuracy on X and Z axes ±0.001 mm with Heidenhain linear scales Fedpfx Afoxxr Rpo Eega - Main spindle: High torque and wide speed range - Automated loading/unloading: Integrated automation feeds and removes parts - Driven/live tools: Enables drilling and milling operations in addition to turning - Chip conveyor - Documentation: Electronic not available, paper manual available Machine status: WORKING - Operator panel safety switch broken

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: P-30010522, Technical characteristics: Work Area - Maximum clamping plate diameter: 260 mm Fgodpfjxxkh Tex Af Eja - Maximum turning diameter: 260 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 110 mm - X-axis travel: 570 mm / Rapid traverse X: 60 m/min - Z-axis travel: 200 mm / Rapid traverse Z: 30 m/min - Standard closed automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle according to DIN 55026, Size 6 !!! Brand new, replaced in 2024 !!! - Maximum speed: 4,500 rpm - Power, 100% / 40% duty cycle: 18 / 27 kW - Torque, 100% / 40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Tool holders with cylindrical shank to DIN 69880: 12 - VDI40 - Number of turret stations: 12 - Maximum tool length (including holder): 190 mm - Maximum speed: 6,000 rpm - Maximum torque: 37 Nm (10% duty cycle), 26 Nm (25% duty cycle), 14 Nm (100% duty cycle) Electrical Equipment - Operating voltage: 400 – 480 V - Connected load: 42 kW Dimensions - Overall dimensions: Length = 2,680 mm (3,820 mm with chip conveyor), Width = 2,040 mm, Height = 2,400 mm - Weight: 6,500 kg Main Features and Capabilities: - Vertical design: Optimal chip evacuation and easy loading/unloading - CNC control: GE Fanuc Series 18i TB - High precision: Positioning accuracy in X and Z axes ±0.001 mm (Heidenhain linear scales) - Main spindle: High power and broad speed range - Automated loading/unloading: Integrated automation system for part feeding and removal - Driven tools: Capability for drilling and milling operations - Chip conveyor - Documentation: Electronic unavailable, partial hard copy/manual available Machine status: NOT WORKING - Hydraulic solenoid valves: 4 units - Coolant (emulsion) pump defective

Condition: repair required (used), Year of construction: 2011, functionality: not functional, machine/vehicle number: 102920, Technical Characteristics: Work Area - Maximum diameter of clamping plate: 250 mm - Maximum turning diameter: 270 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 175 mm - X-axis travel: 660 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 300 mm / Rapid traverse in Z: 30 m/min - Standard enclosed automation (number of loading stations by workpiece diameter: 14/(80...200 mm), 18/(30...160 mm), 30/(30...85 mm)) Main Spindle - Spindle according to DIN 55026: Size 6 - Max. speed: 4,500 rpm - Power at 100% / 40% duty cycle: 18 / 27 kW - Torque at 100% / 40% duty cycle: 202 / 303 Nm Turret with Driven Tools - Tool holders per DIN 69880: 12 x VDI40 - Number of positions: 12 - Max. tool length (including holder): 190 mm - Max. speed: 6,000 rpm - Max. torque at 10% duty cycle: 37 Nm, at 25%: 26 Nm, at 100%: 14 Nm Electrical Equipment - Operating voltage: 400 V - Connected load: 36 kW / 80 A Dimensions - Total dimensions: Length: 3,120 mm (4,185 mm with chip conveyor), Width: 2,266 mm, Height: 3,200 mm - Weight: 7,500 kg Main Features and Capabilities: - Vertical design: Enables optimal chip evacuation as well as easy loading and unloading - Control: Siemens 840D - High precision: Positioning accuracy in X, Z, and Y axes ±0.001 mm, Heidenhain linear scales - Main spindle: High power and broad speed range - Automated loading/unloading: Automated workpiece loading and removal via integrated system - Driven (live) tools: Supports live tooling for extended machining range, including drilling and milling - Part detection sensor with compressed air gauge through spindle: SMW Autoblock Linear Position Sensor LPS-X - In-process control: Marposs T25 - Chip conveyor - Coolant chiller: Texa TCW55PMSBXMF000, max. 30 bar input Fgjdpfxexxiwys Af Eja - Coolant filtration with paper belt filter: Micron filter EVO500Pro+KMT150, 550 liters, 80 l/min - Documentation: Digital & hard copy manuals available Machine Status: NOT WORKING - Lifetool motor - Slideways & carriages (X & Z axes) - Hydraulic pressure compensation block
