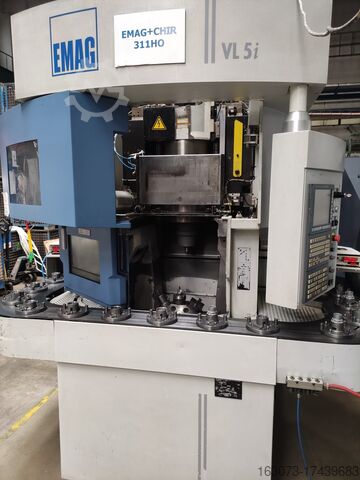

Vertical lathe

EMAG VL5i F.

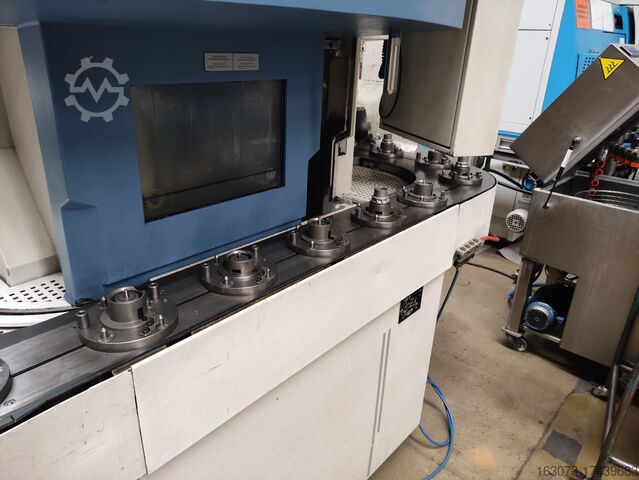

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: 102821, Technical characteristics: Work Area - Maximum diameter of the clamping plate: 250 mm - Maximum turning diameter: 270 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 175 mm - X-axis travel: 660 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 300 mm / Rapid traverse in Z: 30 m/min - Standard closed automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Hodpfx Aoxxikgec Njfn Main Spindle - Spindle interface to DIN 55026: Size 6 - Maximum speed: 4,500 rpm - Power at 100% / 40% duty cycle: 18 / 27 kW - Torque at 100% / 40% duty cycle: 202 / 303 Nm Tool Turret with Driven Tools - Toolholders, cylindrical shank DIN 69880: 12x VDI40 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6,000 rpm - Maximum torque at 10% duty cycle: 37 Nm, 25%: 26 Nm, 100%: 14 Nm Electrical Equipment - Operating voltage: 400 V - Connected load: 36 kW / 80 A Dimensions - Dimensions (L x W x H): 3,120 mm (4,185 mm with chip conveyor) x 2,266 mm x 3,200 mm - Weight: 7,500 kg Main Features and Capabilities: - Vertical design for optimal chip removal and easy access for loading/unloading - CNC control: GE Fanuc Series 32i Model A - High precision with X, Z, and Y axis positioning accuracy ±0.001 mm (Heidenhain linear scales) - Powerful main spindle with wide speed range - Integrated automation for part loading/unloading - Driven tools available for both milling and drilling operations - Workpiece detection sensor with compressed air gauge through spindle: SMW Autoblock Linear Position Sensor LPS-X - In-process gauging: Marposs T25 - Chip conveyor included - Documentation: Complete, both electronic and paper versions Machine status: IN OPERATION

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. Hsdpfx Astk It Sec Nofn For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: used, TECHNICAL DETAILS - Number of axes : 2 - Number of turrets : 1 - Max. turning diameter : 220 [mm] - Maximum workpiece height : 175 [mm] - X/Z stroke : 660/300 [mm] MAIN SPINDLE - Spindle speeds : 4500 [rpm] - Spindle power : 27 [kW] - C axis indexing precision : 0.001 [°] TURRET - Tool type : VDI40 - Number of positions : 12 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 36 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3120/2266 [mm] - Machine height : 3200 [mm] - Machine weight : 7000 [kg] MACHINE HOURS - Number of hours under power : 74809 [h] - Number of spindle hours : 30521 [h] EQUIPMENT - CNC : Fanuc 32i-A Hsdpsxc N I Tjfx Ac Nofn - Interface : Ethernet / RS232 / USB / PCMCIA - Coolant tank - Chips conveyor - Parts conveying strip - Chuck 3 jaws

Condition: good (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 10000241, workpiece height (max.): 160 mm, workpiece width (max.): 310 mm, number of spindles: 4, WEINIG POWERMAT 1500 - SPECIAL MACHINE CONFIGURED FOR MILLING WOODEN DOOR FRAME PANELS Working width 30 - 310mm (with tool flight circle 93-125mm) Working height 10 - 160mm (with tool flight circle 93-163 mm)Description of machine parameters Number of spindles 4 Spindles bottom 1 Spindles right 1 Spindles left 1 Hfsdpfx Aceuygcwe Njn Spindles top 1 Separate motor for each spindle Electronic feed incl. brake, infinitely variable 5-40 m/min. Short infeed table 1.2 m long with 2 driven rollers above the table Hard-coated machine table surface Manual lubricant pump WEINIG Comfort Set Control system WEINIG MEMORY PLUS-SYSTEM CE mark Declaration of Conformity

Condition: good (used), drilling depth: 1,500 mm, feed length X-axis: 2,000 mm, feed length Y-axis: 1,300 mm, feed length Z-axis: 1,500 mm, Manufacturer: TBT deep drilling technology Type: BW 250-S Control: SIEMENS 840D Year of manufacture: 2007 Drilling, Milling, Tapping for heat exchanger bases and plates Swivable A Axis + 25 to - 15 Degrees Filtration and Coolant system 1000 L Cip conveyor 2000 x 1200 height out put Milling tool changer Tower Station 20 positions Hfjdpfxsv A Uw Dj Ac Non Capacity ELB Drilling 3 - 35 mm Capacity Milling 250 ccm/Min Feed rates all axis 15,000 mm/Min X-Y-W-Z Cutting hours approx. 15,000 Large tooling package Specifications Metric US Standard Max. Drill Ø steel 40 mm Drilling depth 1500 mm X - axis 2000 mm Y - Axis 1300 mm Z-axis 1500 mm W-axis 750 mm Table load 15000 Table dimensions / L x W or ø 1600 x 1200 mm Spindle mount HSK 63 Mk Spindle power 11 kW Speed 8000 Rpm Dimensions (estimate) Length 7200 mm Width 7800 mm Height 4250 mm Weight 23000 kg Please note: The information on this page is believed to be accurate and is provided by us and, where possible, from the manufacturer. The information is provided in good faith but accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or contractual terms. We recommend that you check all important details.

Condition: used, Year of construction: 2012, operating hours: 9,974 h, total height: 2,700 mm, total length: 7,700 mm, total width: 2,420 mm, Empty weight: 7.390 kg CNC machining centre SCM Morbidelli M-600 5-axis machine Year of construction 2012 Machine no. AA2/002032 Working distance X-axis 5020 mm Working distance Y-axis 1680 mm Working distance Z-axis 250 mm Tool positions 36 Vertical drilling spindles 24  Software SCM XILOG MAESTRO SCM PRISMA K SCM TTS system Milling spindle liquid-cooled SCM TecPad MORBIDELLI TV Matic SCM PRO-SPACE SCM RAPID 12 SCM RAPID 24 Including vacuum pump Capacity 250 m3/h Hodpfxswnhccs Ac Nefn Disassembled for transport Weight 7450kg - Details: - └ Description: Machine gives malfunction spindle - Year: 2012 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AA2/002032 - Operating hours: 9974 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - Type milling table: Beam table - Drilling unit present: Yes - └ Horizontal drill spindles [pcs.]: 6 - └ Vertical drilling spindles [pcs.]: 24 - Saw unit present: Yes - Tool changer positions [pcs.]: 36 - System/software: SCM Maestro - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Capacity [m³/h]: 250 - CNC options: Offcut conveyor - Working range X [mm]: 5020 - Working range Y [mm]: 1680 - Z-axis working range [mm]: 250 - Transport dimensions: 7700mm x 2420mm x 2700mm (l x w x h) - Transport weight [kg]: 7390kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, Very well-maintained lathe with powered tools and a sub-spindle. Year of manufacture: 2004 Mazatrol 640T NEXUS control 500 mm between centers Max. turning diameter: 380 mm 2x hydraulic Kitagawa chucks Measuring arm Powered tools with VDI40 adapter (VDI tools are available at an additional cost) C-axis Sub-spindle Everything has been cleaned and is ready for use! Machine weight: approximately 5 tons Hfjdpeyx U Itsfx Ac Njn Forklift available for loading the machine! Machine price: €29,950 excluding VAT (no tooling included) Machine + VDI40 toolholders (13 driven + 17 fixed): €36,500 excluding VAT This machine is available for inspection in Genk and can be powered on for demonstration!

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, Double table machining center Working range X 2,590 mm Working range Y 2,260 mm Working range Z 400 mm Number of milling spindles 2 Liquid-cooled spindle Main motor 19.2 kW Max rotational speed 24,000 rpm Aggregate heads 4 C-axis Tool clamping system HSK-F63 Tool change positions central magazine 24 Tool change on each head from 12 positions Boring heads vert. 20 (for each head) Horizontal boring heads X 8 Horizontal boring heads Y 8 Blade for grooves in X, in Y 2 Platens Number 4 360 m³/h vacuum pumps T Jet system for chip blowing Nesting Manual labeling Bar code reader Tool length measurement Hfodpfjuqw E Nex Ac Njn Software BIESSE BIESSEWORKS ADVANCED, BIESSE B_NEST Weight 17,900 kg

Condition: used, Year of construction: 2013, x-travel 500 mm y-travel 400 mm z-travel 330 mm Hodjy Nn Dvjpfx Ac Nefn weight of the machine ca. 2100 kg

Condition: good (used), Year of construction: 2010, operating hours: 115,503 h, functionality: fully functional, travel distance X-axis: 1,270 mm, travel distance Y-axis: 670 mm, travel distance Z-axis: 625 mm, torque: 100 Nm, controller manufacturer: Fanuc, workpiece width (max.): 670 mm, workpiece weight (max.): 1,000 kg, total height: 2,940 mm, total width: 2,750 mm, table width: 670 mm, table length: 1,400 mm, table load: 1,000 kg, spindle speed (max.): 12,000 rpm, coolant supply: 8 bar, spindle motor power: 15,000 W, number of spindles: 1, number of slots in tool magazine: 30, input voltage: 420 V, type of input current: three-phase, Equipment: documentation/manual, BT 40. No chip conveyor. Hjdpfxsyx U Nws Ac Nofn
