Gear Hobbing Machine - Vertical

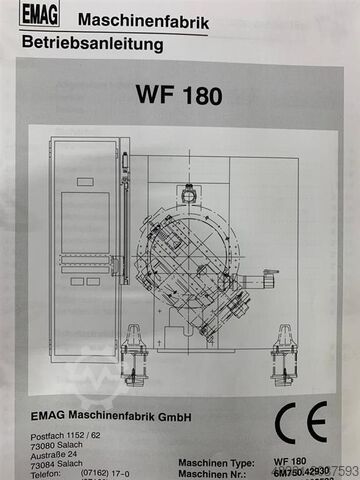

EMAG WF180

Condition: used, Year of construction: 2004, Technical details: max. wheel diameter: 200 mm gear width: 60 mm Hodpfx Aoxc E H Sofpek max. module: 7 weight of the machine ca.: 15 t table diameter: 180 mm table turning speeds: 100 U/min hob turning speeds: 750 U/min Machine in good condition, without feed, without automation Available 24.08.2024 *

Condition: excellent (used), Year of construction: 2019, machine/vehicle number: 32006, input voltage: 480 V, The Sprinter for Gears with Short Face Widths up to 100 mm The 100S Gear Shaping Machine is ideally suited for small face widths, for shaping spur and helical gears, internal and external, and for crowned and tapered gears. With only 6 m2 the 100S is one of the most compact machines of its class. Equipped with: Siemens Sinumerik 840D SL Control Hydraulic System 180 Degree Load System HSK-63 Spindle Auto Stroke Adjustment Chip Conveyor Chip Basket Flexlink Automation Festo Pneumatics Rittal Panel Conditioners Chiller 480/3/60, 35 KvA Motor & Controls Specifications: Workpiece With External Gear: -Largest Module (Steel W/Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Diameter: 100 mm Workpiece With Internal Gear: -Largest Module (Steel With Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Swing Diameter: 150 mm -Maximum Internal Diameter: 100 mm Hedsrtrvyopfx Afpsk Tool: -Locating Cone In The Cutter Spindle: HSK-D63 -Diameter Shaping Spindle: 85 mm -Maximum Stroke Length: 30 mm Machine Travel Distances: -Radial (X-Axis): 180 mm -Column Tilting (B-Axis): -1 - +11 Degrees Machine Workpiece Table: -External Diameter: 220 mm -Clamping Diameter: 160 mm -Bore: 63 mm Speeds: -Feed Rate X-Axis: 12,000 mm/min -Workpiece Table (C-Axis): 0-400 min-1 -Cutter (C2-Axis): 0-300 min-1 -Spindle Stroke (A-Axis): 500-3,000 min-1 Electrical Equipment: -Operating Voltage: 480V -Supply Voltage: 115V -Control Voltage: 24V -Frequency: 60 Hz -Connected Load of Machine: 35 kVA -Cable Cross-Sectional Area: 35 mm2 -Protection: 80 A Machine Overall Dimensions (L x W x H): 3,380 x 3,950 x 3,015 mm Weight of Machine: 7,800 kg

Condition: used, Year of construction: 1976, cone distance min./max. 0/108 mm Pitch angle min/max 5°/84° Pitch diameter (1:1 ratio) 152 mm pitch diameter (10:1 ratio) 216 mm Diametral pitch (finest/coarsest) 1.3/8.5 Mod. Face width gear wheel max. 35 mm speeds: 98-286 weight of the machine ca. 6577 kg dimensions of the machine ca. 1560 x 2140 x 2200 mm Equipment/accessories: -Cutting tools -Spacer angle Hedpfjyh Rmtex Afpek -Technical documentation

Condition: excellent (used), Specifications Hsdpfx Afoxgpqcopsk Manufacturer LIEBHERR Model LC 282 CNC Condition Used Stock Number Factory Max working diameter 280 mm Module 7 Worktable diameter 250 mm Worktable revolutions 100/200 rpm Min-max distance btw workpiece and hob 30 - 300 mm Hob head inclination angle 45° Max hob diameter 160 mm Machine weight 12500 Kg

Condition: good (used), Year of construction: 2007, max. wheel diameter 1200 mm gear width 260 mm max. module 16 min. module 0,5 stroke 270 mm distance between table/spindle 920 mm taper of shaper cutter SK control Liebherr LH 90 table diameter 900 mm min. workpiece diameter-at internal hobbing 1200 mm strokes - infinitely variable 50-1000 Hub/min spindle diameter 125 mm table hole 320 mm Distance of shafts Min/Max 0-820 Hjdpfx Aswzmp Ijfpsk power requirement Stosskopf 30 KW total power requirement 72 KVA weight of the machine ca. 24 t dimensions of the machine ca. 6,5x2,9x4 m Liebherr LH 90 control, 9 axis CNC, top condition.

Condition: used, cone distance min./max. 0-108 mm Pitch angle min/max 5°/84° Control GE Fanuc Series 0-GC Pitch diameter (1:1 ratio) 152 mm pitch diameter (10:1 ratio) 216 mm Diametral pitch (finest/coarsest) 1.3/8.5 Mod. Hodpfjyh Rmmox Afpsk Face width gear wheel max. 35 mm Knife spindle - Speed range 41-121 U/min working spindle speed range 0-33.33 U/min weight 9025 kg dimensions of the machine ca. 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: -Knife -Chip conveyor -Technical documentation

Condition: used, Year of construction: 2007, max. wheel diameter 380 mm gear width 540 mm max. module 7 Control SINUMERIK 840 D Axial travel 600 mm table diameter 317 mm table speeds 100 U/min milling head -swivable + / - 35 Grad milling spindle drive 27,00 kW Hjdpfsyt Rvhex Afpsk milling spindle speeds (infinitely variable) 1500 U/min diameter of hob 160 mm cutter length max. 330 mm cutter speeds max. 3000 1/min hob dia. - max. 160 mm swarf cutter lenght - max. 330 mm tangential travel max. 300 mm 10.000 mm/min tangential speed max. 3000 mm/min 7.500 mm/min oil volume 100 l coolant capacity 780 l Counterholder movement 540 mm total power requirement 50,00 kW weight of the machine ca. 16,00 t dimensions of the machine ca. 6,00 x 4,50 x H3,50 m for the following processes: axial hobbing, individual part milling, Worm wheel milling, roofing, deburring; NC tailstock

Condition: good (used), Year of construction: 1998, spindle diameter 90 mm control Siemens SINUMERIK 840 C voltage 400 V stroke position adjustment 100 mm table hole 150 mm no. of strokes 100-1200 Hub/min weight of the machine ca. 8,0 t Key data Normal module: 6 mm Max. workpiece pitch circle diameter: 250 mm Max. tooth width (straight teeth): 60 mm Helix angle adjustment: 45° to +0.5° Axis angle: 0° to 90° Center distance workpiece/jigging spindle: –80 mm to +320 mm Hodpsxyadtjfx Afpek Stroke position, stroke length Max. stroke position range (depending on stroke length): 0 mm to 80 mm Stroke position adjustment range: 0 mm to 80 mm Stroke drive Stroke rates infinitely variable Standard: 100 to 1200 DH/min Motor for stroke drive: 9 kW Maximum cutting speed: 150 m/min Feeds Rotation axes (tool C1, workpiece C2 axis): Feed stepless relative to 100 mm pitch circle diameter: 1.0 to 9420 mm/min Radial axis (column slide X1 axis): Feed continuously variable: 1.0 to 9420 mm/min, rapid traverse corresponds to maximum feed rates Connected load / weight Total connected load: 26 kVA Total weight (standard version): approx. 9,000 kg

Condition: good (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 27364, Used CNC gear hobbing machine Manufacturer: PFAUTER Hsdpsyiylqofx Afpjk Model: PE150 Year of manufacture: 1989/2009 Control: Siemens 840D

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 180 mm gear width: * mm Hsdjyk Ur Uepfx Afpek max. module: 4 total power requirement: 14 kW weight of the machine ca.: 8 t slide travel axial ( Z-axis ): 300 mm work piece - max.: 490-640 mm
