CNC Lathe

EMCO HT665 MCplus

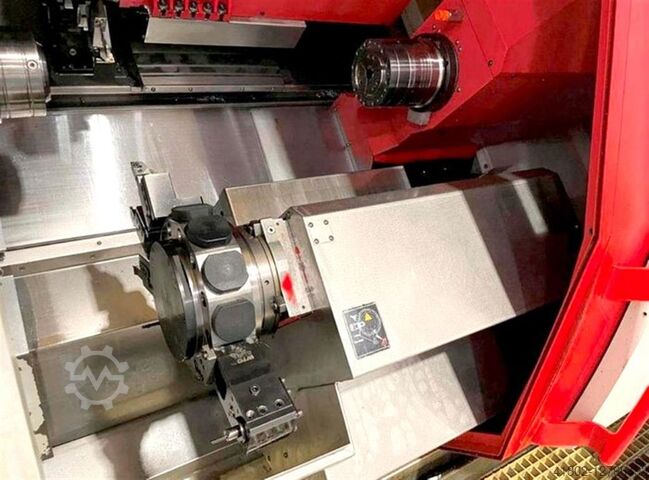

Condition: excellent (used), Year of construction: 2013, HT 665 MC plus TCMY - FANUC Multi-axis CNC turning machine for complete machining of turning/milling parts; Integrated spindle motors (ISM) on the main and counter spindle with thermocompensation system (liquid-cooled) Drive power: Main spindle - 29 kW Counter spindle - 22 kW Speed range: Main spindle 0 - 5000 rpm Counter spindle 0 - 7000 rpm Spindle connection (DIN 55026): Main spindle: KK 6 (max. bar diameter ø 65mm) Counter spindle: KK6 Y-axis: Travel range +/- 50mm The Y-axis is designed so that the resulting cutting forces are distributed across two axes. This results in extremely high rigidity for all machining operations. Preloaded roller guides in all linear axes; digital drive system, integrated spindle encoder; State-of-the-art control technology FANUC 18i TB with Manual Guide i dialog programming. Hjdjzczgvjpfx Ahzenp Includes: ·Draw tube cylinder including draw rod ·Part ejector and flushing through the counter spindle ·2x 12-position tool turret VDI 30 radial with direction logic for up to 2x 12 driven tool stations! Swivel speed adjustable with feed switch. o Performance data: o Max. 6.7 kW at 2650 rpm o Torque constant 25 Nm o Speed range 0-5000 rpm o C-axis for main and counter spindle ·Part removal device for the finished parts ·Chip conveyor with a discharge height of 1200mm programmable (Type "hinged belt") ·Coolant system integrated into the chip conveyor 2 pcs. high-pressure pumps with 14 bar 2 pcs. flushing pumps with 3.7 bar ·Electrostatic oil mist separator ·Hydraulic unit ·Machine light ·Documentation Year of manufacture: 2013 Includes: two Hainbuch chucks, collet chuck for collets 185E plus reduction is also included.

Condition: excellent (used), Year of construction: 2008, HYPERTURN 665 MCplus - Y Multi-axis CNC turning center for complete machining of turning and milling parts, equipped with integrated spindle motors (ISM) on both main and sub-spindle, featuring a thermal compensation system (liquid-cooled). Drive power: Main spindle: 29 kW Sub-spindle: 22 kW Speed range: Main spindle: 0-5,000 rpm Sub-spindle: 0-7,000 rpm Spindle interface (DIN 55026): Main spindle: KK6 (max. bar capacity 65 mm) Sub-spindle: KK6 Y-axis: Travel range +/- 50 mm The Y-axis is engineered to distribute resultant cutting forces over two axes, providing exceptional rigidity for all machining operations. All linear axes feature preloaded roller guides, a digital drive system, integrated spindle encoder, and state-of-the-art SINUMERIK 840D control. Includes: * Hollow clamping cylinder with draw tube * Parts ejector and flushing system through the sub-spindle * 2 x 12-position VDI 30 tool turrets, radial mounting with direction logic, accommodating up to 2 x 12 driven tooling stations * Swivel speed adjustable via feed selector Performance data: Max. 6.7 kW at 2,650 rpm Constant torque: 25 Nm Speed range: 0-5,000 rpm - C-axis for main and sub-spindle - TRANSMIT software for simple C-axis programming * Finished parts unloading device * Sinumerik 840D * Chip conveyor with programmable discharge height of 1,200 mm (hinged belt type) * Integrated coolant system in the chip conveyor: 2 high-pressure pumps at 14 bar 2 rinsing pumps at 3.7 bar * Electrical cabinet cooling unit * Electrostatic oil mist separator * Hydraulic unit * Machine light * Documentation Hnodsy Svz Ispfx Ahzep IMPORTANT: Export/re-export from the EU requires an export license R7AW2001 – Year of manufacture: 2008 Including: S6Z170 PC keyboard Siemens R7Z460 Machine installation and mounting hardware X1Z100 EMCO standard bar feeder interface R7Z030 Alarm lamp R7Y750 Finished part transfer conveyor, crosswise S6Z900 EMCO TOPLOAD 10-65/3300 R7Z620 Automatic tool setter – HT665 S6Z110 Setting gauge VDI 30 + Various static and driven tool holders + Clamping devices for main spindle and sub-spindle
