Double mitre saw

Emmegi

Condition: ready for operation (used), Year of construction: 2008, total height: 1,838 mm, overall weight: 1,400 kg, product length (max.): 9,400 mm, This Emmegi Luna 450 TU/5 Circular Metal Saw was manufactured in 2008. It features a saw blade diameter of 450 mm and a spindle diameter of 32 mm. The saw blade motor operates at 2.2 kW with a speed of 2800 rpm. It supports cutting lengths from 310 mm to 5000 mm and has a weight of 1400 kg. Dimensions are 9400x1400x1838H. Contact us for more information about this machine. • Saw blade motor power: 2.2 kW • Saw blade motor speed: 2800 rpm • Installed power: 5.6 kW • Minimum cutting length: 310 mm • Maximum cutting length: 5000 mm • Saw blade feed speed: 0-60 mm/s • Cutting speed: 66 mm/s • Carriage stroke speed: 20 m/min • Angles: 45°/0/45° • Working pressure: 6-8 bar • Air consumption per cycle at 6 bar: 15 Nl • Saw blade diameter: 450 mm • Saw blade spindle diameter: 32 mm Cpsdpfx Ajx U Drgeh Isw Dimensions Machine Depth 1400 mm

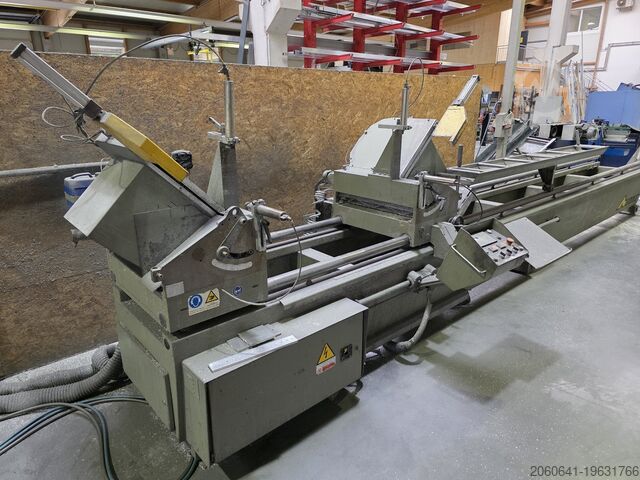

Condition: ready for operation (used), Year of construction: 1996, This Emmegi Radial Star TU/6 was manufactured in 1996. A used double miter saw, it features a roller conveyor, clamping device, and upgraded PC control. Its design is precise, stable, and robust, ideal for detailed metal sawing tasks. Consider the opportunity to buy this Emmegi Radial Star TU/6. Contact us for more information. Cpedpfxsx D D Auo Ah Ijw • Condition: Used, well-maintained, and ready for use • PC control: Upgraded • Design: Precise, stable, and robust • Note: No dust extraction • Additional equipment • Roller conveyor, right-hand side, 3000 mm • Clamping device (section side) • Spacer profile for roller conveyor (LMS-D 450/500) • Pneumatically swiveling material roll support • Lubrica lubrication unit for LMS-D • Digital miter display for pre-selecting intermediate miters (LMS/LMS-D) • Label printer UBI Easy Coder 101 for LMS-D • Thermal paper roll labels with removable adhesive (for Formula 21/S or UBI Easy label printers) • Software extension for extra-long cutting up to 9000 mm (LMS-D) • Software extension for cutting corner angles • Software extension for cross-cutting • Drivers for Schüco systems

Year of construction: 2008, condition: ready for operation (used), overall weight: 900 kg, spindle motor power: 85,000 W, This Emmegi VEGAMATIC was manufactured in 2008. It is an automatic cutting centre for aluminium profiles, featuring a feeder travel of 7395 mm and feed speed up to 60 m/min. The blade rotation angle ranges from -45° to +45°, with a standard blade diameter of 500 mm. Ideal for precise large-scale cutting tasks. Contact us for more information about this machine. Additional information • Power supply: 400 V / 3-phase / 50 Hz • Blade motor power (50 Hz): 3 kW • Blade motor power (60 Hz): 36 kW • Feeder travel (U axis): 7395 mm • Feed speed (U axis): 0–60 m/min • Acceleration (U axis): 33 m/s² • Positioning accuracy (U axis): ±015 mm • Blade rotation angle (B axis): from -45° to +45° (optional: -225° to +225°) • Rotation speed (B axis): 1833 rpm • Acceleration (B axis): 093 m/s² • Positioning accuracy (B axis): ±1° • Min. cutting length: 7200 mm (with gripper arm L = 937 mm) • Standard blade diameter: 500 mm (optional 550 mm) • Blade rotation speed (50 Hz): 2845 rpm Cjdpox D D E Nofx Ah Iepw • Blade rotation speed (60 Hz): 3400 rpm • Operating air pressure: 6–8 bar • Air consumption per cycle: 120 l/min • Bar magazine trolley (optional) • Loading/unloading roller conveyors • External safety enclosure

Year of construction: 2015, condition: excellent (used), 4-axis machining center automatic positioning of clamps 4 pneumatic clamps automatic toolchage 2 pneumatic end-stops Codpfx Aheyrg Nnj Iepw 3d software Camplus

Condition: excellent (used), 4-axis CNC machine usefull lenght 7500 mm Dynamic pendular over 2 zones 8 pneumatic clamps with CNC positioning Codpfeyrguqjx Ah Ispw automatic tool change Software 3D Camplus

Condition: ready for operation (used), Een enkelkops, incrementeel mesaangedreven dwarszaagmachine voor het zagen van grote secties, ontworpen voor 90°-sneden. Een belangrijk kenmerk van dit product is de optimale snijkwaliteit, gecombineerd met herhaalbaarheid en nauwkeurigheid. De mesaanvoer is pneumatisch. 2 verticale pneumatische klemmen 2 horizontale pneumatische klemmen Voorbeelden van snijtechnieken: - 600 x 30 mm (maximale breedte van het werkstuk) - 90 x 250 mm (maximale werkstukhoogte) - 300 x 210 mm - 500 x 130 mm - diameter 250 mm Cedpfx Aoyq Tv Esh Iepw Dia saw / abrasive - disk: 650 mm Turningspeeds: 2800 rpm Power needed / motorpower: 5,5 kW

Condition: used, Year of construction: 2004, machine/vehicle number: M275603, functionality: fully functional, travel distance X-axis: 6,200 mm, Emmegi, Twin Electra Sun TU/6 CNC twin head mitre saw. Cutting lenght: 6200mm Blade 500mm Cpjdpjxrg R Refx Ah Iew

Year of construction: 2012, condition: like new (used), functionality: fully functional, Emmegi Dual Skin Foiling machine, as new Machine for applying protective film to aluminium profiles. Profile feed is automatic via motor-driven rollers, and perfect adhesion of the film to the profile is ensured by pressure rollers. With an optional kit, it is also possible to coat a third profile side with film simultaneously. Cedpsyn Sh Isfx Ah Iepw

Year of construction: 2017, condition: like new (used), functionality: fully functional, Single-spindle copy milling machine with manual operation and pneumatic locking. Head milling movement via indirect lever. Enables continuous machining without rotating the workpiece and processing of steel up to 2 mm. Scratch-resistant worktable. Manual tracer stylus. Deflection Lever for Head Movement: Manual movement of the tool in the horizontal plane is implemented via a lever to reduce operator effort. The handle height is adjustable for practical and ergonomic usage. Control Joystick: The lever enables vertical travel of the milling unit. The hand lever integrates the motor start button. The milling spindle is equipped with a tool holder featuring an ISO 30 quick-release coupling; four storage slots for tool holders are located on the side of the machine. Stops and Roller Conveyors: Roller conveyors on both right and left sides facilitate the machining of very long profiles. A system of hand-adjustable stops, also fitted on both sides, ensures correct positioning of the workpiece in the machine and brings it into the working area. Stylus with 4 Diameters: The mechanical tracer has four selectable positions, each corresponding to a different tool diameter. It is set onto the pre-chosen template, guaranteeing precise and safe machining. Cedpfx Aeycgvijh Iepw Clamping Devices: The machine is equipped with manually adjustable horizontal pneumatic clamps that ensure secure and correct fixation of the profile on the machine.

Condition: good (used), Year of construction: 2012, functionality: fully functional, Phantomatic X 6 HP Machining center with 4 CNC-controlled axes for processing profile bars or components made of aluminum, PVC, non-ferrous metals, and steel up to 7.7 m in length. Operating mode 1: Utilization of the entire available machining length of a maximum of 7.7 m. Operating mode 2: In pendulum mode, which divides the machine into two machining zones. This allows for alternating loading and unloading of the machine on one side while machining takes place on the other. On the X6 HP model, the positioning of the clamps is carried out by two additional axes, independent of the main production time. The machine is fitted with an automatic tool changer with 8 stations, traveling along the X-axis portal, which can accommodate one angular head and one disc cutter for five-sided machining of the workpiece. The 4th CNC axis enables the milling spindle to rotate from 0° to 180° and be positioned at any angle in between. This allows the machine to perform operations on the top and the sides of the profile at any inclination within the available range. Furthermore, a movable working table is available, which facilitates loading and unloading of workpieces and significantly increases the machinable cross-section. Machining center suitable for dynamic pendulum operation Codsyn Sgqjpfx Ah Iepw 4-axis milling spindle head The 7 kW (S1) spindle with high torque also enables heavy machining tasks. The movement of the milling spindle along the A-axis allows for rotations from 0° to 180°, so the profile can be machined on three sides without repositioning. The machine can be used for certain types of steel extrusion profiles as well as aluminum profiles, which is made possible by the integrated lubrication system. This can be set via the software, and the dual-tank system allows for both minimal quantity oil diffusion and micro-mist oil emulsion lubrication. Very low usage and in excellent condition!
