Double mitre saw TWIN ELECTRA TU/5

Emmegi

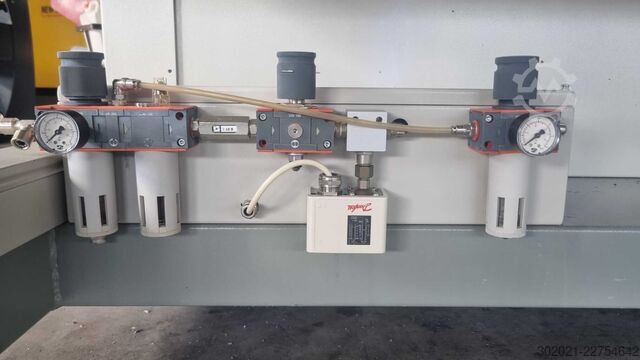

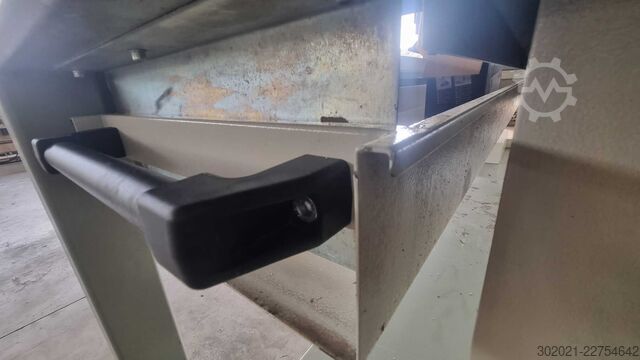

Condition: used, EMMEGI PHANTOMATIC 3-Axis CNC Machining Centre The EMMEGI PHANTOMATIC is a vertical 3-axis CNC machining centre designed for programmable machining operations on aluminium, PVC and steel profiles. Steel profiles can be processed up to a maximum thickness of 3 mm. The machine is suitable for milling, drilling, tapping and through-machining operations. It is equipped with a 5.5 kW electrospindle, reaching a maximum speed of 18,000 rpm, with an ISO 30 tool holder and manual tool change. The machine is operated through a CNC/PC control system with Cam-Editor-Drill software. It features four standard manually positioned clamps and two stops. Thanks to the workpiece repositioning function, it can process profiles with a maximum length of 4,800 or 6,800 mm, depending on the machine version. Main technical specifications: X-axis travel: 2,400 mm Kdsdpfx Agjz Aqmws Asu Y-axis travel: 240 mm Z-axis travel: 230 mm Maximum X- and Y-axis speed: 20 m/min Maximum Z-axis speed: 14.6 m/min X-, Y- and Z-axis acceleration: 1.66 m/s² Tool change: manual Maximum milling tool diameter: 50 mm Maximum tapping capacity: M8 Standard clamps: 4 Stops: 2 Electrospindle power: 5.5 kW Maximum electrospindle speed: 18,000 rpm Tool holder: ISO 30 Installed electrical power: 7 kW Power supply: 380 V Operating pressure: 6–8 bar Air consumption: 50 Nl/min Maximum working length with repositioning: 4,800 mm Maximum working width: 240 mm Maximum working height: 230 mm Dimensions: 2,800 × 1,150 × 1,850 mm Weight: 600 kg

Year of construction: 2010, condition: excellent (used), functionality: fully functional, TRAVEL RANGES: X-AXIS (longitudinal) 370 Y-AXIS (transversal) 130 Z-AXIS (vertical) 140 A-AXIS (automatic workpiece rotation) -180° ÷ +90° U-AXIS (bar positioning) 1020 Kdsdpj Aa Dqhsfx Ag Aju ELECTROSPINDLE: Maximum power in S1 (kW) 1.1 Maximum speed (rpm) 11500 Tool mounting taper ISO 30 Collet chucks, Weldon expanding chucks R16 Minimum quantity lubrication system ON-MACHINE TOOL: Maximum number of tools in magazine 6

Year of construction: 2016, operating hours: 2,860 h, condition: excellent (used), functionality: fully functional, machine/vehicle number: C119370, According to the attached list, the equipment includes: two automatic tool magazines, each with four tool positions – on the left and right sides; a pneumatic reference bumper on the right side; side tunnels; CAMplus + Shape software for graphical control of machining, with a 3D display and a function for drawing special shapes; a barcode reader; Ksdpfs Aayiajx Ag Ajdu a controller enabling connection to an external production program, e.g., UNILINK or ORGADATA; a tool set including, among other things, seven HSK 50 F tool holders, a disc holder with an 80 mm disc, ER16 and ER25 collets, and milling cutters for aluminum and steel.

Year of construction: 2020, condition: excellent (used), functionality: fully functional, machine/vehicle number: C116353, Equipment: CE marking, Reconditioned Production Ready！ Ref Code:1014 Emmegi Classic Magic Electronic double‑head cutting‑off machine Twin‑head saw for aluminium and PVC profiles, with NC‑controlled DC motor driving automatic mobile head movement. All angles pneumatically settable down to 22°30’ external. Key Features Blade: Ø 450 / 500 mm cemented carbide blades Cutting length: 5 m useful cut Angle range: 90° to 22°30’ external (pneumatic tilt) Positioning: Magnetic strip direct measuring system Control: Alphanumeric fluorescent display (2 × 40 chars) Memory: 99 profile corrective values (auto angle calculation) 20 cutting lists (50 rows each) via keyboard 10 cutting lists (100 rows each) via USB (PC) Ksdpfx Agjy U Tczj Aodu Connectivity: USB port, RJ45 network card; label printer ready Clamping: Horizontal/vertical pneumatic vices with low‑pressure device Safety: Pneumatic full protective hoods for cutting zones Lubrication: Water spray‑mist (oil emulsion or minimal quantity oil) Technical Specifications Motors: 2 × 2.2 kW (400 V); total 5.3 kW Blade speed: 2,800 rpm Operating pressure: 6–8 bar; air consumption 15 NL/cycle Dimensions (5 m version): 9,400 × 1,080 × 1,840 mm (L×D×H) Weight: Approx. 1,500 kg Applications High‑precision cutting of aluminium / PVC profiles for windows, doors, curtain walls, and light alloy processing.

Year of construction: 2010, condition: excellent (used), functionality: fully functional, The Trimmer 2A is a CNC corner cleaning machine for PVC window frames, equipped with 2 interpolated axes and an automatic cycle. When properly configured, it is able to check the dimensions of the workpiece. It is fitted with a 275 mm diameter blade, which allows, through different machining programs, the cleaning of the external corner on various profiles. The Trimmer 2A also features upper and lower units with blades for cleaning the bead seams, as well as upper and lower units with knives for cleaning internal corners. Cleaning of both internal and external corners can be completed using the upper and lower drilling/milling units for cleaning the corners or the gasket seats. The processing units can be programmed independently via a CNC PC, which controls the profile programming and the machine’s operation, in either manual or automatic mode. Kdodpfxsw Hk T Uj Ag Aou

Year of construction: 2005, condition: reconditioned (used), functionality: fully functional, Number of controlled axes: 4, digital Axis X travel (longitudinal): 6500 mm Axis Y travel (transversal): 1095 mm Axis Z travel (vertical): 800 mm Axis A rotation (vertical rotation): 0° to 180°, continuous Maximum axis X speed: 80 m/min Maximum axis Y, Z speed: 64 m/min Maximum axis A speed: 10,000 °/min Electric spindle power in S1: 7.5 kW, 20,000 Maximum electric spindle speed with standard HSK-F Configurable, independent work areas on the axis Kdedpfx Aozczwueg Asu 9-position tool changer Jaw positioning Number of standard stops: 4

Condition: used, Year of construction: 2004, machine/vehicle number: M275603, functionality: fully functional, travel distance X-axis: 6,200 mm, Emmegi, Twin Electra Sun TU/6 CNC twin head mitre saw. Kjdpfx Aoxrg R Rsg Ajdu Cutting lenght: 6200mm Blade 500mm

Condition: reconditioned (used), 4 axes X-AXIS (longitudinal) (mm) 7,700 Y-AXIS (transverse) (mm) 470 Z-AXIS (vertical) (mm) 420 A-AXIS (spindle rotation) 0°–180° ON-BOARD AUTOMATIC TOOL MAGAZINE Kdodjz R T U Hopfx Ag Asu Number of tools in magazine: 8 Automatic positioning of clamping jaws

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, FEATURES OF THE LINE Kdsdpfjy S E E Nex Ag Aou FUSION 4H 4-head welding machine Frame unloading unit First Q-MATIC 1 milling module Serial connection between welding machine and cleaning unit Rotating table TRIMMER 4A electronic cleaning unit Extraction table Second Q-MATIC 2 milling module Refilling unit Automatic frame unloading

Condition: used, 1) PVC Double Head Welding Machine – Emmegi Fusion 2LV3440 Year of manufacture: 2011 Double head welding machine for PVC profiles. Machine in perfect working condition, regularly maintained annually, complete with manual. 2) PVC Corner Cleaning Machine – Emmegi / Rinaldi Trimmer E Year of manufacture: 2011 Automatic corner cleaning machine for PVC profiles, equipped with lateral support arms. Machine in working condition, regularly maintained, complete with manual. 3) Glazing Bead Cutting Machine – Emmegi Microbo 4200 DX Year of manufacture: 2008 Cutting machine dedicated to glazing beads, designed to ensure precision and repeatability. Included equipment: Roller conveyor Electronic control system Machine in working condition, regularly maintained, complete with manual. 4) Single Head Cutting Machine – OMG mod. Bifra 550 Year of manufacture: 2006 Blade diameter: 550 mm Roller conveyors included Measuring handwheel included 5) Reinforcement Screwdriver Machine – Emmegi Fissa A Year of manufacture: 2012 Screwdriver machine for metal reinforcements used in window and door production. Machine in working condition. 6) Testing and Glazing Table – Emmegi Vitro Year of manufacture: 2008 Table dedicated to testing and glazing operations for window frames. Machine in working condition. Kdjdpfxsywkc Ro Ag Aou 7) Compressed Air System – NEW Year of manufacture: 2024 – never used Complete system for compressed air production and treatment, consisting of: Boge C12-2LF screw compressor, soundproofed, 11 kW, inverter, air flow from 530 to 2,020 l/min, super-silent version Vertical galvanized tank 725 liters, max pressure 10.8 bar, complete with safety valve and pressure gauge Electronic timed drain valve MTA CA Condensate water/oil separator MTA LP04 Compressed air dryer MTA DE-XG027, air flow 2,700 l/min 8) 4-Axis Machining Center – MECAL MC 304 ATLAS Year of manufacture: 2007 4-axis machine equipped with front working unit, specifically designed for aluminium processing. Maximum working length: 7430 mm X-axis working stroke: 7210 mm Y-axis (transversal) stroke: 550 mm Z-axis (vertical) stroke: 500 mm A-axis (rotating spindle axis): rotation range ±180° 9) Double Head Cutting Machine – TEKNA TK 145 Year of manufacture: 1994 Blade: Ø 500 mm Max cutting length: 4000 mm Blade inclination: outward 10) Cantilever Rack Structure Double-sided cantilever system, 1 double-sided block, 9 levels per side: Height: 9 m Max load per column side: 8,100 kg Max load per arm: 900 kg each 11) Single Head Copy Router – Rinaldi Magnum 360I Year of manufacture: 2003 The machine allows processing on four sides without repositioning the workpiece, ensuring maximum precision and operational continuity.
