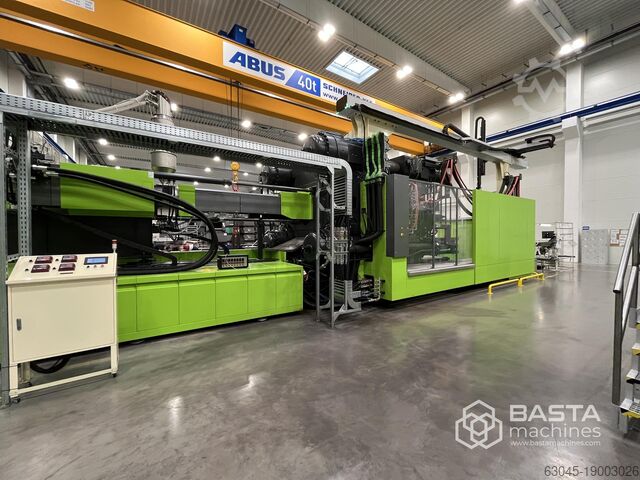

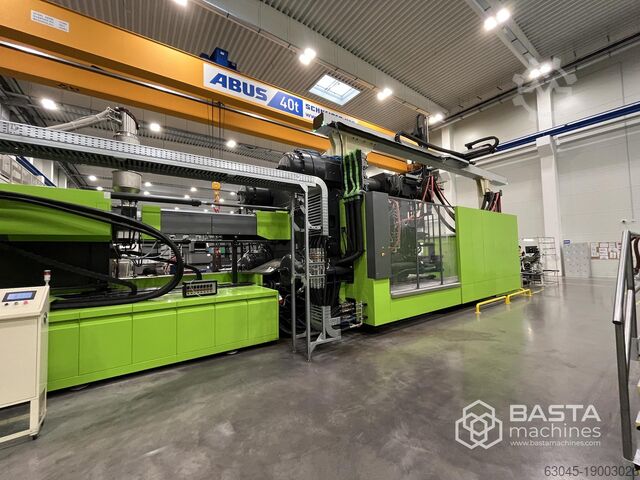

ENGEL DUO 17060/2700 (2021) - 2700 ton injection moulding machine

Engel 17060/2700

ENGEL DUO 17060/2700 (2021)



🔧 Technical Specifications

• Clamping force: 27,000 kN

• Tie bar spacing (horizontal × vertical): 2,130 × 1,750 mm

• Platen size: 2,970 × 2,640 mm

• Mold height (min–max): 800 – 2000 mm

• Opening stroke: 3,100 mm

• Max. distance between platens: 5,090 mm

• Dry cycle (Euromap 6, 6 mm stroke): 5.8 s

• Max. mold weight (fixed/moving platen): 50,000 kg each

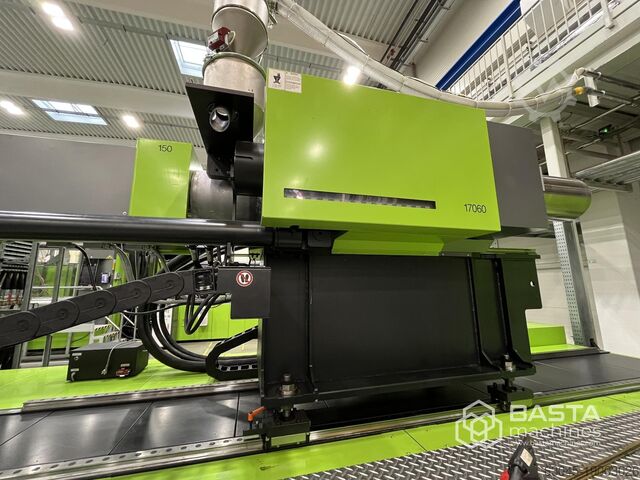

🧩 Injection & Plasticizing Unit

• Screw type: S4V G18

• Screw diameter: 150 mm

• Injection volume: 10,780 cm³

• Injection pressure (max): 1,620 bar

• Injection speed: 87 mm/s

• Plasticizing rate (barrier screw): 235 g/s

• Screw speed: up to 115 rpm



🔩 Nozzle & Ejector

• Nozzle stroke: 1,300 mm

• Nozzle contact force: 210 kN

• Ejector stroke: 400 mm

• Ejector force: 385 kN



Hfodpfxewd Sywj Afpon
⚙️ Drive & Power

• Main motors installed power: 192 kW

• Reload pump motor: 16 kW

• Oil reservoir capacity: 1,600 liters

• Main power: 3×400V, N+PE / 50 Hz



➕ Additional Features & Configuration

• T-slot platen with ejector back confirmation

• Locating ring Ø 120 mm

• Sprue bush “R”: 19 mm

• Hydraulic corepull 2+2, air valve 1+1

• Mold heating control with 144 zones (24pin, K-type)

• Valve gate interface with 36 zones (16pin DC24V)

• Abrasion/corrosion-resistant screw barrel

• Servo hydraulic drive

• Oil maintenance system

• UPS (AVR) backup unit

• Robot interface EM67

• Cooling circuit: 1” inlet, 2 zones per platen (90°)

• Autoclamp system for fast mold changes
