ES 200/60 HL ST

ENGEL

Condition: ready for operation (used), Year of construction: 2004, clamping force: 1,600 kN, screw diameter: 45 mm, Hydraulic injection moulding machine manufactured in 2004. This Engel Victory 750/180 Power features a clamping force of 1,600 kN and a maximum injection volume of 259 cm³. It includes a screw diameter of 45 mm and a maximum injection pressure of 1,600 Bar. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 750/180 Power machine we have for sale. Contact us for further details regarding this machine. • Space between columns: 520 x 520 mm • Maximum mold height: 585 mm • Minimum mold height: 275 mm • Maximum injection volume: 259 cm³ • Maximum injection pressure: 1,600 bar • Centering ring: 160 mm • Hot runners in the machine: 8 • Core puller: 1 Knedez Dvd Ispfx Akwsb • Pneumatic valves: 2 • Programmable inputs: 2 Additional equipment • Robot: Wittmann W818 (MY: 2015)

Condition: ready for operation (used), Year of construction: 2013, operating hours: 65,265 h, clamping force: 1,600 kN, screw diameter: 35 mm, overall weight: 8,700 kg, controller manufacturer: ENGEL, controller model: CC200, Hydraulic injection moulding machine manufactured in 2013. This Engel Victory 500/160 tech features a clamping force of 1600 kN and an injection unit of 500. It includes a patented tiebarless clamping system and a highly abrasion-resistant cylinder. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 500/160 tech machine we have for sale. Contact us for further details. • Injection unit: 500 • L/D ratio: 20 • Hydraulics: ECODRIVE SHV1 (high-dynamic servo pump) • Electrical connection: 3 x 400 V + N + PE, 50 Hz • Nominal connected load: approx. 102 kW • Clamping system: Patented tiebarless, fully hydraulic ENGEL clamping system • Centering: 160 mm • Ejector: Central ejector • Hydraulic core pulls: 2 on moving platen • Pneumatic mold valve control: 2-fold FESTO, up to 16 bar • Mold heating: 8 control zones • Cylinder/screw execution: M3 abrasion/corrosion-resistant cylinder (up to 350 °C), hardened screw S8 (Ø 35 mm, L/D 20), non-return valve R9b • Open nozzle: Flange thread M28 x 1.5, radius 15 mm, bore 4 mm • Mold temperature control: Flow regulator 0–10 l/min with 12 circuits (2 x 6 circuits) • Hydraulic tank capacity: Main approx. 330 l; suction approx. 130 l • Interfaces: Coloring device interface; RS-485 for temperature control units; Euromap 67 / AN-146 robot interface; interface for Priamus PDDI 8903D1 and 8903E2 Knsdpfx Asz Dgvzekwjb • Languages: Czech and German

Condition: ready for operation (used), Year of construction: 2015, operating hours: 29,446 h, clamping force: 2,600 kN, screw diameter: 60 mm, overall weight: 22,300 kg, controller manufacturer: ENGEL, controller model: CC300, product length (max.): 8,780 mm, Electrical injection moulding machine manufactured in 2015. This Engel e-victory 1640/260 features a clamping force of 2600 kN and an injection unit of 1640. It includes a tiebarless clamping system and a servo-electric injection system for high efficiency. If you are looking to get high-quality injection moulding capabilities, consider the Engel e-victory 1640/260 machine we have for sale. Contact us for further details. • Clamping system: Tiebarless ENGEL clamping system Ksdpfsz Dgrpox Akwjnb • Injection unit: 1640 • Injection system: Servo-electric, high execution • L/D ratio: 24 • Control unit: ENGEL CC300 (21.5" Full HD touchscreen) • Hydraulics: ECODRIVE SHV1 (1 demand-regulated servo pump) • Electrical connection: 3 x 400 V + N + PE, 50 Hz • Nominal connected load: approx. 164 kW • Centering: 160 mm • Hydraulic core pulls: 2 on moving platen, 2 on stationary platen • Vacuum/compressed air circuits: 8 on stationary platen with Venturi nozzles and pressure switches • Pneumatic mold valve control: 2-fold FESTO, up to 16 bar • Mold heating: 16 control zones, max heating power 25 kW • Nozzle radius: 15 mm • Nozzle bore: 4 mm • Nozzle contact stroke: approx. 405 mm • Hydraulic tank capacity: Main tank approx. 490 l, suction tank approx. 220 l • Robot interface: Euromap 67 / AN-146 • Languages: Czech and German Additional equipment • MuCell package: • Complete MuCell Basic Package • PM cold-work steel screw Ø 60 mm • Hydraulic needle shut-off nozzle • Melt pressure sensor • Trexel auxiliary equipment: SII VC 30, MIK 1060 SII • Frame for two 50 L gas cylinders • Mold temperature control: 3 ENGEL flomo distributors (24 monitored circuits total) • GEKU automation with conveyor belts

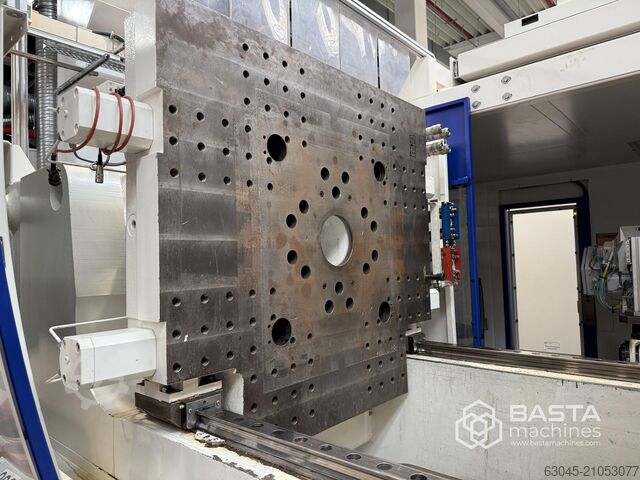

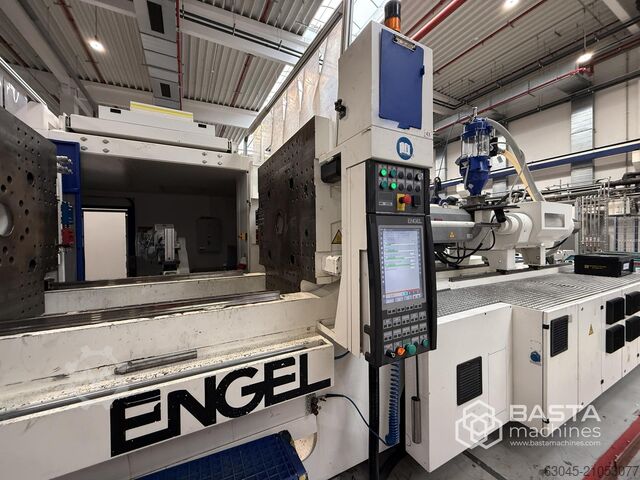

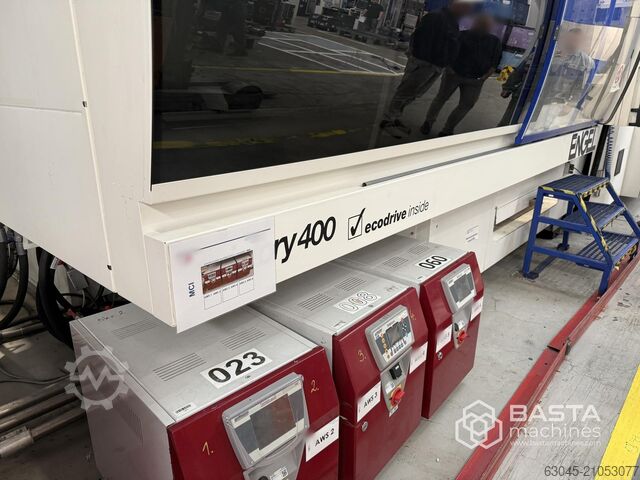

Condition: ready for operation (used), Year of construction: 2016, operating hours: 33,793 h, clamping force: 4,000 kN, screw diameter: 80 mm, overall weight: 31,000 kg, product length (max.): 10,259 mm, Hydraulic injection moulding machine manufactured in 2016. This Engel Victory 3550/400 tech features a clamping force of 4000 kN and an injection unit with a screw diameter of 80 mm. It includes a fully hydraulic tiebarless clamping system and advanced automation with conveyor belts. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 3550/400 tech machine we have for sale. Contact us for further details. • Injection unit: 3550 • L/D ratio: 25 • Control unit: ENGEL CC300 (21.5" Full HD touchscreen) • Drive system: ECODRIVE SHV3-HSI, 2 pump systems, accumulator Kodpsz Dgpbjfx Akwonb • Electrical connection: 3 x 400 V + N + PE, 50 Hz • Nominal connected load: approx. 282 kW • Clamping system: Tiebarless, fully hydraulic ENGEL clamping system • Centering: 160 mm • Ejector stroke: 250 mm • Hydraulic core pulls: 2 on moving platen, 2 on stationary platen • Vacuum/compressed air circuits: 4 on moving platen with Venturi nozzle and pressure switch • Pneumatic valve: 2/2-way valve R 1/4" on stationary platen • Pneumatic mold valve control: 4-fold FESTO, up to 16 bar • Mold heating: 32 control zones, max heating power 43 kW • Screw drive: Electromotoric, speed-controlled, max 150 rpm, rated power 47 kW, torque 3700 Nm • Nozzle radius: 15 mm • Nozzle bore: 6 mm • Nozzle contact force: approx. 150 kN • Metering stroke: 390 mm • MuCell equipment: MuCell Advanced Package; cylinder L/D 24/25; MuCell G25 screw Ø 80 mm; gas injector bore; melt pressure sensor; RS-485 interface to SCF gas plant; emergency stop connection • Mold temperature control: 3 ENGEL flomo distributors with 8 zones each (24 monitored circuits total) • Hydraulic tank capacity: Main tank approx. 690 l; suction tank approx. 290 l • Robot interface: Euromap 67 / AN-146 • Languages: Czech and German Additional equipment • GEKU automation with conveyor belts (included)

Condition: good (used), Year of construction: 2004, operating hours: 69,000 h, functionality: fully functional, clamping force: 3,500 kN, screw diameter: 70 mm, displacement volume: 1,039 cm³, total length: 7,980 mm, total width: 2,220 mm, total height: 2,570 mm, overall weight: 30,750 kg, Equipment: documentation/manual, ENGEL ES 1800-350 HL CC100 Stock No.: 503394 Manufacturer: ENGEL Type: ES 1800-350 HL Control: CC100 Year of Manufacture: 2004 Operating Hours: 69,000 h Technical Data, Clamping Unit Clamping Force: 3500 kN Platen Size, Height x Width: 1050 x 980 mm Minimum Mold Height: 350 mm Maximum Mold Height: 1300 mm Opening Stroke: 950 mm Ejector Stroke: 250 mm Ejector Force: 83 kN Knjdpfx Akjz A U Ntsweb Tool Weight: 2500 kg Technical Data, Injection Unit Screw Diameter: 70 mm Injection Volume: 1039 ccm Injection Pressure: 1441 bar Screw Length: 20 l/d Screw Stroke: 270 mm Screw Speed: 226 rpm Free Injection Rate: 386 g/s Number of Heating Zones: 5 Nozzle Distance: 500 mm Dimensions & Weight Machine Dimensions L x W x H: 7.98 m x 2.22 m x 2.57 m Total Weight: 30,750 kg Equipment Screen Text: German CEE Socket 16A Core Pulling, Hydraulic, 2x Machine including Conveyor Belt Machine including Handling System Machine including Safety Enclosure Machine with Material Hopper Leveling Elements Interface for Color Dosing Unit Interface for Temperature Controller Tool Heating, 24x Technical Data, Handling System Machine Type: Handling System Manufacturer: ENGEL Control: ER-HLI 81 Year of Manufacture: 2004

Condition: excellent (used), Year of construction: 2018, operating hours: 33,526 h, functionality: fully functional, clamping force: 1,600 kN, screw diameter: 40 mm, clearance between the columns: 520 mm, displacement volume: 220 cm³, plate length: 760 mm, plate height: 760 mm, total length: 67,500 mm, total width: 2,000 mm, total height: 2,420 mm, overall weight: 8,500 kg, Equipment: documentation/manual, ENGEL e-motion 440-160 Stock No.: 503676 Manufacturer: ENGEL Type: e-motion 440-160 T Control: CC300 Year of manufacture: 2018 Knsdpfjz A S I Tex Akwjb Operating hours: 33526 h Technical data, clamping side Clamping force: 1600 kN Tie bar spacing h x v: 520 x 520 mm Platen size h x v: 760 x 760 mm Minimum installation height: 375 mm Maximum installation height: 600 mm Maximum platen spacing: 1060 mm Opening stroke: 460 mm Ejector stroke: 150 mm Ejector force: 40 kN Centering of moving platen D: 160 mm Centering of fixed platen D: 160 mm Tool weight: 1250 kg Technical data, injection side Screw diameter: 40 mm Displacement: 220 ccm Injection pressure: 1940 bar Screw length: 24 l/d Screw stroke: 175 mm Screw speed: 420 min Screw torque: 605 N Plasticizing rate: 33 g/s PS Free injection rate: 224 g/s PS Number of heating zones: 4 Nozzle stroke: 305 mm Dimensions & Weight Machine dimensions L x W x H: 6.75m x 2m x 2.42m Total weight: 8500KG Equipment Screen text in German Screen text in English CEE socket 32A Hydraulic core pull, 2x Hydraulic core pull unit Air valve 1x Machine with water manifold Machine without material hopper Machine without suction conveying system Pneumatically operated needle shut-off nozzle Leveling elements EUROMAP 63 interface EUROMAP 67 Handling interface Interface for ejector plate locking Schuko socket 10A

Condition: used, Year of construction: 2005, operating hours: 95,000 h, clamping force: 200 kN, displacement volume: 113 cm³, injection pressure: 2,178 bar, overall weight: 11,500 kg, screw conveyor diameter: 30 mm, terms of delivery: EXW (ex Works) delivery time: on request terms of payment: 100% prior to delivery Kedpoz A Ialofx Akwonb

Condition: excellent (used), Year of construction: 2007, operating hours: 68,651 h, functionality: fully functional, clamping force: 1,200 kN, screw diameter: 35 mm, displacement volume: 154 cm³, plate length: 680 mm, plate height: 740 mm, total length: 4,500 mm, total width: 2,100 mm, total height: 2,100 mm, overall weight: 7,300 kg, Equipment: documentation/manual, ENGEL Victory 330-120 Tech Stock No.: 503558 Manufacturer: ENGEL Type: Victory 330-120 Tech Control: CC100 Year of manufacture: 2007 Operating hours: 68651 h Technical data, clamping unit Clamping force: 1200 kN Platen size h x v: 740 x 680 mm Minimum mold thickness: 300 mm Maximum mold thickness: 800 mm Opening stroke: 500 mm Ejector stroke: 130 mm Ejector force: 40 kN Kedpfx Akez A D Dtowjnb Centering of moving platen D: 125 mm Centering of fixed platen D: 125 mm Tool weight: 825 kg Technical data, injection unit Screw diameter: 35 mm Displacement: 154 ccm Injection pressure: 1600 bar Screw length: 20 l/d Screw stroke: 160 mm Screw speed: 400 rpm Free injection flow rate: 151 g/s PS Number of heating zones: 4 Nozzle stroke: 250 mm Dimensions & Weight Machine dimensions L x W x H: 4.5m x 2.1m x 2.1m Total weight: 7300 KG Equipment Screen text in German CEE socket 16A Hydraulic core pull 2x Machine including conveyor belt Machine including safety enclosure Machine without material hopper Leveling elements Interface for ejector plate locking Schuko socket 10A Technical data, handling Machine type: Linear Manufacturer: ENGEL Control: ER-HLI41VC

Condition: excellent (used), Year of construction: 2009, operating hours: 70,171 h, functionality: fully functional, clamping force: 900 kN, screw diameter: 22 mm, displacement volume: 38 cm³, total length: 4,400 mm, total width: 1,500 mm, total height: 2,000 mm, overall weight: 6,700 kg, Equipment: documentation/manual, ENGEL VICTORY 80-90 tech Stock No.: 503415 Manufacturer: ENGEL Type: VICTORY 80-90 tech Control: CC200 Year of manufacture: 2009 Operating hours: 70,171 h Technical Data – Clamping Unit Clamping force: 900 kN Platen size (HxV): 740 x 680 mm Minimum mould height: 300 mm Max platen daylight: 800 mm Opening stroke: 500 mm Ejector stroke: 130 mm Ejector force: 40 kN Movable platen centering diameter: 125 mm Fixed platen centering diameter: 125 mm Ksdpfxoz A A T Ts Akwonb Technical Data – Injection Unit Screw diameter: 22 mm Shot volume: 38 ccm Injection pressure: 2,060 bar Screw L/D ratio: 19 l/d Screw stroke: 100 mm Screw speed: 360 min⁻¹ Free flow rate: 78 g/s PS Number of heating zones: 4 Nozzle stroke: 230 mm Dimensions & Weight Machine dimensions (LxWxH): 4.4 m x 1.5 m x 2 m Total weight: 6,700 kg Equipment Display language: German CEE socket 16A 1x hydraulic core pull 2x air valves Machine with water battery Machine without material hopper Levelling elements Schuko socket 10A 4x mould heating circuits

Condition: excellent (used), Year of construction: 2015, ENGEL victory 650/120 tech (25.109 h) (S&P 3793) Manufacture year: 2015 Knsdpfx Ajz A Awrskwob Operating hours: 25,109 Stunden Screw: 35 mm Injection pressure: 2400 bar Stroke volume: 192 cm³ Clamping Force: 120 t Tie bar distance: 740 x 680 mm Mould installation height min.: 300 mm Plate distance max.: 800 mm Dimensions: 5100 x 1500 x 2350 mm Eeight: 7000 kg Connected load: 22 kW Automatic door, Corepuller 1x, Airvalve, Hotrunner, price when new 122.000,- € etc... Price: on request contact: Mr. Ralf Schulz
