1350/250 HL

ENGEL

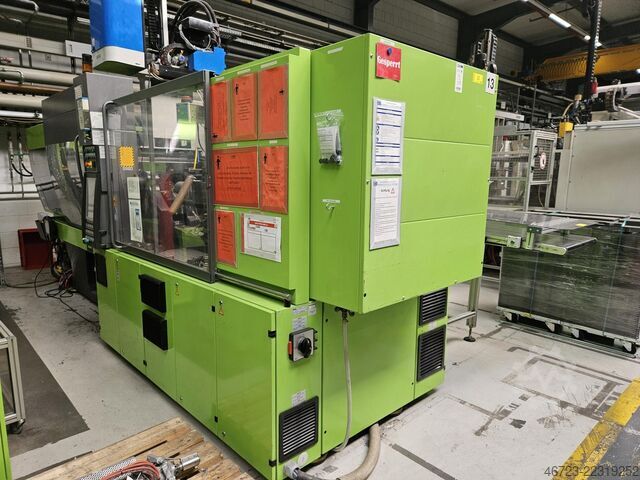

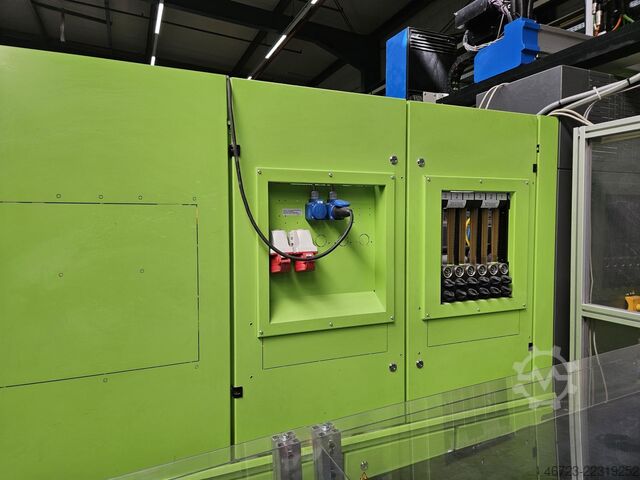

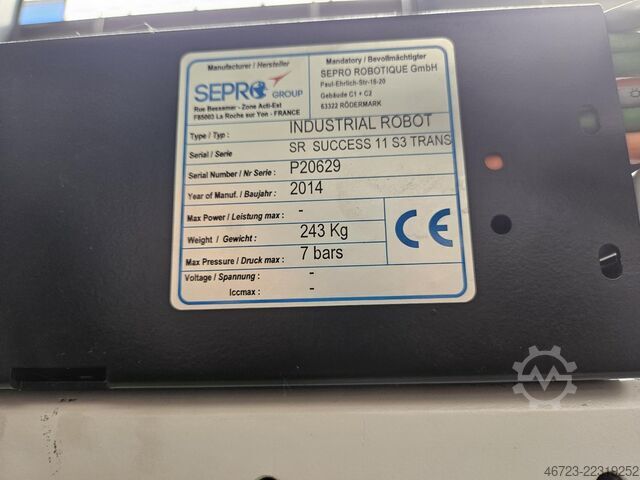

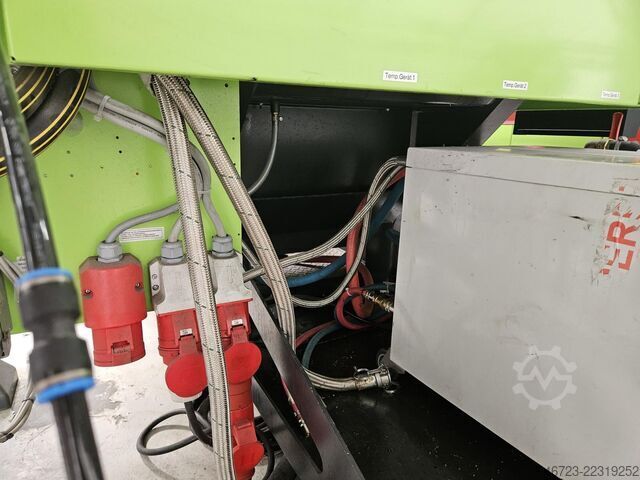

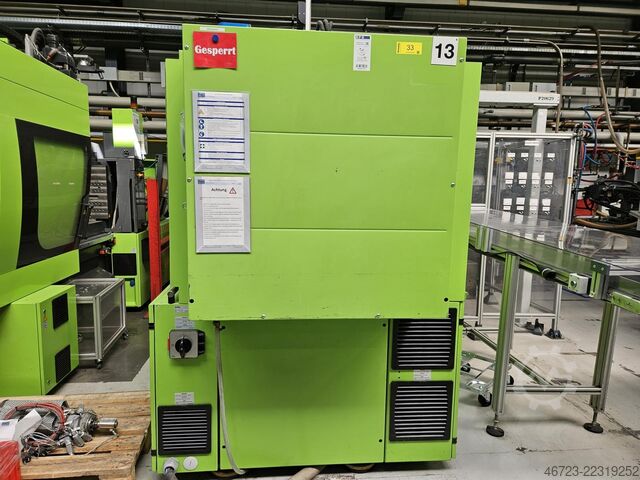

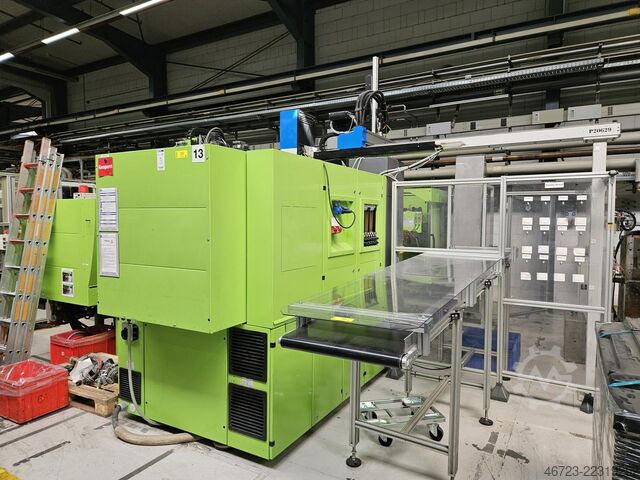

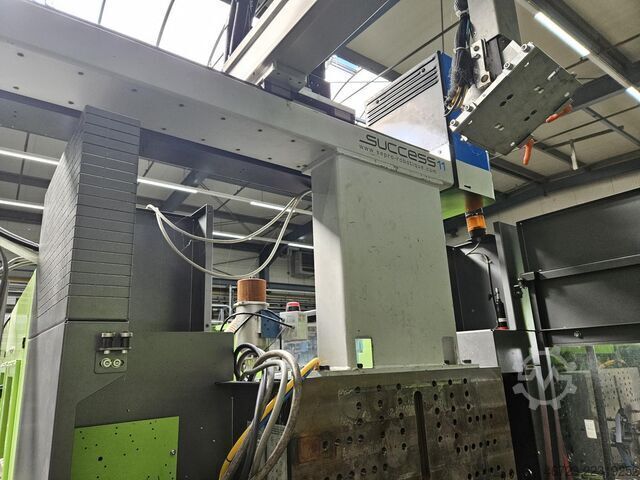

Condition: excellent (used), Year of construction: 2015, Clamping force: 100 t Screw diameter: 40 mm Bljdpfx Ajzypwpeqwel Shot weight: 150 g Shot volume: 165 cm3 \+ robot Sepro success 11 Type: Horizontal Drive: Electric

Condition: excellent (used), functionality: fully functional, Manufacturer: ENGEL Type: e-motion 440-160 T Control: CC300 Year of manufacture: 2018 Operating hours: 33526 h Technical data, clamping side Clamping force: 1600 kN Tie bar distance h x v: 520 x 520 mm Platen size h x v: 760 x 760 mm Minimum mold height: 375 mm Maximum mold height: 600 mm Maximum platen distance: 1060 mm Opening stroke: 460 mm Ejector stroke: 150 mm Ejector force: 40 kN Centering of moving platen D: 160 mm Centering of fixed platen D: 160 mm Tool weight: 1250 kg Technical data, injection side Screw diameter: 40 mm Injection volume: 220 ccm Injection pressure: 1940 bar Screw length: 24 l/d Screw stroke: 175 mm Screw speed: 420 rpm Bljdjzyn Tpepfx Aqwsl Screw torque: 605 N Plasticizing rate: 33 g/s PS Free injection rate: 224 g/s PS Number of heating zones: 4 Nozzle stroke: 305 mm Dimensions & weight Machine dimensions L x W x H: 6.75m x 2m x 2.42m Total weight: 8500 KG Equipment • Screen text, German • Screen text, English • CEE socket, 32A • Hydraulic core pull, 2x • Hydraulic core pull unit • Air valve, 1x • Machine with water manifold • Machine without material hopper • Machine without material conveying system • Needle-valve nozzle, pneumatically actuated • Leveling elements • Interface EUROMAP 63 • Interface EUROMAP 67 Handling • Interface for ejector plate locking • Schuko socket, 10A

Condition: excellent (used), Year of construction: 2011, ENGEL DUO 5550/1100 Injection Moulding Machine Year of manufacture: 2011 Injection unit Two short-barrel cylinders for plastic injection. Direct screw drive; ceramic heaters on cylinders. Standard screw geometry L/D = 22. Hardened and nitrided screw, diameter Ø 90 mm. Maximum injection volume: 2,740 cm³. Maximum shot weight (PS): 2,520 g. Open nozzle: front radius R = 35 mm, channel diameter Ø 6 mm, mounting thread M55×3. Increased specific injection pressure: 2,180 bar. Plasticizing capacity: 85 g/s (for polystyrene, screw Ø 90 mm). Injection unit equipment: M3-type barrel – bimetallic, increased corrosion and wear resistance, permissible temperature up to 350°C. S4V-type screw – heat-treated, chrome-plated, with armoured edges; increased resistance to corrosion and wear. Special G11.3 screw geometry optimized for processing. R12 non-return valve (multi-ball, recommended for PC, PMMA, ABS). Clamping unit (clamping system) Hydromechanical dual-platen clamping system. Four short high-pressure cylinders on the nozzle side. Four tie-bar tensioners on the ejector side. Two diagonally mounted fast movement cylinders on the clamp unit. Opening stroke dependent on mould height (dynamic stroke adjustment). Moving platen guided on the machine frame – ensures platen rigidity and parallelism. Clamping force: 11,000 kN. Mould mounting platen dimensions: 1,850 × 1,810 mm. Tie bar spacing: 1,400 × 1,150 mm. Mould mounting height: 600–1,200 mm. Maximum opening stroke: 1,800 mm. Mould cooling system: 10 water circuits with rotameters (max. 30 l/min each). Special execution of platens with additional holes for ejector systems in two arrangements (horizontal and vertical). Core pull drives (core pull systems) Independent hydraulic core pull drives: 2 units on the moving platen, 2 units on the fixed platen. Hydraulic pressure reduction systems for core pulls. Independent pneumatic core pull drive on the moving and fixed platens. Hydraulics Pump station with electrohydraulic pressure and flow regulated pumps, and fixed delivery pumps. Energy-saving proportional hydraulics with precise flow and pressure control. Servo valve for injection speed, holding pressure, and back pressure control. ECODRIVE system – energy-efficient hydraulic drive enabling parallel auxiliary movements with minimal energy consumption. ENGEL Viper 40 Robot Blsdpfx Aqjw U Taxswjl Integrated Cartesian robot, operated via CC200/RC200 control panel. Three servo-driven axes: X = 700 mm (extendable to 900 mm), Y = 1,000 mm (tandem up to 1,900 mm), Z = 1,880 mm (extendable up to 5,720 mm). Payload up to 17 kg, accuracy ±0.05 mm. C axis: 0–90° rotating gripper, pneumatic drive. B axis: rotation of head around lift axis (Y), servo motor drive, range +90° / –180°.

Condition: excellent (used), Year of construction: 2010, Injection Moulding Machine ENGEL DUO 5550/1100 Robot: ERC 200 Year of manufacture: 2010 Operating hours: approx. 79,000 h Clamping force: 1,100 tons Injection Unit – 5550 Screw diameter: 90 mm Injection pressure (specific): 2,180 bar Bodjw U Sz Iopfx Aqwsll Injection volume: 2,740 cm³ Screw L/D ratio: 22 Cylinder: type M3, bimetallic – increased wear and corrosion resistance Screw: type S4V, heat-treated, chrome-plated, with armoured edges – high wear and corrosion resistance Clamping Unit – DUO 1100 Clamping force: 1,100 tons Distance between tie bars: 1,400 x 1,150 mm Mould height: from 600 mm to 1,200 mm Ejector stroke: 300 mm Equipment Hydraulic cores: 2+1 Pneumatic cores: 1+1 GK heating zones: 3 x 8 = 24 zones Rotameters: 20 circuits Control system: CC 200 A02 Installed programs: - Micrograph Plus - Microplast - QDP - PD Graphics II Robot ERC 63/1-F, RC 200 X-axis: 1,300 mm Y-axis: 1,800 mm Z-axis: up to 2,840 mm C-axis: rotary movement 0–90° 2 vacuum circuits 1 pressure circuit for sprue removal

Condition: excellent (used), Year of construction: 2010, Engel DUO 5550/1100 Injection Moulding Machine Year of manufacture: 2010 Clamping force: 11,000 kN Mounting platen dimensions (HxV): 1850 × 1810 mm Distance between tie bars (HxV): 1400 × 1150 mm Mould height (min–max): 600 – 1200 mm Maximum opening stroke: 1800 mm Screw diameter: Ø 90 mm Injection volume: 2740 cm³ Bodpfjw Tc Hxjx Aqwell Injection weight (PS): 2520 g Injection pressure: 2180 bar Power supply: 3 × 400 V, 50 Hz Control system: ENGEL CC 200 A02 (15″ touch screen), 2 languages (PL/EN) Robot: ENGEL ERC 63/1F, RC 200 — range X: 700 mm, Y: 1000 mm, Z: 1880 mm, payload 30 kg

Condition: excellent (used), Year of construction: 2006, ENGEL DUO 7050/1100 Advanced Injection Moulding Machine Year of manufacture: 2006 Control system: ENGEL EC100 / CC100 (microprocessor-based) Key Technical Specifications Clamping force: 11,000 kN Platen dimensions: 1,850 × 1,810 mm (width × height) Tie bar spacing: 1,400 × 1,150 mm (horizontal × vertical) Mould height: 400 – 1,200 mm Variant A: Reduced minimum mould height to 400 mm (–200 mm) Maximum opening stroke: 1,800 mm Screw diameter: Ø105 mm L/D ratio: 22 (M3 barrel), optionally L/D = 24 (extended M3 barrel) Injection volume (max): 4,160 cm³ Bljdpfx Aqow U Tcmowjl Injection weight (PS, max): 3,830 g Injection pressure (max): 2,090 bar Plasticising rate: 112 g/s (for PE-HD, L/D = 22) Injection nozzle: Herzog, needle type, pneumatically actuated shut-off, HP1.1 type, Ø12 mm orifice, M30×2 thread, adapter for ENGEL; no standard nozzle supplied Injection Unit Two injection cylinders with compact design M3 plasticising barrel, bimetallic, corrosion and wear resistant, operating temperature up to 350°C S4V screw Ø105 mm, heat-treated, nitrided, chrome plated, with hardfacing; R9 non-return valve 2D mixing head Ø105 mm TMR mixer Ø105 mm Material hopper with a capacity of 300 l and magnetic grid Clamping Unit Hydromechanical, two-platen system Four high-pressure short-stroke cylinders on nozzle side Four locking nuts on the ejector side Two rapid traverse cylinders (diagonal assembly) Special platen design – horizontal and vertical knockout holes Mould cooling: 10-fold rotameters (0-30 l/min), total of 20 circuits (10 per platen) Variant A: Reduced minimum mould height to 400 mm, maximum daylight maintained (2,400 mm), and increased opening stroke

Condition: used, Year of construction: 2013, operating hours: 67,077 h, machine/vehicle number: 189421, overall weight: 6,700 kg, This ENGEL Victory 330/120 injection molding machine will be auctioned off online as part of our industrial auction / machinery auction – J&S GmbH Automotive Technology – machinery park. You can find this and many other items on our platform. Bedpezyf Sijfx Aqwjll

Condition: reconditioned (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 180398, clamping force: 1,200 kN, screw diameter: 35 mm, injection weight: 186 g, Now fully refurbished by our team at STV Machinery in Wellingborough, Northamptonshire is this high precision Engel Victory VC 500/120 injection moulding machine. This tie bar-less machine is fitted with the Engel Microprocessor controller and 35mm diameter screw, which gives a shot weight of 186 (PS)g. Bedpfx Aqozx Uc Iewell Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and additional costs of purchasing machinery within the UK and EU. Contact us with a potential delivery address and we’ll do the rest.

Condition: used, Year of construction: 2011, operating hours: 66,800 h, clamping force: 100 kN, displacement volume: 85 cm³, injection pressure: 2,000 bar, overall weight: 4,500 kg, screw conveyor diameter: 30 mm, terms of delivery: FCA Pegnitz Blsdpszx Hkkefx Aqwsl delivery time: on request terms of payment: 100% prior to delivery

Condition: excellent (used), Year of construction: 2015, ENGEL DUO 7050/1000 + Viper 40 RC300 Year: 2015 TECHNICAL DATA: • Clamping force: 1,000 tons Tie bar spacing 1420 × 1170 mm • Injection unit: 7050 • Screw diameter: 105 mm • L/D ratio: 22 • Bimetallic barrel • Control: ENGEL CC300 • ENGEL ecodrive SHV2 servo hydraulics • Power supply: 3×400V + N + PE / 50Hz OPTIONS: • 2× hydraulic core pulls on fixed platen • 4× hydraulic core pulls on moving platen • Total: 6× hydraulic core pulls • Core pulls with locking valves & pressure relief • Euromap 13 • 24-zone hot runner control • Max. hot runner heating capacity: 50 kW • Euromap 14 • 6× hydraulic valve gate control • Centering diameter: 250 mm • Through-hole in moving platen: 250 mm • Hydraulic shut-off nozzle • Electric screw drive • Ceramic barrel heaters • Barrel insulation • Interface for dosing/coloring unit • Separate cooling water connection for machine & mold • 20× flow regulators, 0–30 l/min • Mold temperature control circuits up to 95°C / 6 bar • PD-Graphic process monitoring • Ecograph energy consumption monitoring • Ethernet + USB • Process data logging ROBOT: ENGEL Viper 40 RC300 • Max. handling weight: 21 kg • X stroke: 1,200 mm Bodpfx Aqszxy Szewell • Y stroke: 1,900 mm • Z stroke: 4,280 mm • A/B/C servo axes, 70 Nm • Automatic central lubrication • Additional vacuum & compressed-air circuits • C70 handheld controller with 7” touchscreen CONVEYOR: ENGEL FB100 • 3,000 × 1,100 mm • Belt speed: 6 m/min • Adjustable height: 1,000–1,200 mm • Safety tunnel • Photoelectric sensor Including safety fencing and integrated robot interface.
