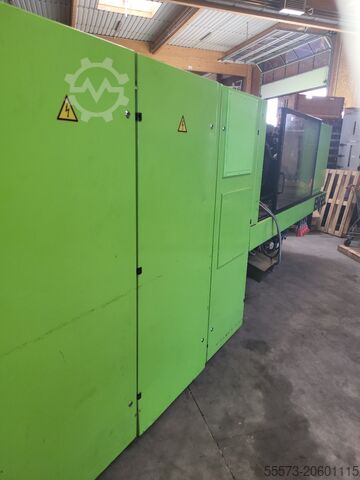

ES 650/150 HL

ENGEL

Condition: like new (used), Year of construction: 2015, clamping force: 1,200 kN, Engel E-Victory 170H/50V/120 combi (2015) 2k machine CC300 controll Clamping force: 1200 kN Mould min-max: 300mm Total tool max height: 800 mm plate size : 740 x 680mm Opening stroke: 505 mm Ejector stroke: 130 mm Ejector force: 39.8 kN Pump drive power: 15 kW Injection unit 1 Screw diameter: 25 mm Lrodpjxyi Rvofx Akyen Max. swept volume: 59 cm³ Screw speed max: 400 r/min Screw speed max (current): 400 r/min Injection rate: 109 cm³/s Injection rate (increased): 109 cm³/s Specific injection pressure: 2400 bar Specific injection pressure (increased): 2400 bar Injection unit 2 Screw diameter: 20 mm Max. swept volume: 25 cm³ Screw speed max: 450 r/min Injection rate: 104 cm³/s Specific injection pressure: 2400 bar Machine with conveyor. Working hours : 41.427 h Possible to buy robot Engel VIPER 20 Linear (Z=3320mm)

Condition: excellent (used), Year of construction: 1999, Angel ES 650/175 HL-V Ledpfjpdrzhox Akysrn Closing 175 tons Year 1999 Scrow 45mm Stroke volume 318 cm3 Enlarged clamping plate 820x750 Mould height min 250 mm

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, clamping force: 8,000 kN, screw diameter: 135 mm, displacement volume: 8,870 cm³, injection pressure: 1,640 bar, Stock No.: 503583 Manufacturer: ENGEL Type: ES 16050-800 DUO Controller: CC 200 Year of manufacture: 2007 Operating hours: 91708 h Technical Data, Clamping Unit Clamping force: 8000 kN Tie bar distance h x v: 1170 x 1000 mm Platen size h x v: 1550 x 1520 mm Minimum mounting height: 500 mm Maximum mounting height: 1100 mm Maximum platen distance: 2100 mm Lrsdezgt Rtepfx Akysn Opening stroke: 1600 mm Ejector stroke: 300 mm Ejector force: 180 kN Centering of moving platen D: 200 mm Centering of fixed platen D: 200 mm Tool weight: 21600 kg Technical Data, Injection Unit Screw diameter: 135 mm Injection volume: 8870 ccm Injection pressure: 1640 bar Screw length: 22 l/d Screw stroke: 620 mm Screw speed: 100 rpm Screw torque: 14000 N Free injection flow rate: 1245 g/s PS Number of heating zones: 7 Nozzle stroke: 950 mm Dimensions & Weight Machine dimensions L x W x H: 11.81 m x 3.2 m x 2.9 m Total weight: 56000 KG Equipment Screen text German Screen text English CEE socket 16A CEE socket 16A CEE socket 16A Compact Flash drive Hydraulic core pull 1x Machine including handling system Machine including safety enclosure Machine with water manifold Interface EUROMAP 12 Interface for handling system USB interface Tool heating 16x Technical Data, Handling System Machine type: Linear Manufacturer: ENGEL Controller: ERC 64/1-F Year of manufacture: 2007 Handling system weight: 25 kg X-axis: 1300 mm Y-axis: 2200 mm Z-axis: 4760 mm

Condition: ready for operation (used), Year of construction: 2004, operating hours: 69,000 h, functionality: fully functional, clamping force: 3,500 kN, screw diameter: 70 mm, displacement volume: 1,039 cm³, injection pressure: 1,441 bar, total length: 7,980 mm, total width: 2,200 mm, total height: 2,570 mm, overall weight: 30,750 kg, Clamping force: 3500 kN Platen size (h x v): 1050 x 980 mm Minimum mould height: 350 mm Maximum platen distance: 1300 mm Opening stroke: 950 mm Screw diameter: 70 mm Shot volume: 1039 ccm Injection pressure: 1441 bar Equipment Screen text in German Hydraulic core pull 2x Machine including conveyor belt Machine including handling unit Machine including safety enclosure Machine without material hopper Leveling elements Handling Data Manufacturer: ENGEL Control: ER-HLI 81 Year of manufacture: 2004 Machine dimensions (LxWxH): 7.98m x 2.22m x 2.57m Total weight: 30750KG Lsdpfxezgt Irj Akysrn

Condition: excellent (used), Year of construction: 2007, Engel Victory 3550/400Tech Clamping force 400 tons Year 2007 Screw 90 mm Shot weight approx. 2228 g CC 200 Enlarged clamping platen 1200x1100 mm Plus Engel Robot ERC/1-F Year 2009 The machine is in two parts: 20 tons + 7.5 tons Lredpfxowyb Szo Akysn

Condition: used, Year of construction: 2023, 2 x Engel VC 2460/180 injection molding machines, technical version, manufactured in 2023. Lrodpezgtvvsfx Akysn

Condition: used, Year of construction: 1991, functionality: fully functional, machine/vehicle number: 21953, clamping force: 800 kN, screw diameter: 45 mm, clearance between the columns: 405 mm, injection pressure: 1,300 bar, injection weight: 239 g, ejector stroke: 100 mm, installation height: 430 mm, total length: 3,910 mm, total width: 1,380 mm, total height: 2,050 mm, overall weight: 4,000 kg, type of input current: three-phase, input frequency: 50 Hz, input voltage: 400 V, Equipment: documentation/manual, The machine is in good condition and has been maintained during operation with short maintenance intervals. The machine is connected and fully functional. An inspection with test run is possible. All machine documentation is available. The screw, heating cylinder tube, and RSP were renewed in 2022 by Plasma Kunststofftechnik. Basic data: Lsdjxcw T Rspfx Akyern - No: 21953 - Year of manufacture: 1991 - Weight: 4000 kg - Clamping force: 800 kN - Dimensions: 3910 mm x 1380 mm x 2050 mm (LxWxH) - Control system: CC100 Technical details: - Operating voltage: 400V 3~ 50Hz - Screw diameter: 45 mm - Screw geometry: 3-zone - Max. dosing stroke: 160 mm - Nozzle thread: M28x1.5 - Max. injection pressure: 1300 bar - Shot weight PS: 239 g - Tie bar spacing, horizontal: 405 mm - Tie bar spacing, vertical: 345 mm - Max. opening stroke: 430 mm - Min. installation height: 150 mm - Max. installation height: 430 mm - Centering diameter: 125 mm - Cooling circuits: 6 - Core pulls: 1 - Max. ejector stroke: 100 mm - Excl.: Piovan dosing unit, conveyor belt

Condition: excellent (used), Year of construction: 2012, Engel Victory 1350/300 Tech Ecodrive with Sepro Industrial Robot SDR 22S / Hybrid Machine / Operating Hours: approx. 18,000 hours in automatic operation Year of Construction: 2012 Injection Unit: Screw Diameter: 60 mm Shot Weight: approx. 670 g Injection Pressure: 1835 bar Dosing Volume: 735 ccm Clamping Unit: Clamping Force: 300 t Tie Bar Spacing: 0x0 mm Platen Size: 1200x1000 mm Ejector: hydraulic Clamping Unit: hydraulic Control System: CC 200 - Touchscreen Additional Equipment: Production line with Sepro Industrial Robot SDR 22S Machine in very good technical condition Operating Hours: approx. 18,000 hours in automatic operation Tie-barless, hybrid machine: energy-saving and very quiet Hydraulic core pull x 2 Lodpszc N D Nefx Akysrn Control system with hot runner system x 12 Injection unit is wear-resistant and corrosion-resistant Main motor of the machine - driven by a servomotor with inverter - energy saving Proportional valve on the injection unit – precise injection Option to purchase spacer plates (movable and fixed), water-cooled plates, screw hole diameter M20 Material supply system Motan (dosing and conveying unit) available at an extra charge Robot Sepro Industrial Robot SDR 22S Year of Construction: 2016 4-axis robot: 3 axes are driven by servomotors (electric); Axis C - pneumatic Travel distances in axes: X-1500, Y-2200, Z-800 Vacuum x 2 Gripper x 2 Touch control panel Safety package for robot Robot with adapter, conveyor belt, and protective housing from Engel Purchase of the robot and conveyor belt available at an extra charge Dimensions: Weight: 19900 kg Length/Width/Height: 7.06x2.13x2.30 m All offered machines are started by our service technicians before sale. It is possible to obtain a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź. Price: On request

Condition: excellent (used), Year of construction: 2015, ENGEL victory 650/120 tech (25.109 h) (S&P 3793) Manufacture year: 2015 Operating hours: 25,109 Stunden Screw: 35 mm Injection pressure: 2400 bar Stroke volume: 192 cm³ Clamping Force: 120 t Tie bar distance: 740 x 680 mm Mould installation height min.: 300 mm Plate distance max.: 800 mm Dimensions: 5100 x 1500 x 2350 mm Lsdpfx Aszgb Exekyjrn Eeight: 7000 kg Connected load: 22 kW Automatic door, Corepuller 1x, Airvalve, Hotrunner, price when new 122.000,- € etc... Price: on request contact: Mr. Ralf Schulz

Condition: ready for operation (used), Year of construction: 2013, operating hours: 60,244 h, clamping force: 6,500 kN, screw diameter: 105 mm, total height: 2,355 mm, overall weight: 14,000 kg, product length (max.): 7,800 mm, This Engel DUO 7050/650 pico was manufactured in 2013. It features a clamping force of 6500 kN, a maximum injection volume of 4160 cm³, and a screw diameter of 105 mm. The machine includes a robot interface (Euromap 67) and is still in production with excellent condition. If you are looking to get high-quality injection molding capabilities, consider the Engel DUO 7050/650 pico machine we have for sale. Contact us for more information about this machine. • Maximum injection volume: 4160 cm³ • Minimum mold height: 450 mm • Maximum mold height: 950 mm • Platen opening stroke: 1400 mm • Platen dimensions (W × L): 1510 × 1440 mm • Tie-bar distance: 1100 × 960 mm • Motor power: 161 kW • Heater power: 73.9 kW • Number of electrical connection pins: 32 • Injection nozzle radius (at tip): R35 • Centering ring diameter: 200 mm • Number of cores: 0 • Number of heating zones: 0 • Year of manufacture: 2013 • Operating hours: approx. 60,244 h • Condition: Excellent • Status: In production Additional equipment Ledpfxsx Nr R Hs Akysrn • Equipped with robot: Yes • Robot interface: Euromap 67

Condition: excellent (used), Year of construction: 2009, operating hours: 41,750 h, functionality: fully functional, clamping force: 2,800 kN, screw diameter: 55 mm, displacement volume: 404 cm³, Equipment: documentation/manual, Model: Engel Speed 280/55 Year: 2009 Screw diameter: 50 mm Injection volume: 404 ccm Lodeyzhy Uepfx Akyern Screw speed: 340 rpm Injection rate: 1901 ccm/s Spec. injection pressure: 1390 bar Spec. injection pressure increased: 2025 bar Nozzle stroke: 465 mm Clamping type: Toggle Working hours: approx. 41,750 h

Condition: ready for operation (used), Year of construction: 1998, operating hours: 29,598 h, clamping force: 5,500 kN, screw diameter: 80 mm, total height: 2,230 mm, overall weight: 20,000 kg, product length (max.): 8,840 mm, This Engel Duo 3550/550 Tech was manufactured in 1998. It features a clamping force of 5500 kN, a maximum injection volume of 1960 cm³, and a screw diameter of 80 mm. The machine dimensions are 8840 x 2520 x 2230 mm, and it weighs 20,000 kg. If you are looking to get high-quality injection moulding capabilities, consider the Engel Duo 3550/550 Tech machine we have for sale. Contact us for more information. • Maximum injection volume: 1,960 cm³ • Minimum mould height: 310 mm • Maximum mould height: 800 mm • Platen opening stroke: 850 mm • Platen dimensions (W x L): 1,345 x 1,280 mm • Tie-bar distance (H x V): 915 x 860 mm • Motor power: 55 kW • Heater power: 47.5 kW • Injection nozzle radius (at tip): R35 • Centering ring diameter: 200 mm • Number of cores: 0 • Number of heating zones: 0 • Operating hours: 29,598 h • Condition: Excellent Additional equipment Lredpfx Aksx Nr H Ieysn • Robot: Not equipped • Robot interface: None • Other accessories: None reported

Condition: excellent (used), Year of construction: 2003, 1,0 St. gebr. Spritzgießmaschine Hersteller: ENGEL Lrsdpfx Ajxgi Etjkyjn Typ: VICTORY 80/25 TECH Baujahr: 2003 Schließkraft: 25 Tonnen Holmabstand: HOLMLOS Schnecken DN: 22 mm Max. Hubvolumen: 36 ccm³ Spritzteilgewicht 34 g/PS Steuerung: CC100 Ausstattung: -1 x Kernzug -Ausblasventil

Condition: excellent (used), Year of construction: 2004, Engel Victory 1350/220 Tech, clamping force 220 tonnes, year of manufacture 2004. Clamping plate dimensions (W x H): 860x830 mm. Screw diameter: 55 mm, volume: 618 cm³, center distance: 200 mm. Minimum mold height: 250 mm, maximum: 730 mm. Lredpfx Akexu Rlkoyen

Condition: excellent (used), Year of construction: 2004, 1,0 St. gebr. Spritzgießmaschine Hersteller: ENGEL Typ: VICTORY 80/25 TECH Baujahr: 2004 Schließkraft: 25 Tonnen Holmabstand: HOLMLOS Schnecken DN: 22 mm Ledexg H Hbepfx Akysrn Max. Hubvolumen: 36 ccm³ Spritzteilgewicht 34 g/PS Steuerung: CC200 Ausstattung: -1 x Kernzug -Ausblasventil
