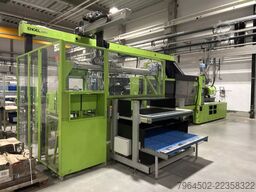

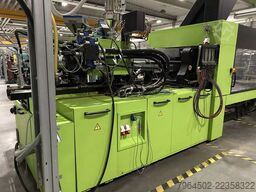

Injection molding machine

Engel Victory 2050/350

The ENGEL Victory 2050/350 is a tie-barless injection molding machine manufactured in 2005. With a machine weight of 25,100 kg, it offers a maximum shot volume of 1,145 cm³ and a maximum injection pressure of 1,482 bar. The clamping force is 350 tons, and the screw diameter is 70 mm.

Technical data at a glance:
- Year of manufacture: 2005
- Machine weight: 25,100 kg
- Maximum shot volume: 1,145 cm³
- Maximum injection pressure: 1,482 bar
- Clamping force: 350 t
- Screw diameter: 70 mm
- Tool mounting height: 350–1,000 mm
- Platen size: max. 1,200 x 1,100 mm
- Ejector stroke: max. 250 mm
- Control system: ENGEL
- Total operating hours: 62,235 h
- Additional equipment:
- MORETTO Hopper Loader R10 C52 dosing unit
- ENGEL ERC linear handling system
- Longitudinal design
- Parts removal cell with machine enclosure
- Separator carton feed
- Two-stage roller conveyor

The tie-barless design of the ENGEL Victory series allows free access to the tooling area, which enables the use of larger tools on smaller machines and thus increases efficiency. This design also offers advantages in automation, as robots and peripheral devices can be more easily integrated.
Isdpozmmlwefx Ahzeaw

The machine is equipped with the ENGEL control system, which is known for its intuitive operation and precise process control. The servo-hydraulic technology ensures energy-efficient operation and reduces the cooling water requirement.

In addition, the machine has a dosing unit from MORETTO and a linear handling system from ENGEL, which supports production automation and increases overall productivity.

With a total of 62,235 operating hours, the machine is in used but functional condition.
