3D laser sintering system with 8-zone heating

EOS EOSINT P385 ähnlich P390

EOS
Type: P385 similar to a P390
Laser has been renewed and is unused!
Plastic laser sintering system for the direct production of series, spare parts, functional prototypes
and samples for investment casting or vacuum casting.
Machine description:
Csdpfxoubxkmj Abwohc
Condition of the machine/system:
Dimensions:
System P385 (dimensions 2000x1220x1250)
Cooler (dimensions 930x610x600)
Control panel (dimensions 1580x950x800)
Control cabinet (dimensions 2100x610x950)
Technical data:
Effective construction volume 340 mm x 340 mm x 620 mm
Construction speed (depending on material) up to 31 mm/h
Layer thickness (depending on material) 0.06 – 0.10 – 0.12 – 0.15 – 0.18 mm
Support structure not required
Laser type CO 2 , 50 W
Precision optics F-Theta lens
Scan speed up to 8 m/s
Power supply 32 A
Maximum energy consumption 10 kW / typically 2.4 kW
Integrated nitrogen generator (optional)
Compressed air supply at least 5,000 hPa; 6 m³/h
Voltage: 3/N/PE/ 400 V AC Frequency: 50/60 Hz
Modified surface module from a heated nitrogen flood
Connection value: 12 kW
Rated short-circuit current: 5 kA
Fuse: 3x 32 A Current consumption: 18 A
Max. laser power (10.6µm) 100 W
Laser class open 4
Laser class closed 1
Weight: approx. 1,060 kg
Condition: used

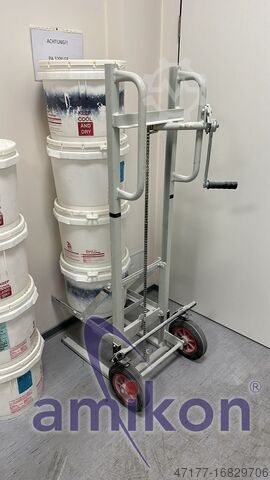

Scope of delivery: (See image)
(Changes and errors in the technical data, information is subject to change!)
We will be happy to answer any further questions you may have over the phone.
