Hydr. pressbrake

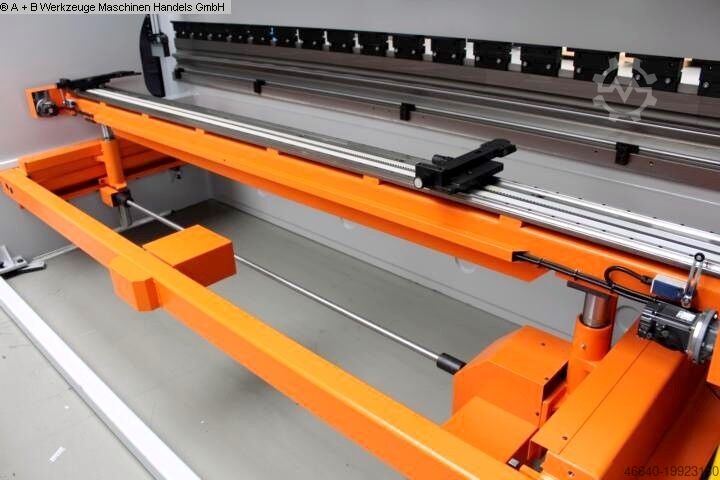

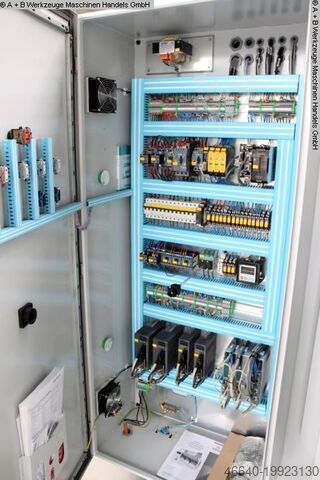

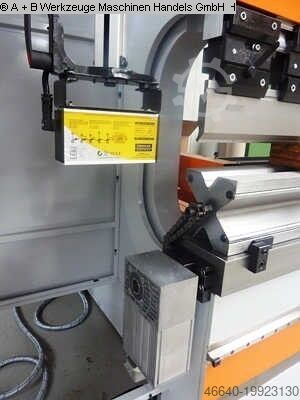

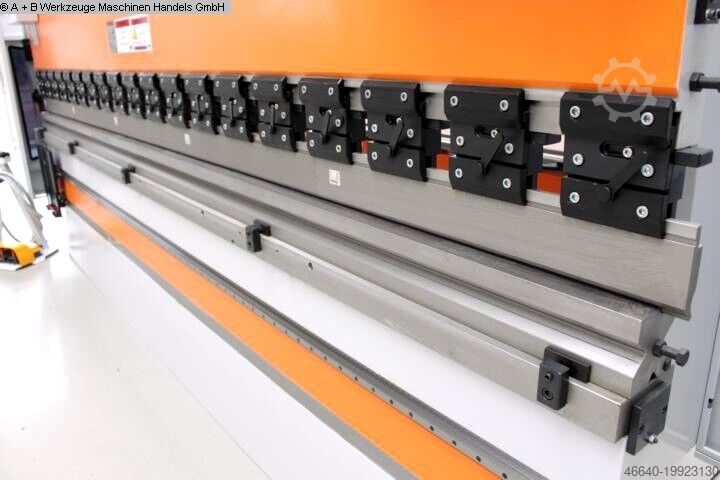

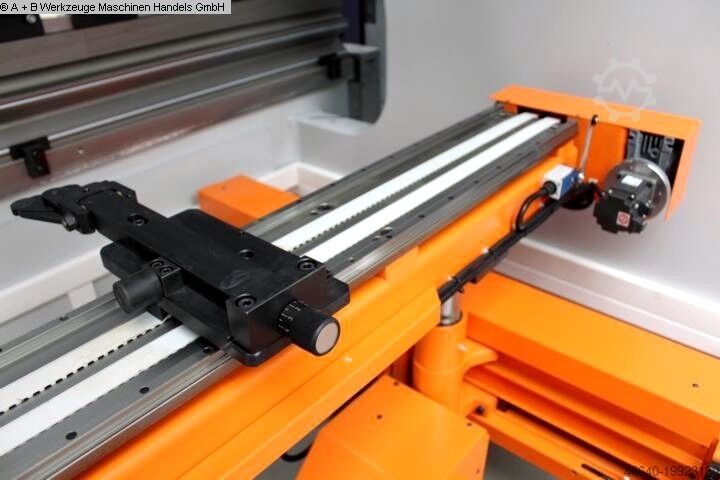

ERMAK SPEED BEND PRO 3.220

Condition: new, pressure: 600bending length: 6050column width: 5100daylight: 680stroke lenght (max.): 455column throat depth: 450messurements (LxWxH): 7100x3275x3910weight approx.: 50.2004 axes (Y1, Y2, X, R): Ja alle Achsen über die Esa S630 (2D Grafik Steuerung)CNC crowning system by control: ja über die Esa S630 (2D Grafik Steuerung)motor power: 45Standard Equipment:KK Kletzer Europa We have developed a high-quality model specifically for the European market:The CNC press brake by KK Industries, made in Turkey. Model: KK Kletzer EUROPA XL The powerful EUROPA XL press brake stands out for its high precision, accuracy, and versatile offers a very large open height, resulting in a long cylinder stroke, and an extra-large throat depth to provide maximum flexibility during operations. We focus on delivering quality—reflected also in the control system:As standard, the machine comes equipped with the ESA S640 2D graphic controller. Additionally, the KKI EUROPA XL is equipped with CNC-controlled Y1, Y2, X, and R axes via the wning is also included and fully CNC-controlled through the same ESA S640. When it comes to tooling, we make no machine is fitted with premium top tools and dies from EUROSTAMP Italy. Naturally, a machine is only as good as the service behind t’s why we rely on highly qualified staff with many years of experience in CNC sheet metal processing. Neded Ehh Rjpfx Agrolg Technical Highlights: CNC axes: Y1, Y2, X, and R Controller: ESA S640 (2D graphical interface) Backgauge with double linear guides and ballscrews Motorized CNC-controlled crowning system Heavy-duty height adjustment with handwheel(from 175 tons: on linear guides) Laser safety system on the upper beam CE-compliant safety equipment Various options available Optional Controllers: ESA S640 – 15” 2D Touchscreen: ¤ 4,520.00 ESA 675 W – 21” 3D Touchscreen (Windows-based): ¤ 6,485.00 DELEM DA-66T – 17” 2D Touchscreen (Windows-based): ¤ 10,165.00 DELEM DA-69T – 17” 3D Touchscreen (Windows-based): ¤ 16,350.00

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, controller manufacturer: Cybelec, controller model: Cybtouch 12, working width: 6,000 mm, bending force (max.): 300 t, control type: CNC control, number of axes: 4, Equipment: CE marking, emergency stop, european tool clamping system, safety light barrier, Used 6metre x 300ton Adira Cnc Press Brake - Hydraulic Pressbrake Njdpfx Ajwu Ua Usgrelg 300 Ton 6000mm bending Length Back gauge: X and Z Axis Upgraded touch screen control Cyblec CybTouch 12 Control System Year of Manufacture - 2005 Good service history including rebuilt ram cylinders, rebuilt crowning and upgraded control system Euro tool clamping

Condition: used, Year of construction: 2011, pressure: 400bending length: 4050column width: 3400electricity performance: 37,5weight approx.: 25.000messurements (LxWxH): 5750 x 2110 x 3440STOCK CLEARANCE – UNBELIEVABLE PRICE!CNC Press Brake – DURMA AD-S 40400 (4 m x 400 tons) (Original price approx. EUR 170,000) Technical Specifications:Manufacturer: DURMA Model: AD-S 40400 Year of manufacture: 2011 Bending length: 4,050 mm Pressing force: 400 tons Axes: Y1, Y2, X, R + CNC-controlled crowning Motor power: 37 kW Features & Equipment:CNC crowning system, motorized adjustment via control Nodpfjvfy Sxox Agrslg Upper tool: 1010/A/75°, segmented and gooseneck-style Die: Multi-V die Backgauge: CNC-controlled 2 front sheet supports on linear guides CE-certified laser safety system (Lasersafe) mounted on the upper beam Machine fully complies with CE standards new pump installed The machine is being sold in its current condition. The machine was purchased from an insolvency sale and transported to our warehouse. The basic up and down functions have been tested and are working. Apart from that, we have no further information regarding the technical condition or overall functionality of the machine. An on-site inspection can be arranged upon request. The machine is sold as is, without any warranty or guarantee. One-time offer – available immediately!Only 1 unit in stock – ready for fast delivery – no lead time!Take advantage of this rare opportunity to own a high-performance CNC press brake at a fraction of the original price.

Condition: refurbished (used), Year of construction: 2017, functionality: fully functional, overall weight: 120,000 kg, total height: 5,600 mm, pressing force: 1,250 t, air pressure: 6 bar, distance between side stands: 1,200 mm, distance between stands: 1,400 mm, stroke length: 500 mm, table length: 1,850 mm, table width: 1,600 mm, Straight-sided eccentric press ERFURT type PKZe 1250 Superb working condition, after full, professional overhaul. After - newer used. Specification: Capacity: 1250 ton force Slide stroke: 500 mm Slide adjustment: 215 mm Maximum shut height between bolster plate and slide (stroke down, adjustment up): 860 mm Bed area (width x depth): 1600x1850 Slide area (width x depth): 1300x1400 mm Opening in the bed (width x depth): 1100x1100 mm Main motor rating: 90 kW at 1478 RPM Ram adjusting motor rate: 7.5 kW at 1450 RPM Number of single strokes: 8 min-1 Cushion capacity: 200 ton force Nlodpfx Ajubyrxsgreg Cushion stroke: 200 mm Height above floor: 7900 mm Press weight: 130 000 kg.

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, Equipment: CE marking, documentation/manual, CNC control, with graphic display Pressing force: 175 tons Maximum bending length: 3000 mm Network connection Nlsdezcg Rmopfx Agrsg 4-axis controlled Pressing force: 175 tons Maximum bending width can be up to 8 mm Automatically controlled table pre-tensioning

Condition: excellent (used), functionality: fully functional, Year of construction: 2017, laser power: 4,000 W, sheet thickness steel (max.): 20 mm, sheet thickness aluminum (max.): 15 mm, sheet thickness brass (max.): 8 mm, total length: 3,000 mm, working range: 1,500 mm, Equipment: safety light barrier, Bystronic BySprint Fiber 3015, 4000W Nlsdpsup Tfcofx Agrog Maximum cutting area: X-axis: 3048 mm, Y-axis: 1524 mm, Z-axis: 70 mmNominal sheet size: 1500 x 3000Materials and maximum thicknesses of materials to be cut: Steel 20 mm, Stainless steel 15 mm, Aluminium 15 mm, Brass and copper 8 mm.Cutting accuracy: 0.1 mmPacking accuracy: 0.05 mmMaximum workpiece weight: 890 kg

Condition: new, pressure 400 t chamfer lenght 4100 mm distance between columns 3550 mm column arm 510 mm ram stroke speed 110 mm/sec work speed 8.4 mm/sec return speed 130 mm/sec work stroke 375 mm dayligth 650 mm table height 1000 mm table width 240 mm back stop - adjustable max. 800 mm oil volume 400 ltr. voltage 400 Volt total power requirement 30.0 kW weight 26409 kg range L-W-H 5450 x 2650 x 3470 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 Nlsdpfx Aexaadtogrjg - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge - Universal die block - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components - SIEMENS - electrical system - FIESSLER AKAS laser protection device in front of the machine (including FPSC) - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes Special equipment including: - electrical central lubrication

Condition: new, Year of construction: 2024, Hydraulic press brake PBO-3220-CNC Delem DA-58T Specifications - Nominal pressure: 2000 kN - Max working length 3200 mm - Throat depth: 320 mm - Max stroke: 200 mm - Daylight: 480 mm - Distance between side frames: 2600 mm - Max backgauge distance: 600 mm Nlodpfxjipxzpj Agrjg - Nominal motor power: 15.0 kW - Length: 3300 mm - Width: 1800 mm - Height: 2900 mm - Weight: 10500.0 kg Tools - Front supports: 2 pcs - Backgauge distance regulation (X-axis): servo motor - Ram control (Y-axis): servo motor - Finger height adjustment (R axis): manual - Type of punch holder: AMADA quick-action clamping Delem DA-58T controller - Advanced operator support based on algorithms - Advanced, graphic simulation of bending sequences - Operator prompts included - Algorithms to shorten the production process - Automatic calculation of crowning Optional extra - Manual crowning So that you are always sure that the workpiece will have the same angle along its entire length. Optional extra - Automatic crowning Enables the controller to take control over crowning, thus, ensuring that the setting value is always perfectly matched to the needs. OCS - Oil Cooling System Oil Cooling System guarantees the stability of the machine's operating parameters even after long, continuous operation. Assistance by a specialist We make sure to stay in constant touch with our Clients. This is why we add a time package of tech support hours for Otinus Professional Assistance to each machine purchased. See and test the machine Join us for a one-of-a-kind demonstration where a qualified Otinus technician will show you the full functionality of the machine. In addition, you will be able to try out how the device will perform against your needs as you can provide technical drawings and sample material. Included in the machine price 2-day training including installation of the machine - 1st day (up to 8 hours) - installation of the machine and learning to use the controller. - 2nd day (up to 8 hours) - independent work on the machine under the supervision of our technician with the possibility of programming specific parts manufactured by the Client. Telephone consultation with a specialist - 7.30 a.m. to 9 p.m. (Mon-Sat) - package of 8 hours to be used within 12 months - Free lending of transport rolls and two lifting jacks for easier positioning of the machine at Clients' facilities. The rollers and jack will be delivered after prior notification (no less than 7 days before delivery of the machine). Terms of cooperation - 24 month warranty - The machine is brand new - Warranty and post-warranty service provided by the seller - The Client is responsible for the machine during unloading and transporting on-site

Condition: new, Year of construction: 2026, functionality: fully functional, PDH Series – Heavy-Duty CNC Press Brake Heavy-Duty CNC Press Brake – PDH Series | 4000–16000 kN | Bending Length up to 12000 mm Nljdpfjy Swptex Agreg The PDH Series is designed for the most demanding heavy industrial bending operations. With forces ranging from 400 to 1600 tonnes and bending lengths up to 12 meters, this series handles thick plate and structural steel bending with exceptional accuracy. Available Models & Key Parameters: ModelForce (kN)Bending Length (mm)400/310040003100400/410040004100500/600050006000600/50006000 5000600/600060006000600/800060008000800/600080006000800/800080008 0001000/60001000060001000/80001000080001200/80001200080001600/800 01600080001600/120001600012000 Common Specifications: CNC Axes: 3+1 / Y1, Y2, X, V Slide Stroke: 300–500 mm Open Height: 560–1000 mm Throat Depth: 400–800 mm Main Motor Power: 30–110 kW (2×55 kW on the largest models) Oil Tank Capacity: 800–3000 L Approaching Speed: 70–100 mm/s ✅ Heavy-duty construction for thick plate & structural steel ✅ Bending lengths up to 12,000 mm ✅ Forces up to 16,000 kN (1600 t) ✅ CE certified | Warranty | Spare parts & technical support

Condition: ready for operation (used), Year of construction: 2007, operating hours: 20,700 h, pressing force: 337 t, total width: 2,200 mm, total height: 3,715 mm, overall weight: 24,000 kg, travel distance X-axis: 800 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 610 mm, controller manufacturer: DELEM, controller model: DA-66W, product length (max.): 5,100 mm, number of axes: 6, This 6-axis GASPARINI PSG 330/4000 Variante C was manufactured in 2007. It features a bending force of 330 tons and a useful bending length of 4100 mm. The machine includes a stroke of 400 mm and an X-axis travel of 800 mm. If you are looking to get high-quality bending capabilities, consider the GASPARINI PSG 330/4000 Variante C press brake we have for sale. Contact us for further details. Nedpfjy U Hwrex Agrslg - Bending Force / Press Capacity: 330 Ton / 3300 kN- Usable Bending Length: 4100 mm- Distance Between Uprights: 3600 mm- Stroke / Y-Axis Travel: 400 mm- Installation Height / Daylight: 600 mm- Throat / Ausladung: 500 mm- Approach Speed: 0 - 200 mm/s- Return Speed: 0 - 125 mm/s- Working Speed: 0 - 8.5 mm/s- X-Axis Speed: 300 mm/s- X-Axis Accuracy: ±0.05 mm- R-Axis Stroke / Travel: 250 mm- R-Axis Speed: 160 mm/s- R-Axis Accuracy: ±0.1 mm- Z-Axis Speed (Option): 1000 mm/s- Z-Axis Accuracy (Option): ±0.25 mm- Z-Axis Repeatability (Option): ±0.15 mm- Motor Power: 30 kW- Power Supply: 400V / 50Hz- Oil Tank Capacity: 420 L- Recommended Hydraulic Oil: Shell Tellus Oil TX 46- Machine Weight: ca. 24 Ton (23 t on nameplate)- Table Width: 90 mm- Working Height: 965 mm- Hydraulic Components: Rexroth- Electrical Components: Telemecanique- Pneumatic Components: SMC- Control Unit CNC: Delem DA-66W- Safety System: Nuova Elettronica DFS Laser Beam - RX (Type 4 Safety Device)- CNC controlled Z1-Z2-Z5 with 6-axis control DA - 66 W- Tool holder with upper and lower jaw clamping system Technical Specification Bending Length 4100 mm
