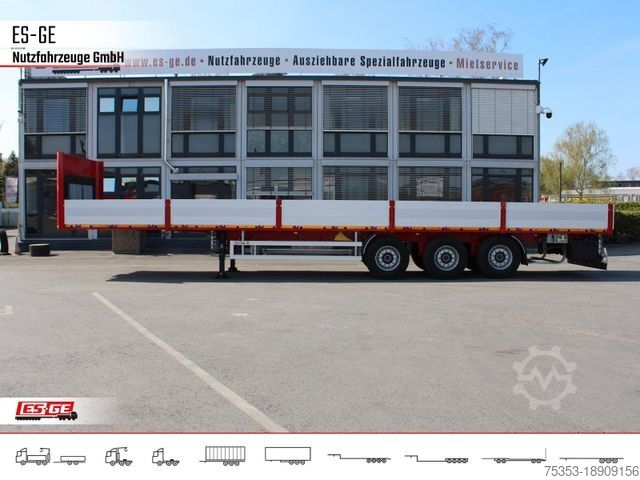

Working platform semitrailer

ES-GE 3-Achs Sattelanhänger -Bordwände

Condition: new, overall weight: 43,000 kg, axle configuration: 3 axles, Equipment: ABS, You can find our complete range of vehicles, including immediately and soon available units, on our website. Equipment excerpt; full equipment details available on request. Chassis: * Welded construction made from high-quality steel profiles with through cross beams, designed for high point loads * Underrun bar width approx. 700 mm * Outer frame as UNP profile * Fifth wheel plate approx. 8mm * Neck height at front approx. 130 mm Coupling device * 2-inch kingpin Rear underrun protection * Bolted version, in compliance with EC regulations Side underrun protection Iiodpfx Ajw U H Sbjfpoh * According to EC regulations, made of anodised aluminium profiles Landing legs * 2 x 12 t landing legs with compensating foot and single-side operation, RHS in direction of travel Axles * 3 x 9 t air suspension axle assemblies, disc brakes 22.5” * Total stroke approx. 180 mm * Lifting and lowering device via rotary slide valve Braking system * Twin-line compressed air braking system to EC specifications, with EBS and RSS, automatic load-dependent control * Spring chamber cylinders as parking brake * Polarity-protected coupling heads permanently mounted on front cross member, without connecting line to towing vehicle Tyres * 6 off, 385/55 R22.5 160J on steel rim 11.75 x 22.5 ET 120, brand of our choice * Tyre pressure monitoring system (TPMS) via EBS CAN bus Mudguards * According to EC regulations Spare wheel holder not included Load securing * 9 pairs of foldable lashing rings, evenly distributed, max. tensile force approx. 5.0 t * 9 pairs of foldable lashing rings, evenly distributed, max. tensile force approx. 2.0 t * Drill holes for attaching lashing straps every approx. 400–600 mm in the outer frame Front wall * Reinforced fixed steel structure, approx. 1,400 mm high * Inner face lined with approx. 9 mm phenolic plywood (approx. 1,250 mm high) Floor * Approx. 28 mm Z-hardwood floor let into the outer frame with galvanised omega steel profiles Lighting system * In compliance with EC, 24 volt, with multi-chamber lights * LED side marker lights * Front white LED position lights * Rear LED outline marker lights * Number plate lights * LED lane departure lights * 1x15- and 2x7-pin plug connections at the front cross member Equipment * 2 wheel chocks with holders * ECE 70 warning boards * Bracket for rotating beacon, incl. rotating beacon * 2 rubber buffers at the rear * Foldable and extendable access ladder at rear right (without platform) * 1 open perforated sheet metal box, transverse to direction of travel, approx. 600 x 450 x 2,430 mm, galvanised, behind the axles Paintwork * Front wall: RAL single colour as requested * Chassis: hot dip galvanised * Outer frame: hot dip galvanised + single RAL colour as requested * Centre stanchions: single RAL colour as requested * SSV: aluminium, anodised * Rear underrun protection: white (RAL 9016 traffic white) * Attachments: galvanised / KTL black * Rims: silver Conspicuity markings * Complete set in yellow Including special equipment * First axle liftable, with fully automatic, load-dependent lift control * 10 pairs of stanchion pockets in the outer frame, evenly distributed * 4 rows of stanchion pockets across the loading area * 20 stanchions made of galvanised tube 80/50, total length approx. 1,200 mm * Magazine for 20 removable stanchions inside the front wall * 5 x 25 side walls and rear wall made of anodised aluminium hollow profiles, foldable and removable * Removable Kinnegrip stanchions * Side wall and stanchi

Condition: new, overall weight: 39,000 kg, maximum load weight: 32,340 kg, axle configuration: 3 axles, total width: 2,550 mm, Equipment: ABS, You can find our entire inventory of vehicles, including those available immediately or at short notice, on our website. Extract from the equipment list. Full equipment details available on request. Chassis: * Welded construction using high-quality steel profiles with punched-through cross-members, designed for high point loads Ijdjwx Db Aopfx Afpeih Coupling device: * 2-inch kingpin Landing gear: * 2 x 12 t landing legs with compensating foot and single-side operation on the right front side Axles: * 3 x 9 t air suspension axle units * Disc brakes * SAF brand, with disc brake approx. 430 x 45 mm * ABS * Centrally positioned wheel mounting, 10-hole with ET 120 * Total pneumatic suspension lift approx. 200 mm, of which approx. 140 mm raising and 60 mm lowering, controlled via rotary lever valve with detent Brake system: * Dual-circuit air pressure braking system according to EC standards with EBS and RSS, automatic load-dependent control * Spring actuators as parking brake * Mistake-proofed coupling heads permanently mounted to the front cross member, with no connecting line to the towing vehicle Tyres: * 6 units, 385/55 R22.5 160J on steel rim 11.75 x 22.5 ET 120, brand of our choice Mudguards: * According to EC, PVC mudguards in front of and behind the axle unit Spare wheel holder: * 1 double basket incl. mounting kit for one spare wheel with ET 120 Load securing: * 9 pairs of folding lashing rings, evenly distributed, pulling force approx. 8.0 t * 8 pairs of folding lashing rings, evenly distributed, pulling force approx. 2.5 t * Outer frame with holes for tension straps approx. every 500 mm Front wall: * Reinforced steel construction, fixed * Interior lining approx. 9 mm birch plywood (approx. 1,250 mm high) Floor: * Approx. 28 mm Z-hardwood floor recessed into outer frame Lighting system: * EC compliant, 24 volts with multi-chamber lights * LED side marker lights * LED position lights white at front * LED outline lights at rear * Number plate lights * 1x 15-pin and 2x 7-pin connectors on the front cross member Equipment: * ECE 70 warning board * Bracket for rotating beacon (without beacon) Paintwork: * Chassis and front wall sandblasted, primed and painted in single color * Chassis: RAL 3002 (carmine red) * Sideboards: Anodized * Sideboard stanchions: RAL 3002 (carmine red) * SSV: Aluminum anodized * Hubs: KTL coated * Rear underrun guard: white (RAL 9010) * Attachments: galvanized/KTL black * Rims: silver Accessories: * First axle liftable, with fully automatic load-dependent lift control * 10 pairs of stanchion pockets in outer frame, evenly distributed * 4 rows of stanchion pockets across the loading deck * 20 stanchions made of galvanized tube 80/50, total length approx. 1,000 mm * Magazine for 20 plug-in stanchions mounted inside front wall * Sideboards: 5 x 25er sideboards and rear wall made of anodized aluminum hollow profiles, foldable and removable, removable Kinnegrip stanchions * Sideboard and stanchion magazine: insertion rails for sideboards and stanchions left and right under the chassis * Container locks for 1 x 40' and 2 x 20' containers at rear flush, container locks for 1 x 20' container in center position * Work light on lamp bracket * 2 stainless steel toolboxes, approx. 600 x 500 x 500 mm * Air suspension Safety: ABS * EBS * Disc brakes Extras: Rental possible
