Notching Machine

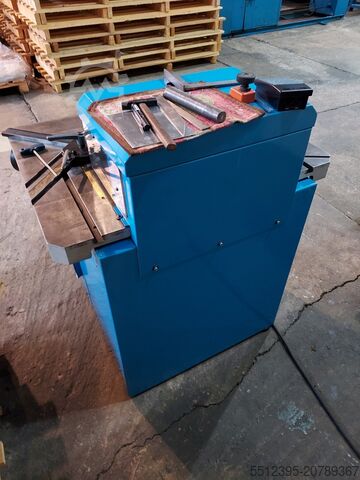

EUROMAC 220 / 6

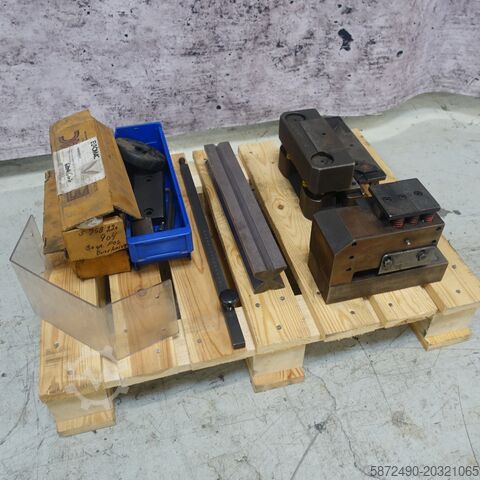

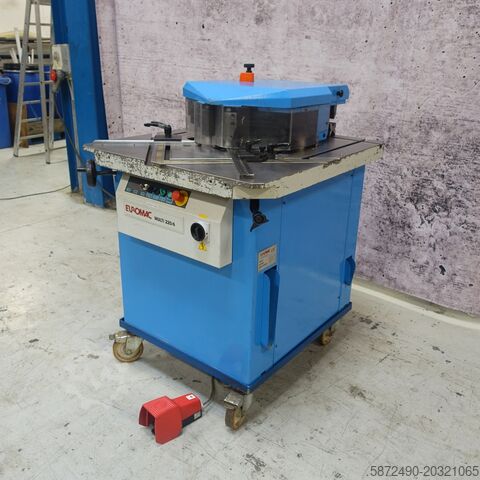

Condition: used, functionality: fully functional, Year of construction: 1996, cutting angle (min.): 30 °, cutting angle (max.): 140 °, sheet thickness steel (max.): 6 mm, power: 3 kW (4.08 HP), overall weight: 1,060 kg, Equipment: documentation/manual, Capacity: 6 mm. Length of blades: 220 mm. Adjustable blade angle: Variable angle 30-140°. Motor: 3 kW. Year: 1996 Country of origin: Italy. Size (L x W x H): 1150 x 1100 x 1450 mm. Weight: 1060 kg. Capacity 60-140° = 6 mm. Capacity 30-60° = 3 mm. (With special blades). With: press brake station with manual back gauge (tool 415 mm.), Rectangular notching unit 100 x 25 mm., radius notching tool, debth regulator and hydraulic locking of blade angle. Gjdpfx Aoxpf Hlof Sskd All our machines will be tested and serviced before delivery.

Condition: excellent (used), Year of construction: 2000, pressure 105 t chamfer lenght 3100 mm Gsdpsvq R Uujfx Af Sjkd distance between columns 2600 mm table width 100 mm table height 750 mm Control DELEM DA 65 dayligth 200 mm working feed 0 - 10 mm/sec return speed 0-100 mm/sec rapid traverse - up max. 100 mm/sec voltage 380 V / 50 Hz total power requirement 11 kW weight of the machine ca. 7,5 t dimensions of the machine ca. 4 x 2,2 x 2,8 m Equipment: • CNC-control DELEM DA65 graphic video • controlled backgauge 2 axis • upper and lower tool • 2 hand control / foot switch

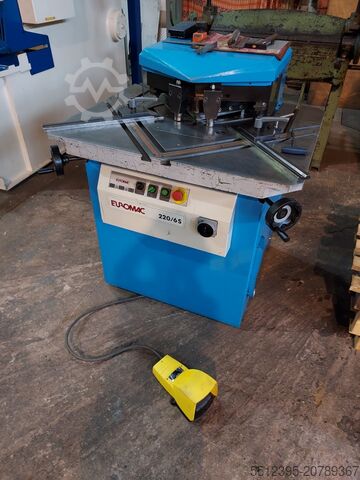

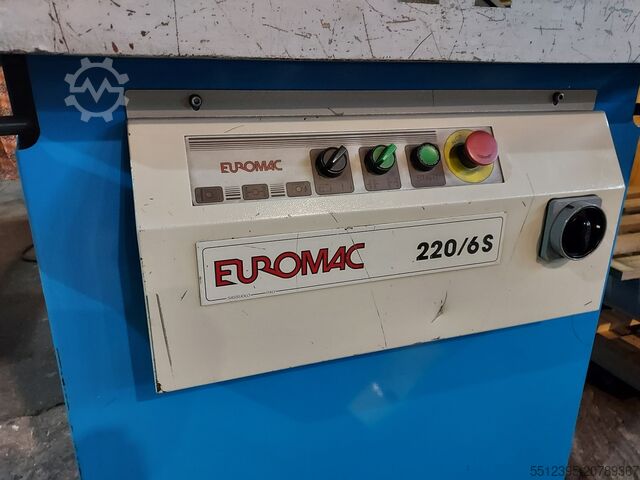

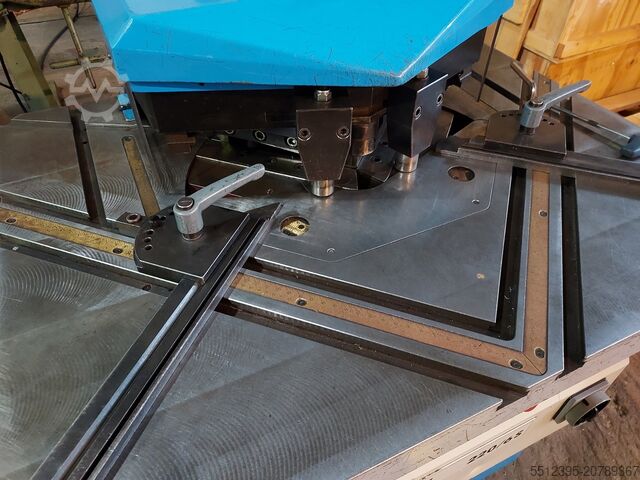

Condition: used, Year of construction: 1993, plate thickness 6.5 mm thickness at "Niro-steel" 5.0 mm angle adjustable from - to 30 - 140 Grad no. of strokes ca. 50 Hub/min table: 950 x 1030 mm blade length 220 x 220 mm total power requirement 4.0 kW weight 800 kg range L-W-H 1100 x 950 x 1280 mm current new price approx. 25.000 euros good condition (!!) special price on request Equipment: Gkjdpsxab Srjfx Af Sjd - electro-hydraulic notching machine - multi-function machine with 2x work stations * 1x notching, 1x unit for radius rounding * including radius punching tools - manual angle adjustment 30 - 140 degrees * 2x handwheels for angle adjustment - large / stable work table - 2x new angle stop, adjustable - automatic cutting gap adjustment - 1x freely movable foot switch - connection cable + 16A plug - cutting performance: * 6.5 mm to 60° ST * 5.0 mm to 60° VA * 4.0 mm to 30° ST * 3.0 mm to 30° VA

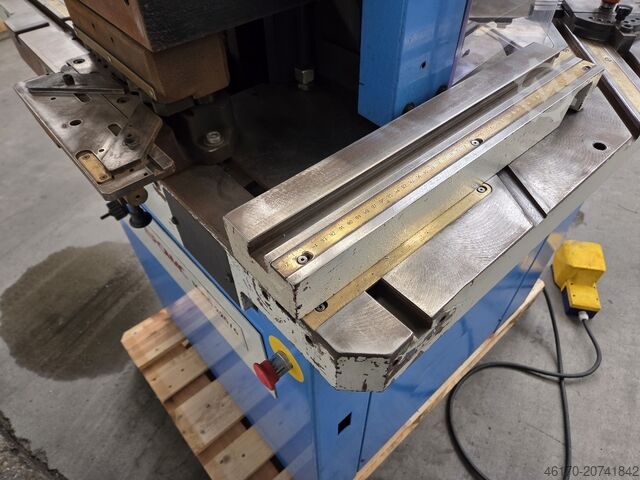

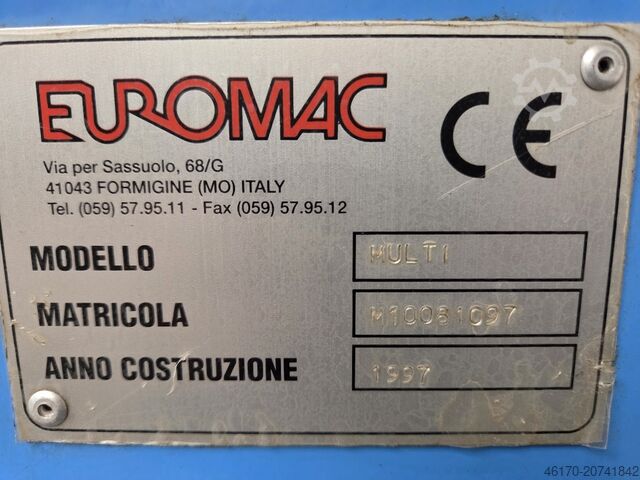

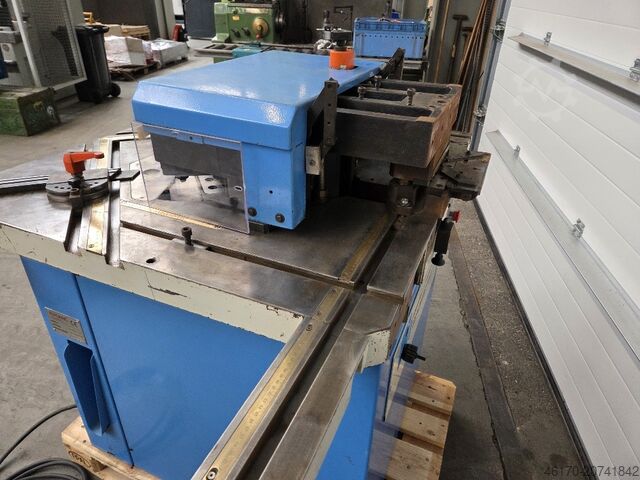

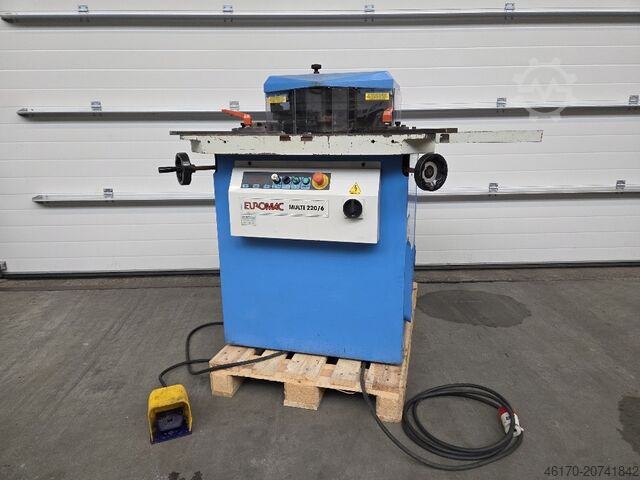

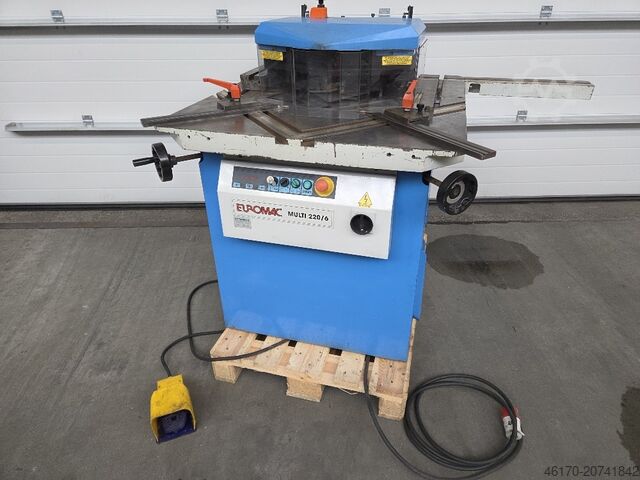

Condition: used, 2-station notching machine and folding machine EUROMAC type Multi 220/6R Press brake, press brake, notching machine Serial no. M11941298 Year of manufacture 1998 Cutting capacity 6 mm steel at 45 kg/mm2 4 mm for stainless steel Station I (notching) Notching angle 60° to 140° (with special blade from 30° to 140°) Knife length 220 mm Table size 950 x 640 - Manual angle adjustment via hand wheels - Notching angle with built-in blade set from 60° to 140 - Hydraulic clamping of the upper and lower knives - Automatic cutting gap adjustment - sheet hold-down device - Scaled measuring tapes embedded in the table - stop rails with angle adjustment - Operation via foot switch Station II (die bending device) Pressure force 18 ton Table size 950 x 340 Working height 1100 mm - stepless lifting speed - Infinitely adjustable stroke limiter - Stroke adjustment up to 30 mm working stroke - Reversible prism with 4x 90° prisms, length = 415 mm - 90° upper tool, length = 415 mm Motor power 4 kW Gkedpfx Aomck Ryef Ssd Mains connection 400 Volt, 50 Hz Space requirement L x W x H 1150 x 1050 x 1460 mm Weight approx. 1000 kg good condition

Condition: good (used), functionality: fully functional, Between centers: 1500 mm Turning diameter above bed: 500 mm Turning diameter above support: 300 mm Turning diameter in pocket: 700 mm Spindle bore: 72 mm Spindle speeds: 18 pieces, 11-2000 RPM Godpfsu Tt S Nex Af Sskd 3 jaw chuck, 4 jaw chuck, Fixed and moving steady Cooling 1-axis Digital readout on workpiece diameter

Condition: excellent (used), Year of construction: 1996, stroke length: 160 mm, pressing force: 120 t, Hydraulic press brake Fab. DURMA Typ. HAP 30120 Gkodou Iarbspfx Af Sod Year 1996 Technical details Make: DURMA Type: HAP 30120 Year of construction: 1996 Capacity: 120 tons Effective length: 3050 mm Stroke: 160 mm Engine power: 11 kW Dimensions: L 4,150 x W 1,950 x H 2,600 mm Weight: 7.5 tons Equipment - Controlled backgauge - Immersion depth adjustable via control - Controlled axes: X, Y - 2 support arms - Technical documentation - Tools: o Multi-V die V12, V20 (slightly damaged), V13, V16, V45, V15, V10, V65 Length 3,050 mm o Slightly cranked upper tool, H 150 mm, L 2,970 mm, segmented All information without guarantee. A demonstration is possible at any time in our showroom.

Condition: ready for operation (used), Hydraulic press, four-column press, Eitel 100T Manufacturer: EITEL Gjdpfx Afjuhl E Rs Sokd Pressing force: 100 tons Overall dimensions: 1900x1100x3300mm Table size: 1050x800mm Stroke length: 400mm

Condition: good (used), functionality: fully functional, Year of construction: 2000, sheet thickness steel (max.): 16 mm, back gauge: 1,000 mm, cutting length (max.): 3,150 mm, foot switch motorized arrester behind cutting angle adjustment Technische Daten / technical details: Schnittleistung / max. cutting capacity 16 mm Gkjdpov Syyvefx Af Ssd max. Schnittlänge / max. cutting length 3150 mm Anschlag / limit stop 1000 mm Gewicht der Maschine / weight 16300 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: ready for operation (used), functionality: fully functional, Sheet straightening machine, 2100 mm,Sheet Metal Straightening, Plate Leveler Machine 2100 mm Used machine Maximum Sheet Width: 2100 mm (2100x8 mm) Maximum Sheet Thickness: 10 mm (1500x10 mm) Number of Rolls: 11 pcs Gkjdpfxjv Tpv Nj Af Ssd Roll Diameter: 95 mm Electric Motor: Adjustable speed and direction Electrical Data: 400 V, 50 Hz, 36 A, 22.5 kW Includes a roller conveyor.
