Sharpening machine

EWAG WS 11 SP

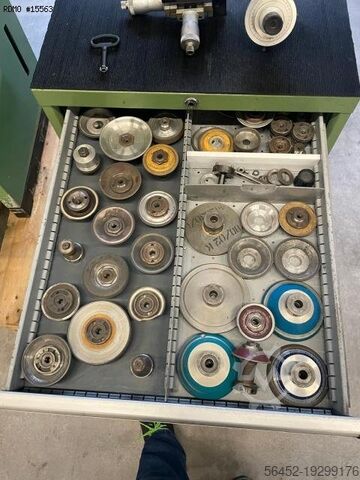

Condition: used, EWAG WS 11 SP is a tool and cutter grinder designed for precision, high accuracy and reliability. Working capacities: X/Y/Z axes 100 mm, grinding-wheel diameter 75 mm, workpiece spindle speed 100-1300 t/min, vertical adjustment of grinding head 100 mm, slewing range horizontal 165°, grinding spindle speeds 2500-7100 t/min, collet attachment 20 W. Technical specifications: voltage 50 Hz 3x380 V, total power required 2 kVA, machine weight about 400 kg, dimensions L850×W850×H1580 mm. Key equipment: flange for wheel, dust extraction, set of grinding wheels, lamp, helical grinding device W20, feed unit (Z-axis) 4 E-M, grinding stroke 3 J. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical Cjdpfexyi I Iex Af Hsrk

Condition: good (used), Year of construction: 2007, 1 used CNC tool grinding machine Make: Schneeberger Model: Corvus GDS 650 Year of manufacture: 2007 CNC Control: FANUC 160i Software: Quinto 4.3 Activated software options (option numbers): 1, 2, 19, 21, 22, 30, 31, 32, 35 - Fanuc loading robot - Coolant system Travel: X-axis: 650 mm Y-axis: 300 mm Z-axis: 300 mm C-axis swivel range: +150°/ -60° C’-axis swivel range: +/- 180° Grinding spindle: Wheel diameter up to 250 mm Speed: 0 – 10,000 rpm Max spindle power: 26 kW HSK 80 interface Max. number of wheels: 6 Workpiece spindle head: Vmax: 180°/s Drive power: 1.6 kW ISO 50 interface Precision (resolution): Linear axis resolution: 0.001 mm C-axis: 0.001° Dimensions: Length: 3,100 mm Width: 1,915 mm Height: 2,190 mm Weight: 8,500 kg U-axis is integrated with steady rest, clamping cylinder, and tailstock Credpeu A Dn Njfx Af Hek 6-pallet loader (diameter 3 to 32 mm) 64 plastic collets Technical data subject to change without notice

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, TECHNICAL DESCRIPTION EWAG 6-axes CNC Tool Grinding Machine Ewamatic Line. Make : EWAG Type: Ewamatic Line ERS - SK2000 Year: 2002 Control type: CNC Control: NUM 1050 Origin: Switzerland Weight of the machine approx. 4 t Dimensions of the machine approx. 2365 x 2920 x 2810 mm Travels: Cross axis X 360 mm Height adjustment Y 150 mm Infeed axis Z 230 mm Swiveling axis B +/-120 deg. Tilt axis A: -15...+25 deg. Dividing attachment with cylindrical grinding mode HSK63 clamping variant (C-axis1000 rpm) 6-station turret grinding head tiltable: Grinding spindle Ø 80 mm, number 6, arranged in a star shape Grinding wheels Ø max. 250 mm Csdpov Tbfpefx Af Hsrk Grinding spindle drive 7.5 kW, speed 12000 rpm. RENISHAW 3D Measuring station Dressing device for automatic stone dressing of diamond and CBN grinding wheels Coolant equipment With oil-mist extractor Donaldson

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 176308, Country of manufacture: Switzerland Voltage: 400 / 380 / 50 / 3 Net weight: approx. 350 kg Dimensions: 82x85x156 cm Installed power: max 2 kVA Customs classification: 8460.3930 TECHNICAL SPECIFICATIONS GRINDING WHEEL SPINDLE UNIT Spindle speed (both rotation directions): 2,500 / 3,500 / 5,000 / 7,100 rpm Grinding wheel motor power (2,800 rpm): 0.4 HP Vertical slide stroke (linear): 100 mm Micrometric stop adjustment travel: 25 mm Micrometric stop readout accuracy: 0.01 mm Credpfx Aew T S Sqjf Hsk WORKPIECE SPINDLE UNIT Workpiece spindle speed (both directions, continuous): 100–900 rpm Motor power: 0.2 HP Indexing plate teeth count: 120 Angular vernier reading: 20' Collet type: W-20 Horizontal travel: 100 mm Rapid feed per handwheel turn: 2 mm Micrometric feed per handwheel turn: 0.1 mm Micrometric feed per scale division: 0.001 mm SPINDLE HEAD SWIVEL RANGE (a) Main direction: 165° Fixed ratchet increments: every 3° Increments with micrometric screw: every 2' (b) Grinding plane: approx. 15° Stop: at 0° Cross movement range: 80 mm Micrometer travel: 25 mm Reading precision: 0.01 mm Extraction motor power (2,800 rpm): 0.25 HP All technical specifications provided without guarantee and subject to possible errors or omissions.

Condition: excellent (used), Year of construction: 2003, HMC 500 control unit Year of manufacture: 2003 incl. software ball end mill; face mill; drill; taper tools: woodworking tools; etc. Crodpfxow Hxtve Af Hjk
