Milling cutter sharpening machine

EWAG WS-11

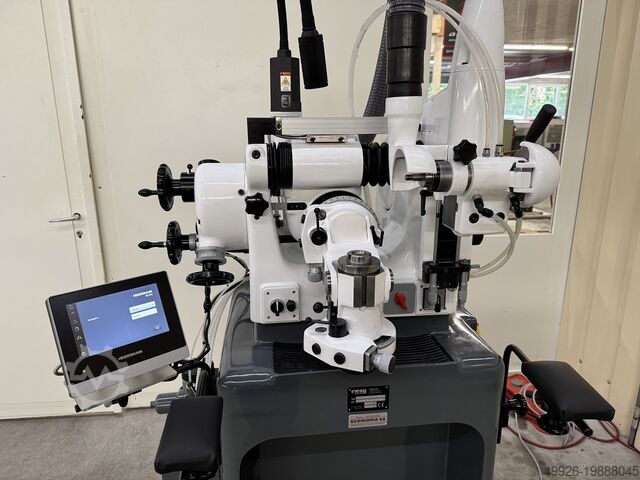

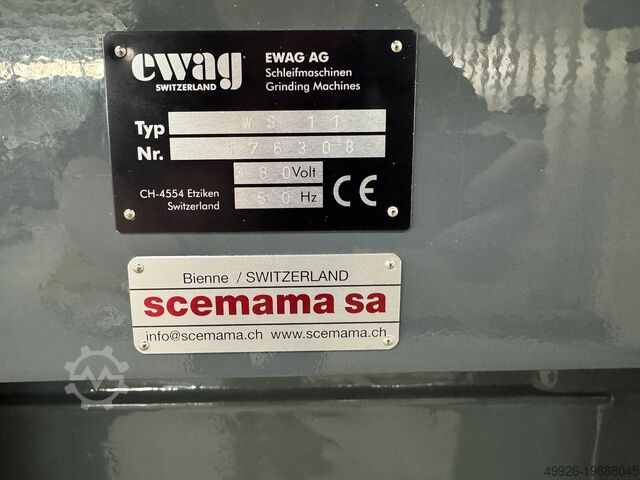

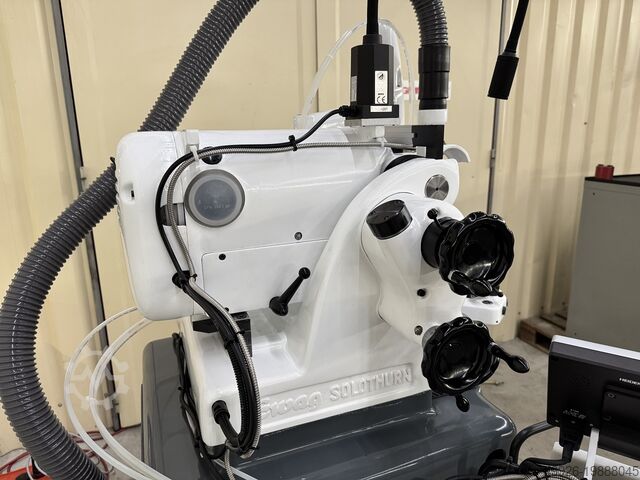

Condition: used, EWAG WS 11 SP is a tool and cutter grinder designed for precision, high accuracy and reliability. Working capacities: X/Y/Z axes 100 mm, grinding-wheel diameter 75 mm, workpiece spindle speed 100-1300 t/min, vertical adjustment of grinding head 100 mm, slewing range horizontal 165°, grinding spindle speeds 2500-7100 t/min, collet attachment 20 W. Technical specifications: voltage 50 Hz 3x380 V, total power required 2 kVA, machine weight about 400 kg, dimensions L850×W850×H1580 mm. Key equipment: flange for wheel, dust extraction, set of grinding wheels, lamp, helical grinding device W20, feed unit (Z-axis) 4 E-M, grinding stroke 3 J. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical Duodexyi I Iepfx Aamep

Condition: excellent (used), Year of construction: 1992, Universal tool grinder Michael Deckel S11 very good condition !!! Technical data: >> Year of manufacture 1992 >> serial no. 1651 Clamping range : >> Clamping area of the tool slide 500 x 180mm >> Max. tool diameter between centers 130mm >> Max. Max. tool diameter with flying clamping in universal dividing head 620mm >> Max. Tool length between centers 270mm >> T-slots machine stand 12mm >> T-slots grinding head, tool slide and accessories 8mm Range of motion: >> Working paths grinding stroke 190mm grinding stroke during swirl grinding 190mm cross adjustment tool slide 100mm vertical adjustment grinding head 325mm longitudinal adjustment grinding spindle 5mm >> Coarse adjustment travel tool carrier 220mm Grinding head carrier 800mm Universal dividing head on tool slide 330mm >> Swivel angle Grinding head carrier 360 degrees Grinding head 360 degrees Tool carrier 360 degrees grinding spindle: Duedpfxjm E T Anj Aamop Three-phase drive motor 1.1KW at 2800 rpm Spindle speed, stepless 2000 to 10000 rpm Max. Grinding wheel diameter 125mm Max. Cutting disc diameter 200mm Djduu2 Dimensions: Weight 520 Kg Dimensions ( depth x width x height ) 800 x 1100 x 1760mm Space requirement ( including operation ) 2,5 x 2,3 m Accessories and equipment: >> Opto-electronic measuring device with microscope and digital display >> Radius grinding device SK40 >> Handwheel device for tool slide >> Suction device >> Machine lamp To the machine : Offered is a universal tool grinding machine of the brand Michael Deckel S11. The machine is suitable for grinding high-precision parts. With the S11, individual parts and small batches are ground amazingly fast, economical and flexible and with the highest ease of use. The Deckel S11 is in very good condition. Mechanically and electrically tested. Take the opportunity to inspect and try out this machine on site under power.

Condition: reconditioned (used), EWAG WS 11 is a Tool and cutter grinder designed for precision, high accuracy and reliability. X/Y/Z travel 100 mm; grinding-wheel Ø75 mm; A axis -135°/+30°; workspindle 100–1300 rpm; vertical head travel 100 mm; collet nose 20 W. Wheel spindle 2500–7100 rpm; 380 V 60 Hz; 0.4 CV; ~350 kg; 1000×1000×1800 mm. Accessories: set of collets, flanges, wheel arbors, lamp, Z feed unit. Achieves tight tolerances; suited to automotive, aerospace, watchmaking, medical sectors. Dodpfx Aajxx U Epemeup

Condition: used, Sharpening machine EWAG WS 11 SP Djdpfx Aswp T Nkjamoup

Condition: excellent (used), Year of construction: 1988, TECHNICAL DATA. Max. clamping length: 90 mm Tool clamping height with tapered shank: 50 mm Tool clamping height with straight shank: 45 mm Max. helix angle: 45° Number of clamping positions: 1 to 99 Max. slide travel: 550 mm Max. grinding wheel diameter: 350 mm Min. grinding wheel diameter: 150 mm Dsdpowwkacofx Aamsup Grinding wheel speed (variable): up to 2700 rpm Swivel range of grinding spindle axis: 0° to 15° Grinding slide feed rate (variable): 0.05 to 16 mm/min (with 3rd and 4th axis: 0.05 to 8 mm/min) Workpiece spindle taper: ISO Taper No. 40 Grinding Wheel Data CBN and diamond cup grinding wheel: Ø200 mm → Min. DFF: 66 (3rd axis), 76 (4th axis) Ø250 mm → Min. DFF: 16 (3rd axis), 26 (4th axis) CBN-ES cone grinding wheel: Ø200 mm → Min. DFF: 50 (3rd axis), 60 (4th axis) Ø250 mm → Min. DFF: 0 (3rd axis), 10 (4th axis)

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Technical Data Grinding/Workpiece Diameter: up to approx. 300 mm (partially up to 350 mm) Grinding Length/Stroke: approx. 550 mm (slide travel) Module range (for hobbing cutter resharpening): min. module approx. 0.5 to max. module approx. 25 Number of flutes: typically 1–99 pieces (depending on tool set) Grinding wheel diameter: approx. 150–300 mm Grinding wheel speed: up to about 2,700 rpm Centre distance (workpiece spindle): typical range 400–800 mm Dodextiunspfx Aamsup Swivel/Pitch range: e.g. grinding wheel head swivel 0–15° Machine weight and space requirement: approx. 4.2–4.9 t weight; space approx. 3 × 2.6 × 2.3 m Electrical data: operating voltage e.g. 380 V three-phase, control 24 V, auxiliary voltage 220 V

Condition: excellent (used), HOLEX SK40 collet chuck for ER collets – robust design, ideal for use on CNC machining centers. • Type SK40 – DIN 69871 • ER collet (diameter Ø16 mm) • Chuck lengths: 70 mm, 100 mm, 110 mm (depending on model) • Max. speed 12,000–15,000 rpm • Torque up to 70 Nm • Balancing class G6.3 – stable operation at high speeds • Brand HOLEX – Hahn+Kolb Germany • Very good, warehouse condition Duodpfjw S Itbex Aamsp • Available individually or as a larger set

Condition: good (used), functionality: fully functional, machine/vehicle number: S11-016, We are selling our Deckel S11. The machine is operational, and a digital readout can optionally be purchased as well. Dodsw A Rrvopfx Aamjup

Condition: ready for operation (used), Year of construction: 1990, functionality: not functional, Michael Deckel S 11 tool grinding machine. The machine is operational and in good condition. Accessories: grinding wheel arbors, collets, operating manuals. Duedpfx Aeyhxccsamop
