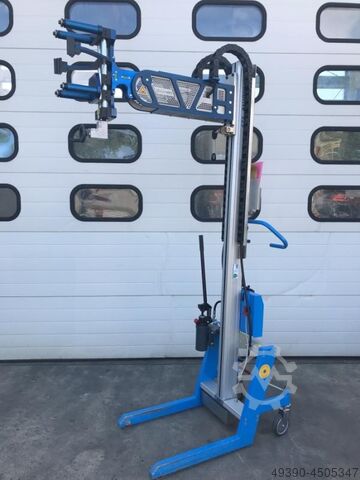

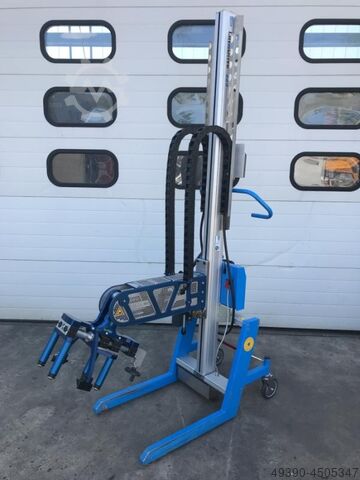

Electric lifting platform - pedestrian stacker, pallet truck for ergonomic handling of small loads,

EXPRESSO Lift & Drive 225P (lift2move)

Electric pallet stacker - pedestrian stacker, drawbar stacker
for the ergonomic handling of small loads
Manufacturer EXPRESSO, Model Lift & Drive 225P (lift2move)
Serial No. 19500S, Year of manufacture 2008
Model No.
Rated load capacity 225 kg
Lifting stroke 1680 mm
Lifting height 2200 mm
Lifting speed (unladen / laden) approx. 100 / 75 mm/s
Outreach of lifting device 861 mm
Chassis length 1020 mm
Ground clearance 90 mm
Underneath length 600 mm
Chassis design (front / rear) Ø 80 / 140 mm (2 fixed / 2 swivel castors)
Overall length 1400 mm
Overall width 600 mm
Overall height 2450 mm
Motor power 400 W
Battery capacity 24 V / 16 Ah
- Electric lifting drive with motor brake / self-locking gearbox and precision spindle with safety slip clutch

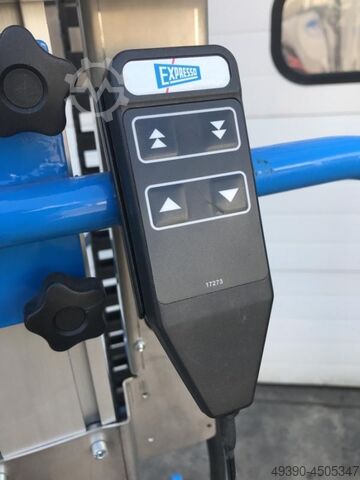

- Cable remote control with coiled cable and 2 lifting speeds
- Battery pack with quick-change system
- Battery charge indicator
- 2 units of 12 Volt, 17 Ah lead-acid batteries installed in the battery pack
- External charger 24 VDC, 3 Amps (mains voltage 230 V, 50 Hz)
- Can be moved manually, swivel castors with three-stage parking brake
- Handlebar infinitely adjustable in height
- Load receiving flange according to EXPRESSO standard

Special version: lifting device from GIESLER for radial fan SC-1000 CP XT (Tiger)
- Load capacity of the lifting device 25 kg
- Lifting device can be swivelled 90° via manual hydraulic pump
Pgodpfxjflt Edj Aflsp
- Opening width between the support jaws 300 / 330 mm
- Opening width between the clamping rollers 200 - 300 mm
- Clamping is done via handwheel
- Weight of the lifting device 60 kg
Total weight 140 kg
very good condition
